🚿 Warm water and shower - Camper Castle (LMC Tracer)

Here's everything you need to know for doing the dishes or a shower with warm water in your Camper Castle:

The boiler in the Camper Castle runs on diesel, so make sure the diesel tank is sufficiently filled.
Go to the Camper Unit and the Truma Unit (above the door) and follow these steps:

• Check the fresh water level. There must be enough water in the tank (above 50% is recommended).

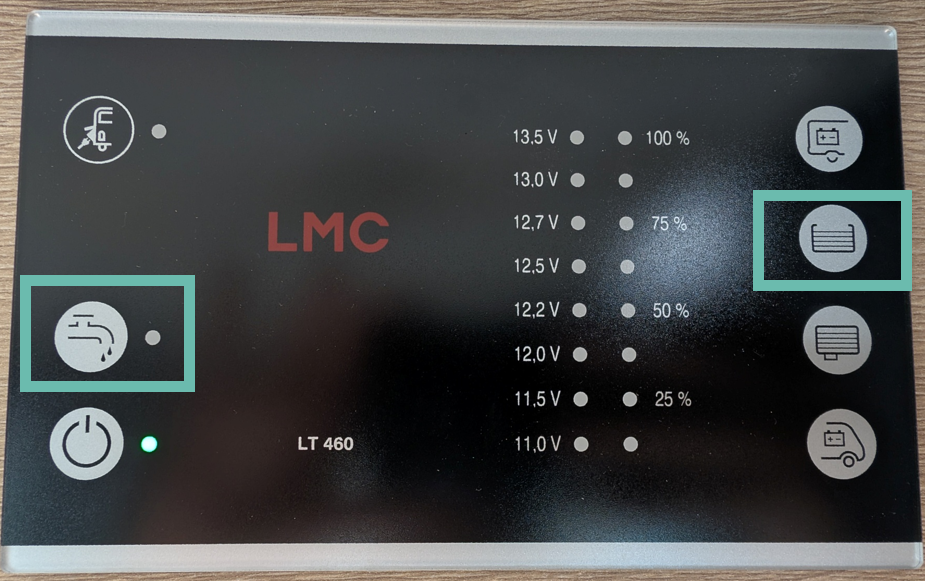

• Turn on the water pump on the camper unit.
• The boiler must be filled with water. To do that, turn the tap to the hot setting and let the water run briefly.

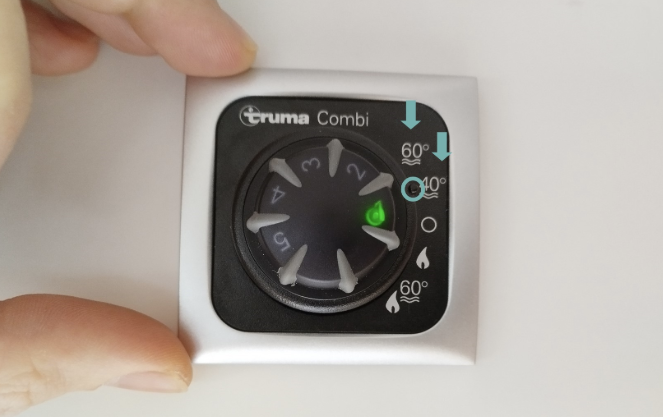

• Turn on the boiler on the Truma display following these steps:
  Turn the mark on the outer ring up to one of the wave symbols depending on whether you need (40° or 60°).

• It takes approx. 20 minutes for the water to heat up.

If you want to run the heating as well as the hot water, make sure that you set the mark on the outer ring to the flame/60° symbol.

Kitchen

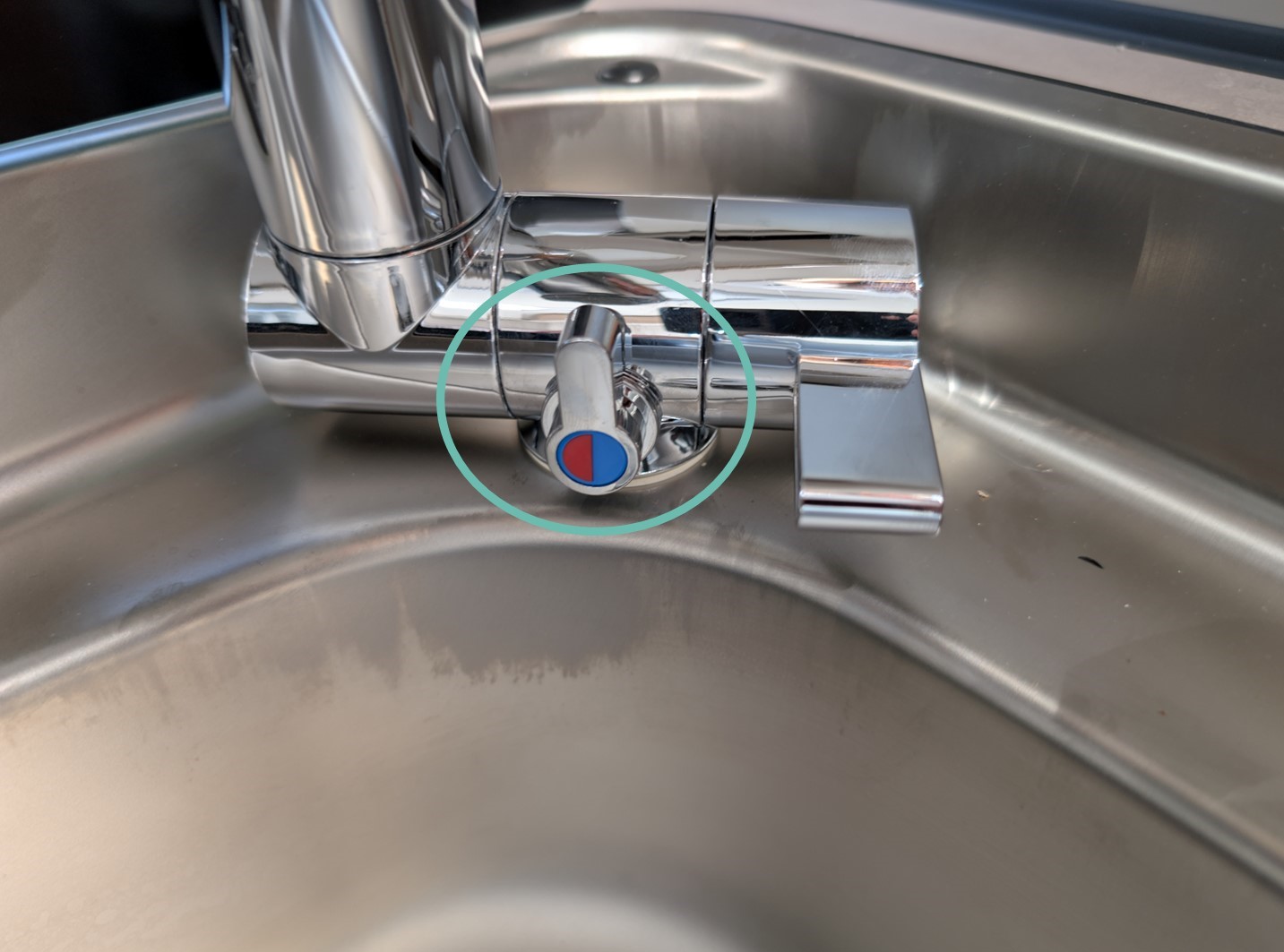

Use the small silver lever to optimize the temperature of the kitchen faucet:

Shower

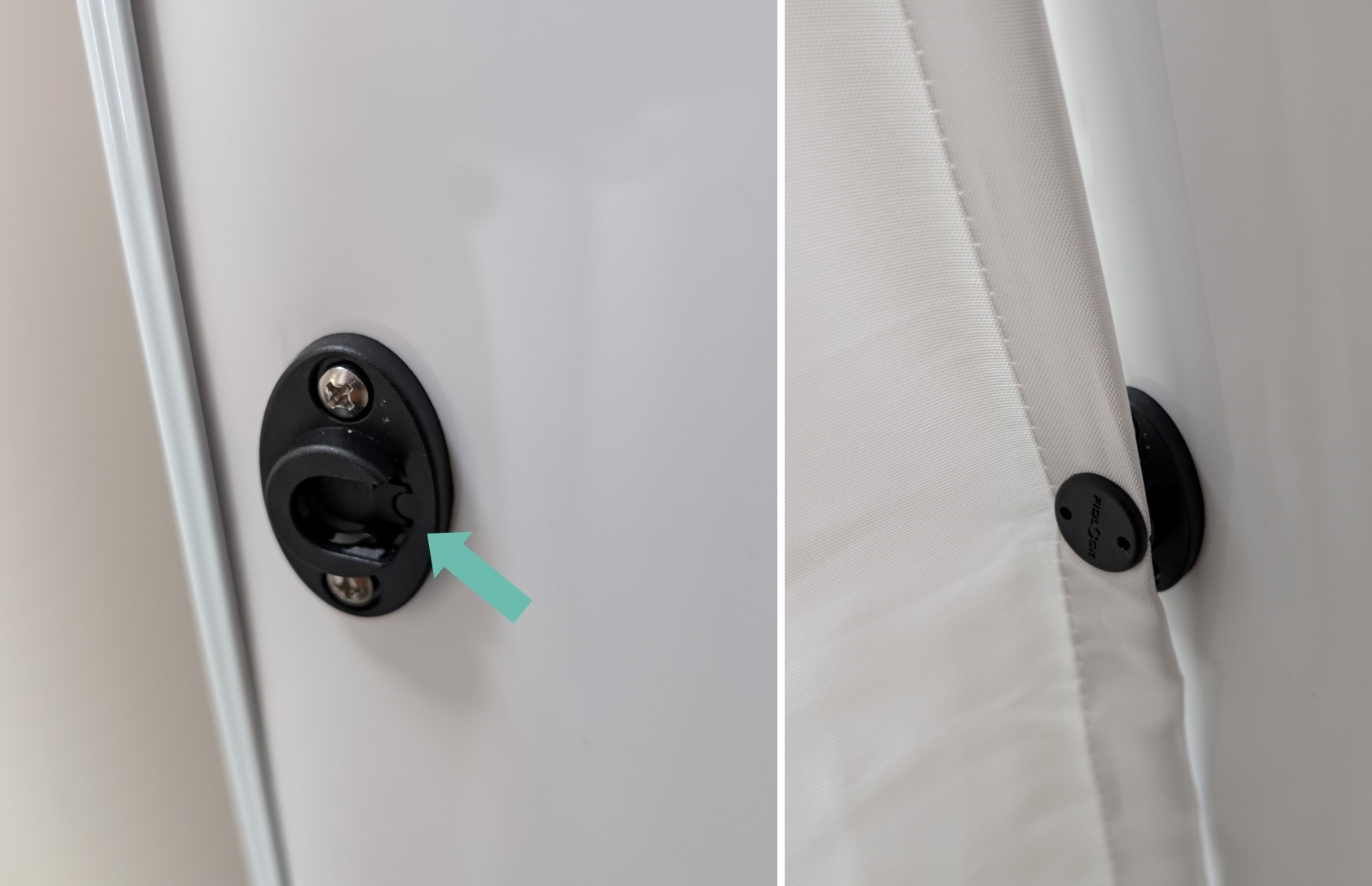

1. Close the shower curtain (Slide the black button on the curtain sideways into the holder on the shower wall):

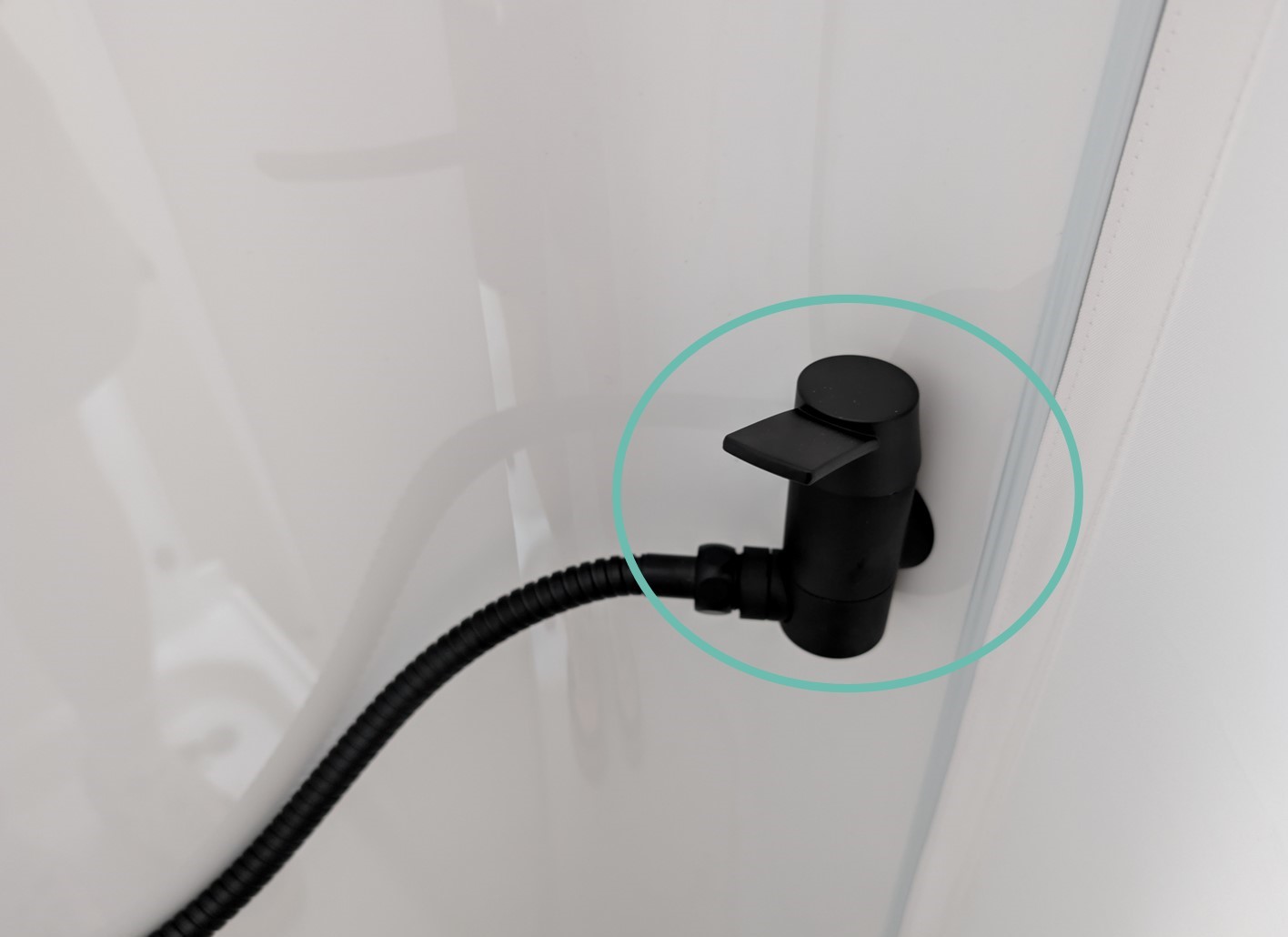

2. Use the shower head with the long hose to shower. Turn the tap to adjust the temperature:


Troubleshooting

Is water leaking from under the car or is there no water flowing at all? We have summarised possible solutions below in the article Fresh water and waste water - Camper Castle (LMC Tracer).
