💺Turning front seats - Camper Castle (LMC Tracer)

Turn the front seats:

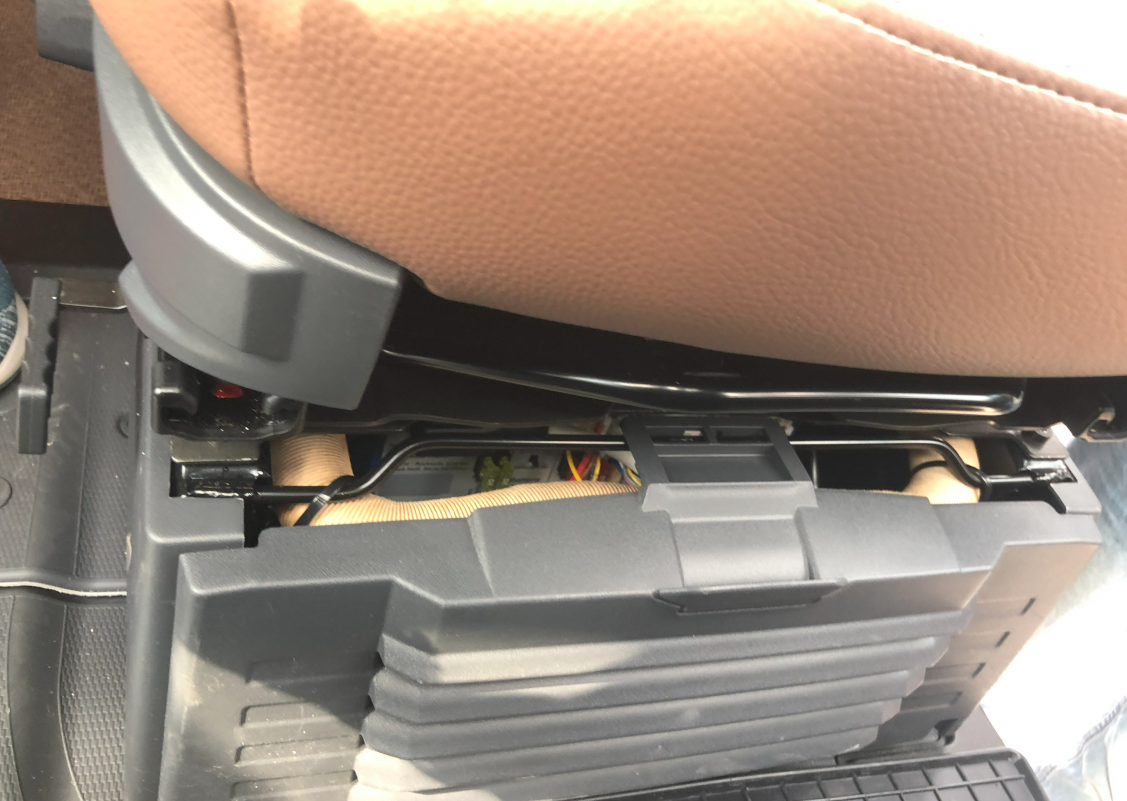

1. Pull the seat forwards using the lever under the seat.
2. Use the wheel on the outside of the seat to bring the backrest into an upright position.
3. Pull the lever on the inside of the seat and turn the seat.


Attention!

Please note that the seats do not engage when they are rotated!

Adjusting the front seats:

1. Adjust the backrest: Use the wheel on the side of the backrest to adjust the position of the backrest.

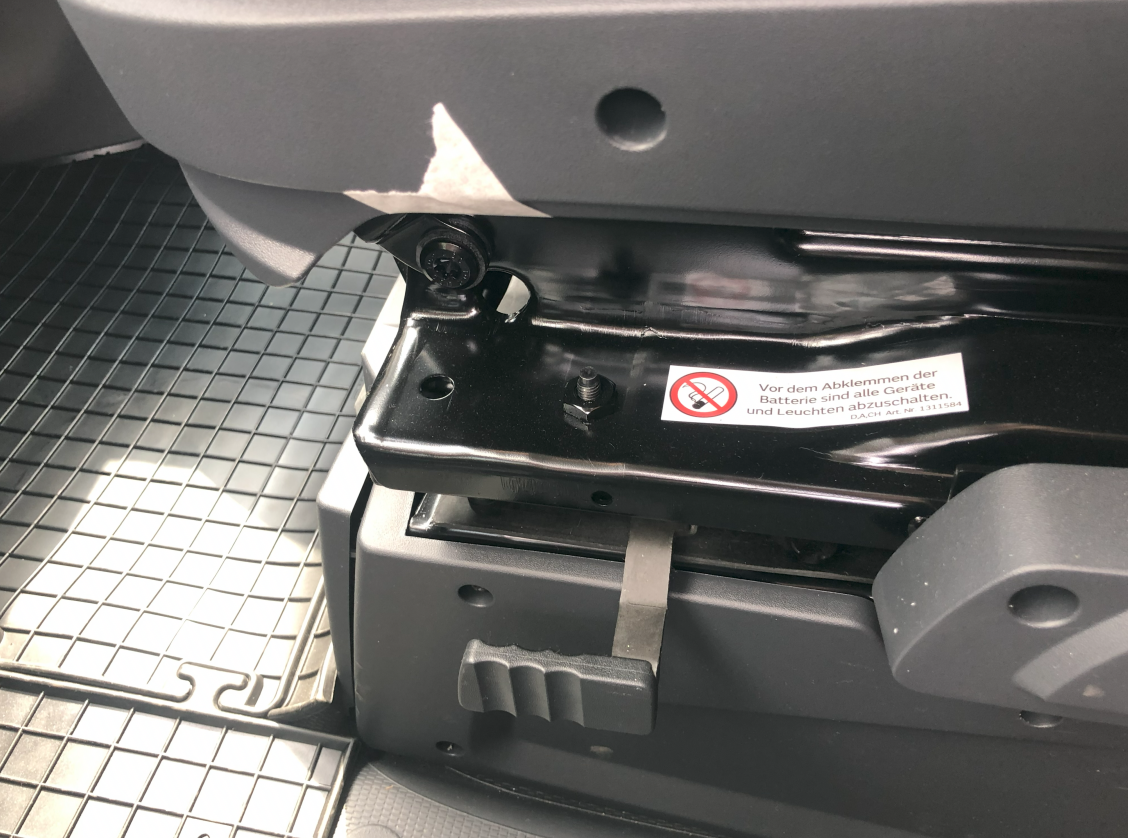

2. Move the seat position: Use the metal lever under the seat to move the seat forwards or backwards.

3. Adjust the seat height:

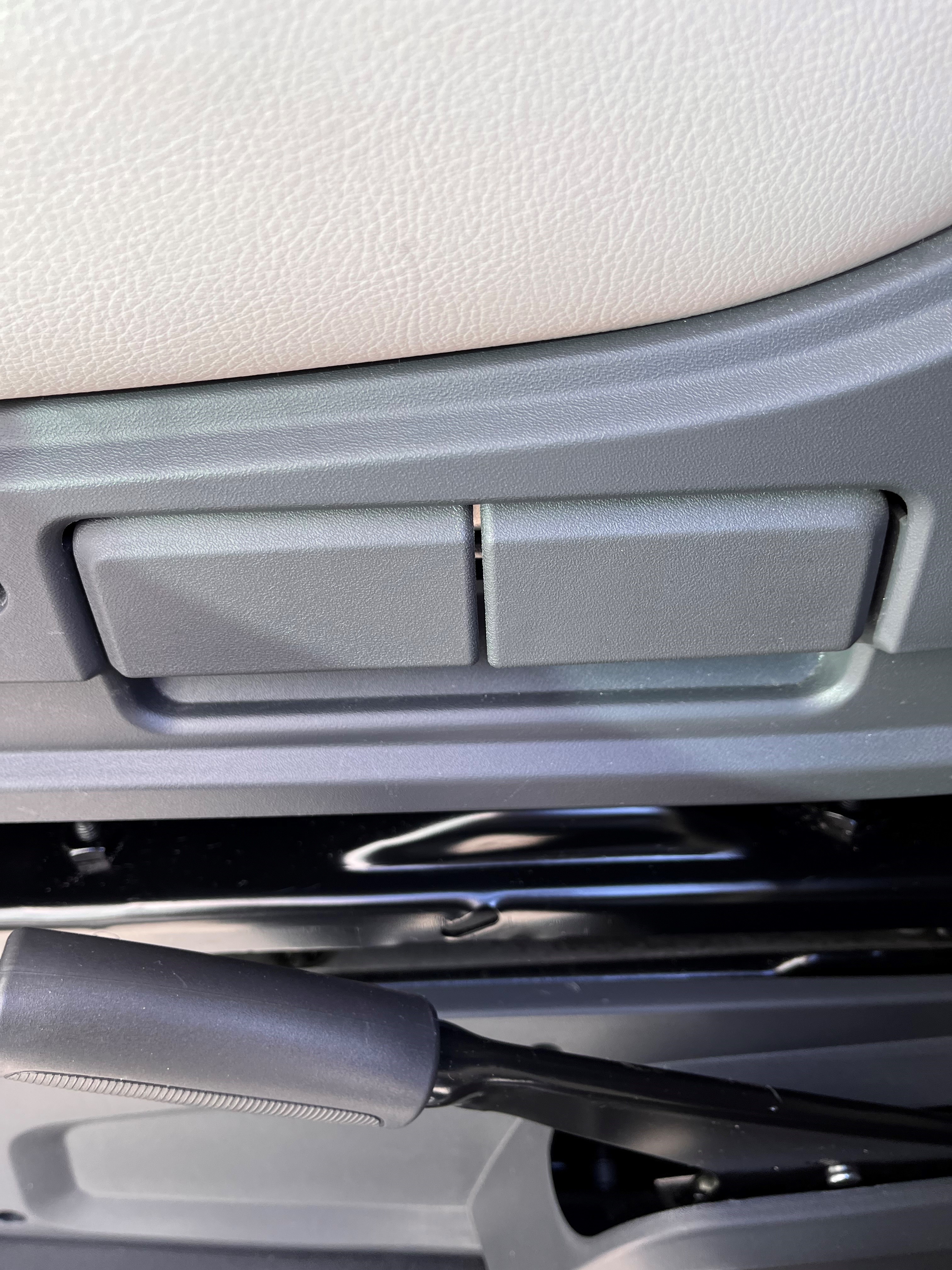

• The front lever on the outside of the seat changes the height of the front part of the seat.
• The rear lever on the outside of the seat changes the height of the rear part of the seat.
• To reset the height, sit on the seat and pull both levers.


Click here to go directly to the explanatory video:
