There is a small difference between the Camper Cabin models. So check which one you are driving and then select the correct instructions from the dropdown menus:
Drawer fridge
The table is stowed on the passenger side, next to the rear bench.
- Turn the small black lever to the side to release the table

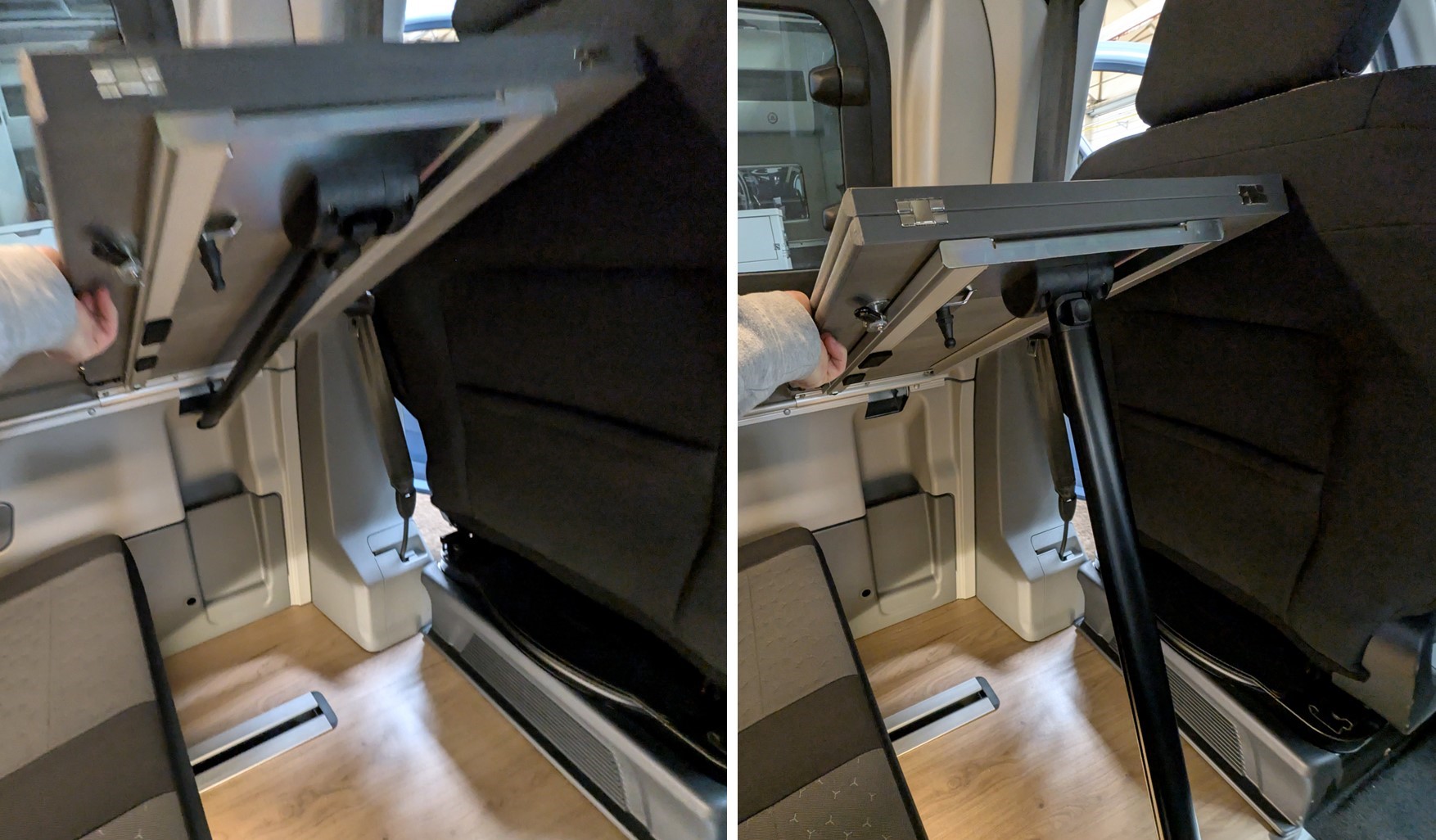

- Swing the tabletop upwards and fold out the table leg until it audibly clicks into place.

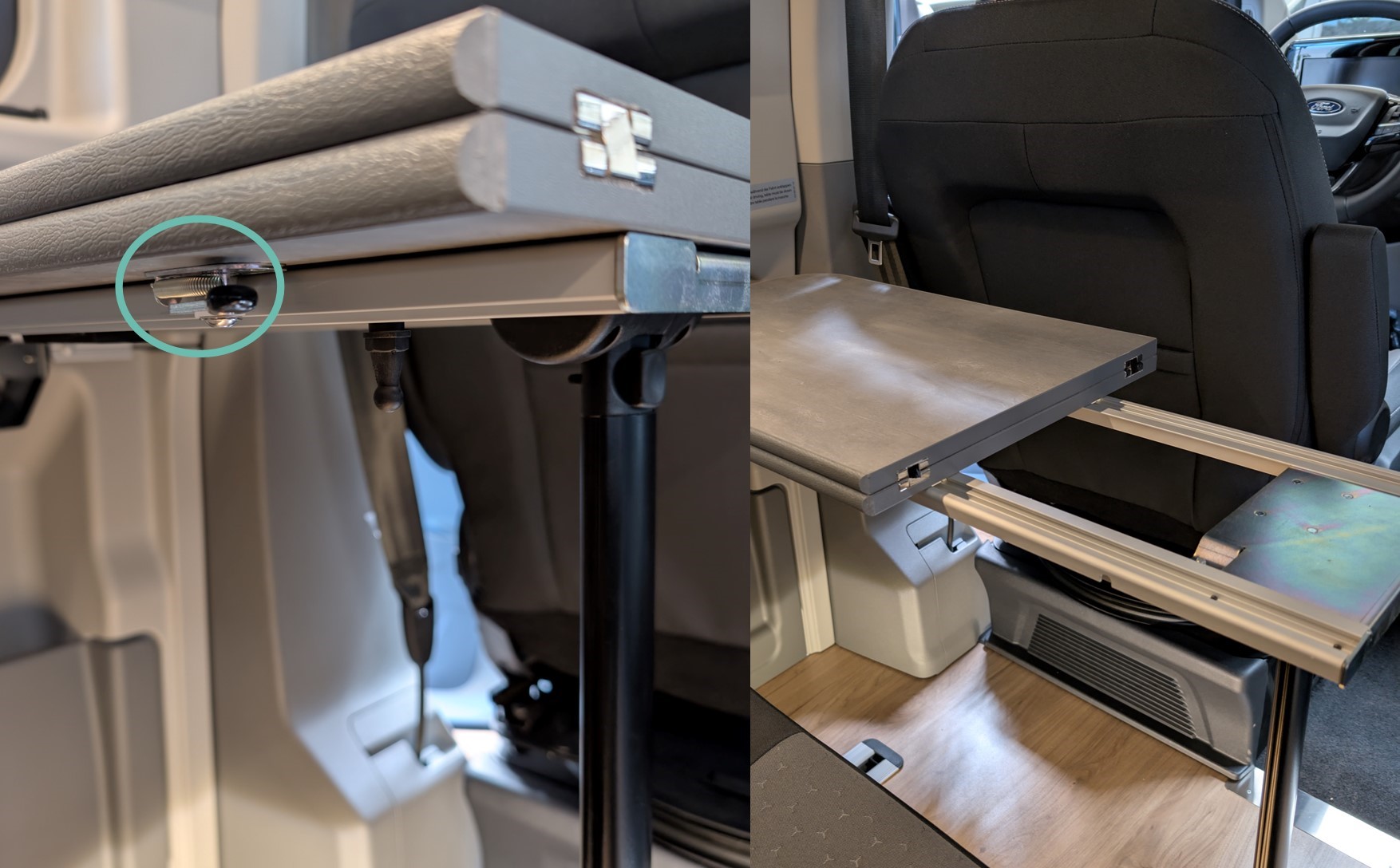

- To extend it into a larger table, release the lock and pull the frame extension out completely.

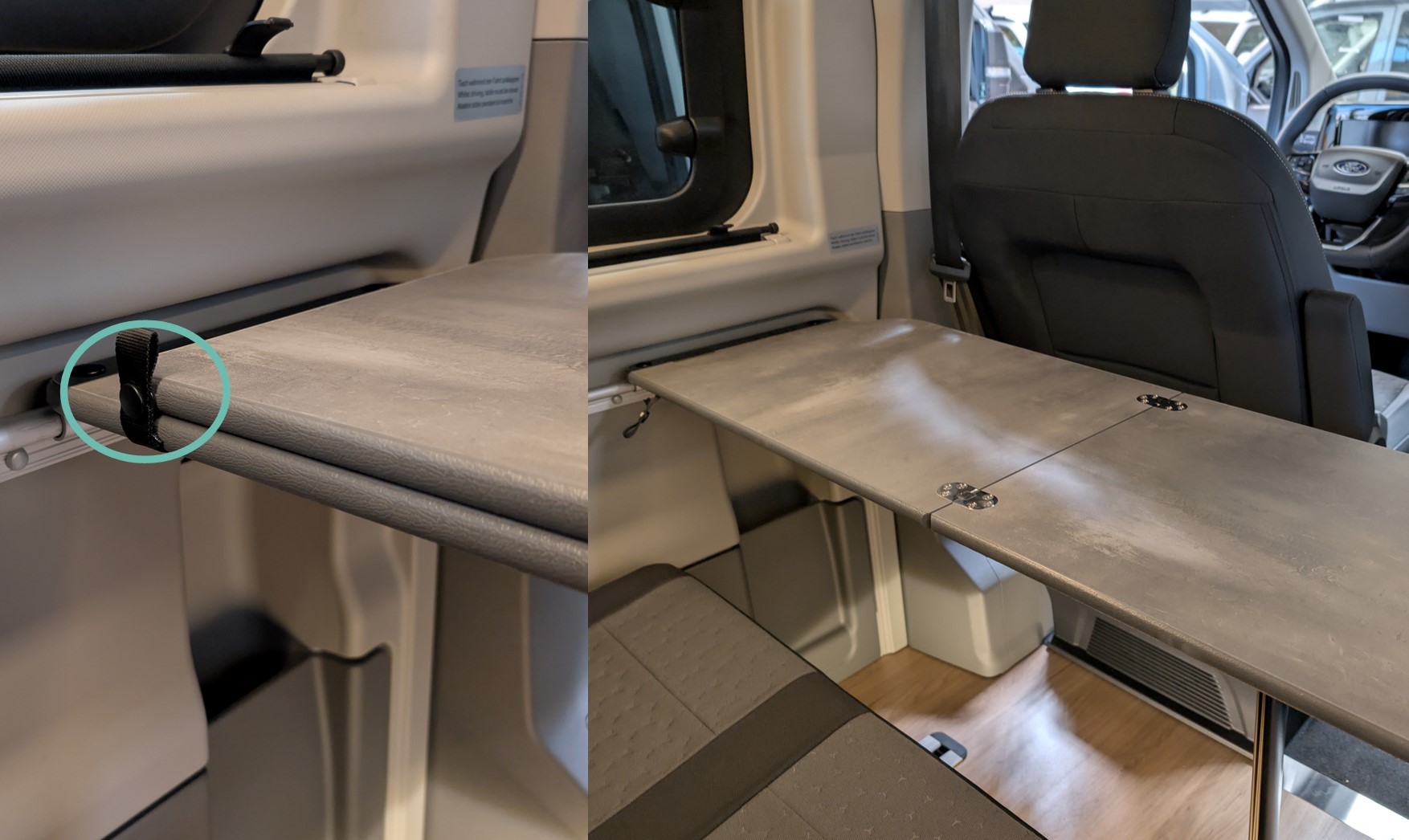

- Open the strap and fold the upper tabletop onto the frame extension.
You can find the video explanation here:
The table is stowed at the sliding door (driver's side).

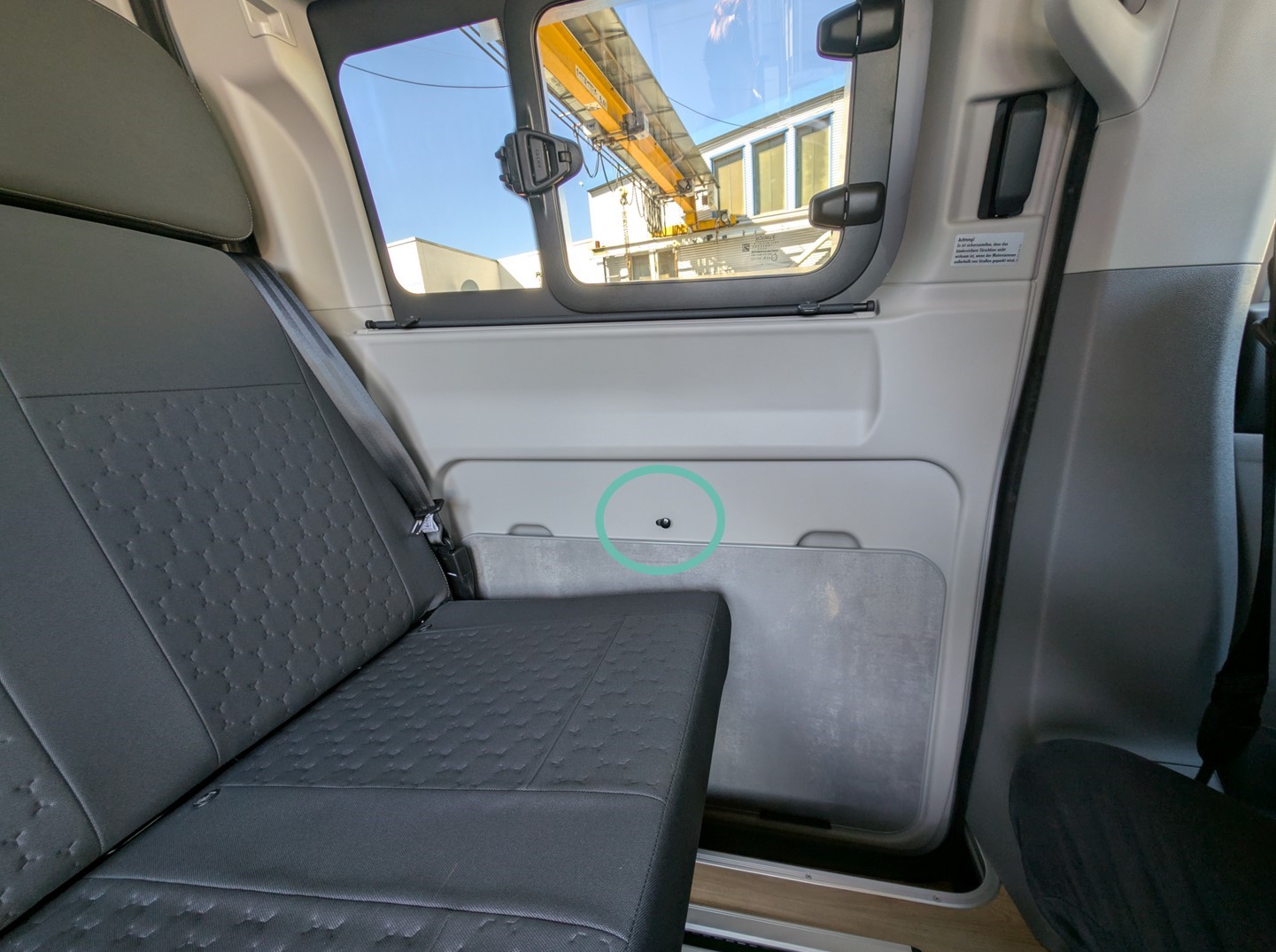

- Move the pin to remove the tabletop:

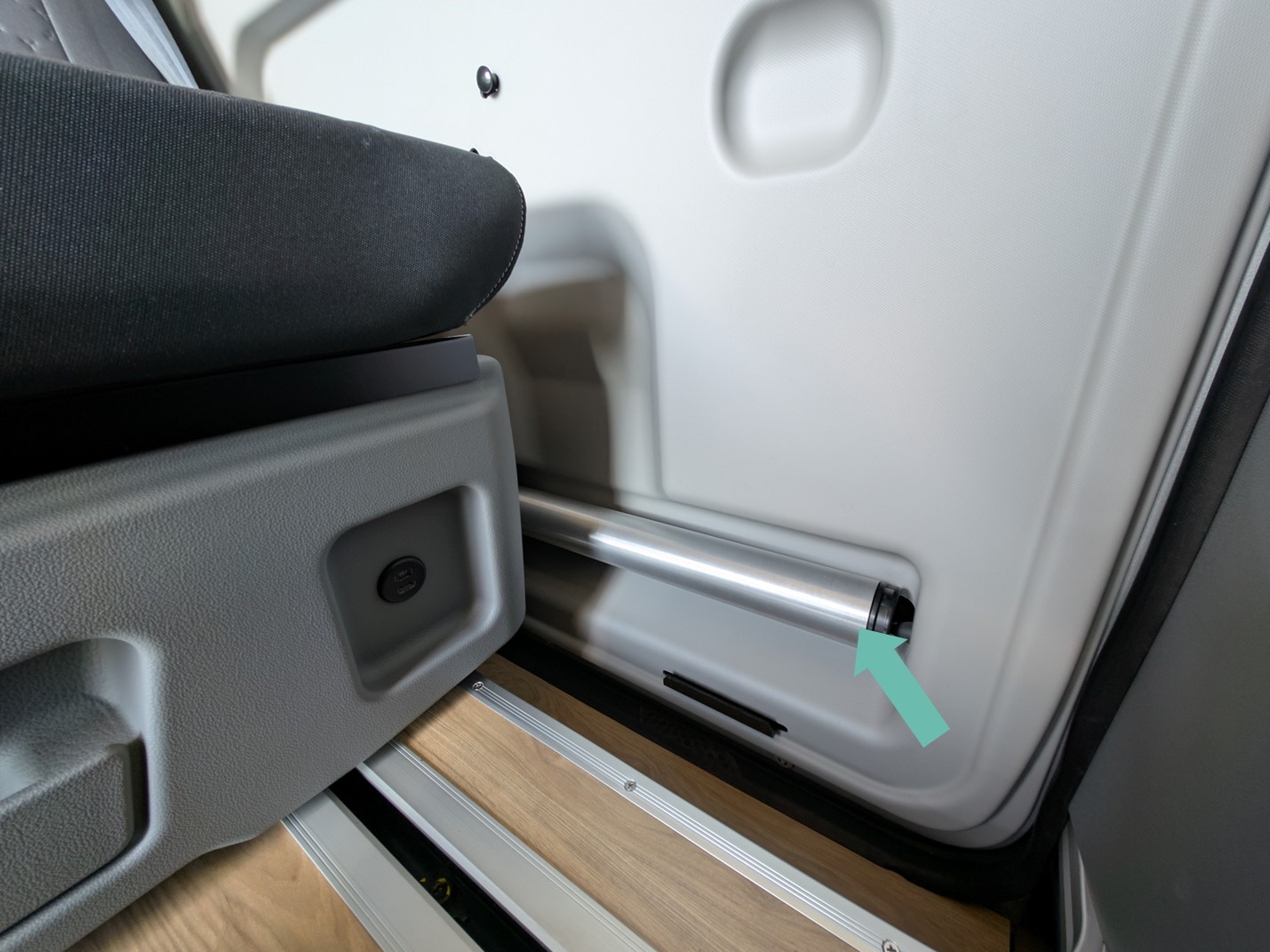

- Also remove the table leg:

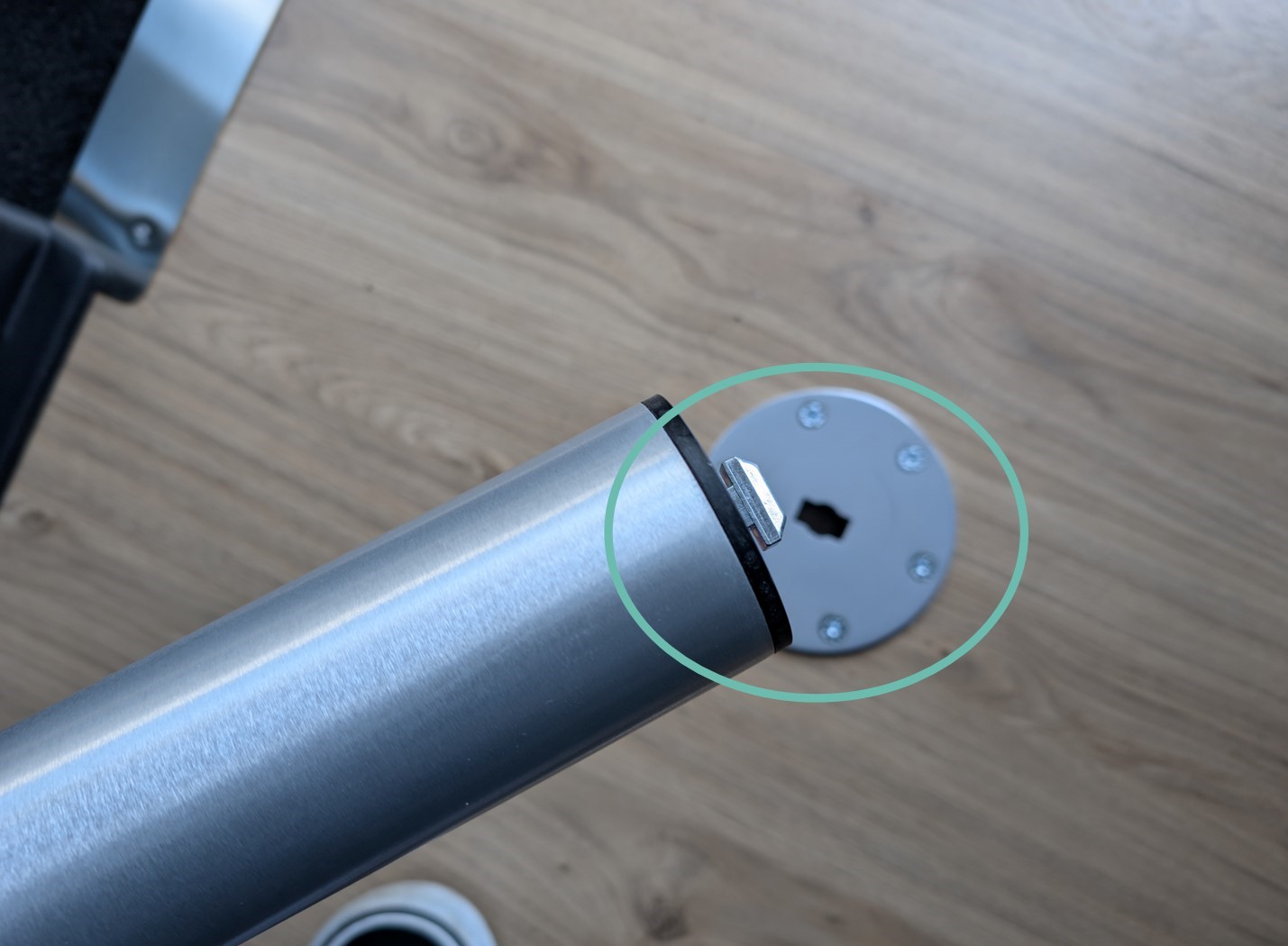

- Insert the table leg with the metal pin into the designated holder on the floor and turn it clockwise until it is secure:

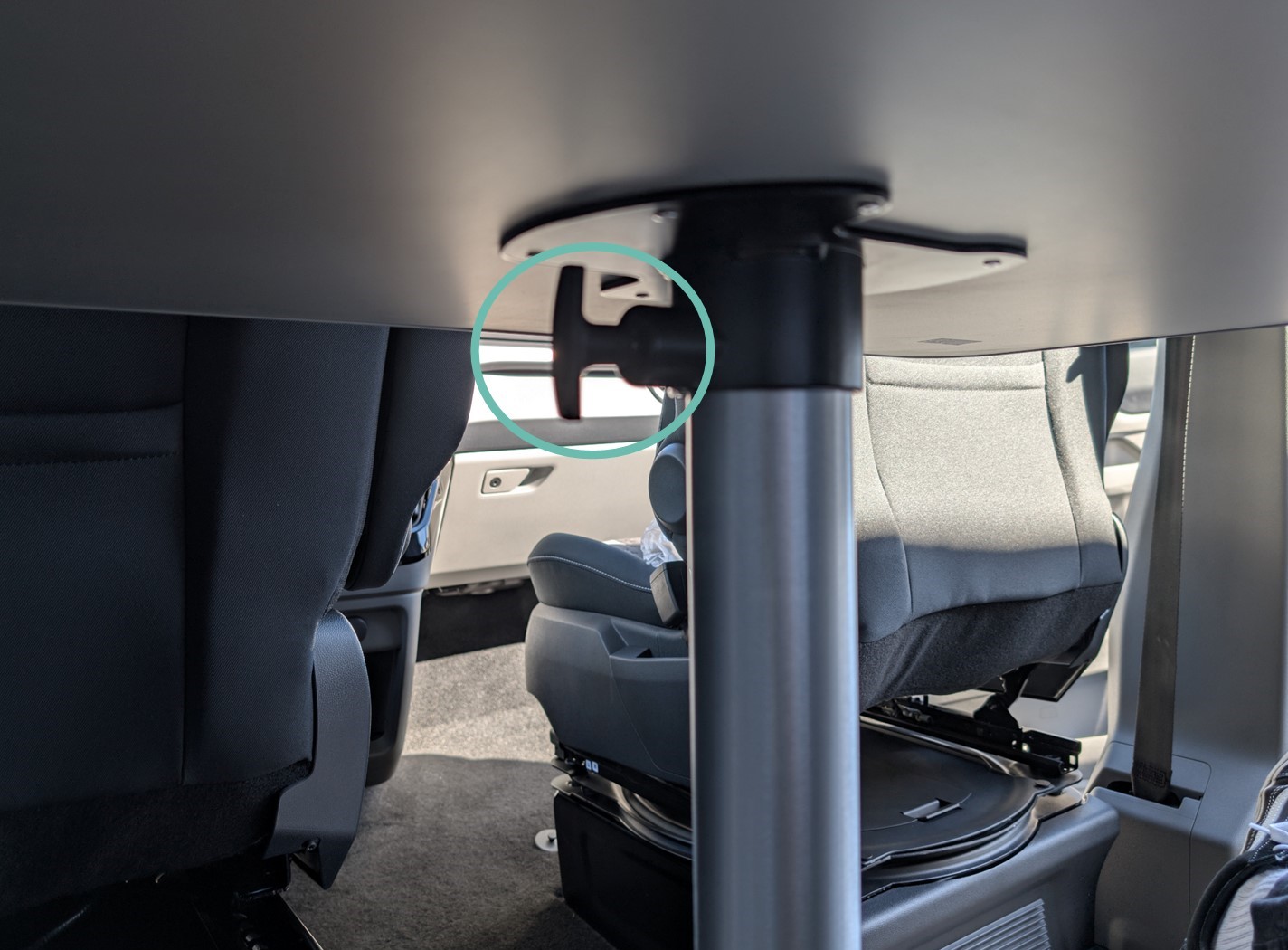

- Place the tabletop on the table leg and turn the marked hand screw clockwise until the table is stable:
You can find the video explanation here:
Top fridge door with Camper Display at the rear
The table is stowed on the passenger side, next to the rear bench.
- Turn the small black lever to the side to release the table
- Swing the tabletop upwards and fold out the table leg until it audibly clicks into place.
- To extend it into a larger table, release the lock and pull the frame extension out completely.
- Open the strap and fold the upper tabletop onto the frame extension.
You can find the explanation video here:
Top fridge door with Camper Display at the front
The table is stowed on the passenger side, next to the rear bench.
- Turn the small black lever to the side to release the table
- Swing the tabletop upwards and fold out the table leg until it audibly clicks into place.
- To extend it into a larger table, release the lock and pull the frame extension out completely.
- Open the strap and fold the upper tabletop onto the frame extension.
You can find the explanation video here:
Please note the following:
The table should be stowed and properly secured while driving.
