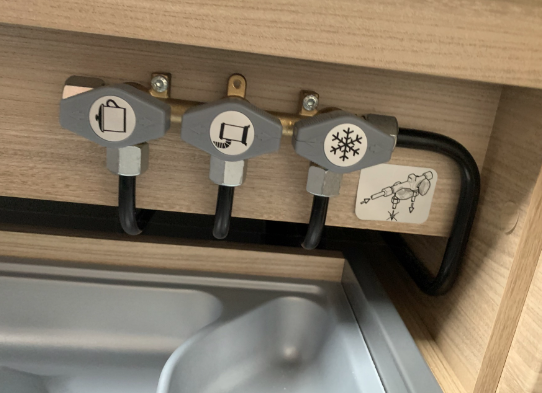

- Set the shut-off valves behind the flap under the sink horizontally to close them.
- The gas compartment is on the passenger side. Pull up the black knob to slide out the gas bottles:
-
First check that neither bottle contains any more gas and, if necessary, just change the hose on the bottle that is still full.
-
If one or both bottles are empty, close them anyway at the brass-coloured valve.
-
Unscrew the connector from the gas bottle by hand (note: left-hand thread).
-
Loosen the straps around the gas bottle.
-
Take the bottle out of the compartment and replace it with a full one.
- Securely fasten the bottle again with the straps.
- Screw the connector onto the gas bottle by hand (note: left-hand thread).

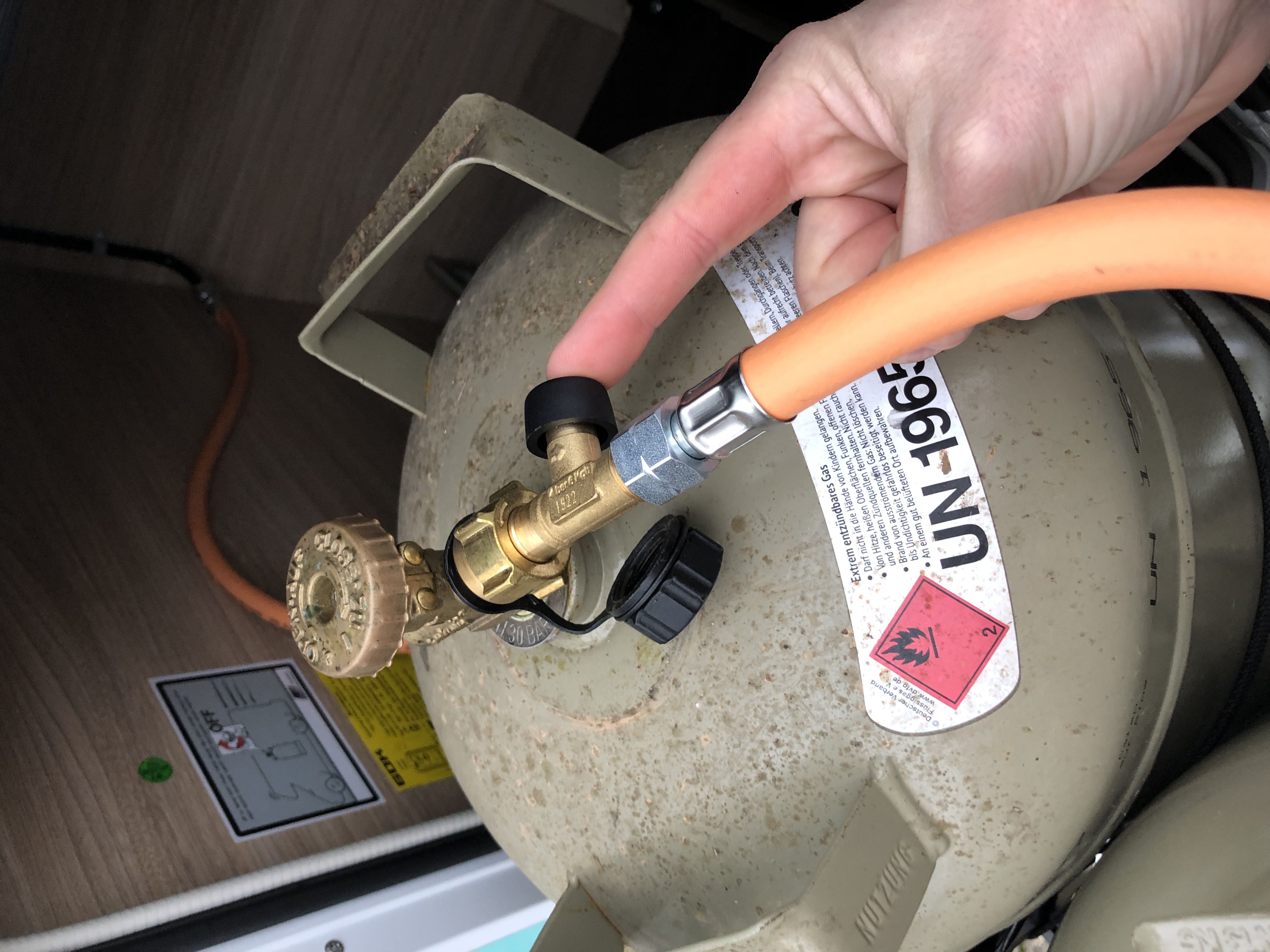

- Press the black pipe safety catch directly next to the bottle. You will hear a metallic click as soon as the button is properly engaged.
- Open the bottle at the brass-coloured valve.
Attention
-
Do not use any tools to screw the connector onto the gas bottle, otherwise it may not be possible to unscrew it!
-
Be sure to close the shut-off valves and the gas bottles while driving!
-
Please also note that for safety reasons the gas compartment must not be used as a storage space.
Please note that bottles purchased outside Germany may require an adapter. Here you will find all possible adapters and information about gas suppliers abroad.
