To change the gas bottle (2.75 kg) in the Couple Cottage Offroad (Hymer Grand Canyon), several steps must be followed to ensure safe handling:

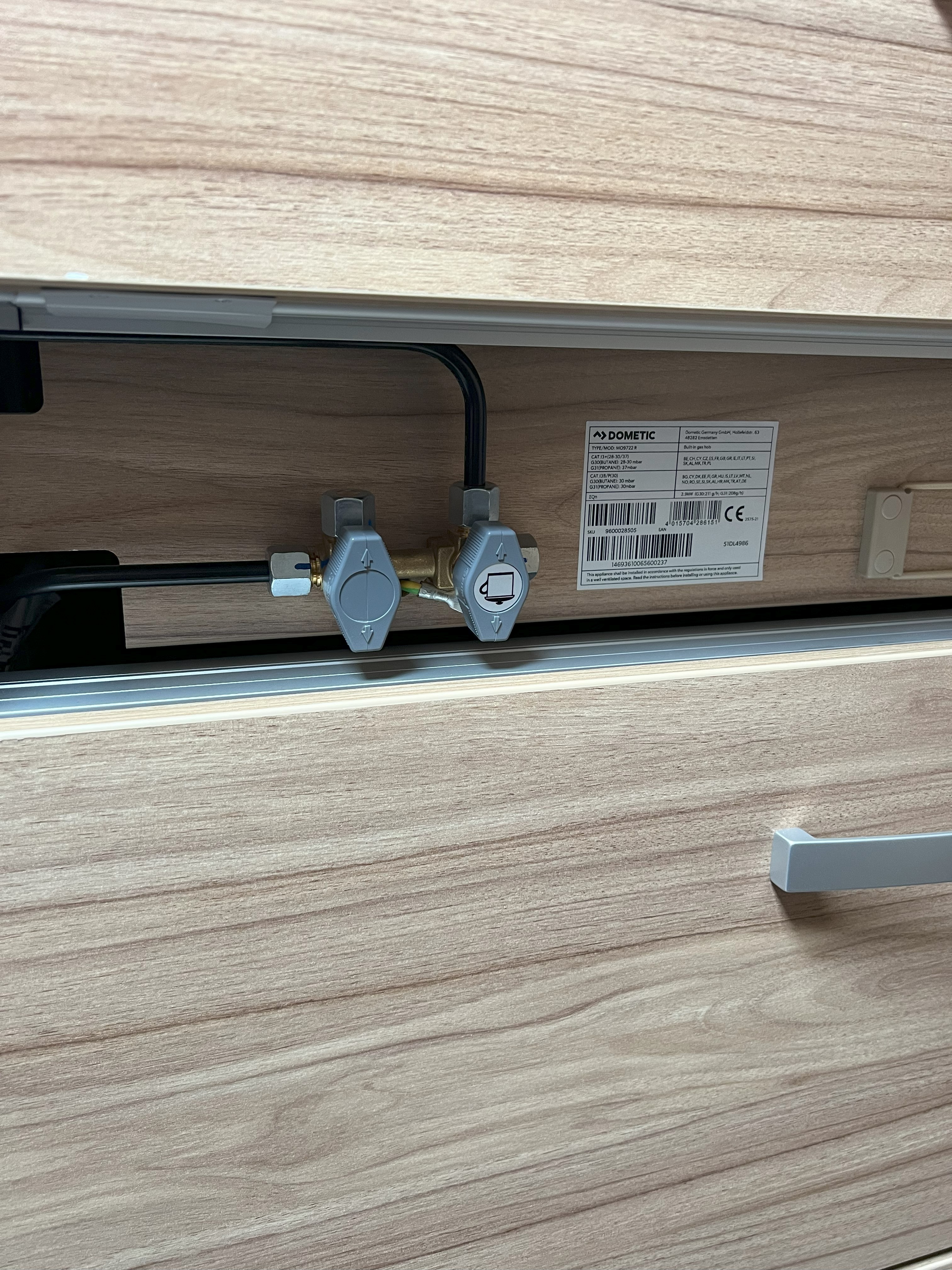

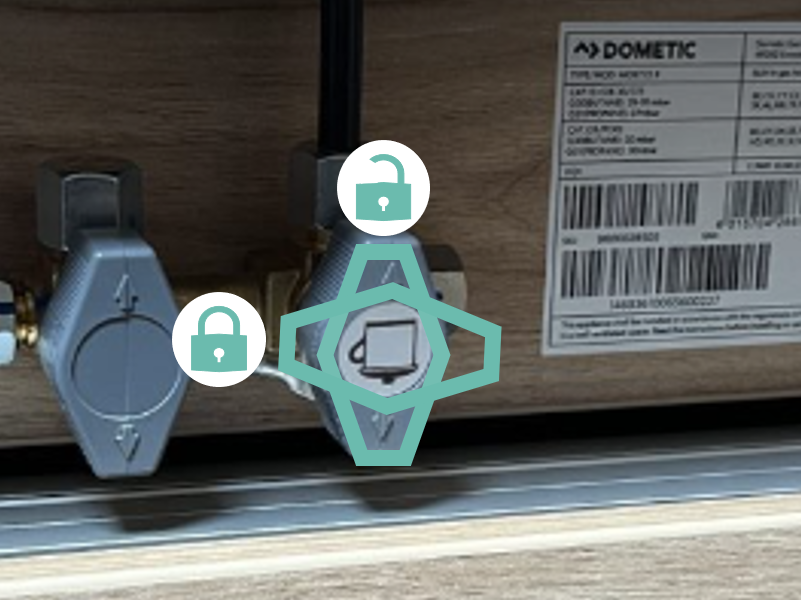

- Close the safety lever in the kitchen block.

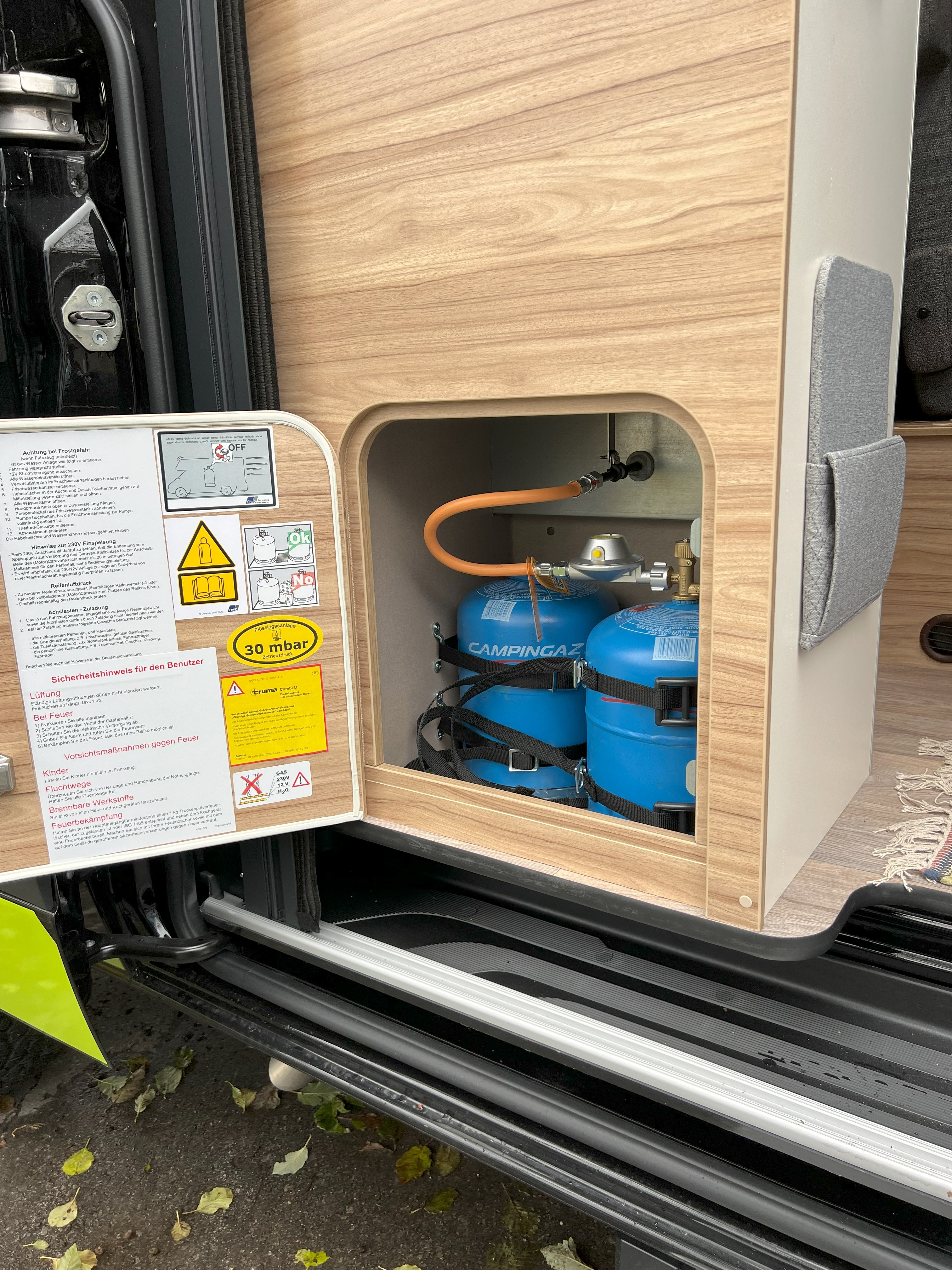

- Open the sliding door to access the gas bottle compartment.
- Turn the gas valve all the way to "-" to close the gas bottle:
- Loosen the straps around the gas bottle.
- Detach the grey metal connector from the gas bottle.
- Take the bottle out of the compartment

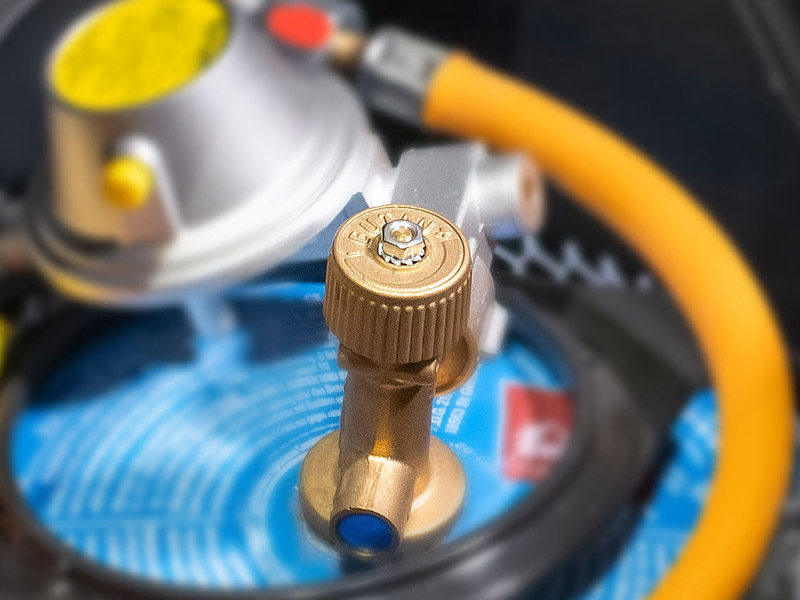

- Remove the brass-coloured adapter and screw it onto the new bottle.
- Place the new bottle in the compartment and attach it to the hose with the adapter. Make sure that it is properly and firmly attached.
Here you can find more information on the topic: What to do when the gas bottle is empty?
