🪟 Windows, Blinds and Fly nets - Couple Cottage Offroad (Hymer Grand Canyon)

You have the following options for darkening the interior of your Couple Cottage Offroad (Hymer Grand Canyon):

  • The blinds in the living area can be pulled up from below. A fly net can be stretched from top to bottom on each window in the living area.

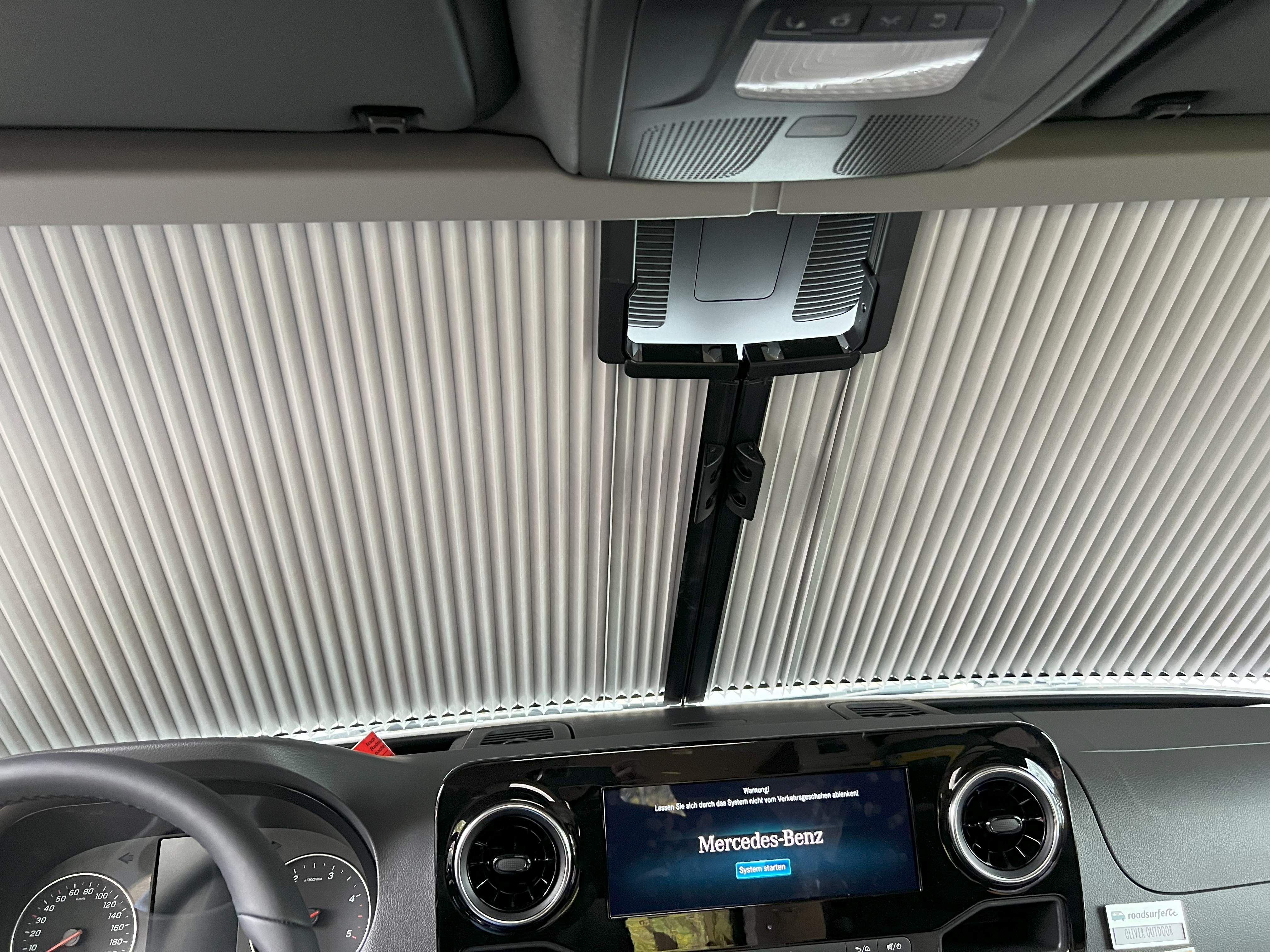

  • The darkening of the windscreen: to cover the windscreen, pull the blinds out of the frames by pressing the two buttons together, then carefully pull the blinds out and clamp them together where they meet.

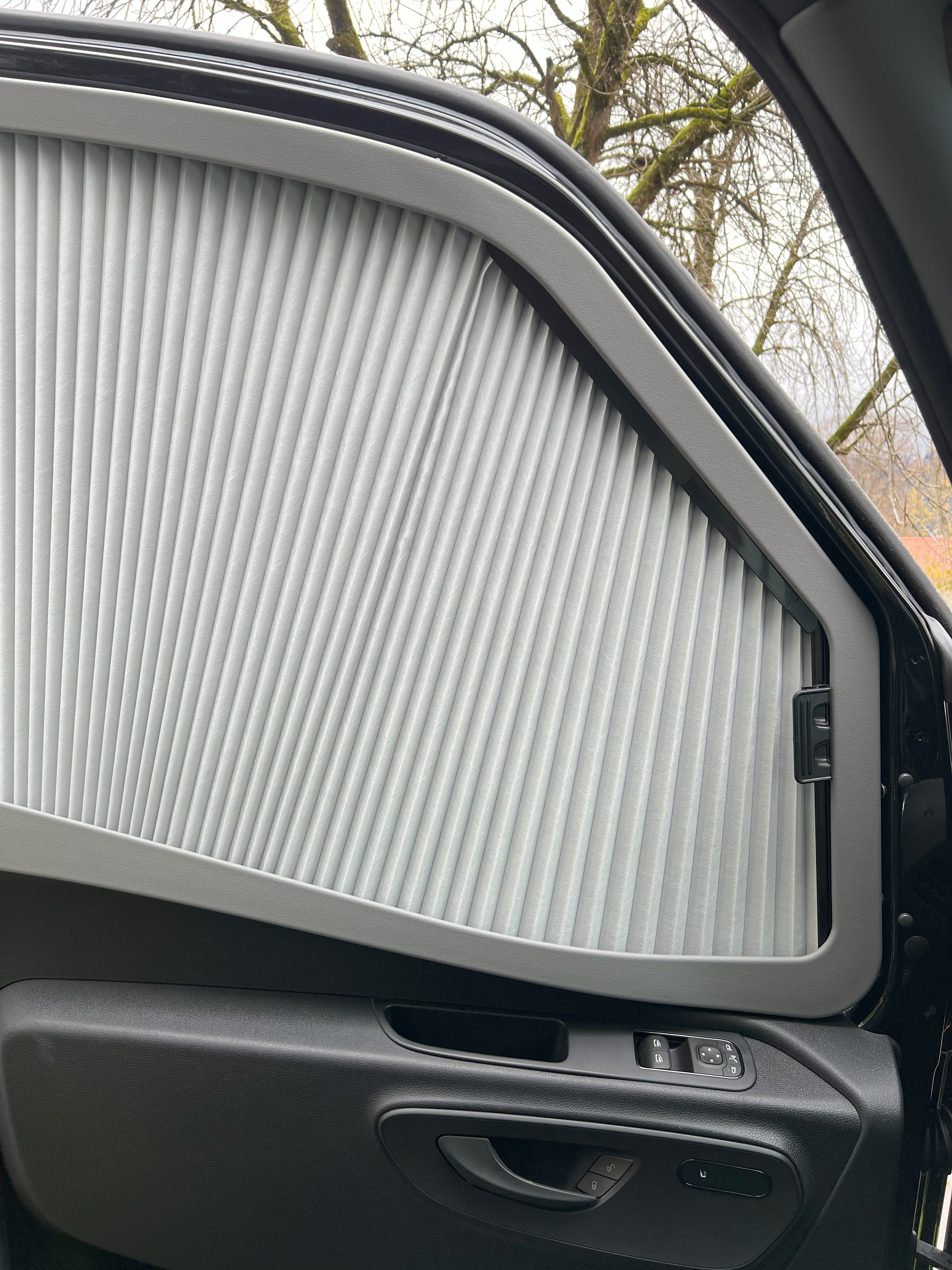

  • The panes of the front doors: to cover the windows, pull the blinds out of the frames by pressing the two buttons together, then carefully pull the blinds out.

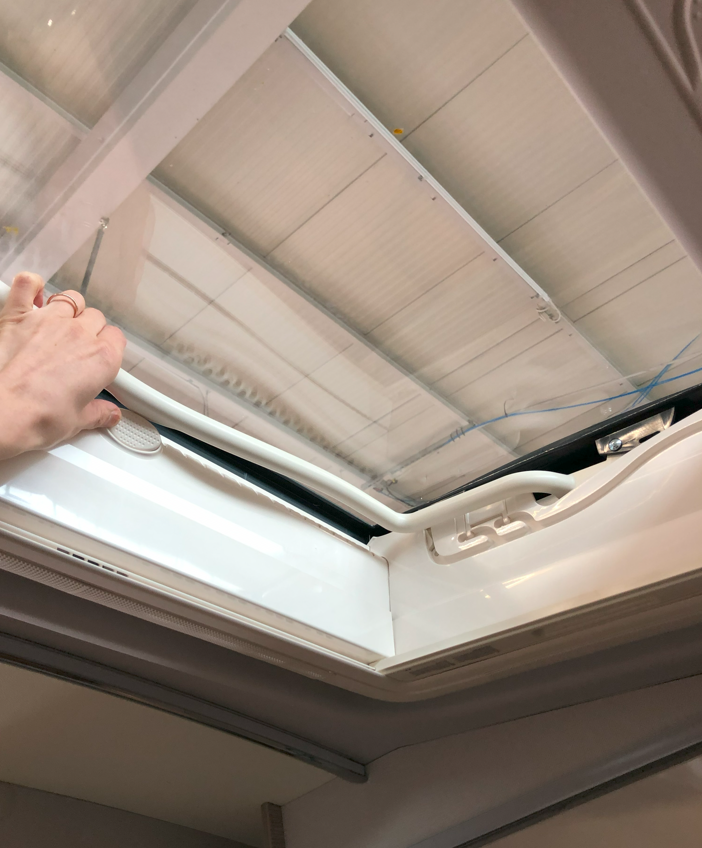

  • The  window above the living area is also fitted with blind and fly net. To open this window, push in the white button and pull gently on the white handle.

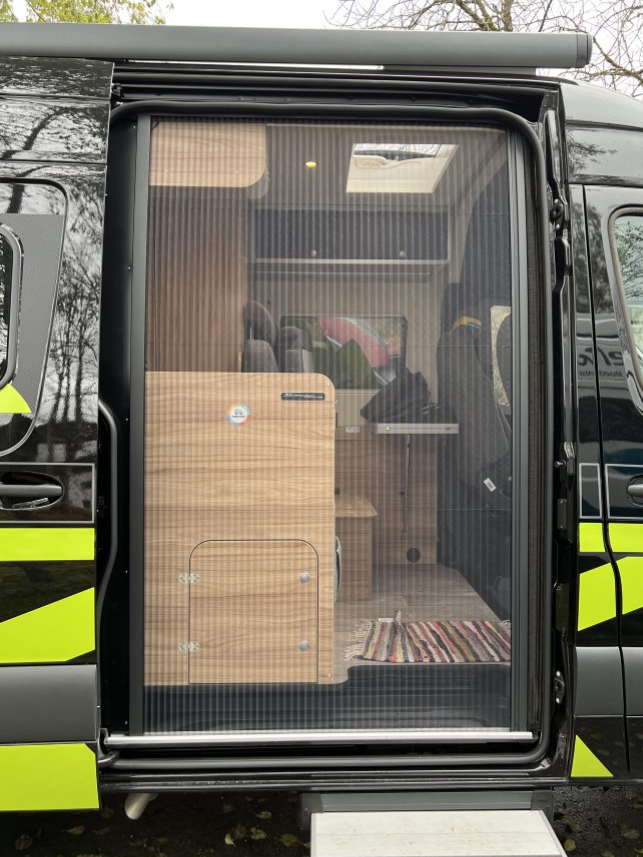

  • The sliding door has a flyscreen door installed. Please grasp the rail in the middle and carefully slide it open and closed.
  • The windows in the living area, kitchen and rear door can be opened by turning the handles to the side and then carefully sliding the window open until it clicks into place at the desired angle.

Please do not open the windows further than 90°!

The window pane will slide out and might fall to the ground and break.

To close the window, only slightly push it further up and then close it down carefully.
