You can charge the camping battery while driving or connect the van to an external power source. To do this, you must connect the supplied cable (20 metres long) from the plug on the driver's side of the camper to a power source. Please note that campers cannot be charged at the stations for electric vehicles.
The vehicle indicates that the battery is charging by turning on an indicator light on the board display (light on the top left) above the steering wheel. The 230V sockets should now be working.
Please note the following:
- Do not forget to unplug the power cable before driving off! To do this, push down the blue lever to the left of the plug.
- With a fully charged battery you will be self-sufficient for about 2 days without electricity. Then you have to drive again for some time to recharge the battery or connect your camper to an external power source.

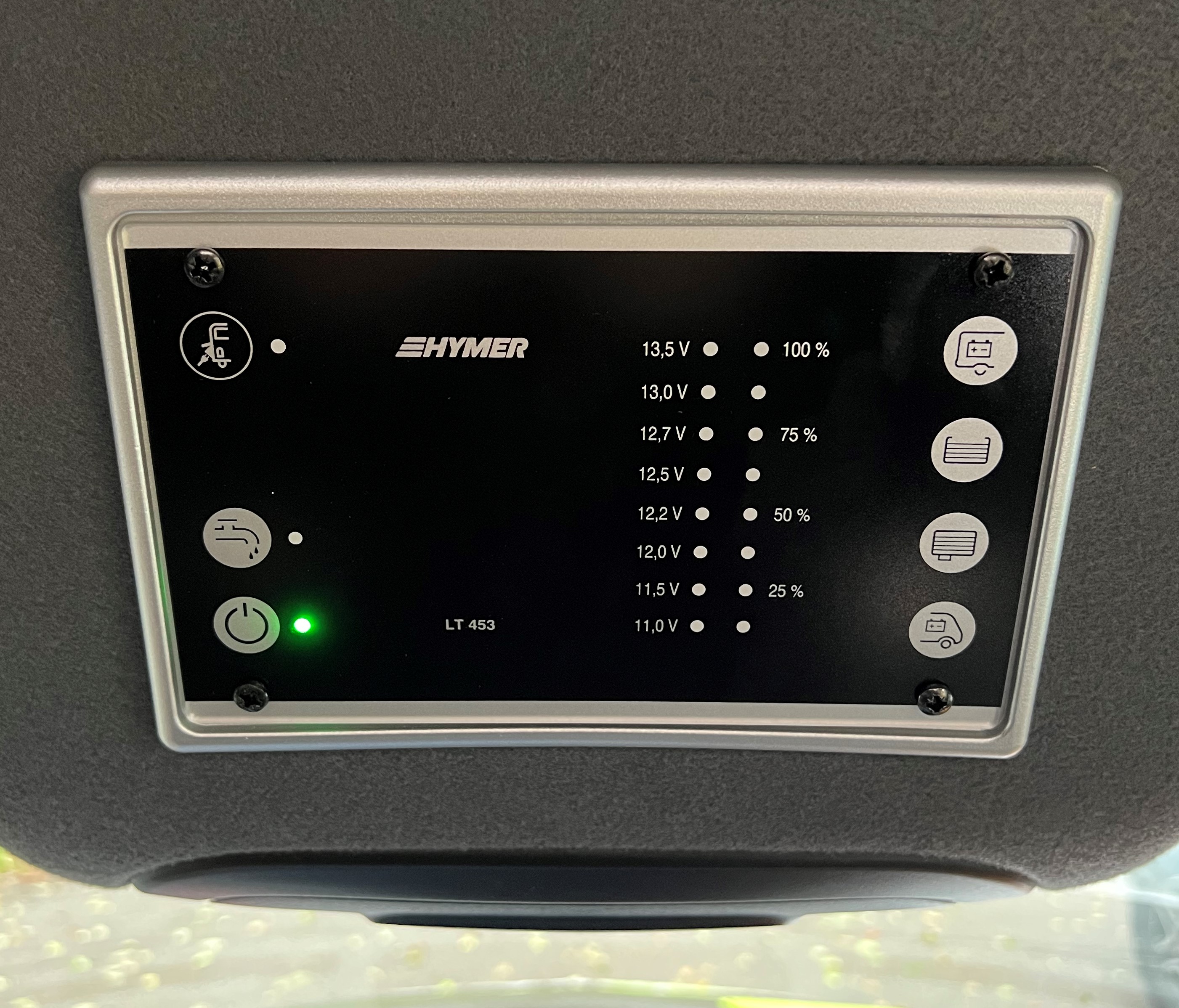

You can check the charge level in the on-board unit. Press and hold the button in the upper right corner and see which indicator lights up:
Troubleshooting
If the camper battery does not charge or there is no current on the 230V sockets despite an external power source, please check in the left cupboard under the bed:

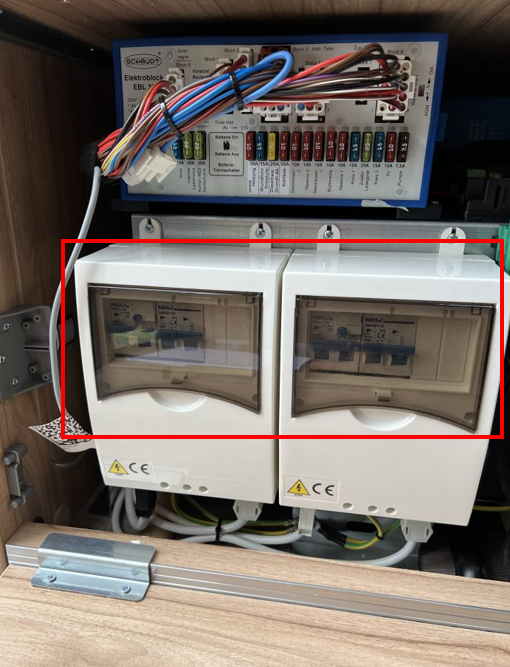

- Whether the RCD switches are pointing upwards:

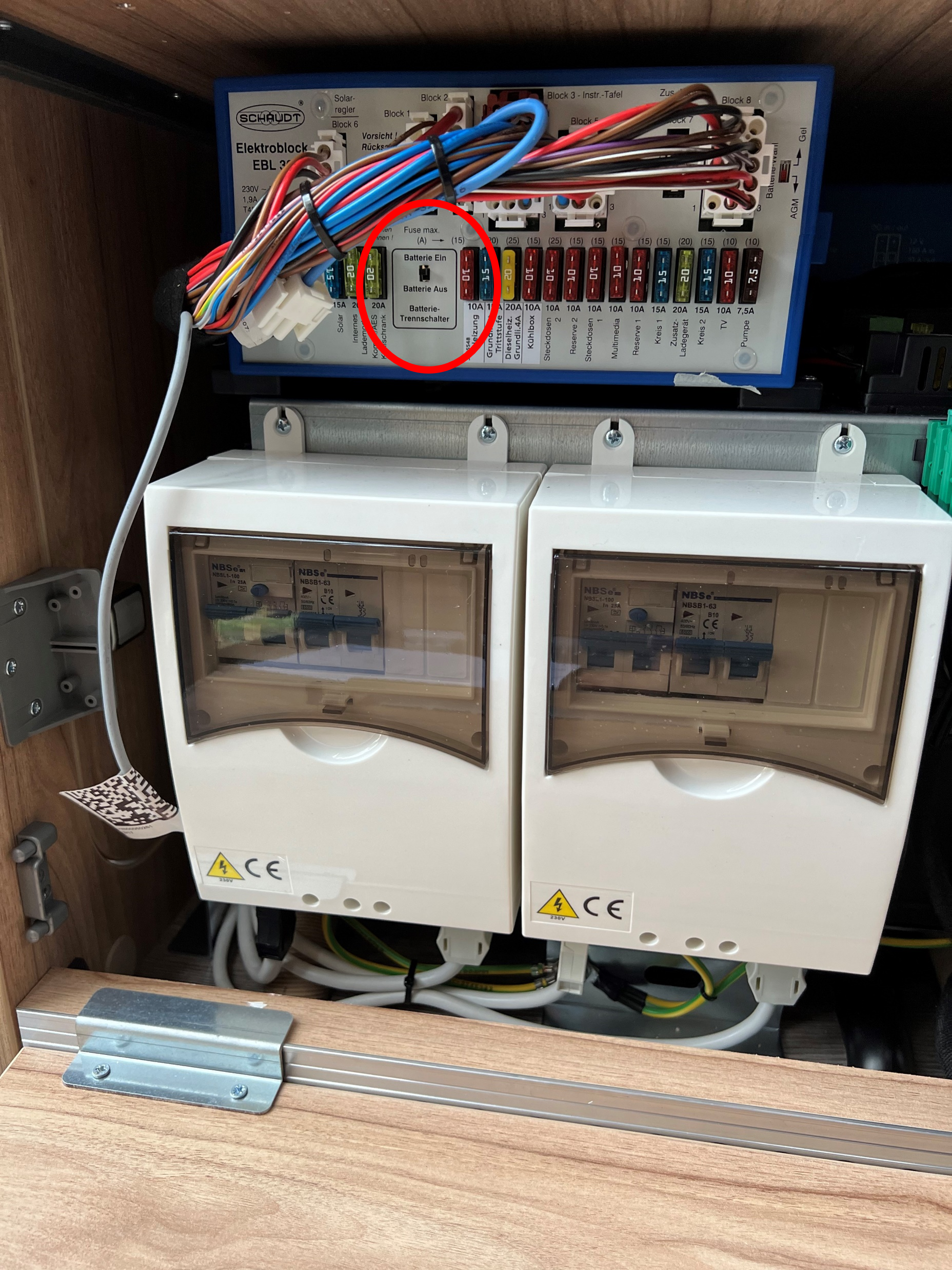

- Whether the main battery switch is switched on. If it is green at the top, it is switched on:
If the 230 V sockets do not work even though the car is connected to an external power source, you can check the following:
-

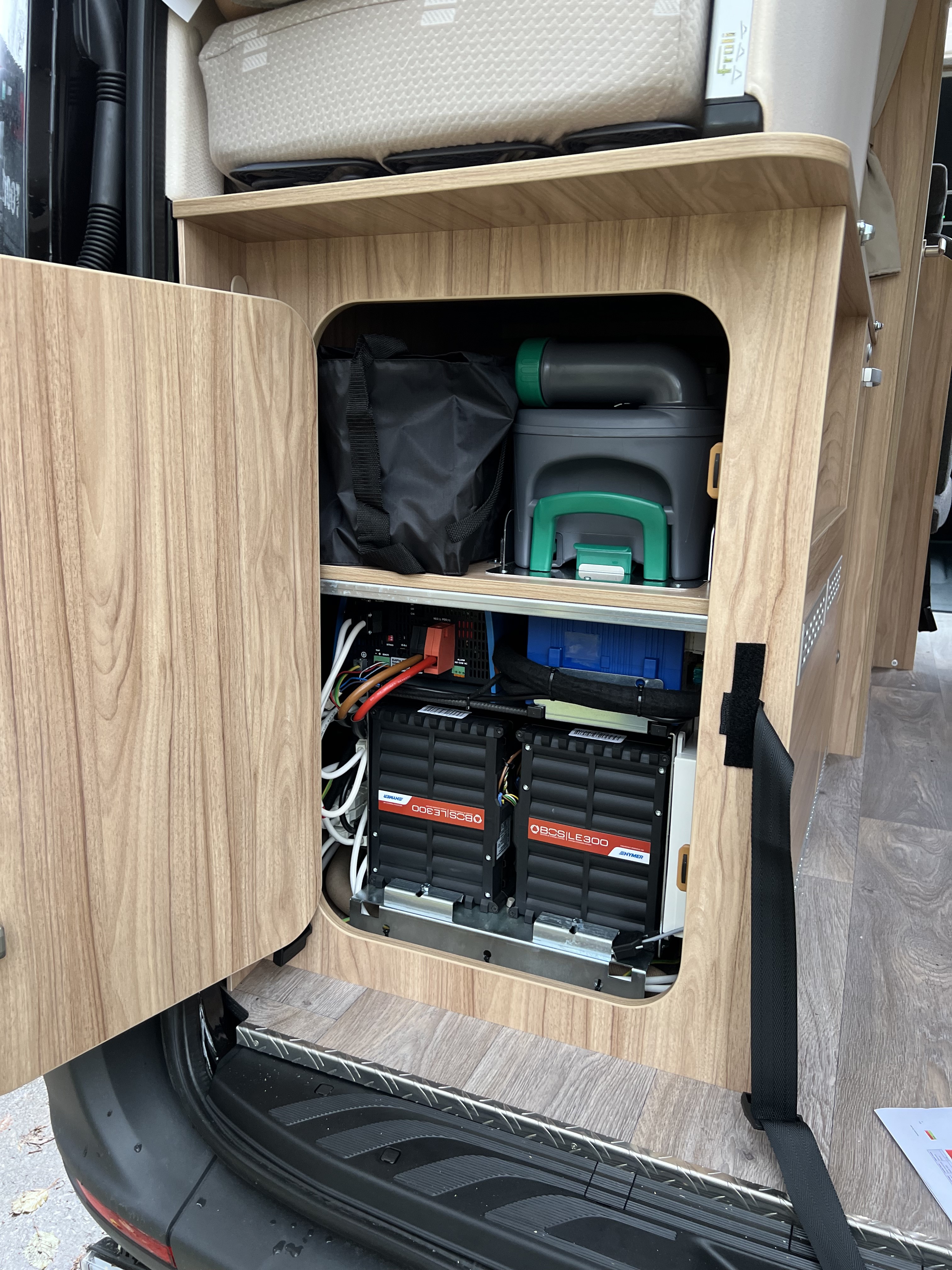

- Open the boot lid
- Remove the camping chairs from their mountings.
- Open the door where the extra toilet cassette is stored.

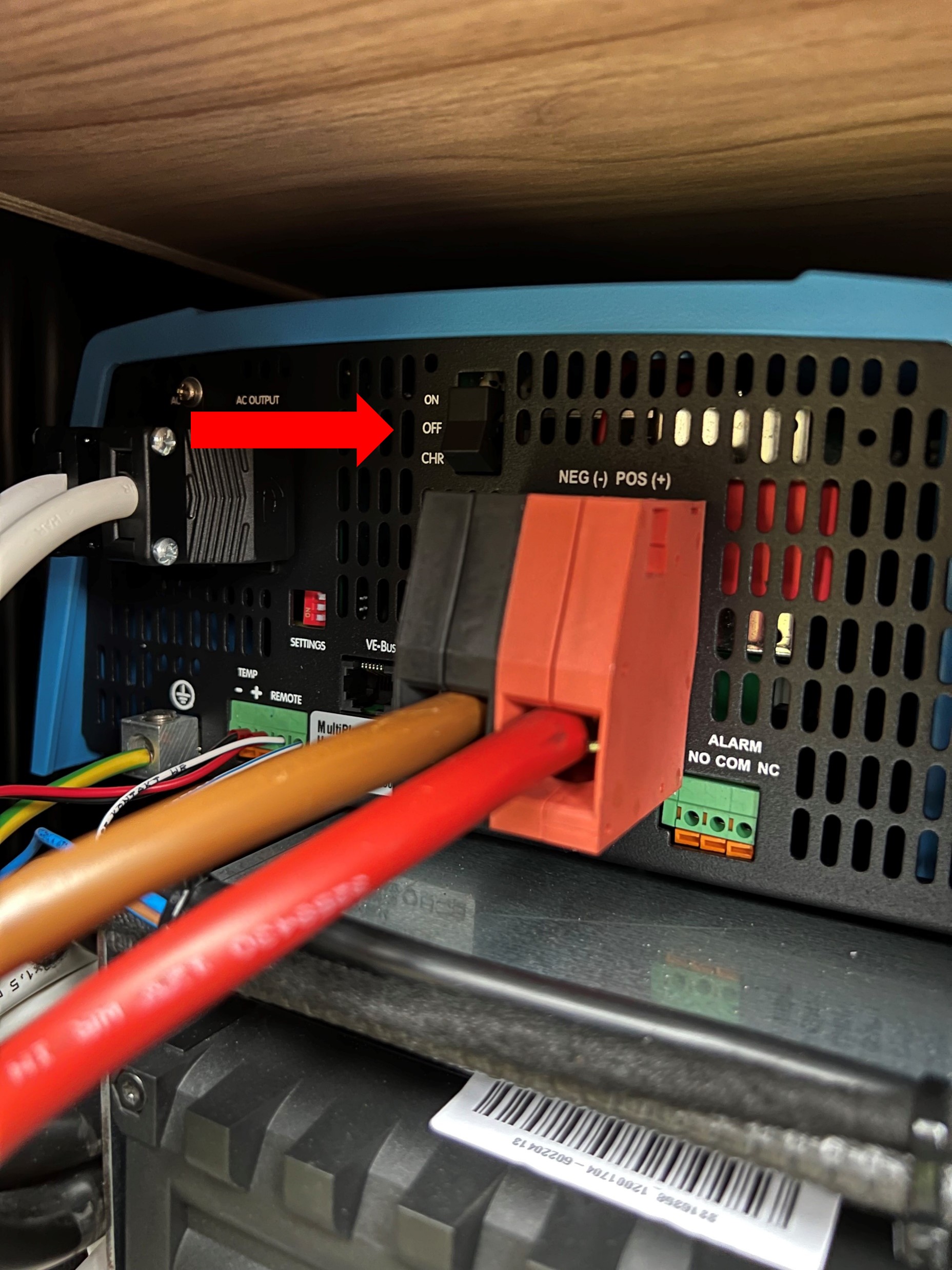

- There you will find the reverse switch. It has a small switch that makes the electricity flow through the car. Turn it to the ON position:
For deeply discharged camping batteries
As camping batteries are not lithium batteries, we advise you never to discharge them below 30%. This can damage the battery. If you suspect that the camping battery is deeply discharged, try the following:
- Connect shore power and run the engine.
- Try this for about 30 minutes. The extra amperage can bring a deeply discharged battery back up to speed.
