In your Camper Castle you have several windows that can all be opened:

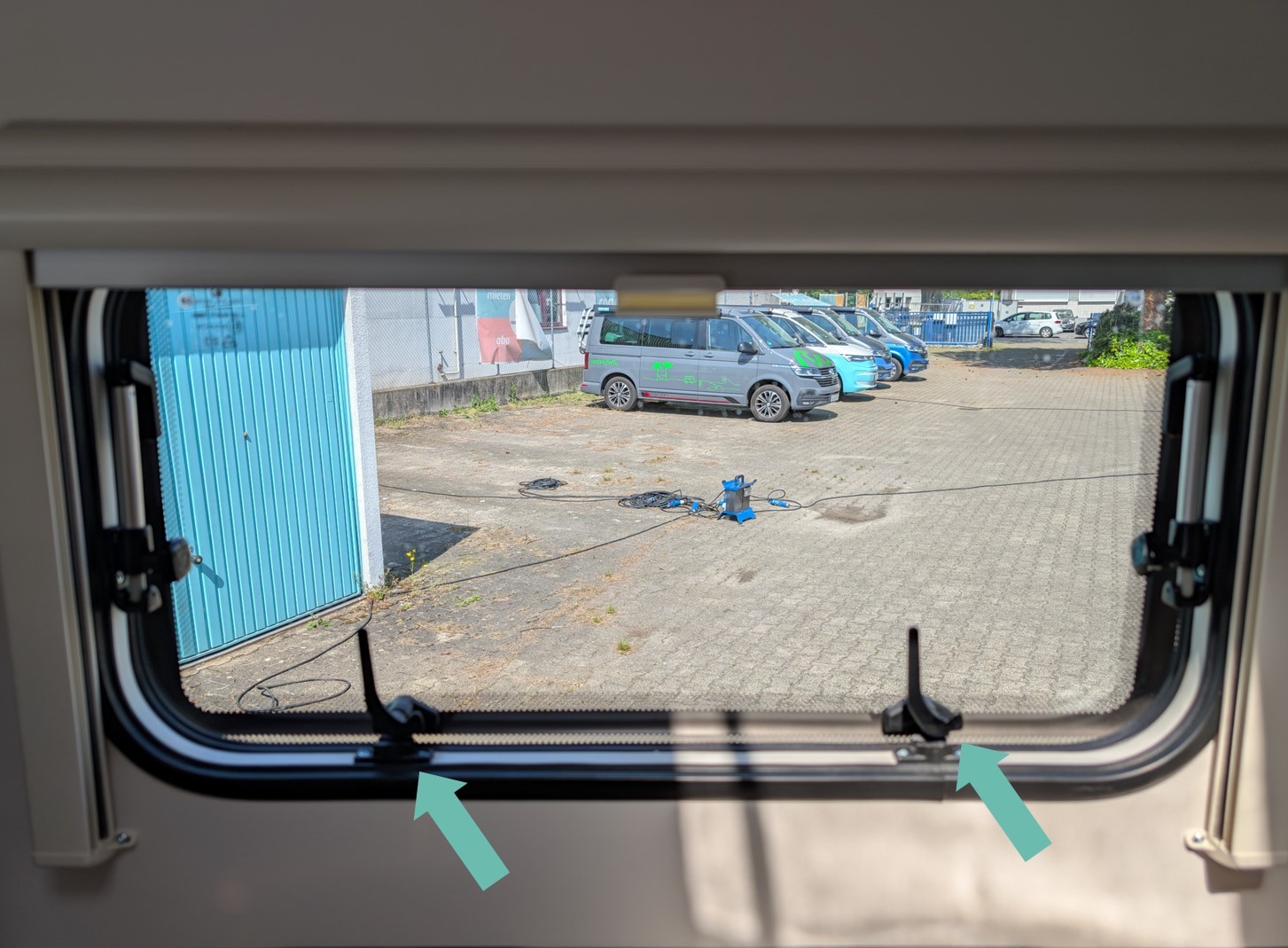

There are two different window lock variants:

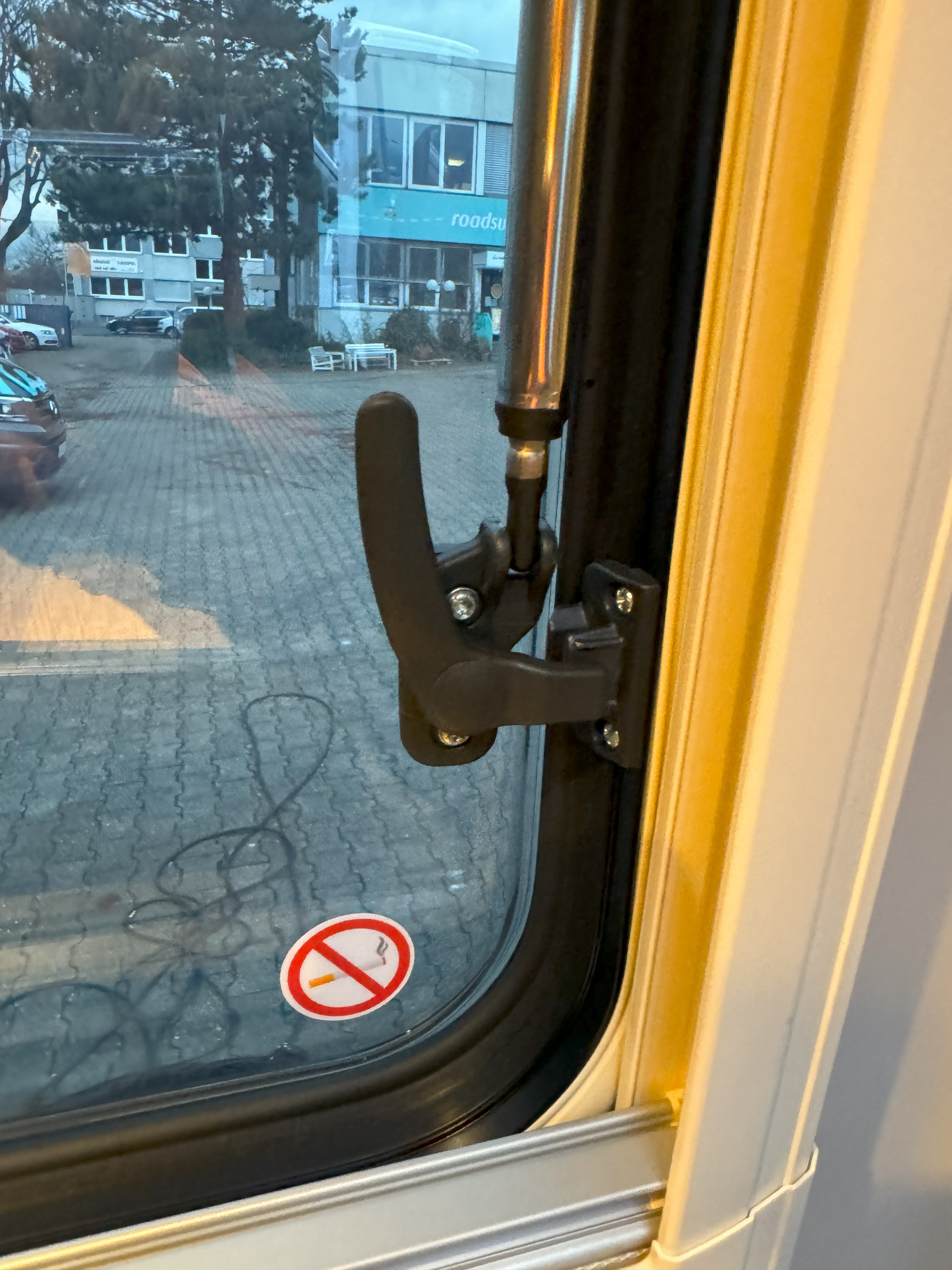

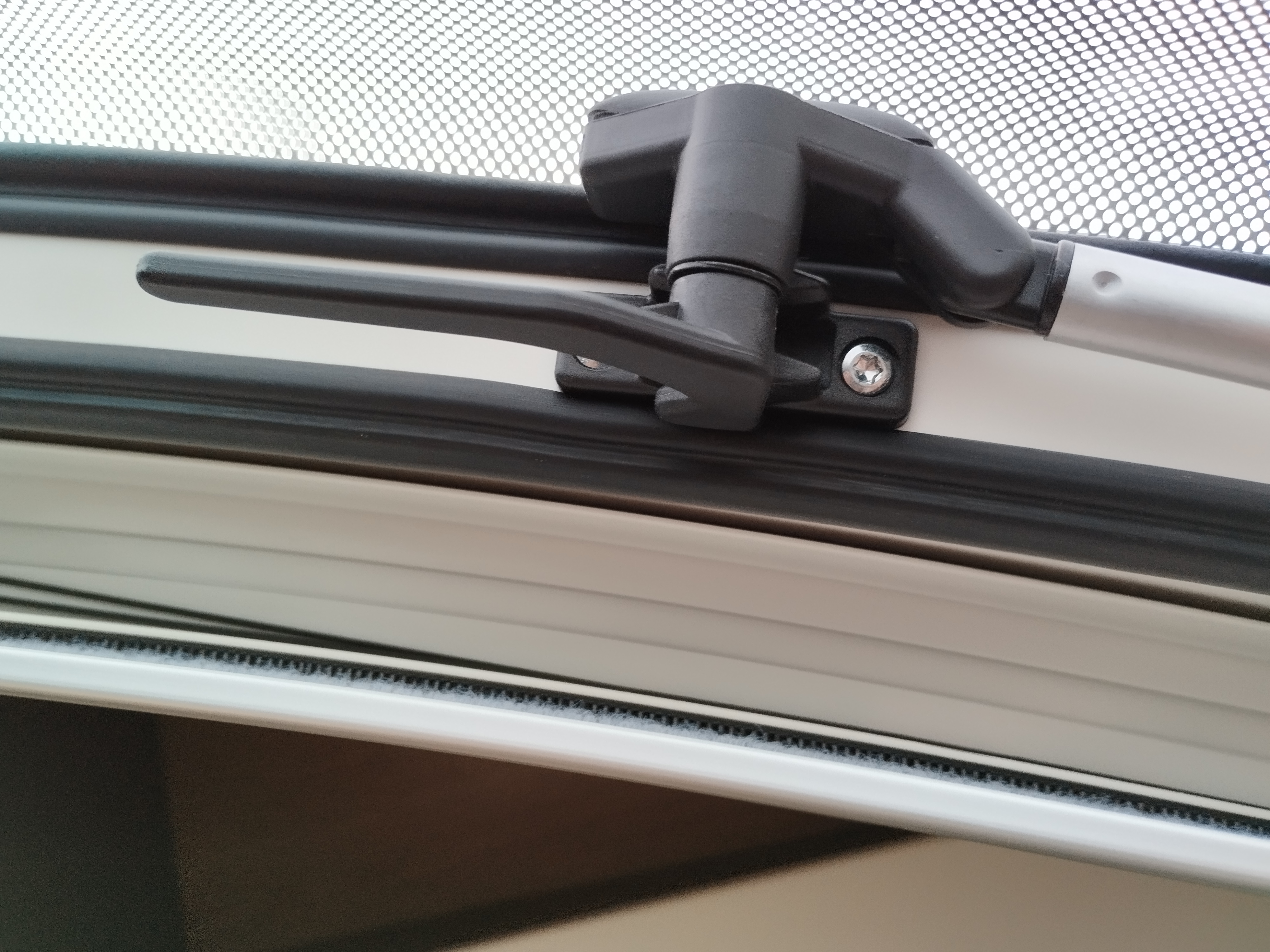

- Make a quarter turn with the locking hook (So it looks like in the picture):

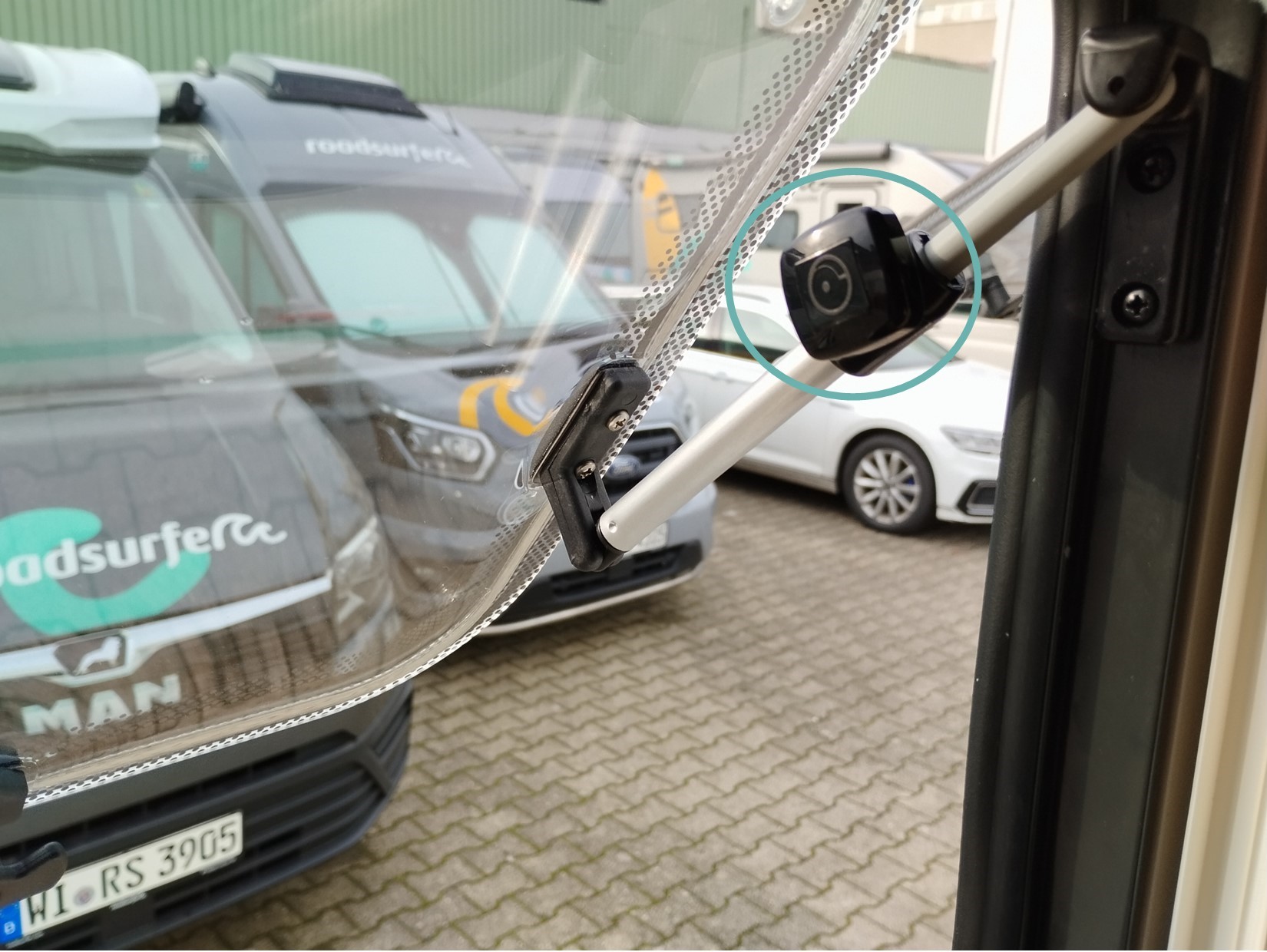

To open and arrange the window in any position, turn the black rotary knob clockwise:
To close the window, turn the knob anti-clockwise. Close the window and close the locking hocks. - Make a quarter turn with the locking hook:
Open the window by carefully pushing it, it will lock into various positions.
To close it press it fully open once carefully and full it back. Then close the locking hocks.
Please do not open the windows further than 90°!
The window pane will slide out and might fall to the ground and break.
To close the window, only slightly push it further up and then close it down carefully.

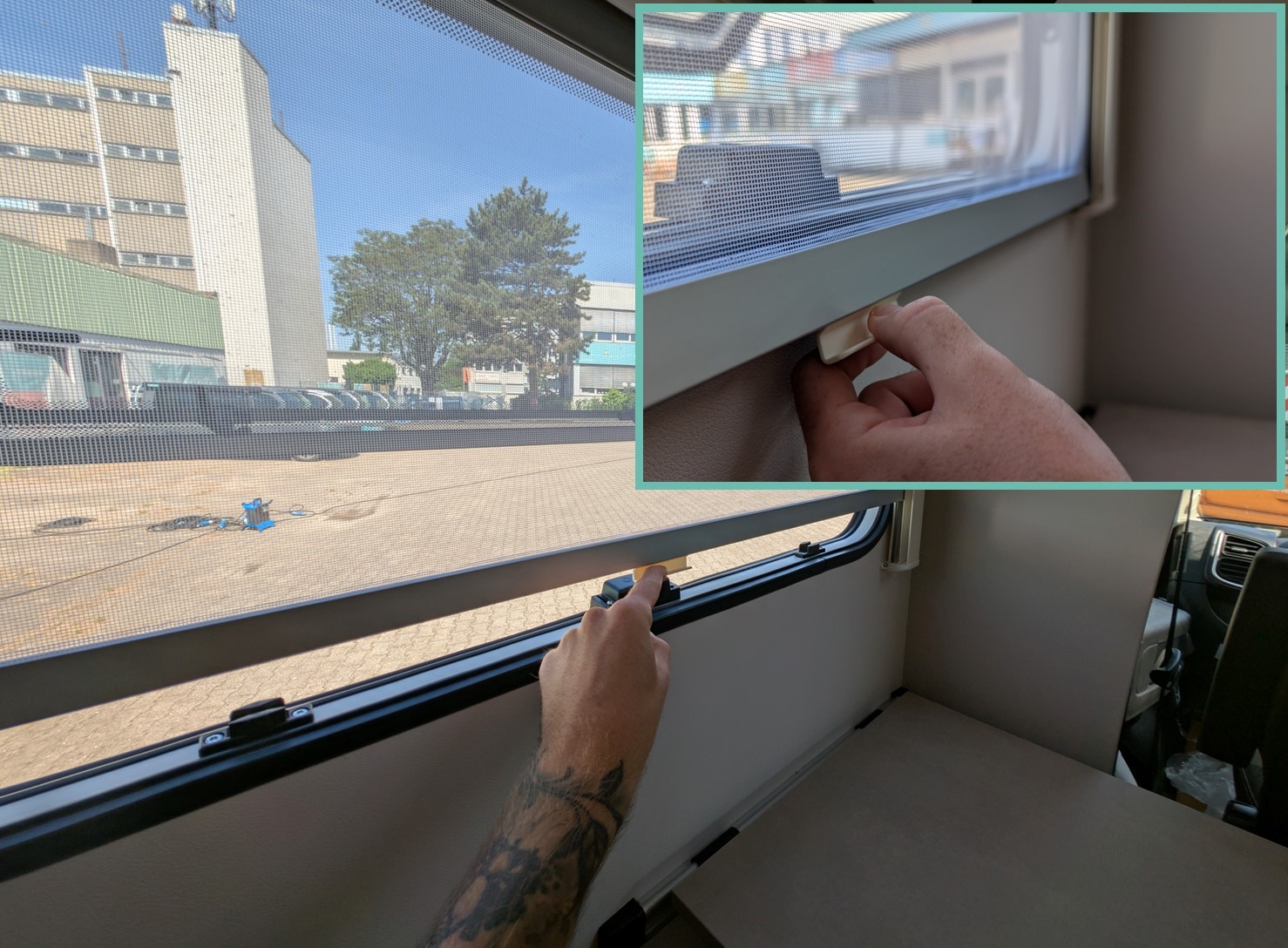

Each window in the camper has fly screens and blackout blinds. These work the same on all windows:
- Move the fly screen or black out blind by the handle:
- When closing: give the blind handle a little push in the end to lock in!
- When opening: give the blind handle a little pull to unlock and move up!

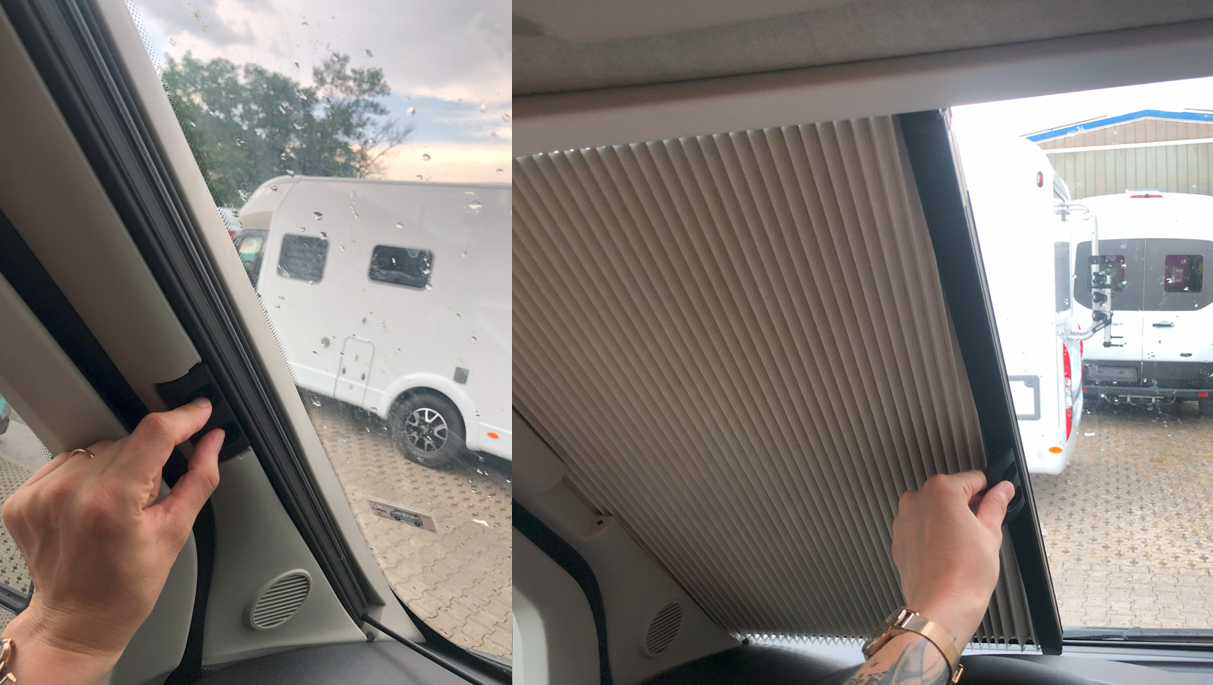

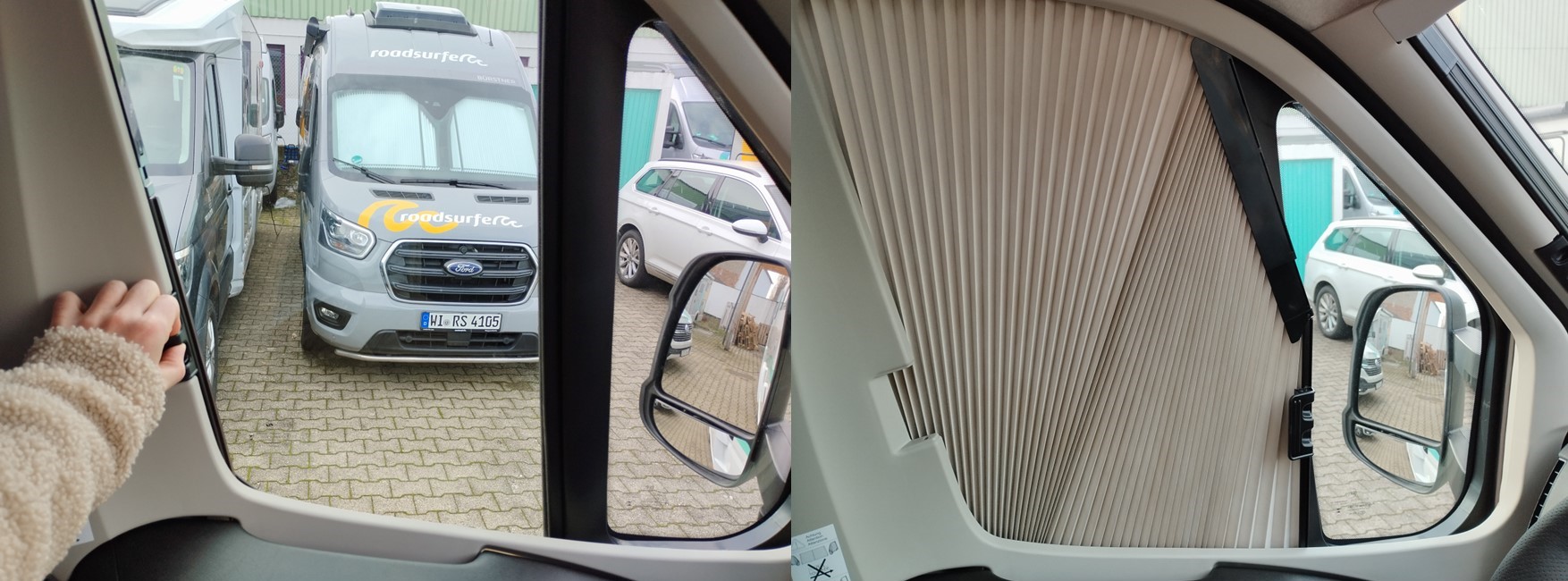

The windscreen and the side windows in the front have integrated blackouts:
- Press the black buttons together and pull them out to the side to close. They should be closed carefully and straight.
Reverse to open. Make sure the blinds are folded carefully.
Window in the bathroom:
- To open press the grey part of one or both handles and push the window upwards:

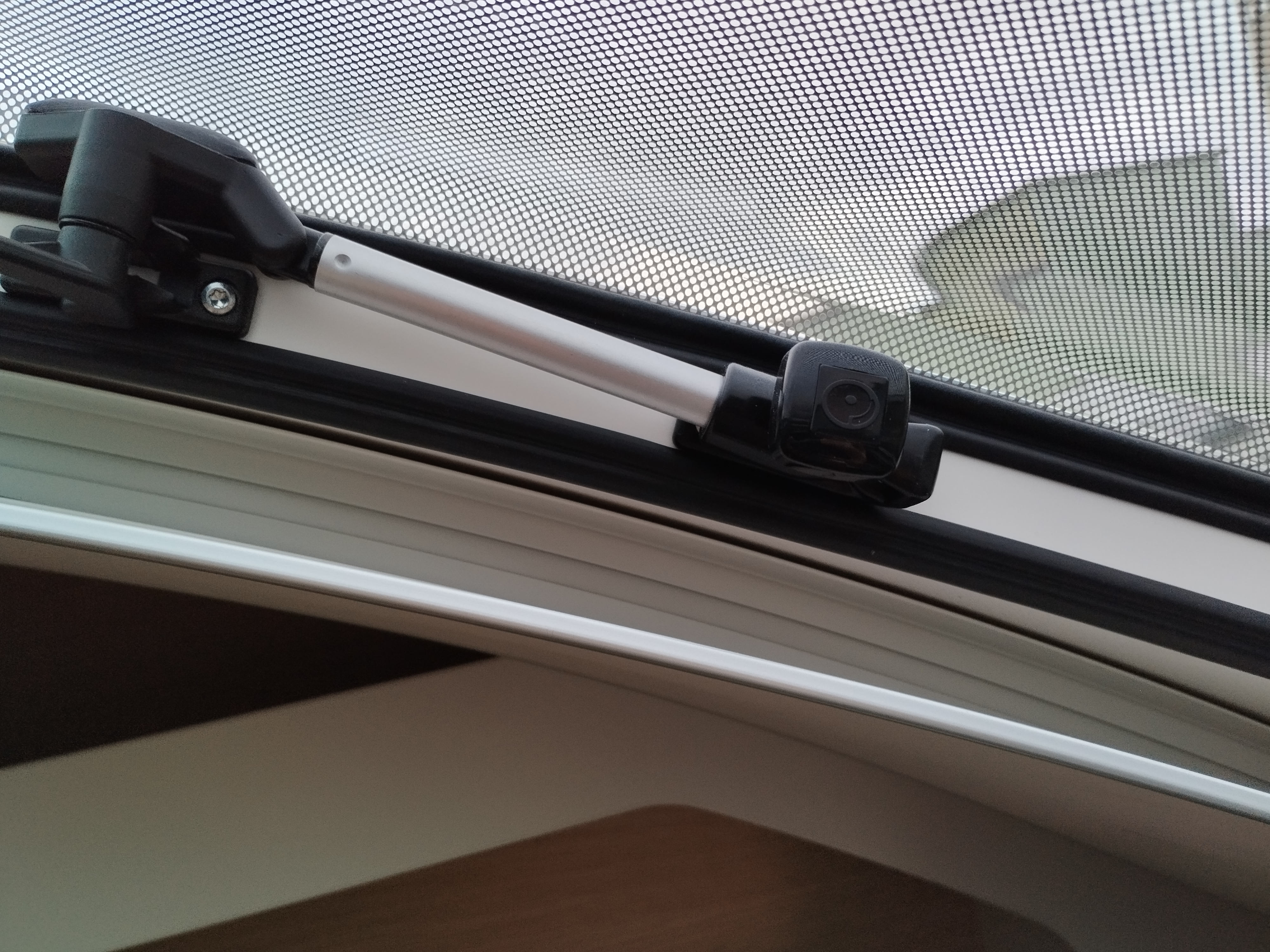

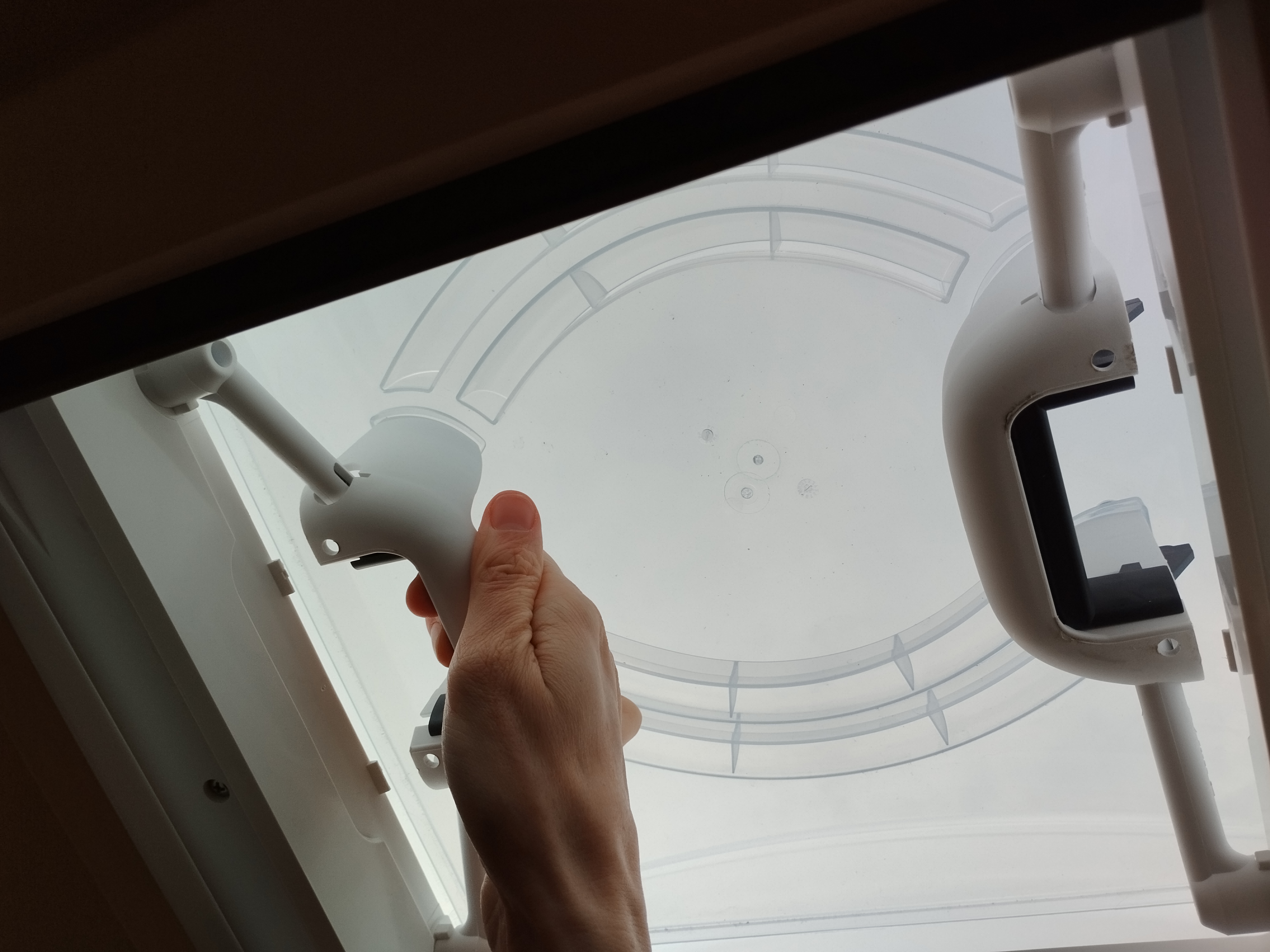

There is a big skyroof window above the cockpit:
- Open it by pressing the buttons and turning the black handles. Adjust how wide it opens with the black rotary knob:
All roof windows also have fly screens and blackout blinds hidden in the frame, just pull them to the other side.

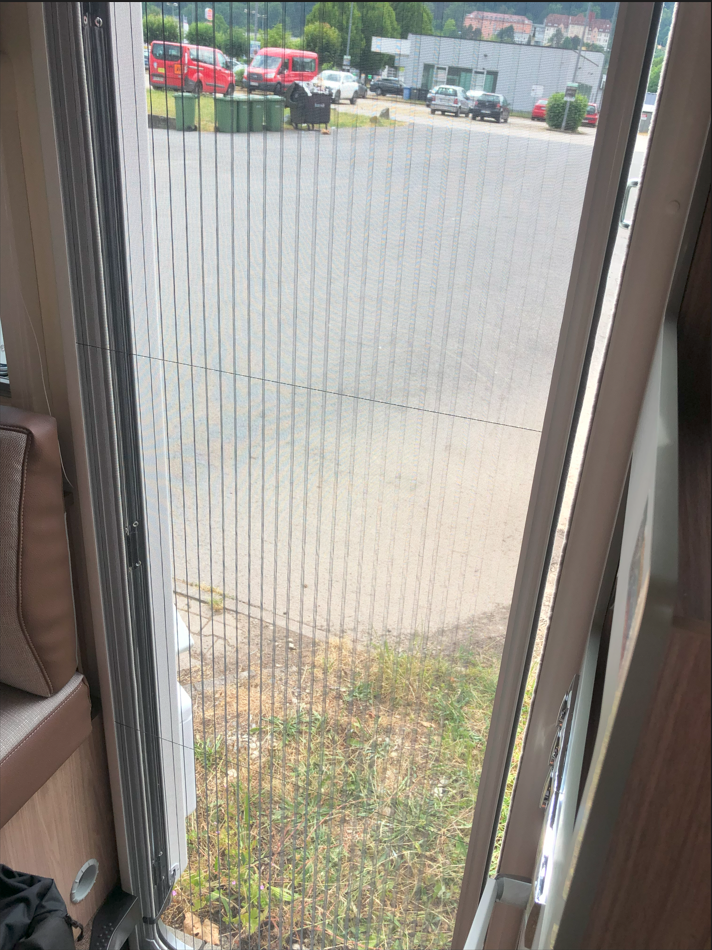

There is a fly net on the door:
- Grab it in the centre and pull it carefully to the side.
