🚾 Toilet - Camper Castle (LMC Tracer)

How to use the toilet in the Camper Castle:

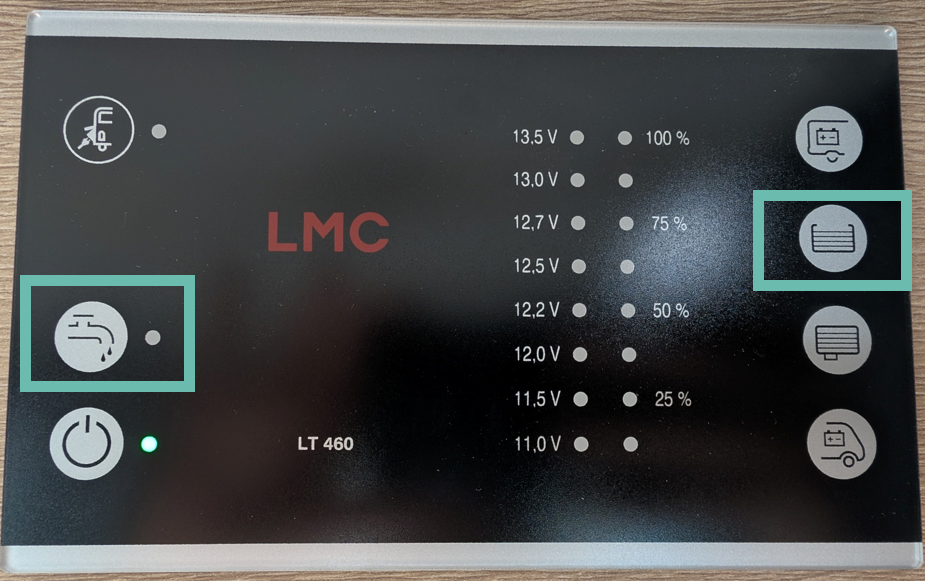

  1. The fresh water tank must be full and the water pump must be switched on:

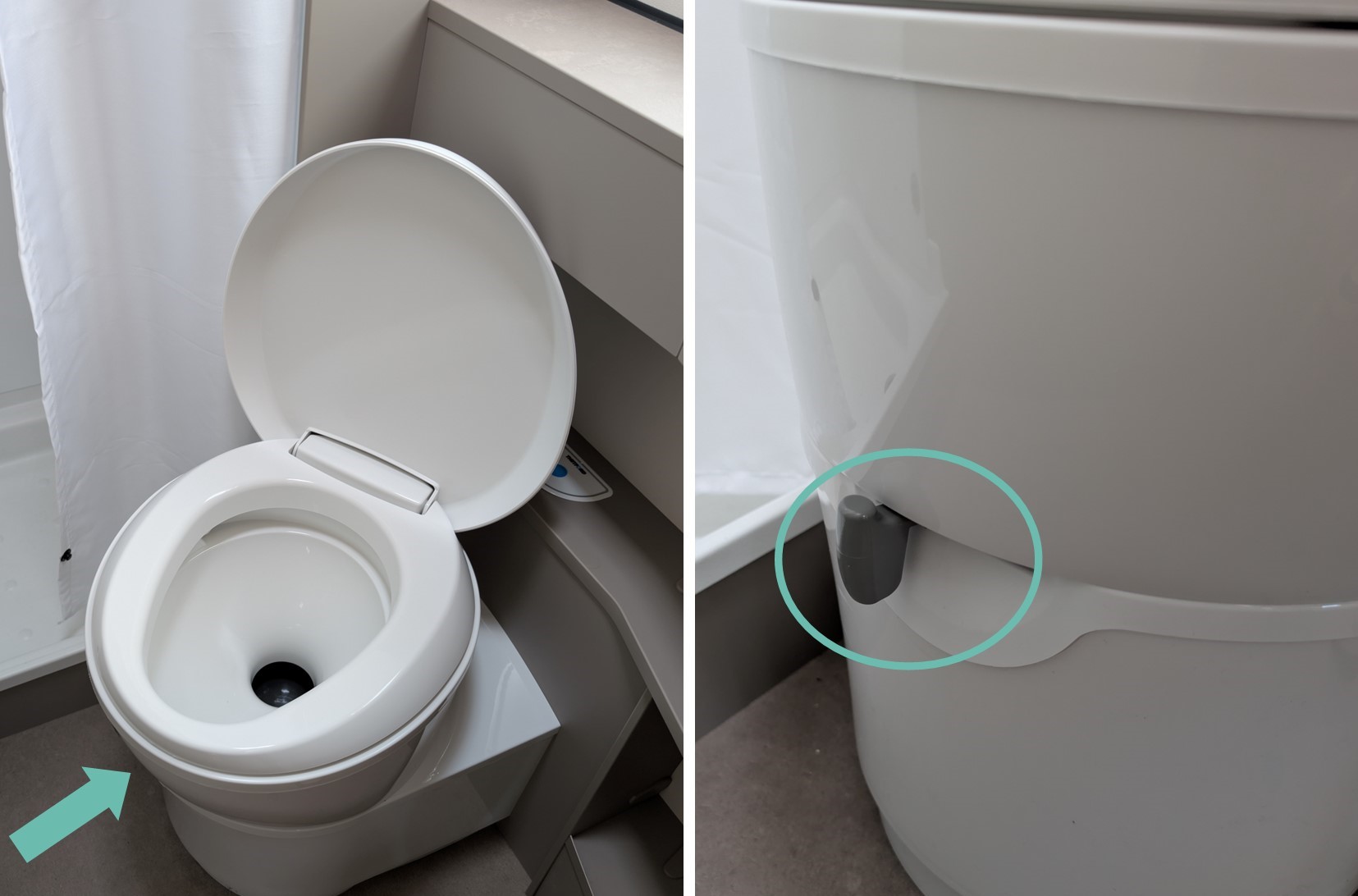

  2. Slide the grey lever underneath the toilet seat to open the toilet cassette:

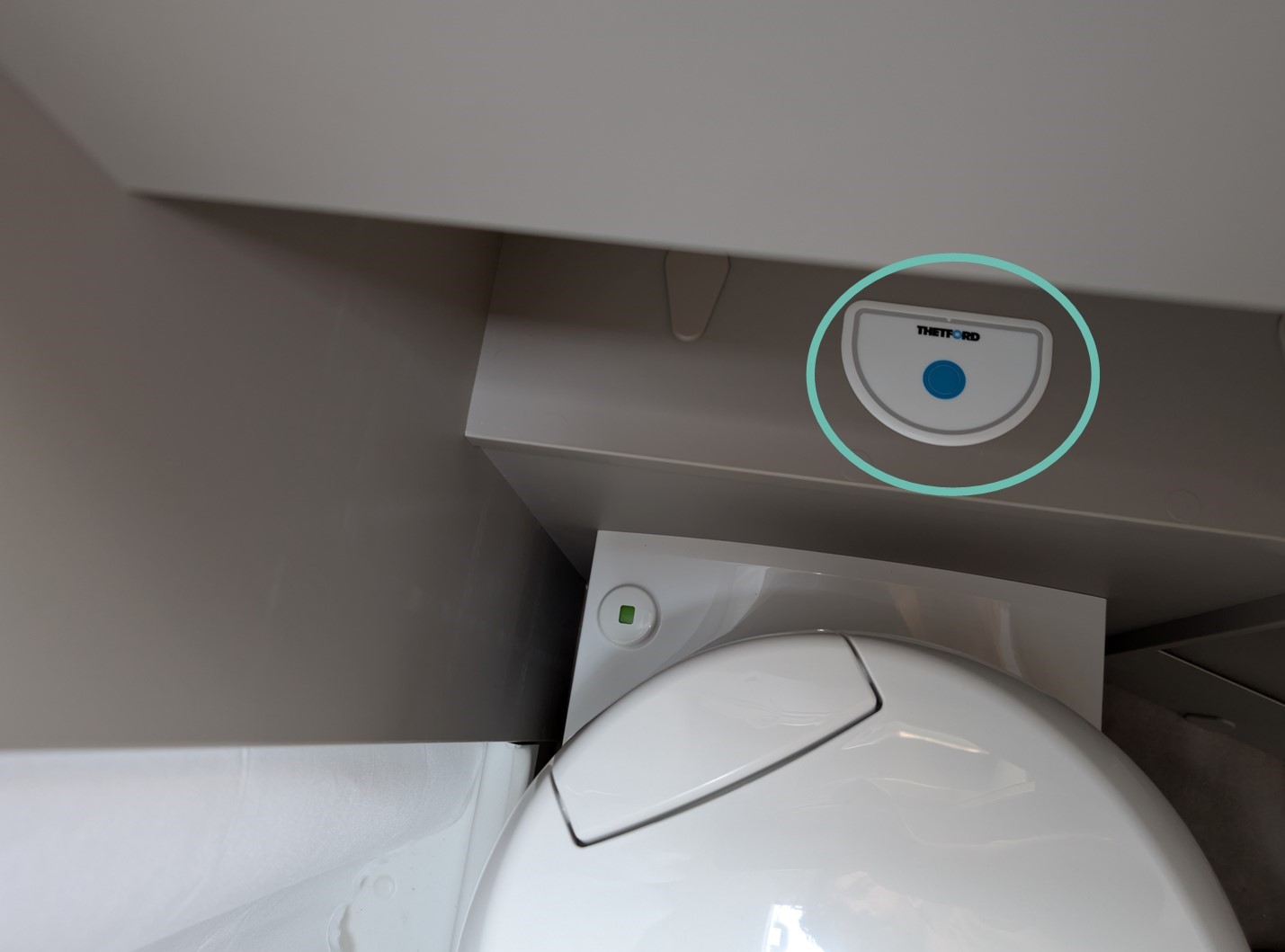

  3. Press the blue button to rinse:
  4. The toilet tank must be emptied at the latest when the green dot behind the toilet seat changes to red.

This is how you empty the toilet cassette (approx. every 2-5 days):

  1. Close the cassette from the inside by sliding the grey lever.

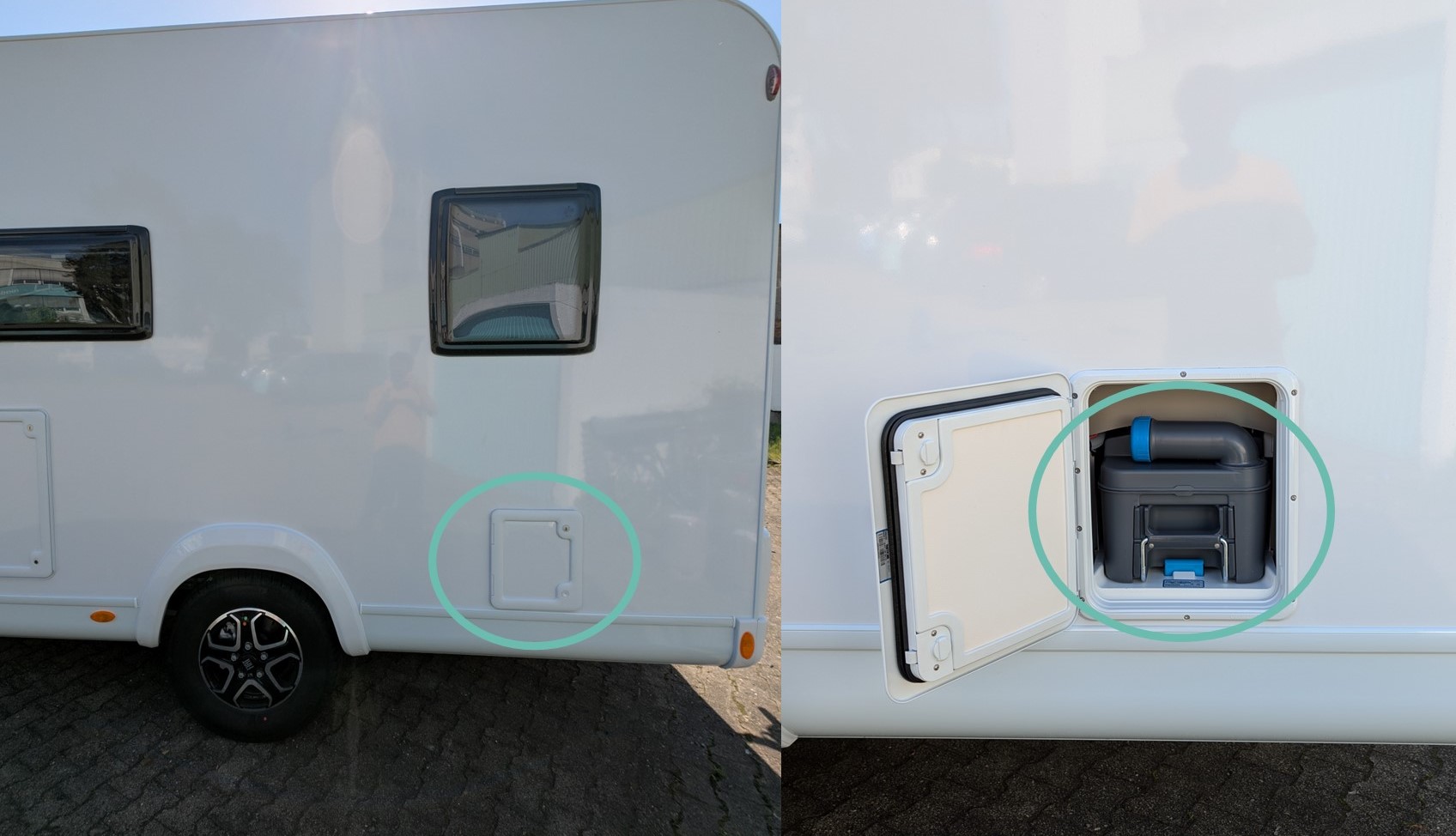

  2. Open the toilet compartment from the outside. The toilet cassette is located on the driver's side of the vehicle. To open the compartment from the outside, you need the medium-sized key.

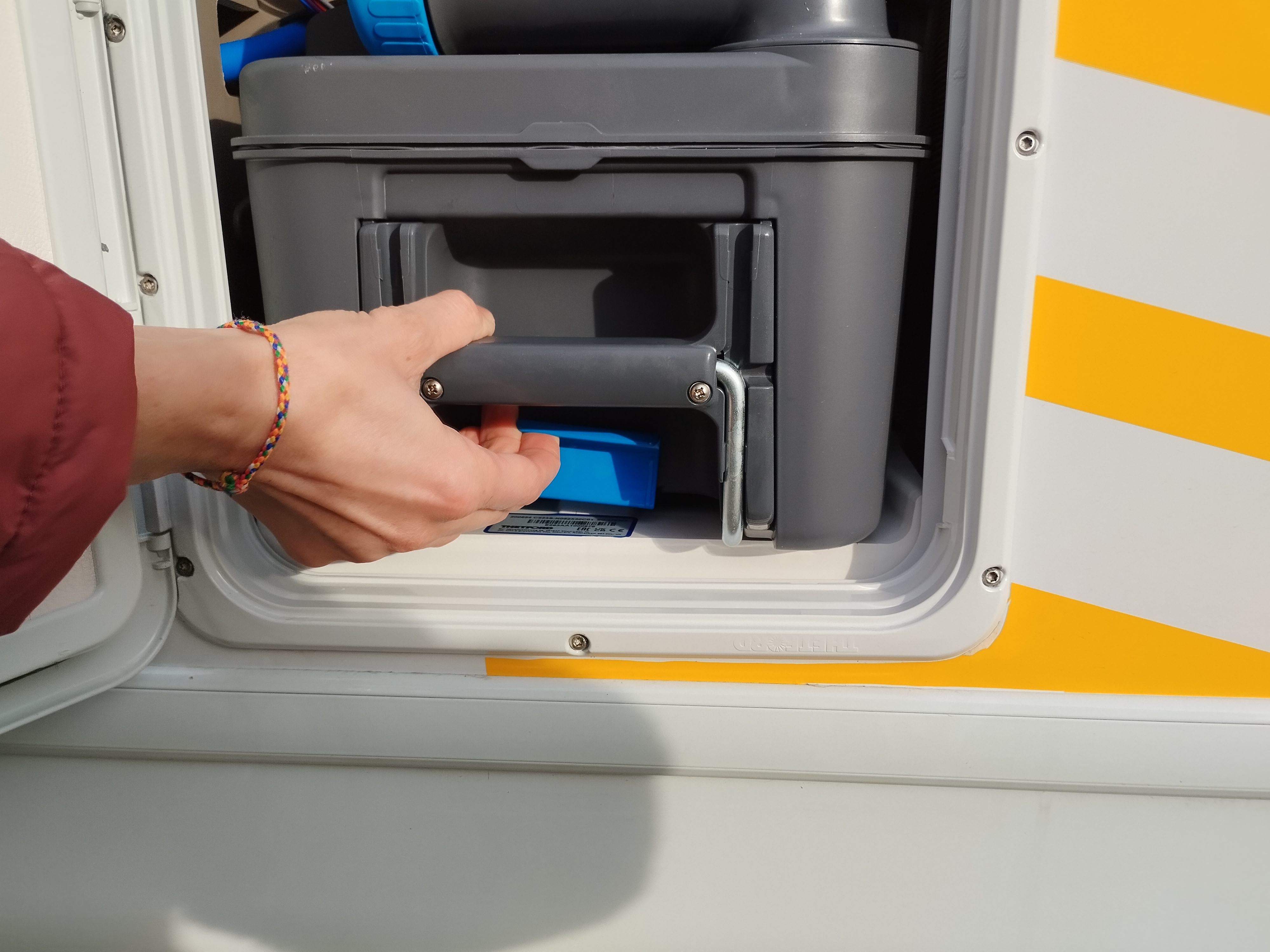

  3. Press the blue lever upwards and pull out the toilet cassette.
  4. At the emptying station: Turn the grey pipe 90 degrees, unscrew the lid, press the blue button with your thumb (ventilation for faster emptying) and carefully tip out the toilet cassette.
  5. Rinse the toilet cassette with water afterwards and fill it up with ‘Solbio’ for the next use.

Click here to go directly to the explanation video.
