To change the gas cylinder (11kg) in the Couple Cottage (LMC Innovan 600), these steps must be followed to ensure safe handling:

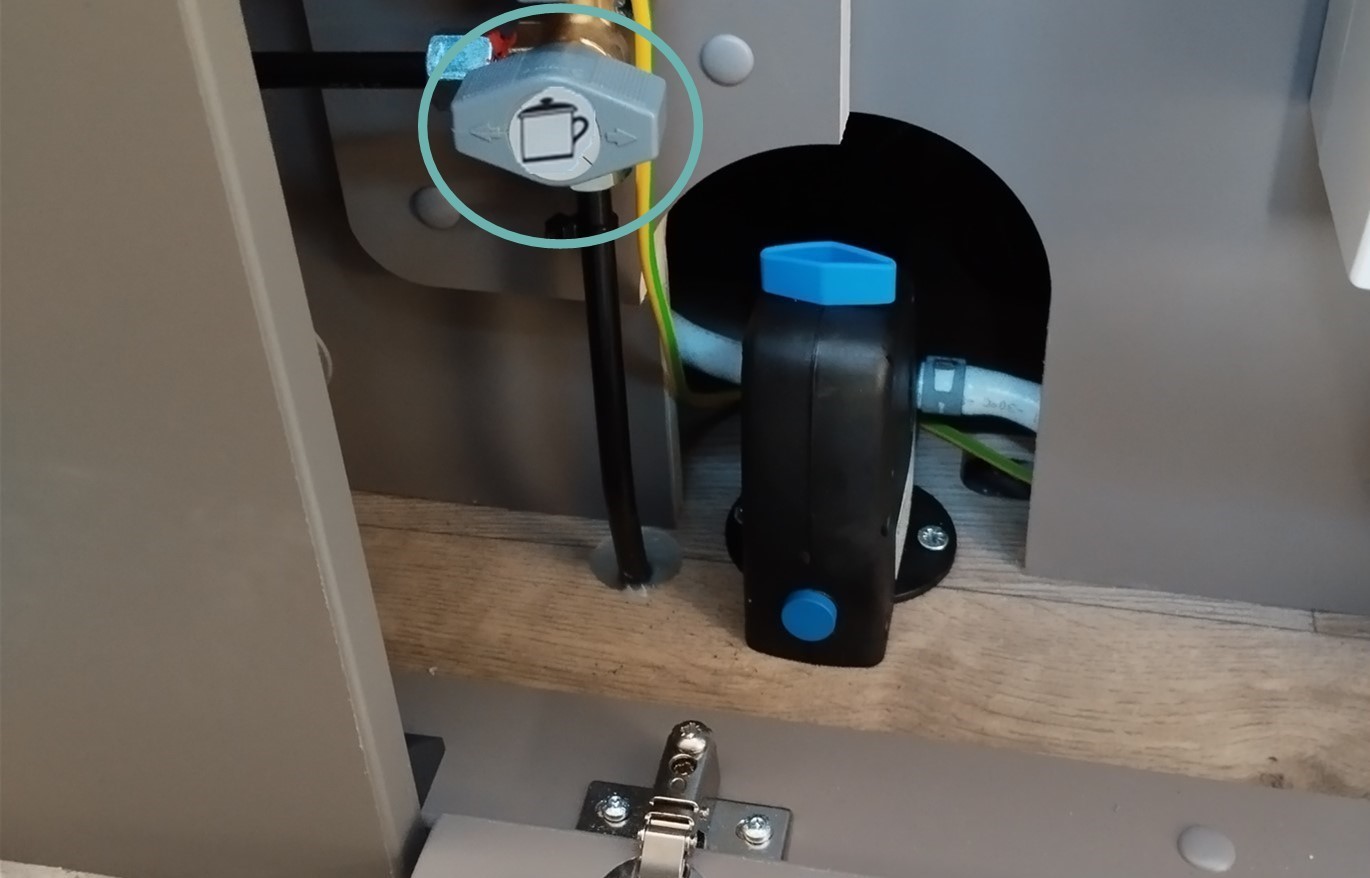

- Close the grey safety lever in the compartment under the rear seat bench (vertical):

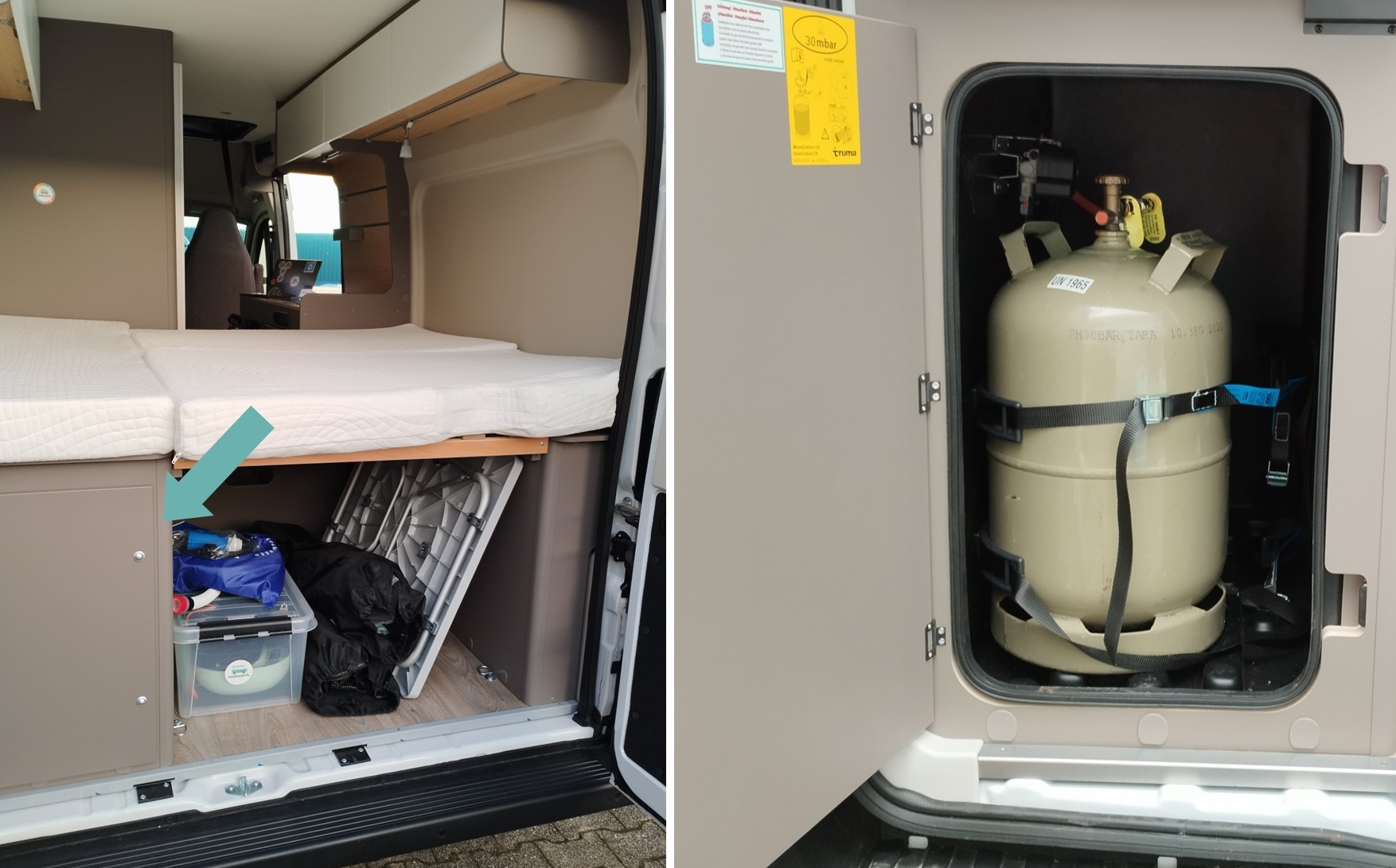

- Open the boot and the gas locker (driver's side):

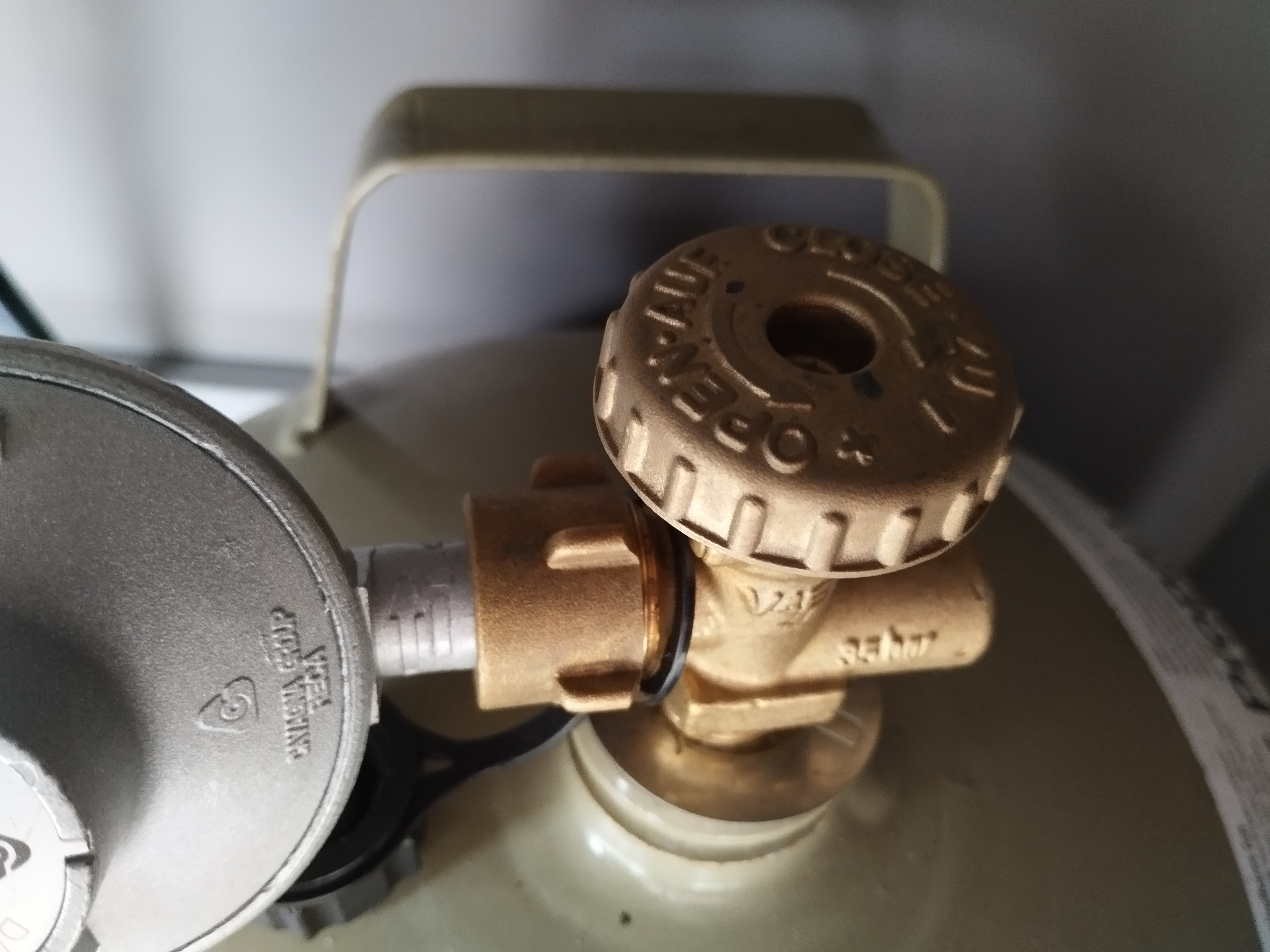

- Turn the gas valve fully in the minus "-" direction to close the gas cylinder:
- Loosen the straps around the gas cylinder.
- Detach the grey metal connection from the gas bottle.
- Remove the cylinder from the compartment.
- Remove the brass-coloured adapter and screw it onto the new cylinder.
- Place the new cylinder in the compartment and attach the hose with the adapter.
- Secure the gas cylinder with the straps.
