💺 Turning front seats & Entry step - Couple Cottage (LMC Innovan 600)

 To reverse the front seats of the Couple Cottage, follow these steps:

  1. Move the seat all the way forward, adjust the backrest to a vertical position and fold the armrest(s) upwards.
    Important: Open the corresponding side door!
  2. With the door open, operate the lever at the bottom of the driver's seat and turn the seat inwards. The lever is usually positioned in a mirror image to the passenger seat.
  3. If applicable: Be sure to release the handbrake when turning the driver's seat, if this impedes the movement of the seat.

Please note the following:

  • Only turn the seat from the outside!
  • When turning the seat back, also ensure that the seat does not jam against the side panel of the vehicle as this could cause damage.
  • If the seat continues to turn without remaining in the driving position, simply turn it in the other direction until it clicks into place.

Click here to go directly to the explanatory video:

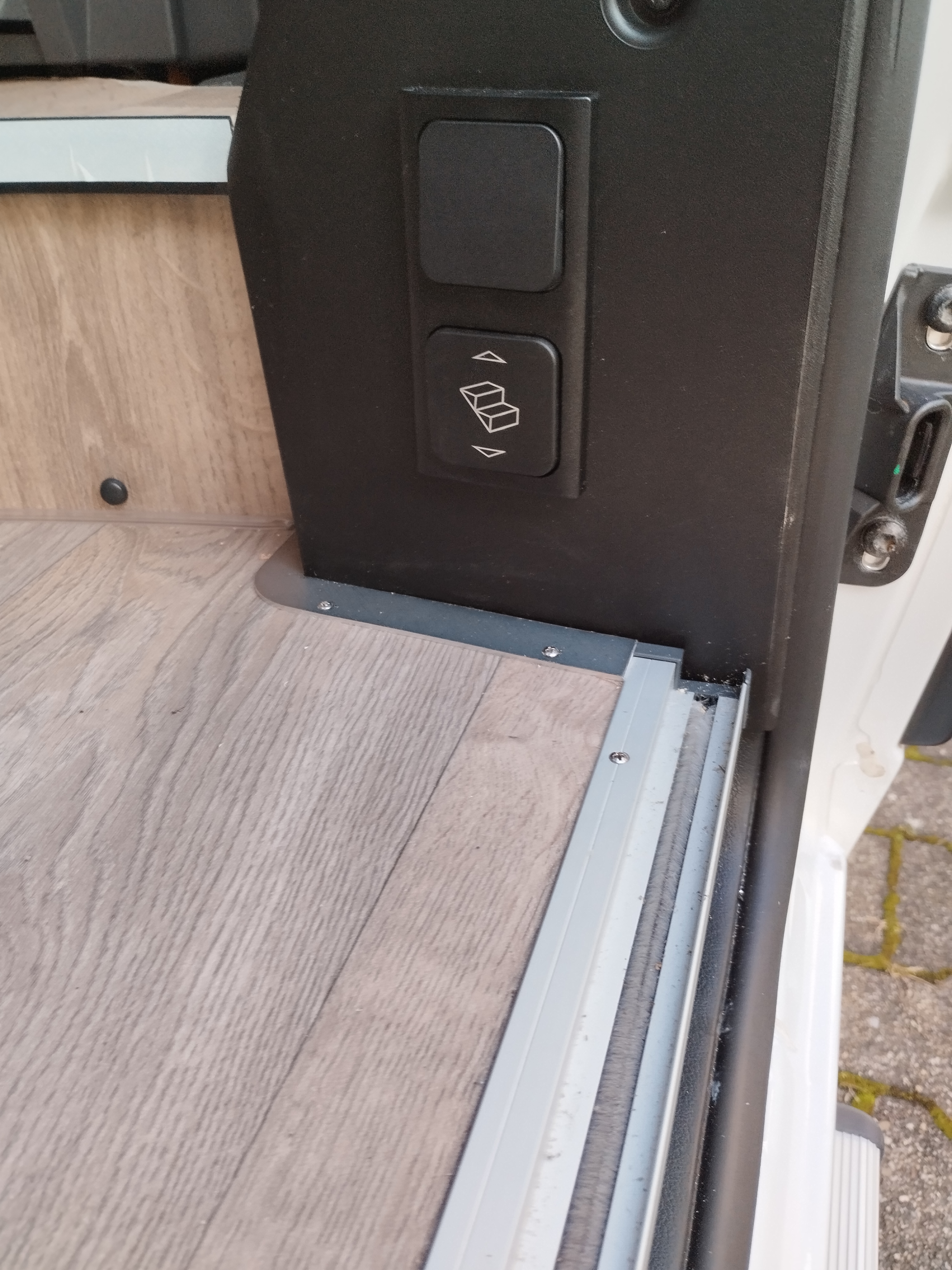

The button for the entry aid is located in the frame of the sliding door towards the cockpit:

Please remember: retract before driving off, otherwise you will hear a loud beep!
