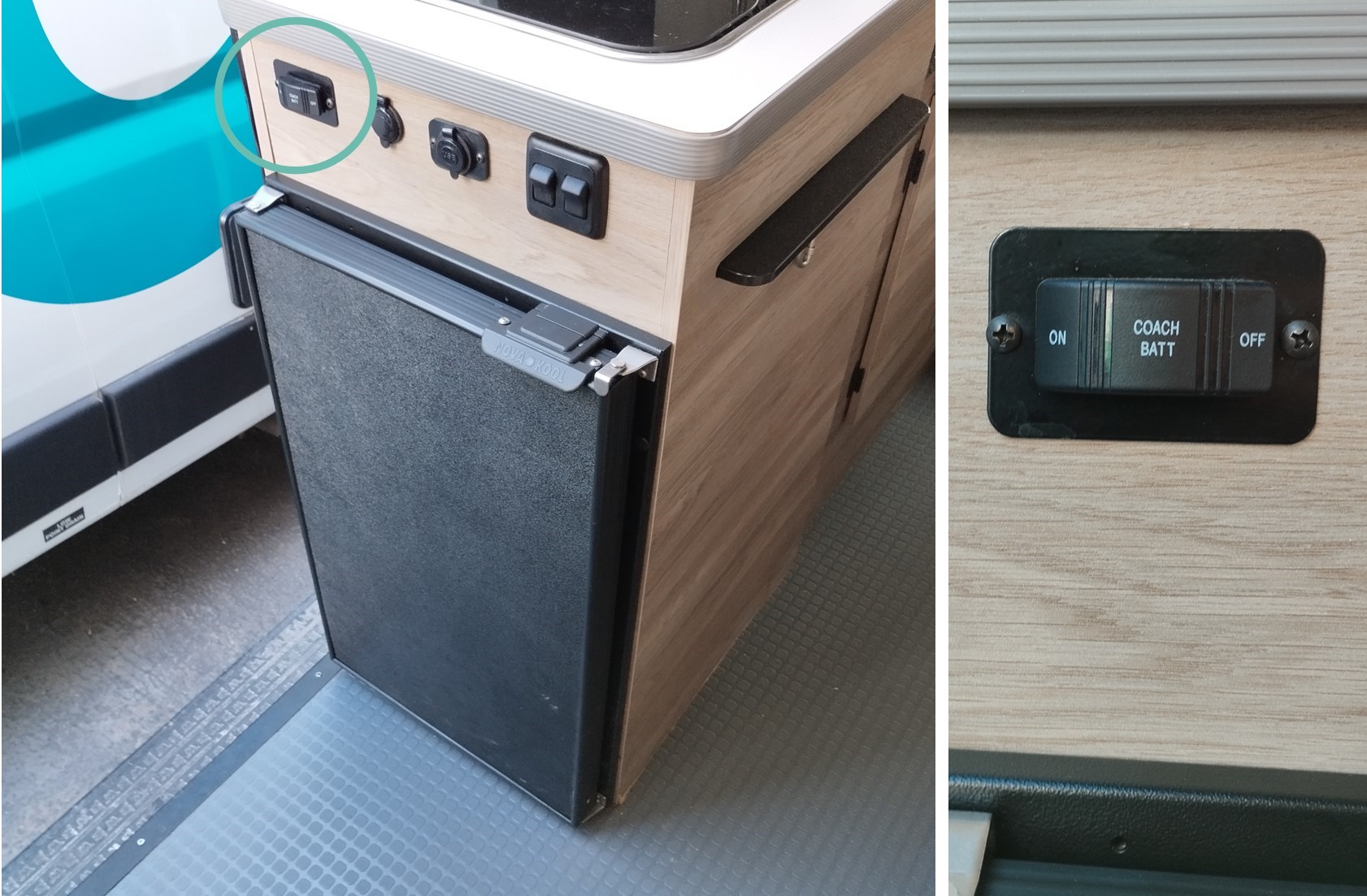

The fridge and freezer in your Liberty Lodge runs on 12V power. To use it, make sure the coach battery switch is turned to ON:

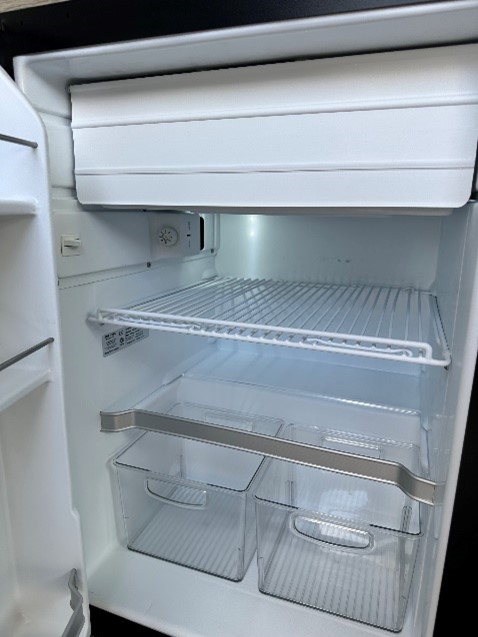

The door can be secured with the small silver latch on the top right.

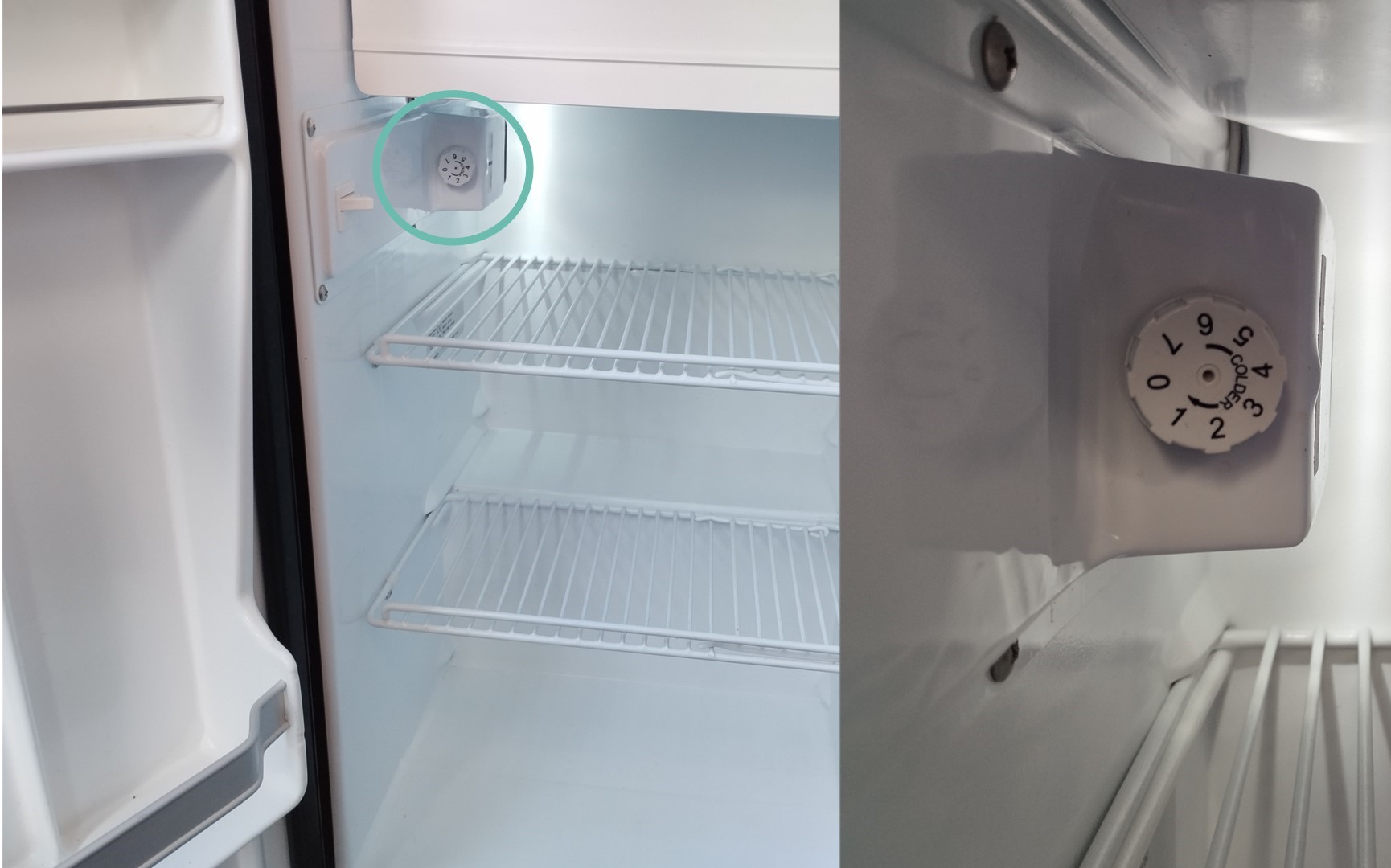

There is a dial in the refrigerator that can be used to set the cooling level - we recommend level 3-4 (0= off):
Be a little patient 🥰
Please be aware that it may take a few hours until the fridge is fully cooled down! The warmer the environment is and the more food you put in, the longer it may take.
You can speed up the cooling process by:
- putting food in, that already comes from a fridge
- adding cool-packs/ice-packs
Troubleshoot
- If the fridge isn't turning on, start the engine and then try again.

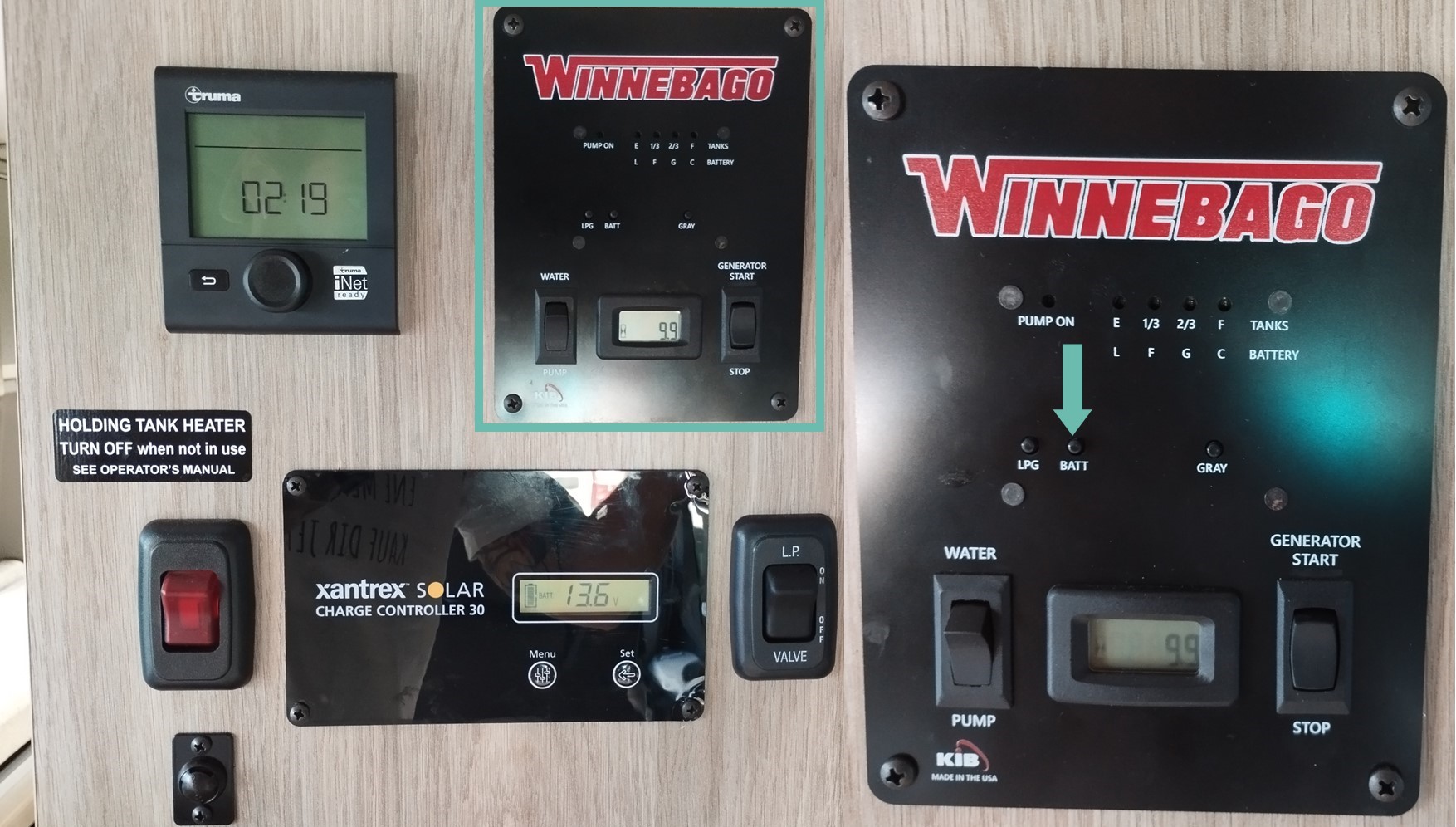

- If the fridge is still not working, please check if the main power is on and there is enough power on the battery:

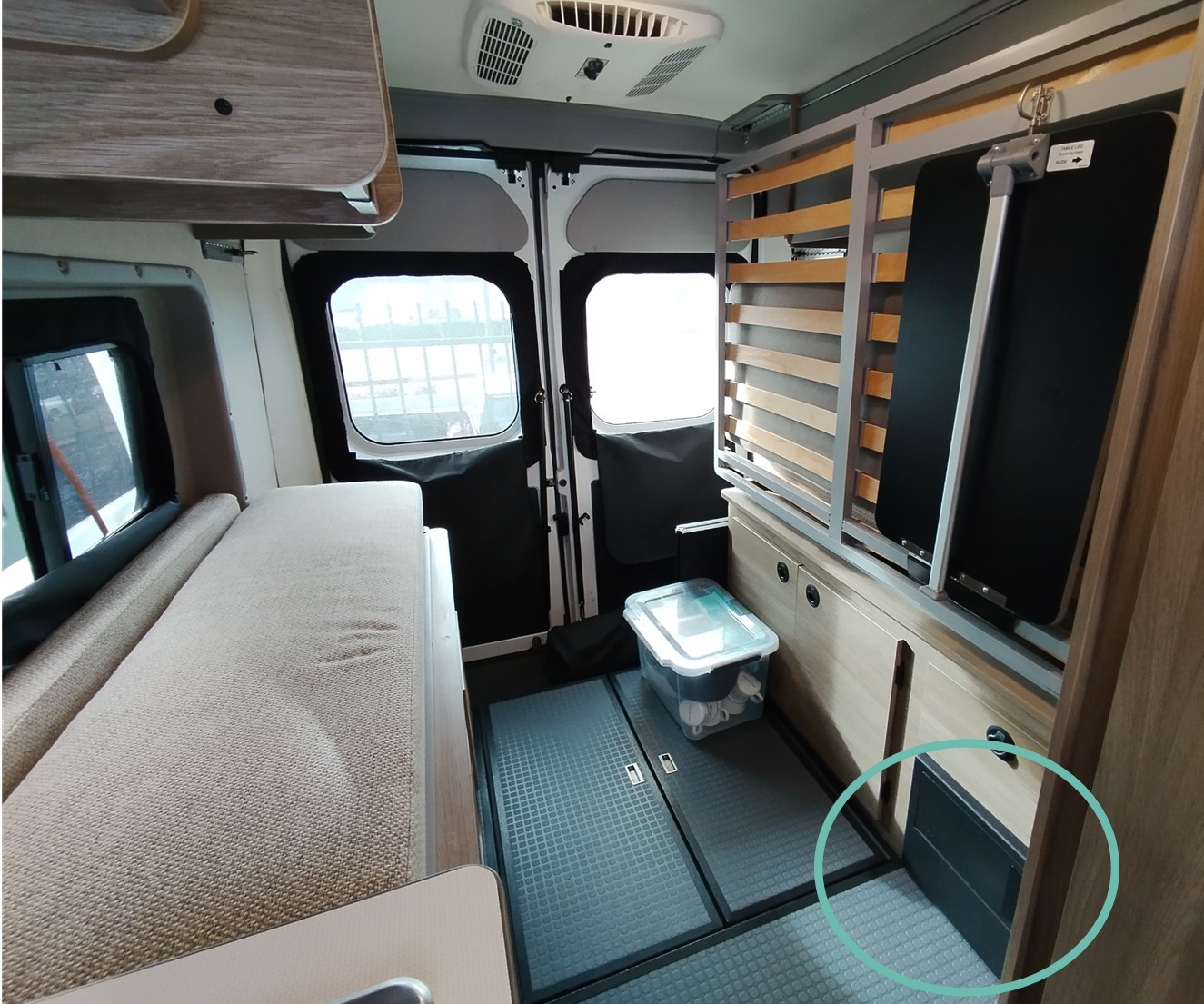

- Check the fuse for the Refrigerator. You can find the fuse box under the slatted frame in the rear:

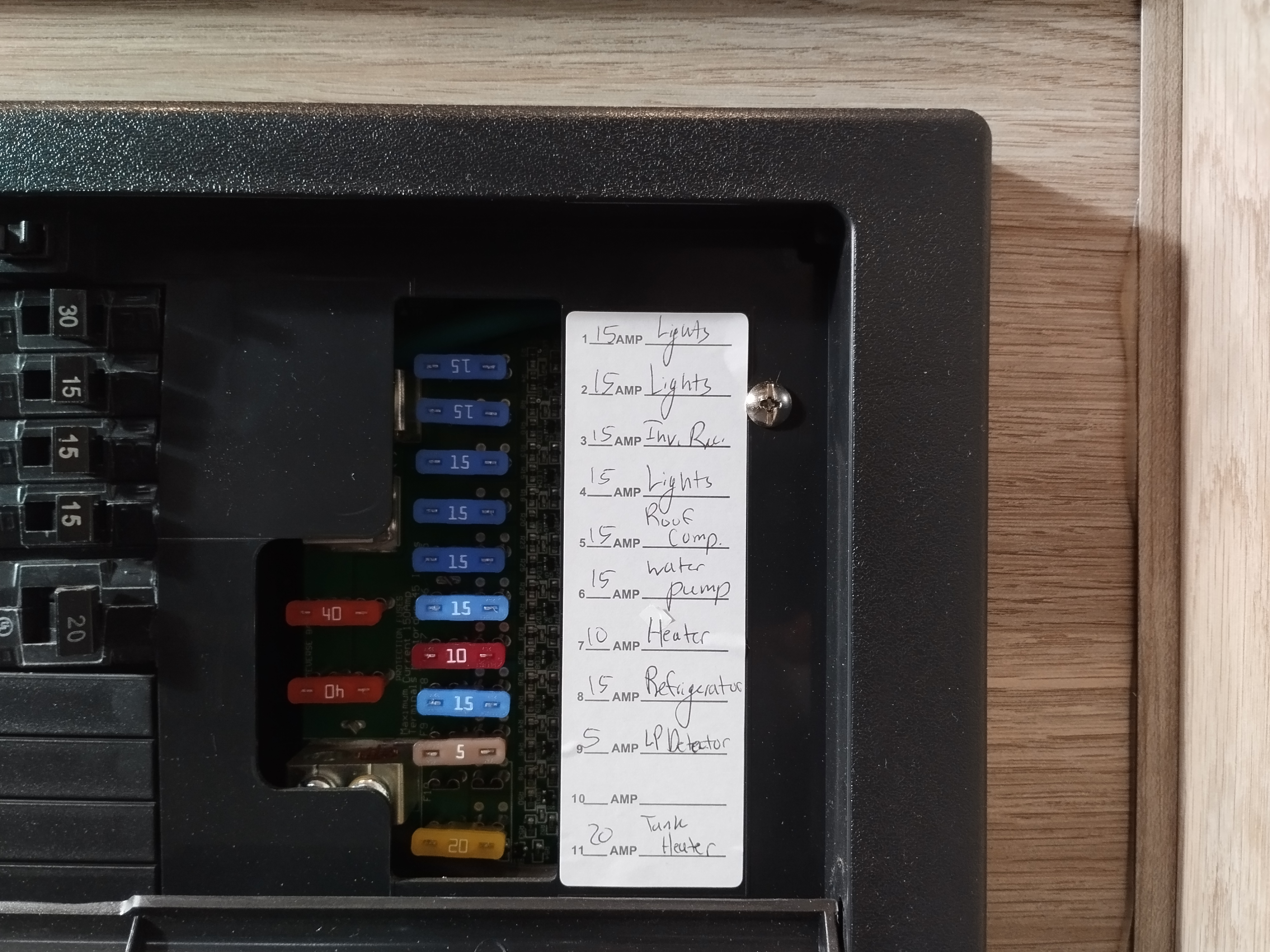

- Look for the fuse that is labled "Refrigerator":
Before any fuse is pulled, following safety measures is required:
- Turn off the engine and remove the key from the contact.
- Unplug the car from any external power supply.
- Pull carefully on the fuse by pulling from the sides.

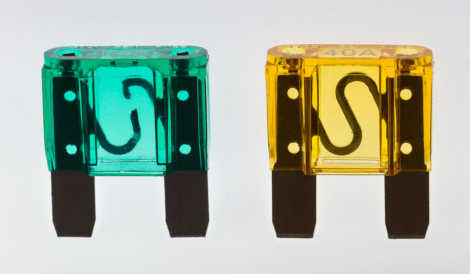

- A damaged fuse can be burnt or have the connector broken (see picture). If so, please replace it. You can find them at petrol stations and hardware stores.
