💺 Turning front seats & Entry step - Couple Cottage (Knaus Boxlife 600)

To turn the front seats of the Couple Cottage, follow these steps:
  1. Move the seat all the way forward, adjust the backrest to a vertical position and fold the armrest(s) upwards.
    Important: Open the corresponding side door!
  2. With the door open, operate the lever at the bottom of the driver's seat and turn the seat inwards. On the passenger seat, the lever is on the left.
  3. Be sure to release the handbrake when turning the driver's seat, if this impedes the movement of the seat.

Please note the following:

  • Only turn the seat from the outside!
  • When turning the seat back, also ensure that the seat does not jam against the side panel of the vehicle as this could cause damage.
Click here to go directly to the explanatory video:

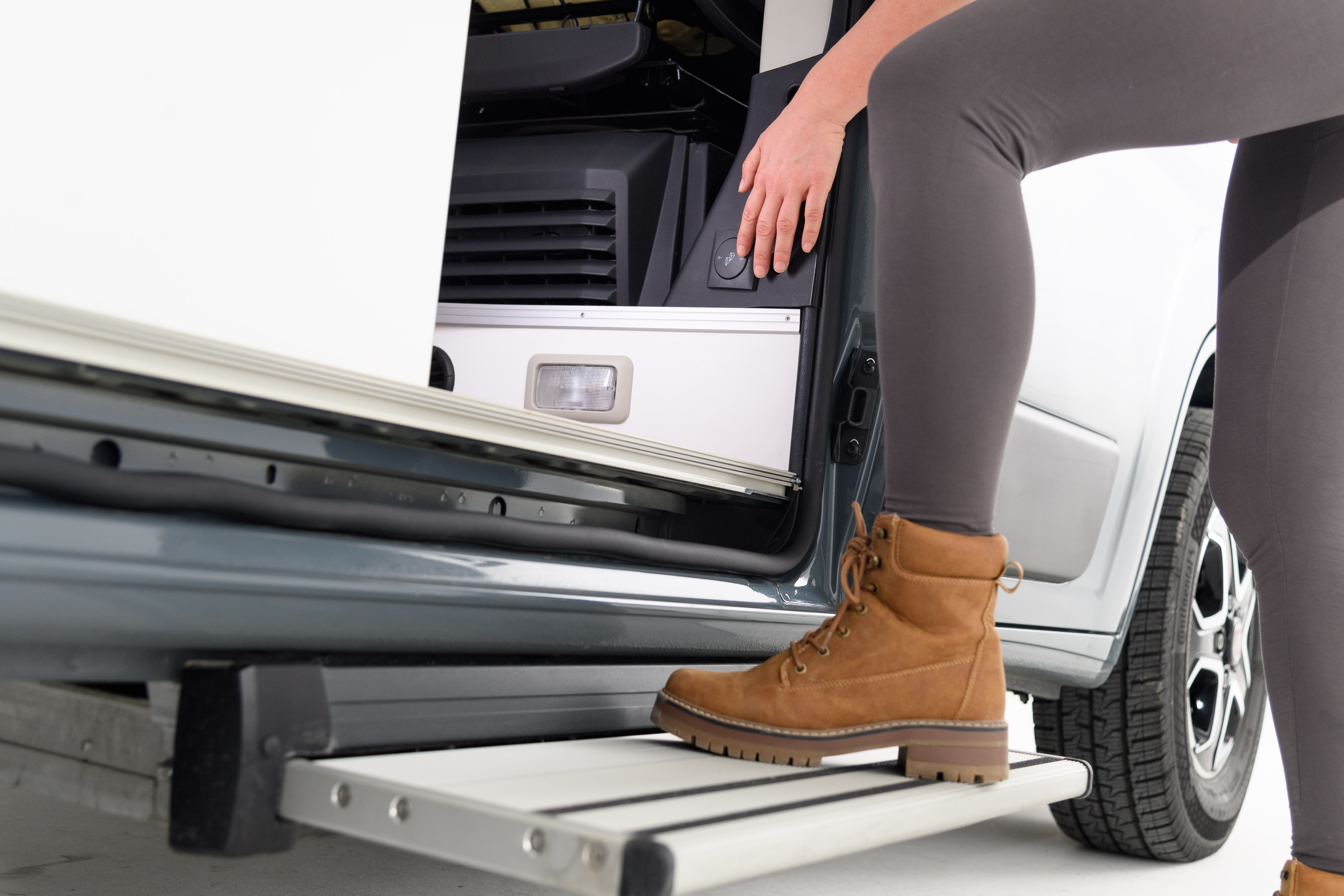

The button for the entry aid is located on the right behind the passenger seat on the B-pillar:
Please remember to retract before driving off, otherwise you will hear a loud beep.
