To ensure that all 12V electronic devices work without external power, the camping battery voltage should never fall below 12V (50%).
The lights in the Couple Cottage (Knaus Boxlife 600) only work when the camping battery is charged or when an external power supply is connected.

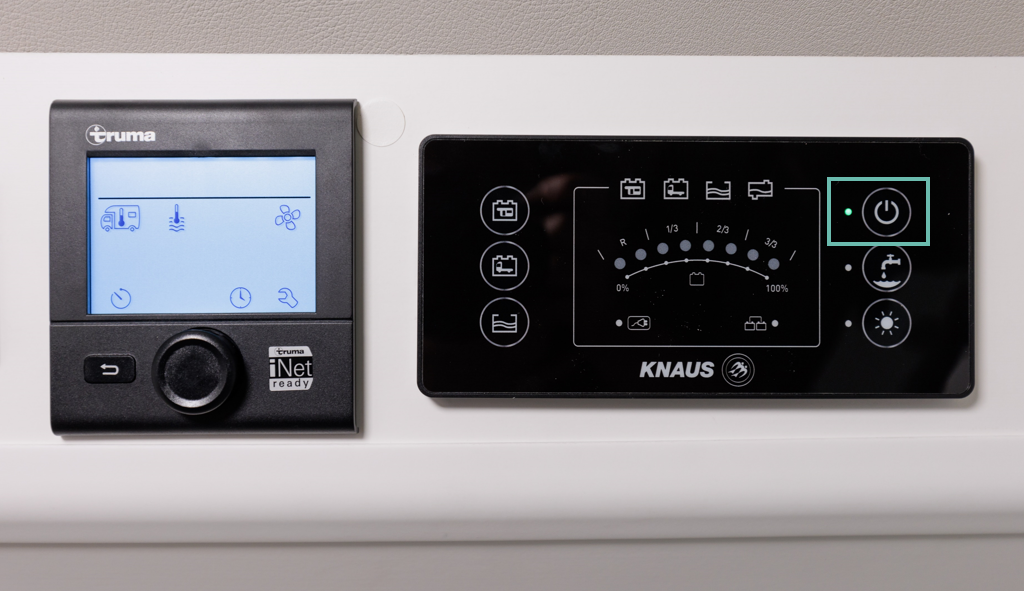

To use power and light, the on-board computer above the sliding door must be switched on:
The light switches for the interior are located above the kitchenette, below the wall cupboards by the bed in the rear and below the wall cupboards by the rear bench seat.
There are numerous power sockets and USB ports throughout the vehicle:
- 230V sockets can be found under the rear bench seat on the left and above the kitchen.

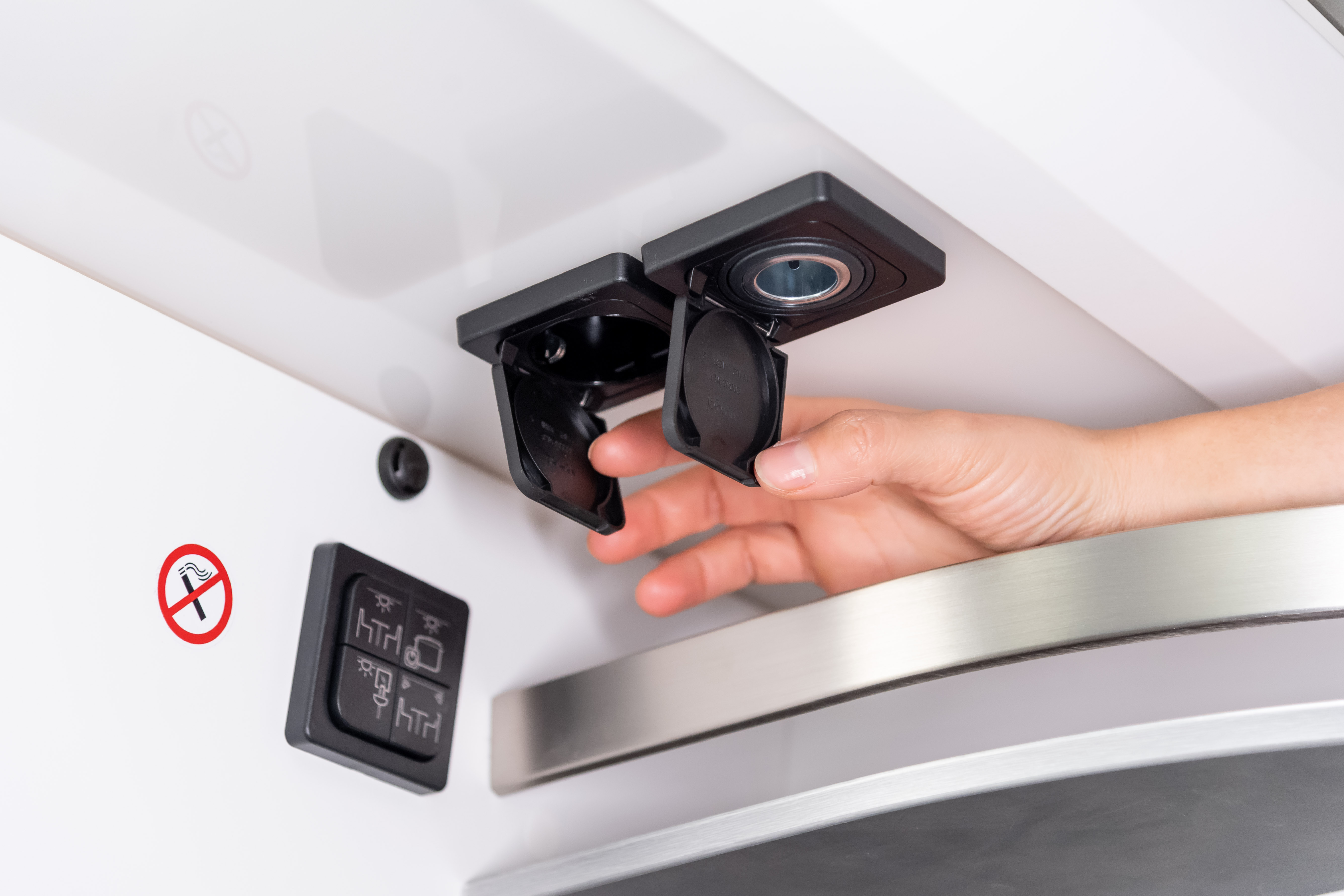

- USB ports and 12V sockets are in the cockpit (USB Type-C and B), on the touch reading lamps by the bed and the 12V socket above the kitchen also works without an external power connection.
Please note the following:
- Do not charge any device in the driver's cab via USB when stationary. The starter battery will discharge and the engine might not start anymore!
- The 230V sockets only work with an external power connection.
- The USB ports and 12V sockets also work without an external power connection. But the camping battery must be charged.
Troubleshooting
If the power or light does not work, you can test several things. Go through the troubleshooting below in the article on the camping battery!
