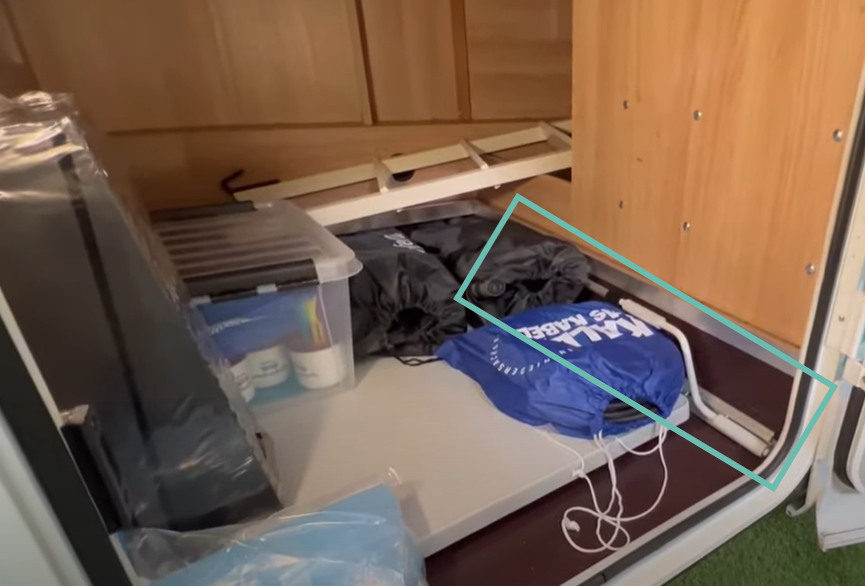

You can find the awning crank in the boot, fixed to the box in the direction of travel:
Instructions on how to open the awning:
- Make sure the sliding door and passenger doors are closed before opening the awning.
- Insert the crank at rear end. A half turn against the opening direction prevents it from slipping off.
- Turn it in counter-clockwise direction until 50-100 cm out.
- Pull the legs of the awning out by clicking on the metal hinges to the side and keep on opening the awning with the crank. Lock the legs with the clip lock in the middle of the leg.
- Continue pulling the awning out until it is fully extended.
- Fasten the legs to the ground with pegs.
- Be careful when removing the crank not to hit the side of the car.
Attention:
- The awning is only for sun protection. DO NOT open during storms, strong winds or rain!
- Please retract during the night, for longer absences or before driving!
- Damage due to improper handling is not covered by the deductible!
Click here to go directly to the explanatory video:
Awning Light
Some models have an outdoor light:

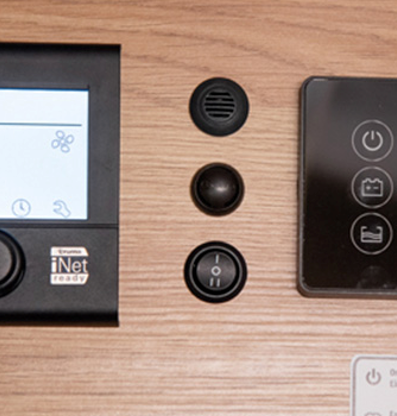

- The outdoor light can be turned on using the small toggle switch to the left of the control unit. First, set it to standby:
- Then use the toggle switch to turn it on: I = light on, II = motion sensor active:
