🛏️ Roof bed - Camper Castle (LMC Tracer)

To prepare the liftable bed in the Camper Castle, you need to perform the following steps:

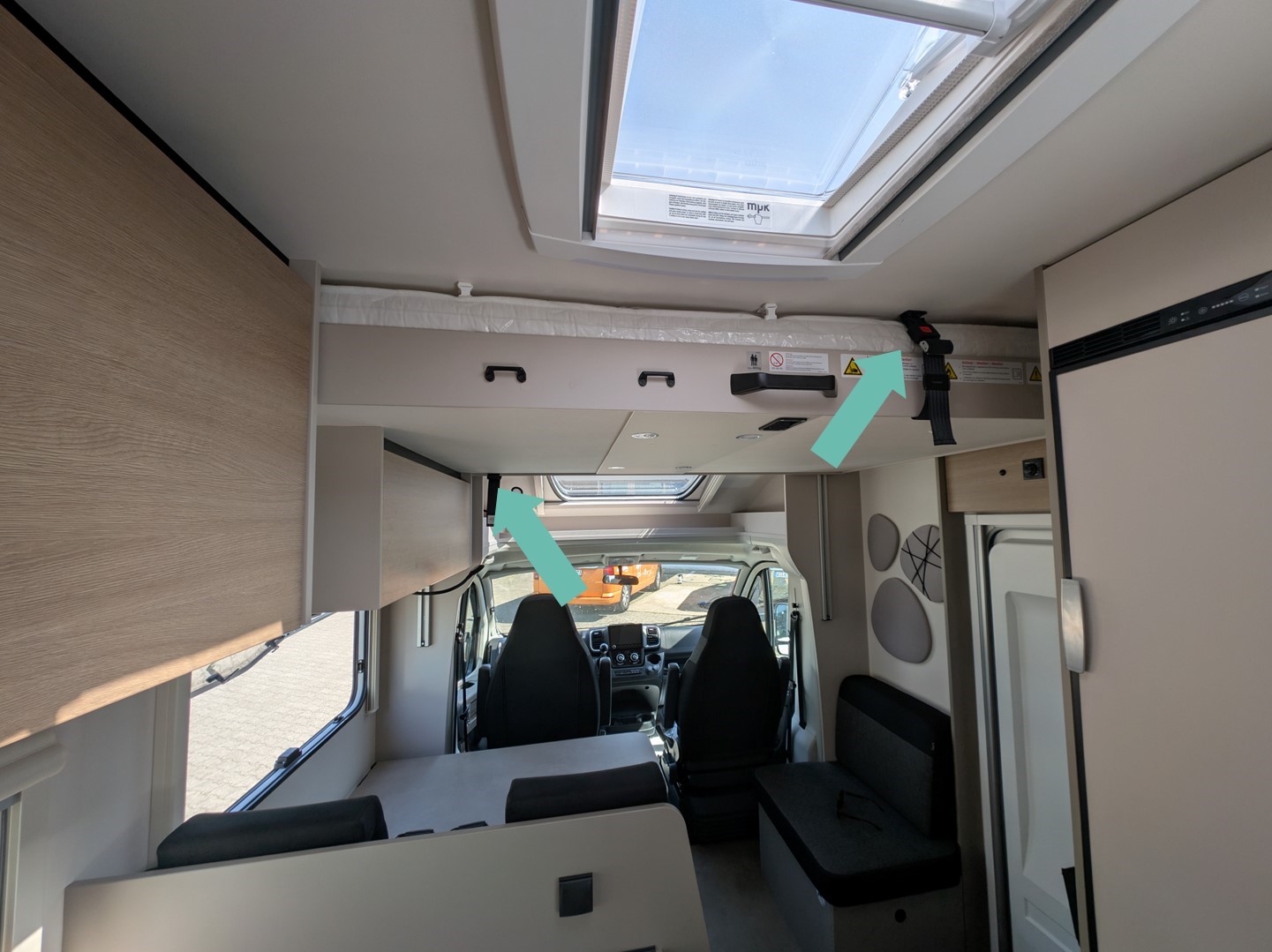

1. Open the tension straps above the driver's seat and above the entrance door:

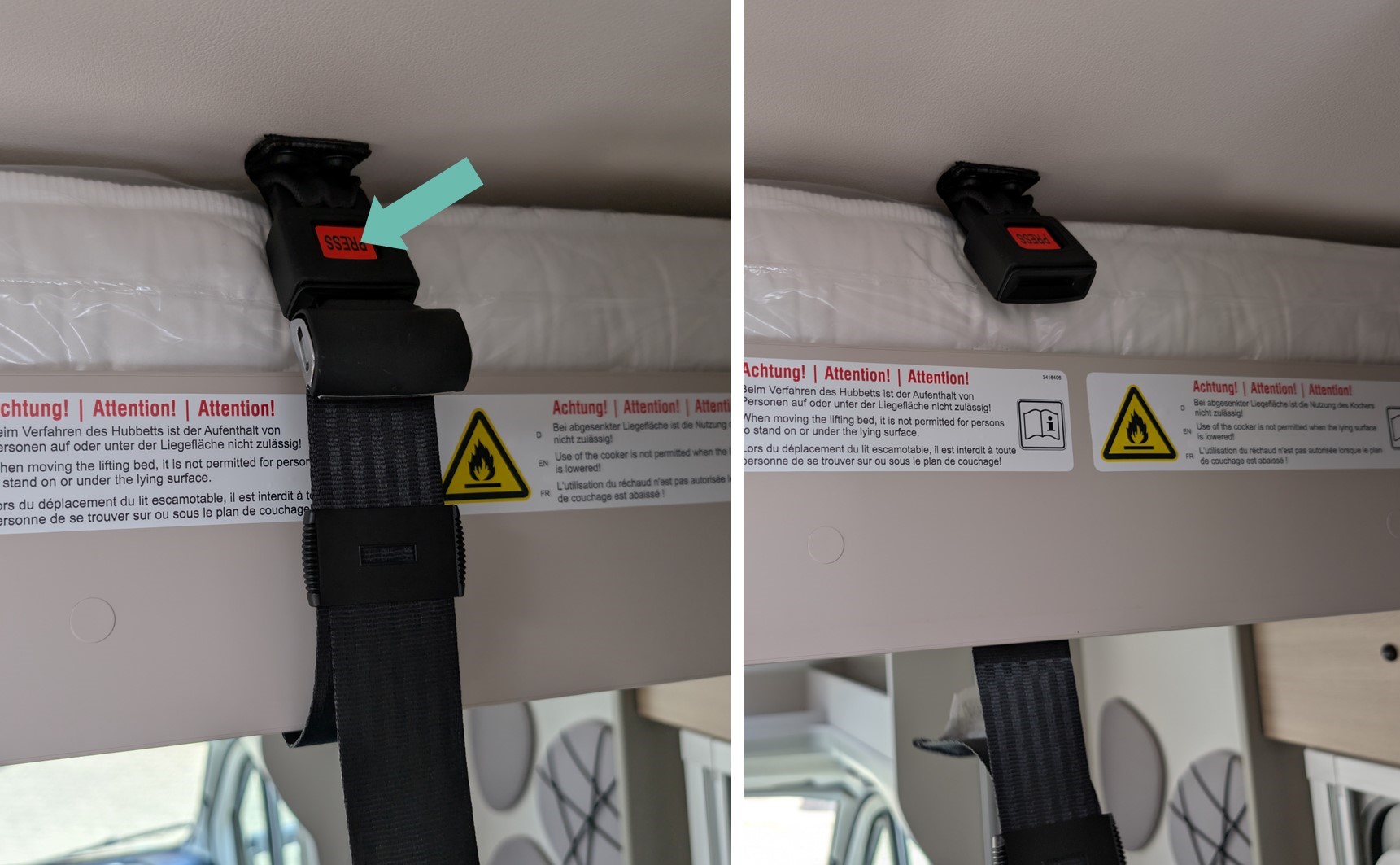

   Press the red buttons and release them:

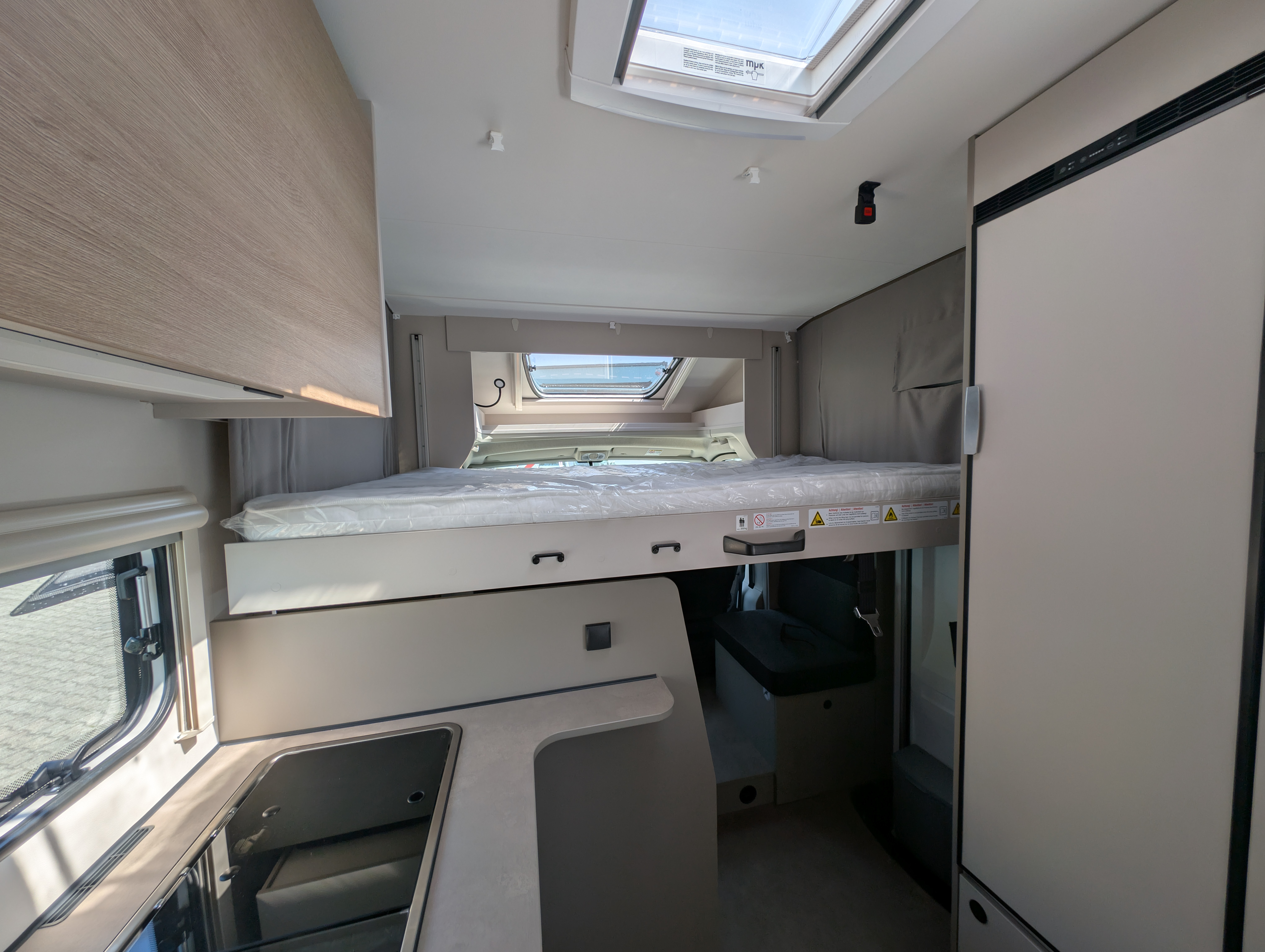

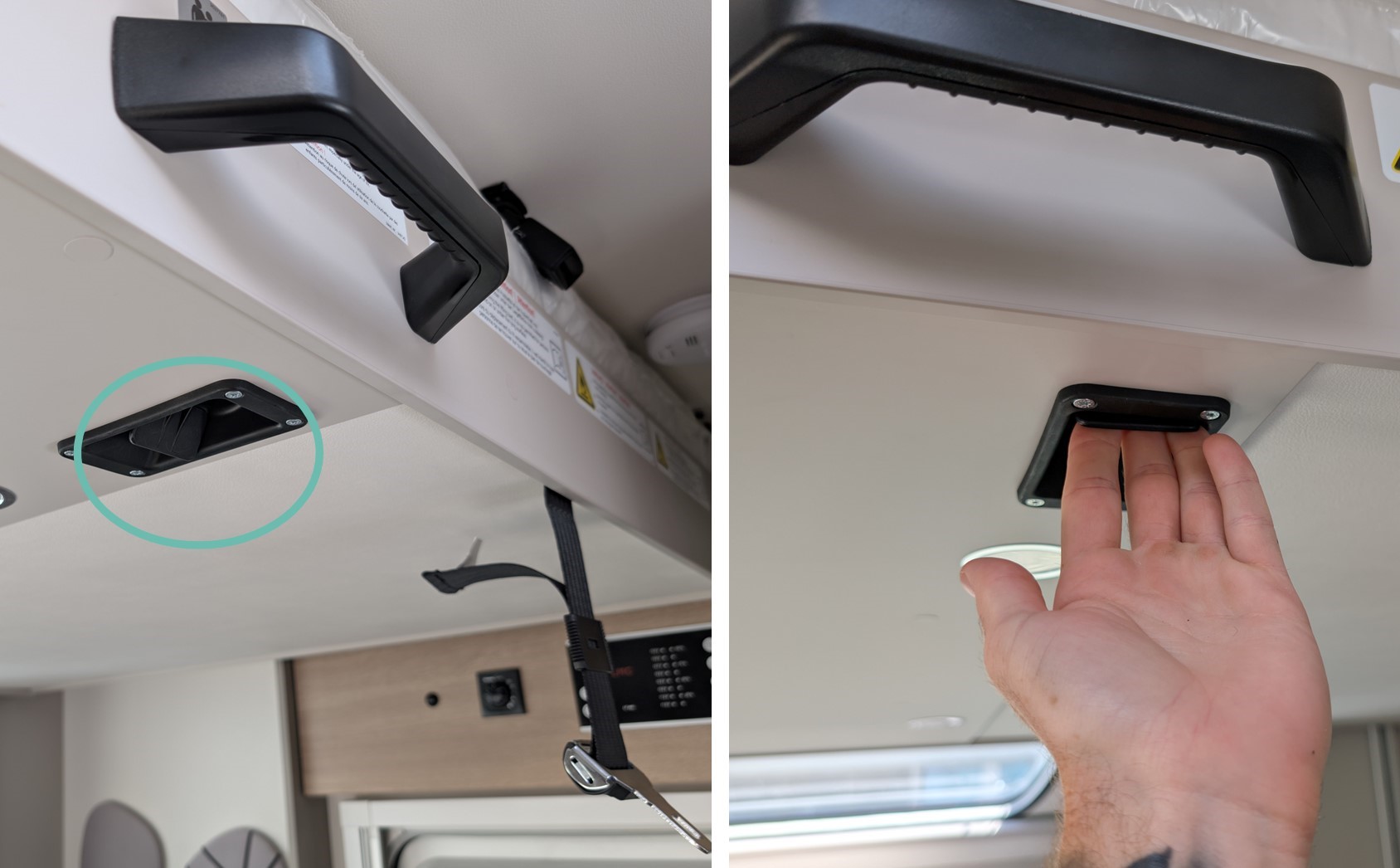

2. Opposite the entrance door, below the black handle on the bed frame, there is a small lever. Pull it towards you and pull the bed down:

   The bed locks into any desired position.
   However, we recommend pulling it to the lowest possible position, as this is the only position in which the ladder can be properly attached.

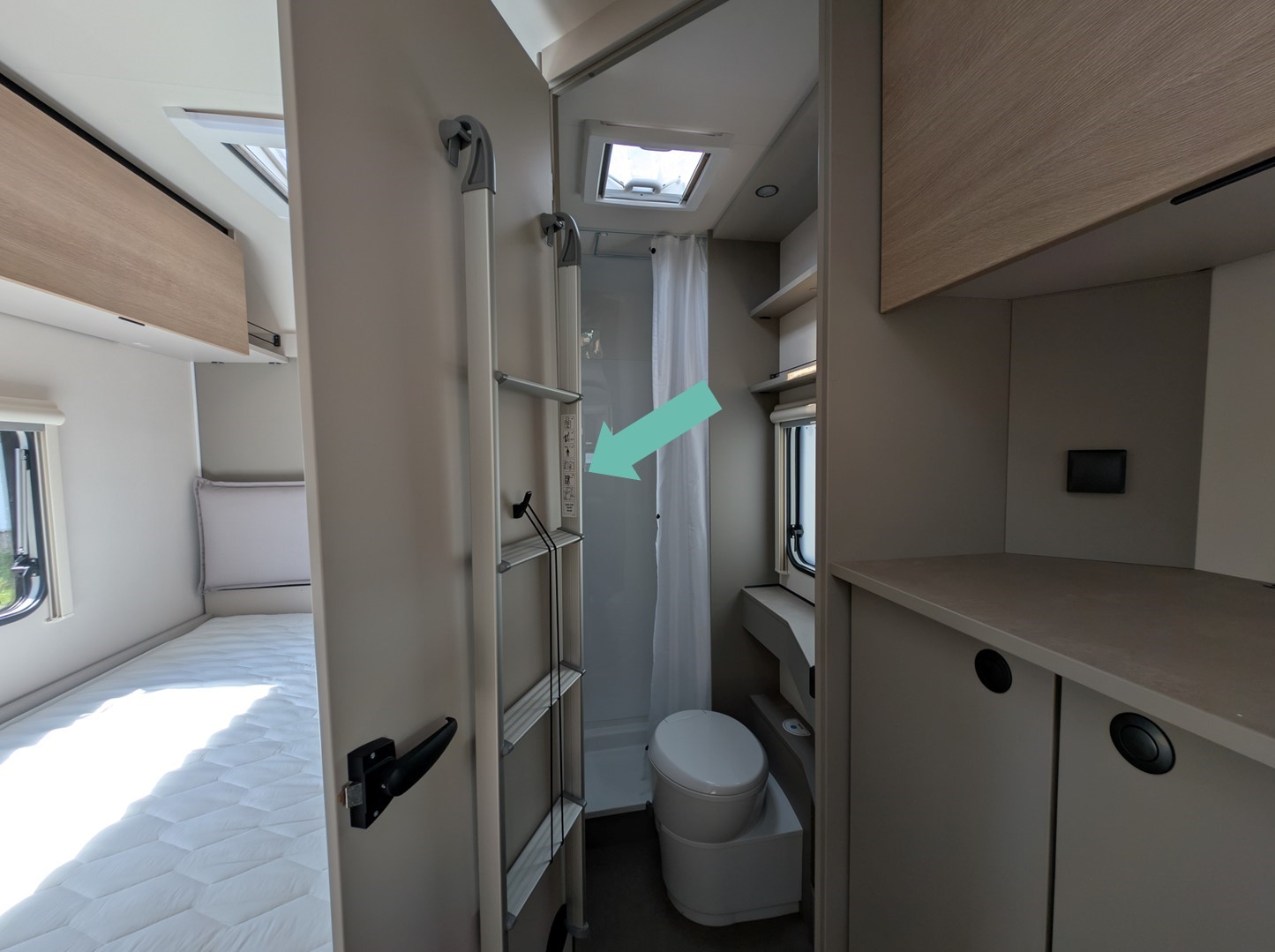

3. The ladder is located on the inside of the bathroom door:

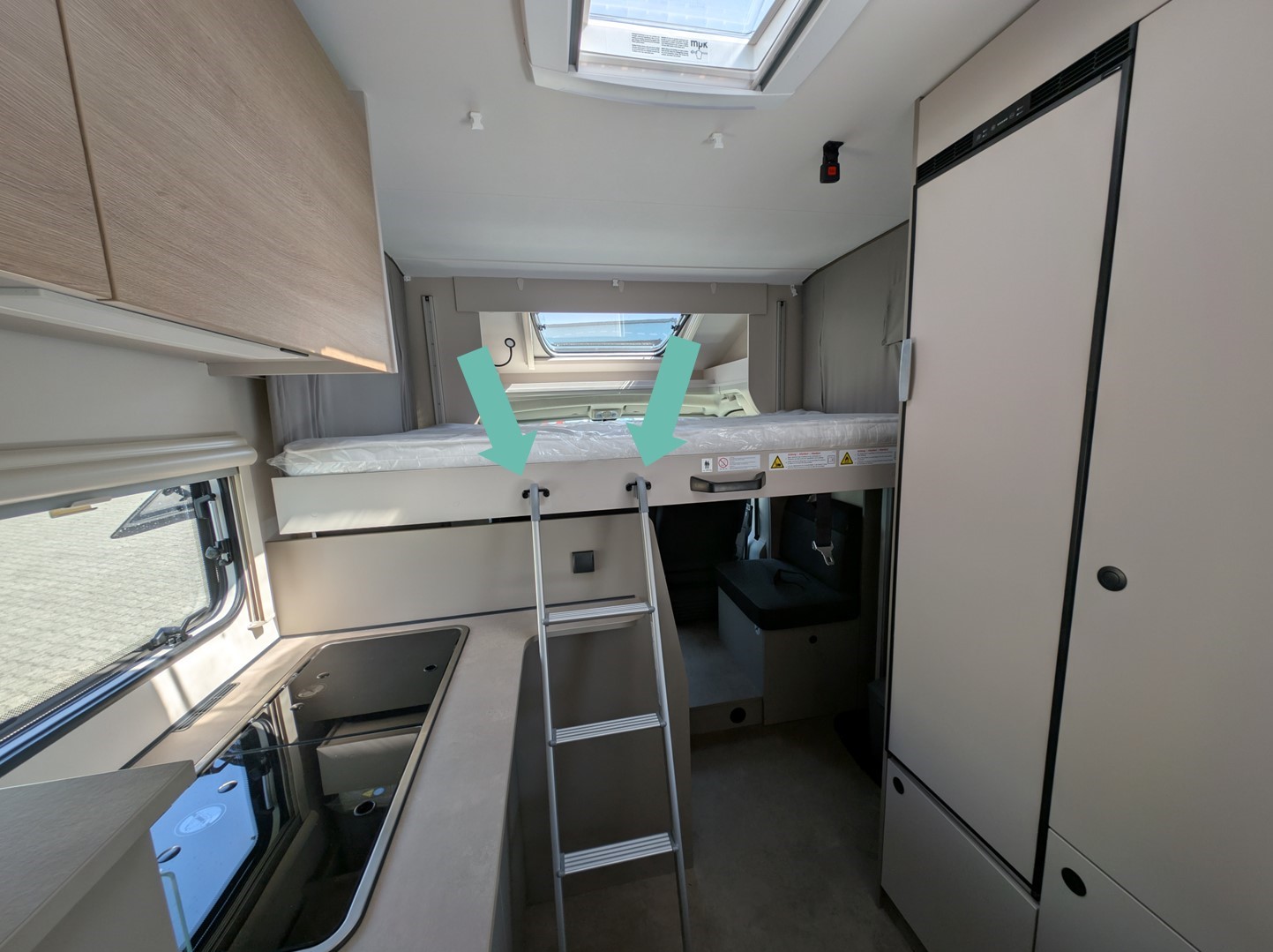

4. Attach the ladder to the hooks provided on the bed frame:


The bed can support up to 200kg.

To dismantle the bed, follow the instructions in reverse order.

Before you start your journey, raise the bed and secure it with the tension straps!!!
