The outside shower is located in the rear cabinet under the first board.
Prepare outdoor shower

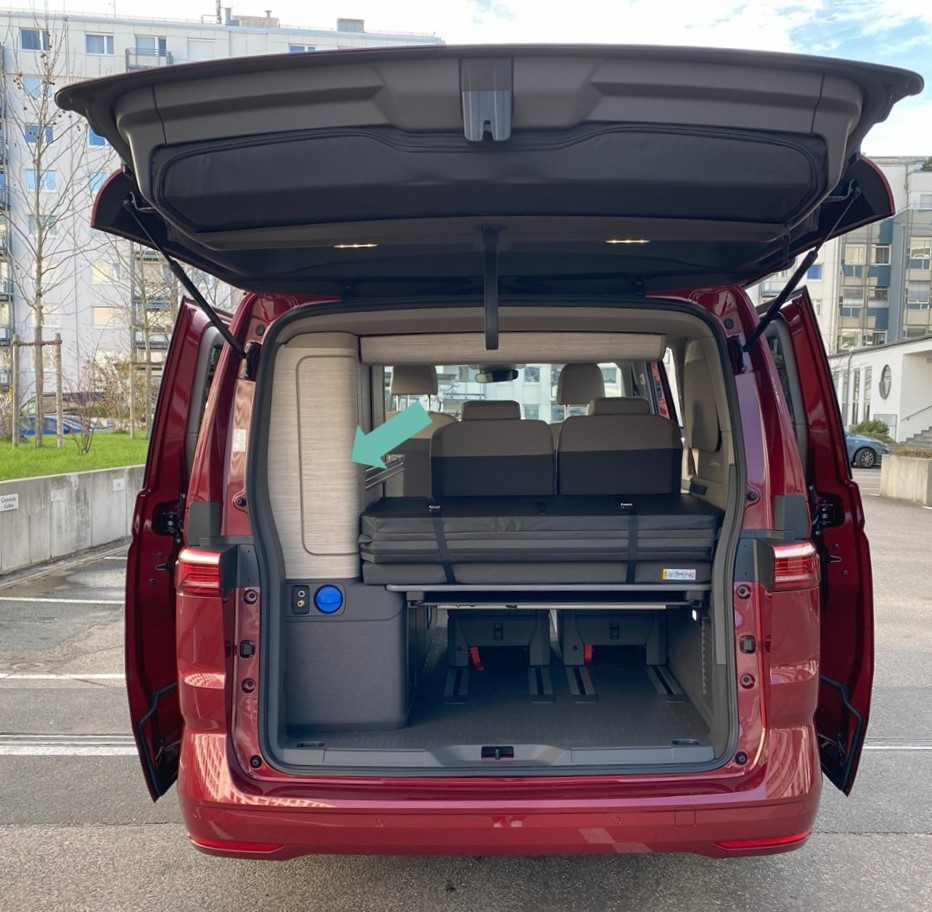

- Open the cabinet door in the driver's side of the trunk:

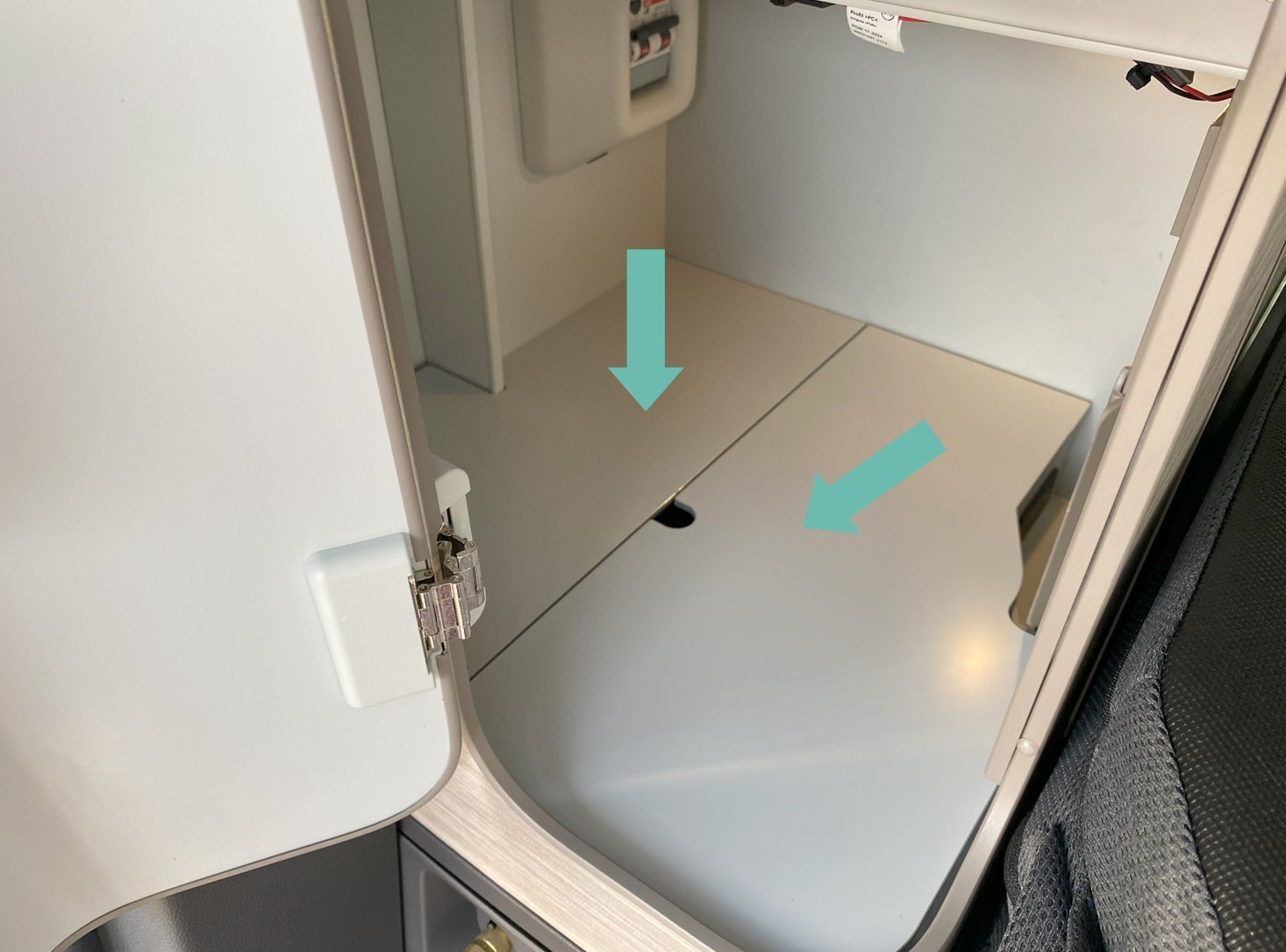

- Remove both bottom plates:

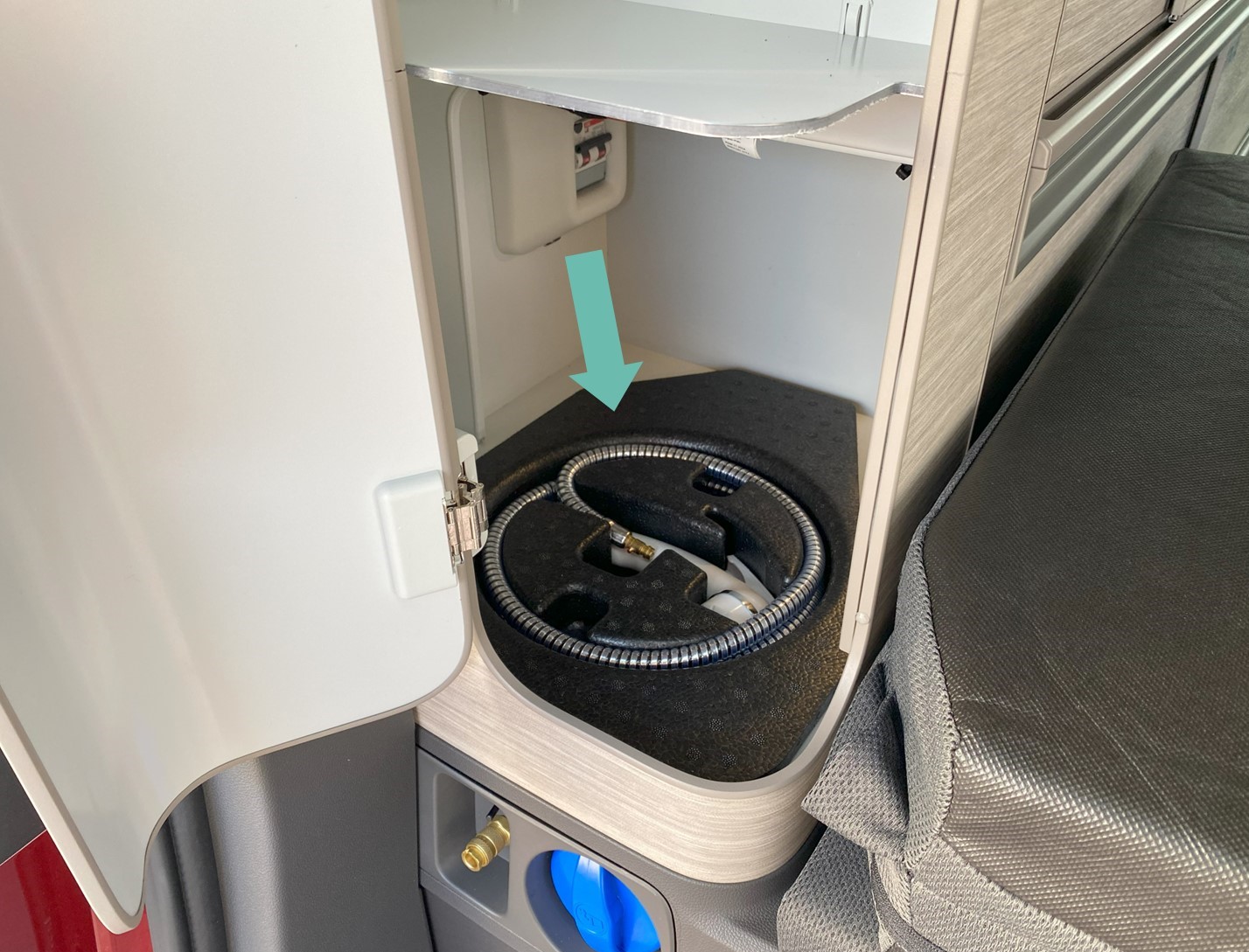

- Remove the shower hose from the holder:

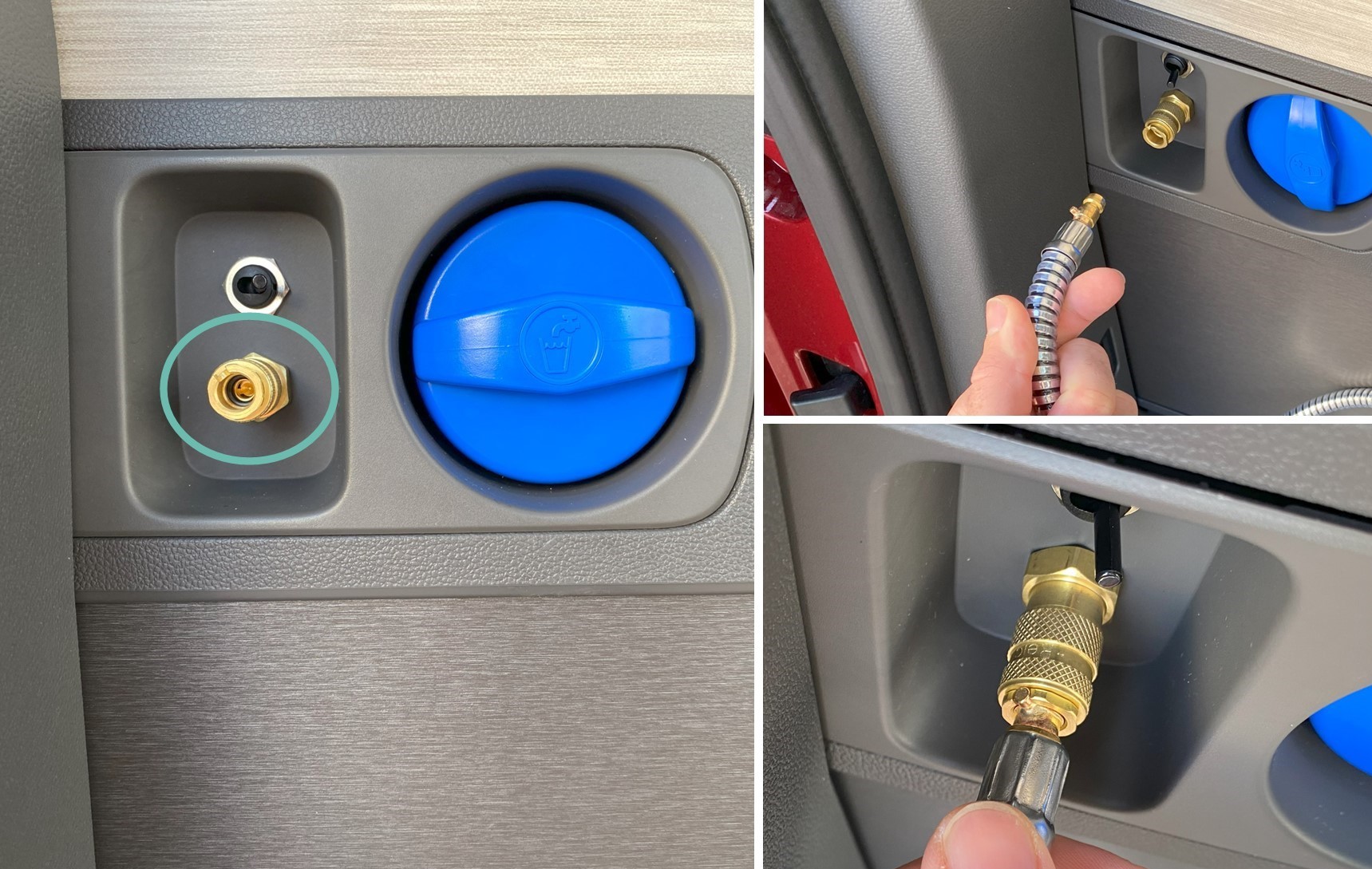

- Insert the shower hose connector into the marked connector and push it in until it clicks into place:

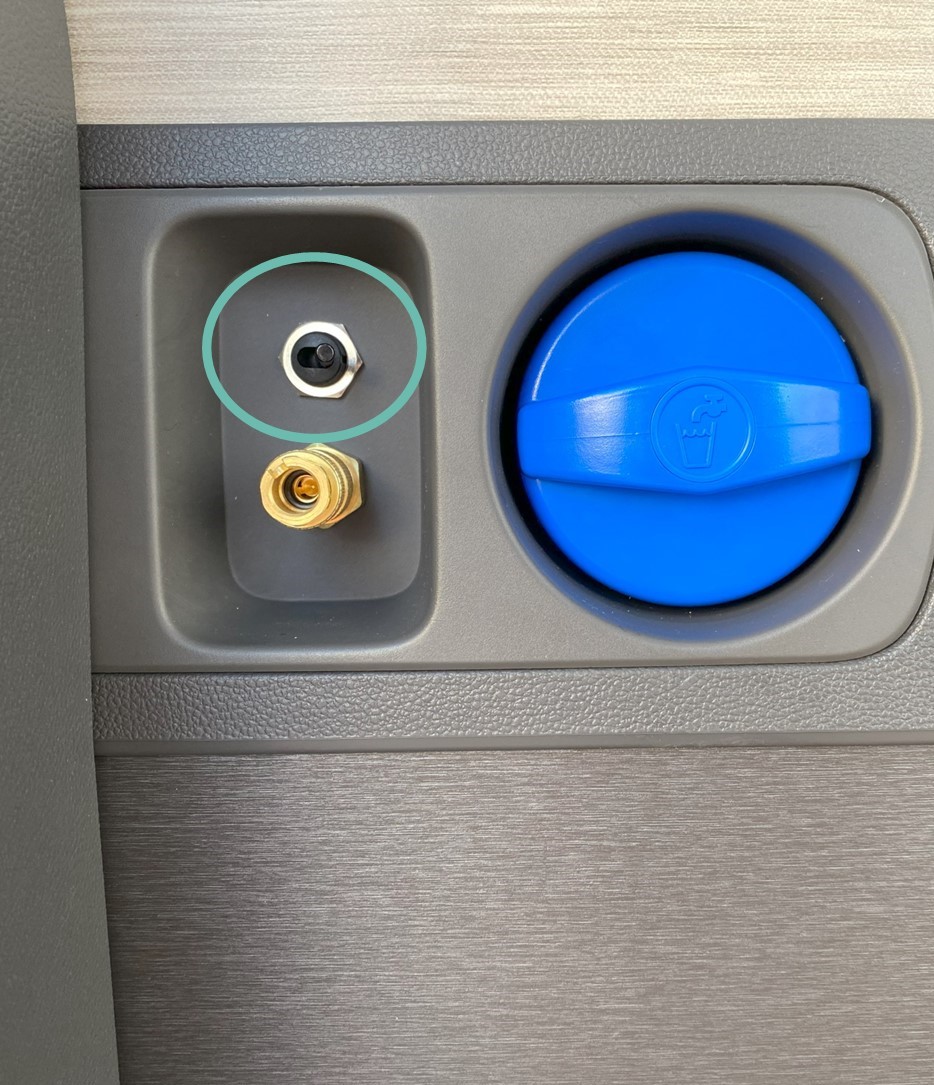

- Activate the water pump using the black toggle switch. Then press the white lever on the shower head to shower:

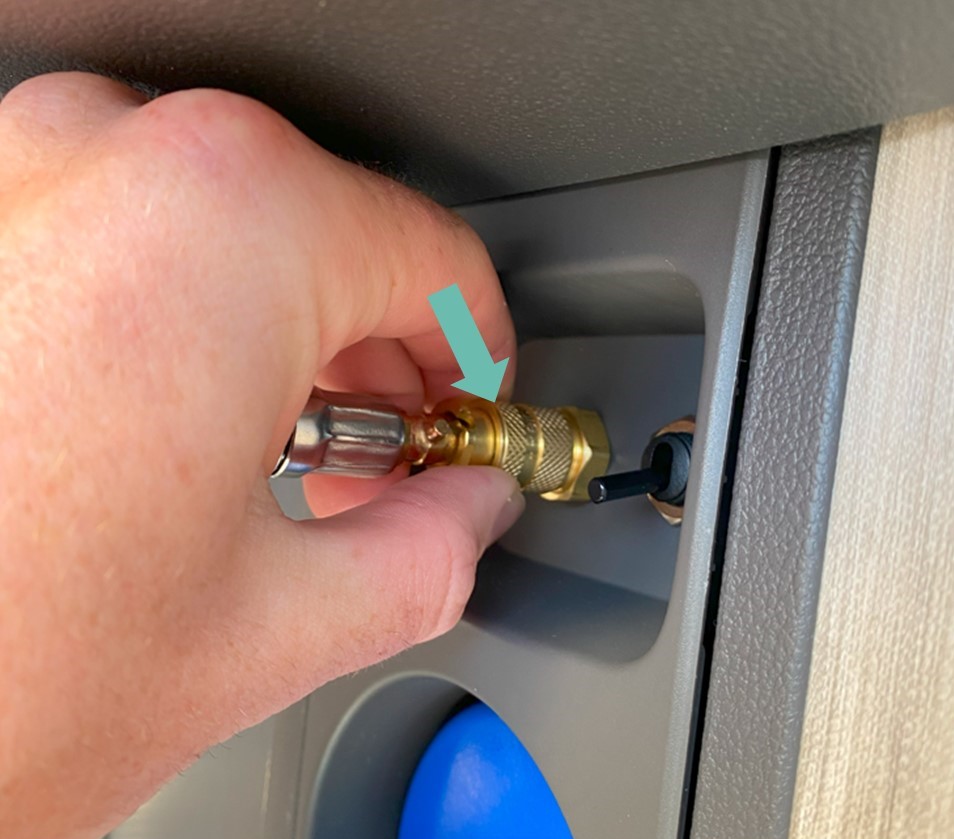

- To disconnect, press in the outer gold ring of the shower connection (on the vehicle) and pull out the hose:
Troubleshooting
- There is no running water even when the water pump is activated? See here!
