To change the gas cylinders (11 kg), several steps must be followed to ensure safe handling:

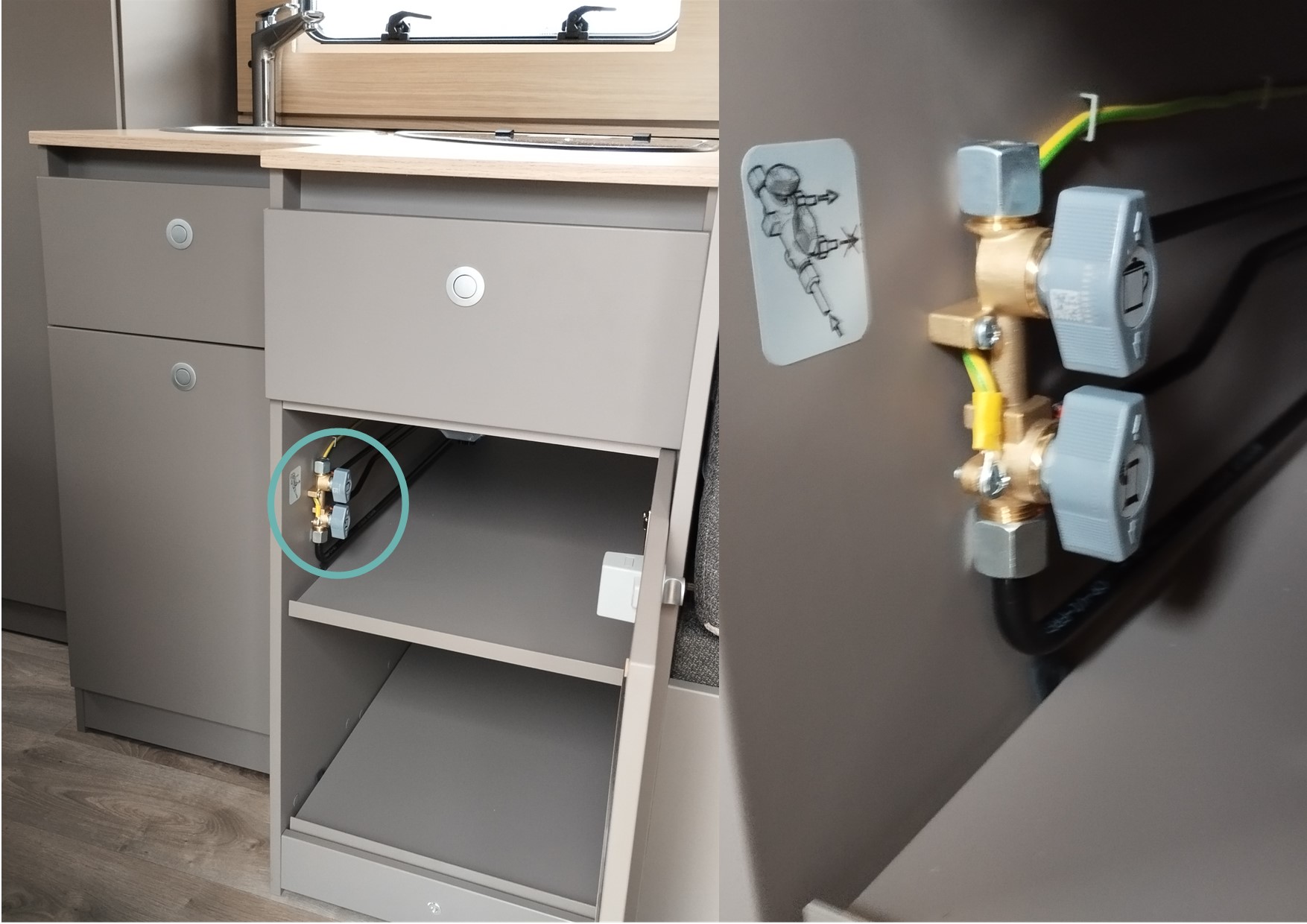

- Close the shut-off valves behind the flap under the cooker (see sticker, arrows must point against the gas line).

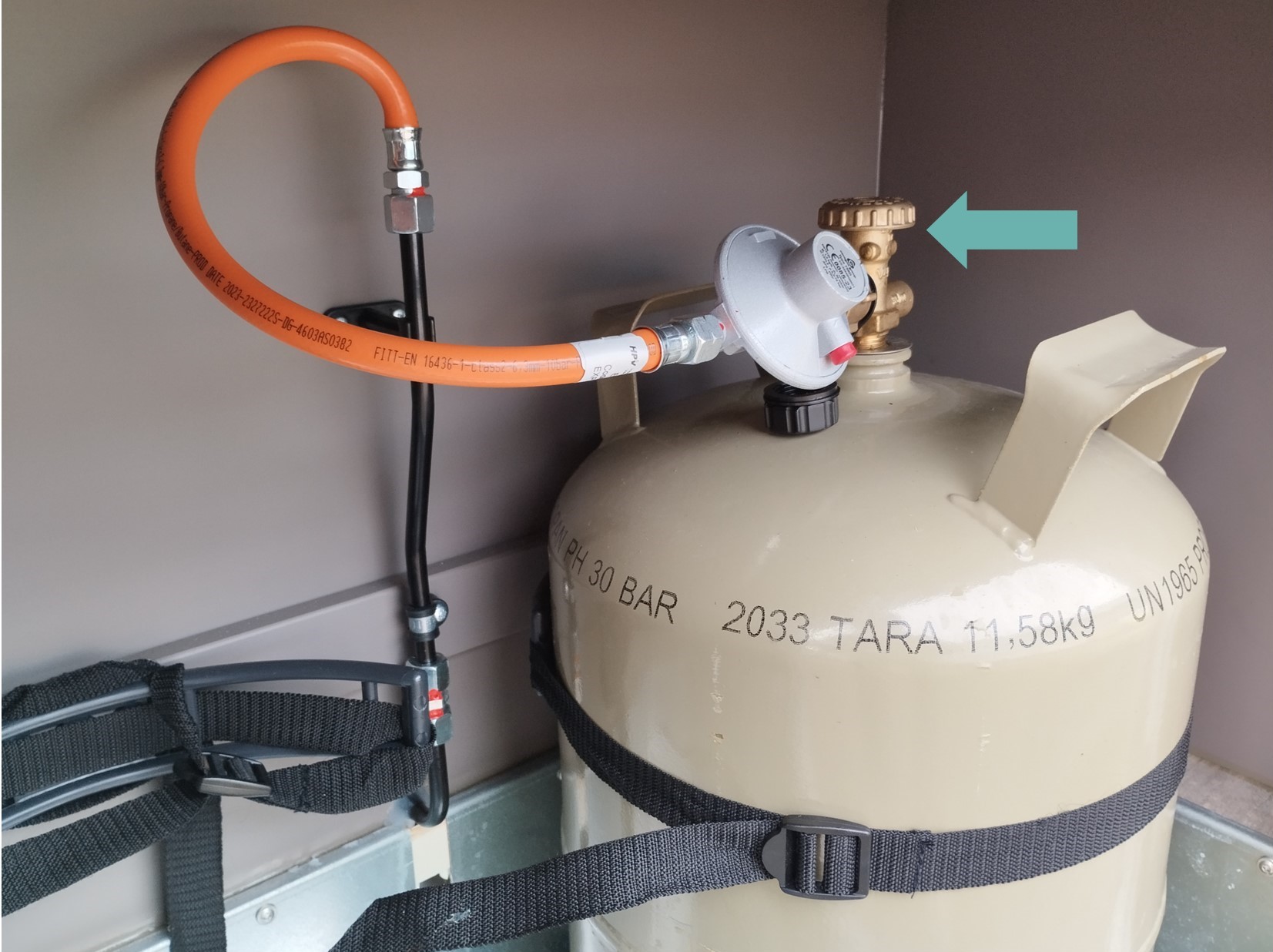

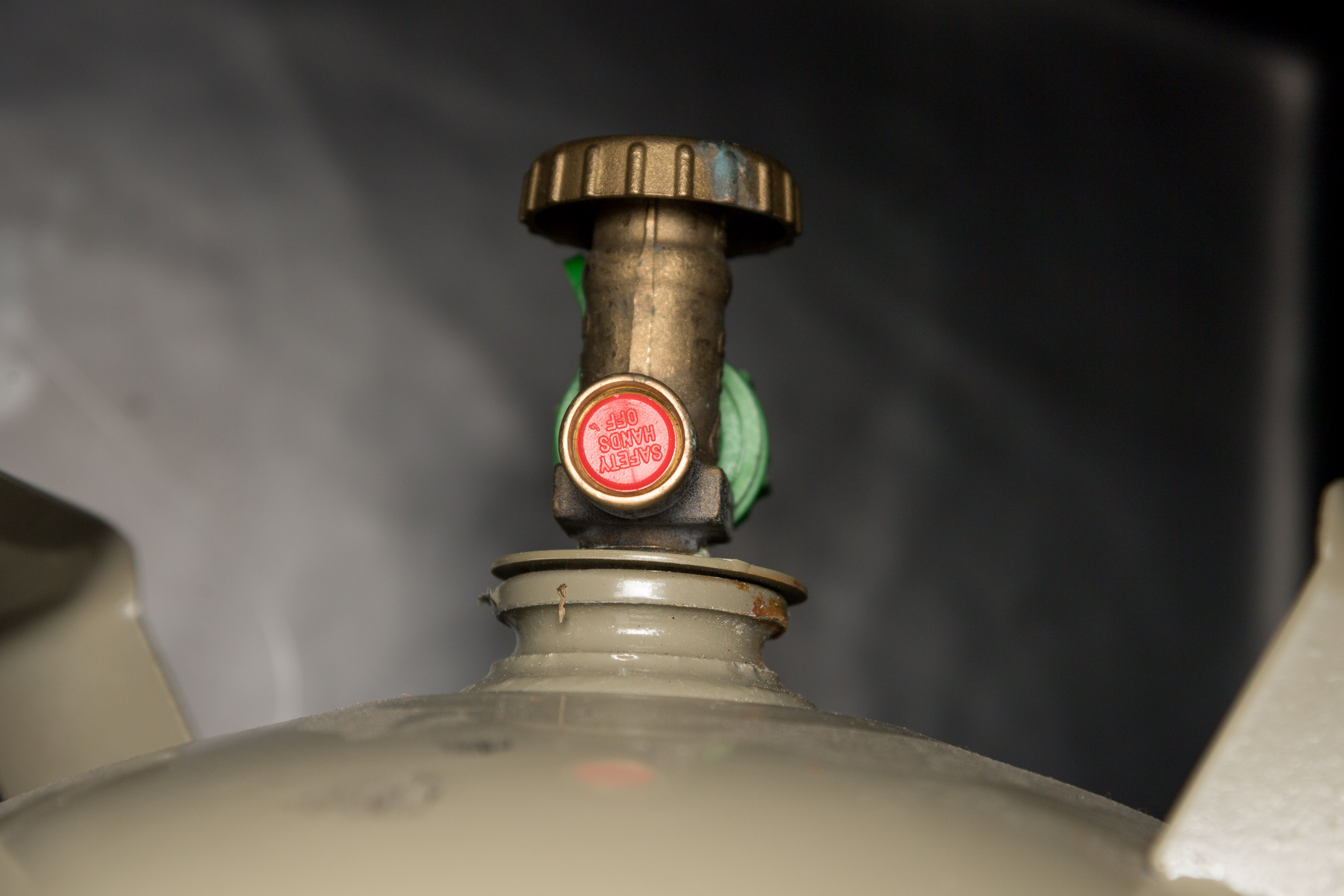

- The gas cylinder is located in the right-hand outer compartment next to the passenger door. Turn the gas cylinder in the direction of the "-" sign on the brass-coloured control knob to close it (even if it is empty):
- Unscrew the connector from the gas cylinder by hand (note: left-hand thread).
- Loosen the straps around the gas cylinder.
- Remove the cylinder from the compartment and replace it with a full one.
- Secure the bottle again with the straps.
- Screw the connection piece onto the gas cylinder by hand (note: left-hand thread).
Attention
- Do not use any tools to screw the connector onto the gas bottle, as it may not be possible to unscrew it again!
-
During the journey, make sure to close the shut-off valves and the gas bottles!
-
Please also note that the gas compartment must not be used as storage space for safety reasons.
Please note that cylinders purchased outside Germany may require an adapter. You can find all possible adapters and information about gas suppliers abroad here.
