If water is leaking from under the car, it is possible that a valve has accidentally been left open:
- Make sure that the fresh water and waste water tank drains are closed.

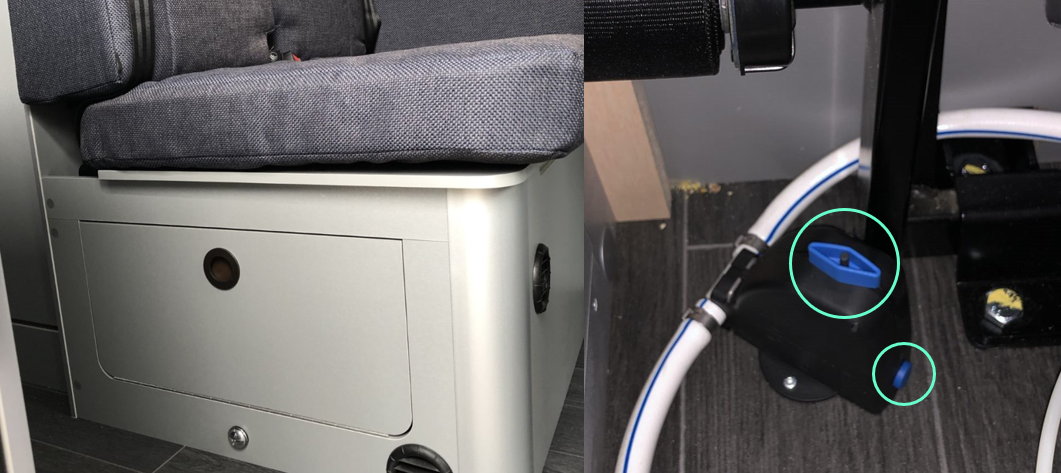

- Check whether the cold protection valve is closed. It is located behind a grille under the rear seat bench and is labelled with a snowflake:
The cold protection (or anti freeze) valve automatically drains the boiler when there is a risk of frost. This prevents the drain from freezing.Â
The system measures the temperature inside the van. As soon as it is around 3 degrees or lower the system is activated and lets all the water that was in the boiler and the fresh water tank out. To deactivate the system, the room temperature has to be a least 7 degrees, otherwise the blue button will jump out again.
To ensure that the water supply continues to function and the valve is switched on, the blue lever must be turned clockwise and then the blue button must be pressed in.
- The boiler valves may have been left open by mistake. Depending on the model, these are located in different places:

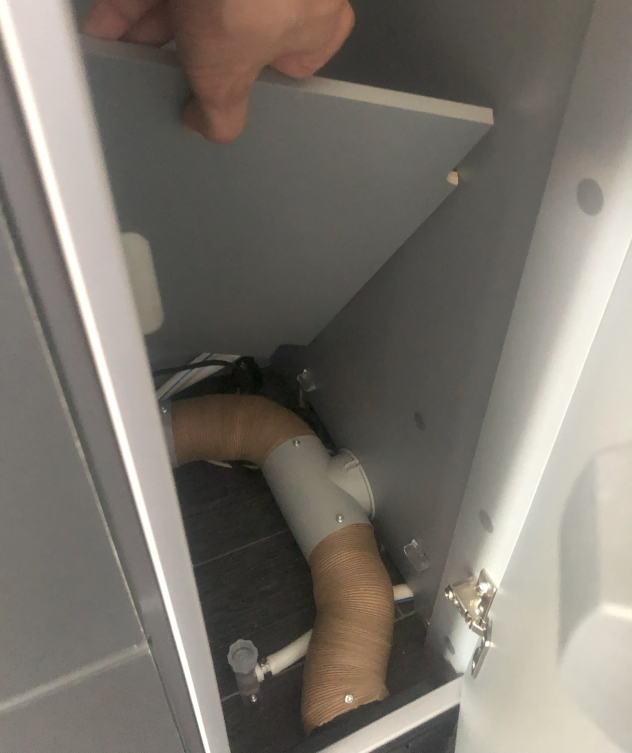

- You will find the valves in the kitchen in the base cabinet. Open the cupboard and remove the bottom of the cupboard to find the valves. Turn the valves clockwise to close them:

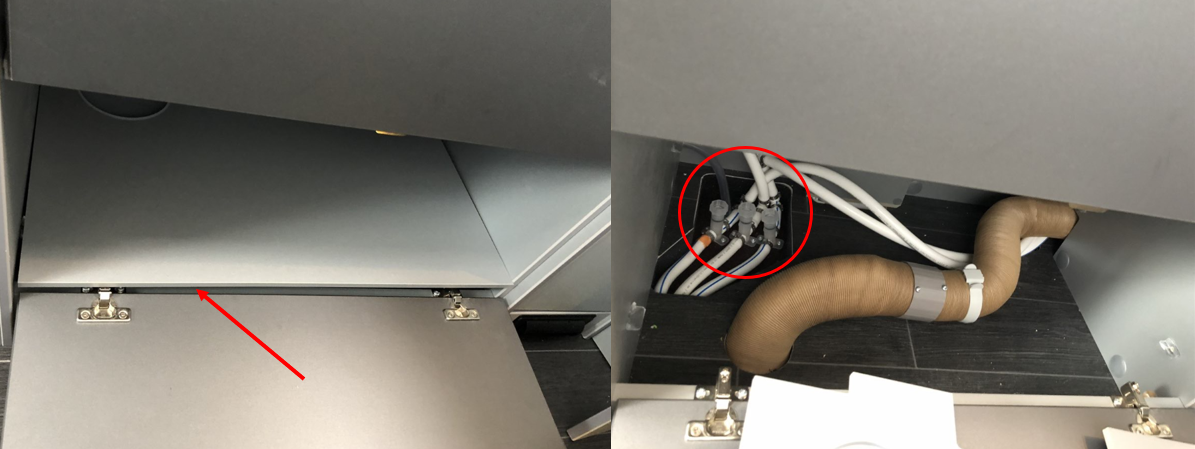

- Also check another valve at the bottom of the door on the right side of the kitchen. You will also find it under a wooden board:

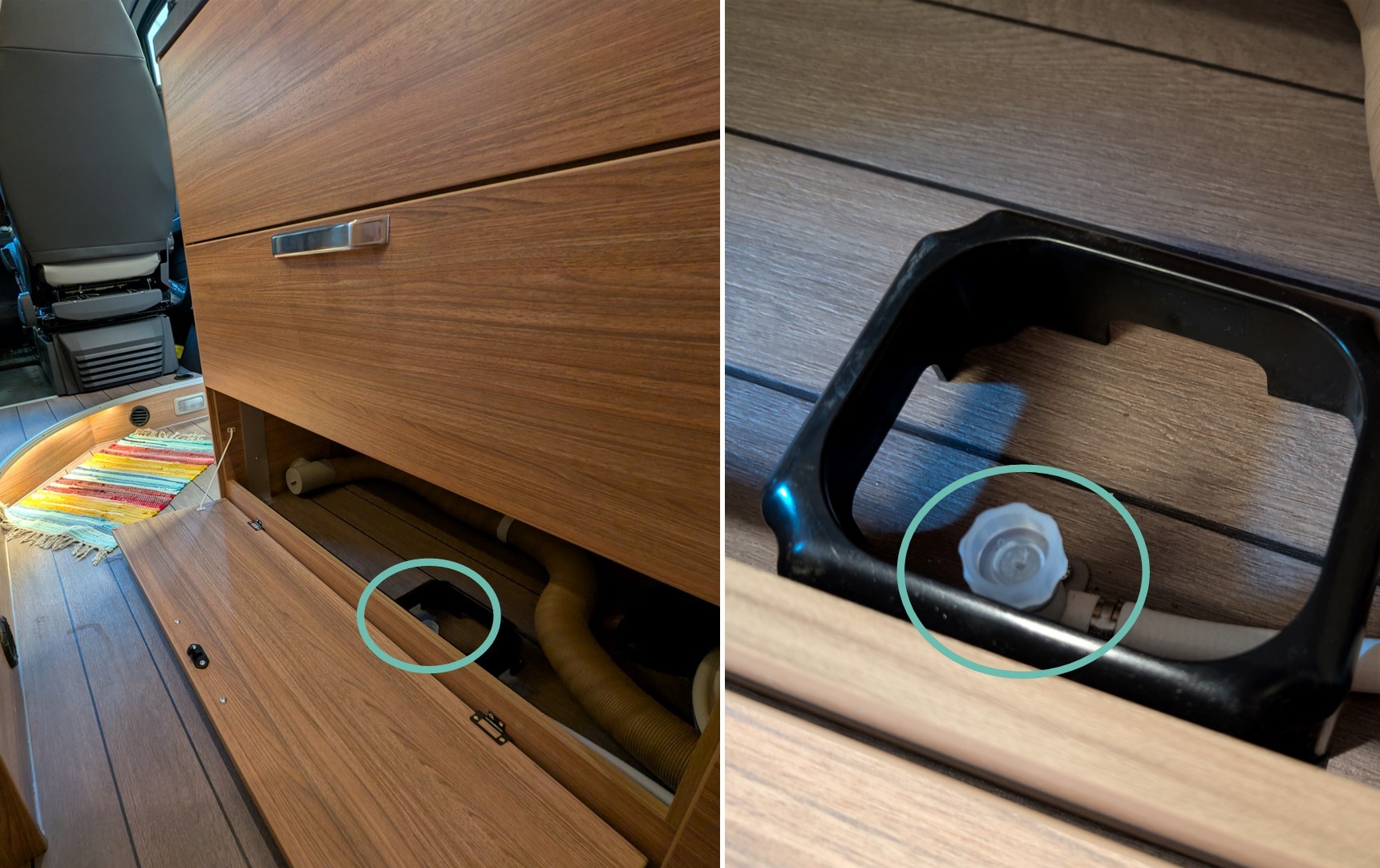

Check that the low point drain is open. This should always be closed!
