🚾 Toilet - Couple Cottage (LMC Innovan 590)

The Couple Cottage (LMC Innovan 590) is equipped with a toilet.

Using the toilet:

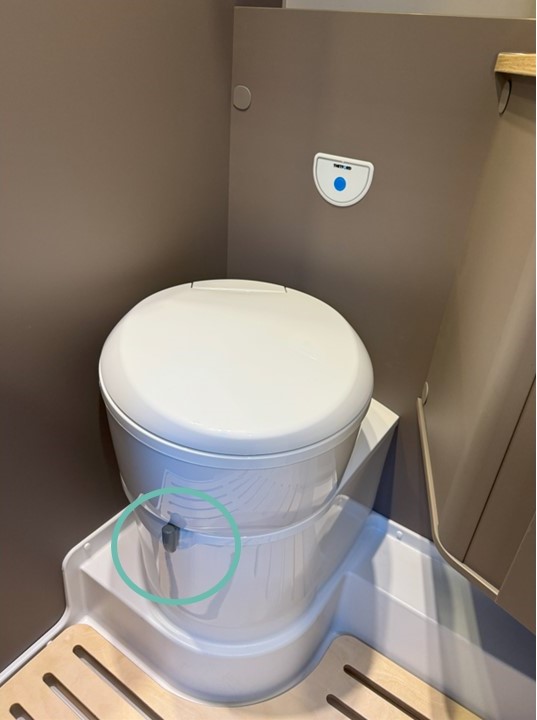

1. Slide the grey lever underneath the toilet to the right to open the toilet cassette.

2. Press the blue button to flush. The fresh water tank must be full.

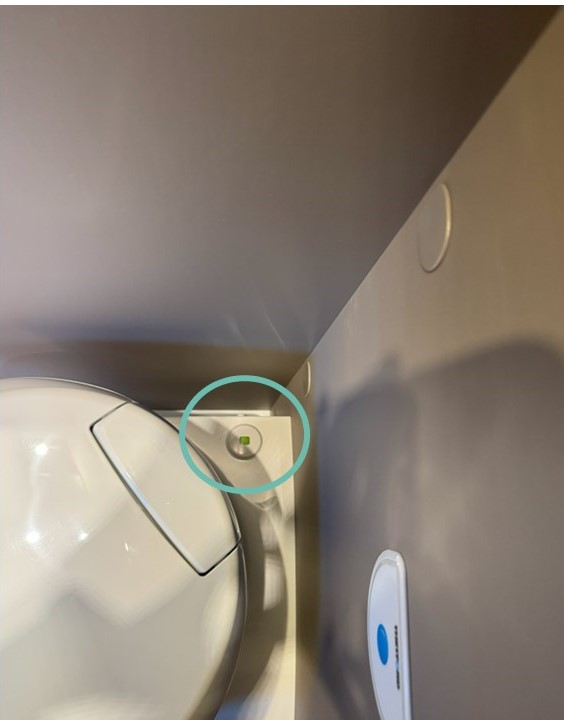

3. When the toilet cassette is full, the coloured indicator on the left behind the toilet changes from green to red:


This empties the toilet cassette (approx. every 2-5 days):

1. Close the cassette from the inside by pushing the grey lever.
2. Open the toilet cassette from the outside. The toilet cassette is located on the driver's side of the vehicle. You will need a key to open the compartment under the toilet.
3. Make sure that the grey lever under the toilet seat is closed before you pull out the tank.

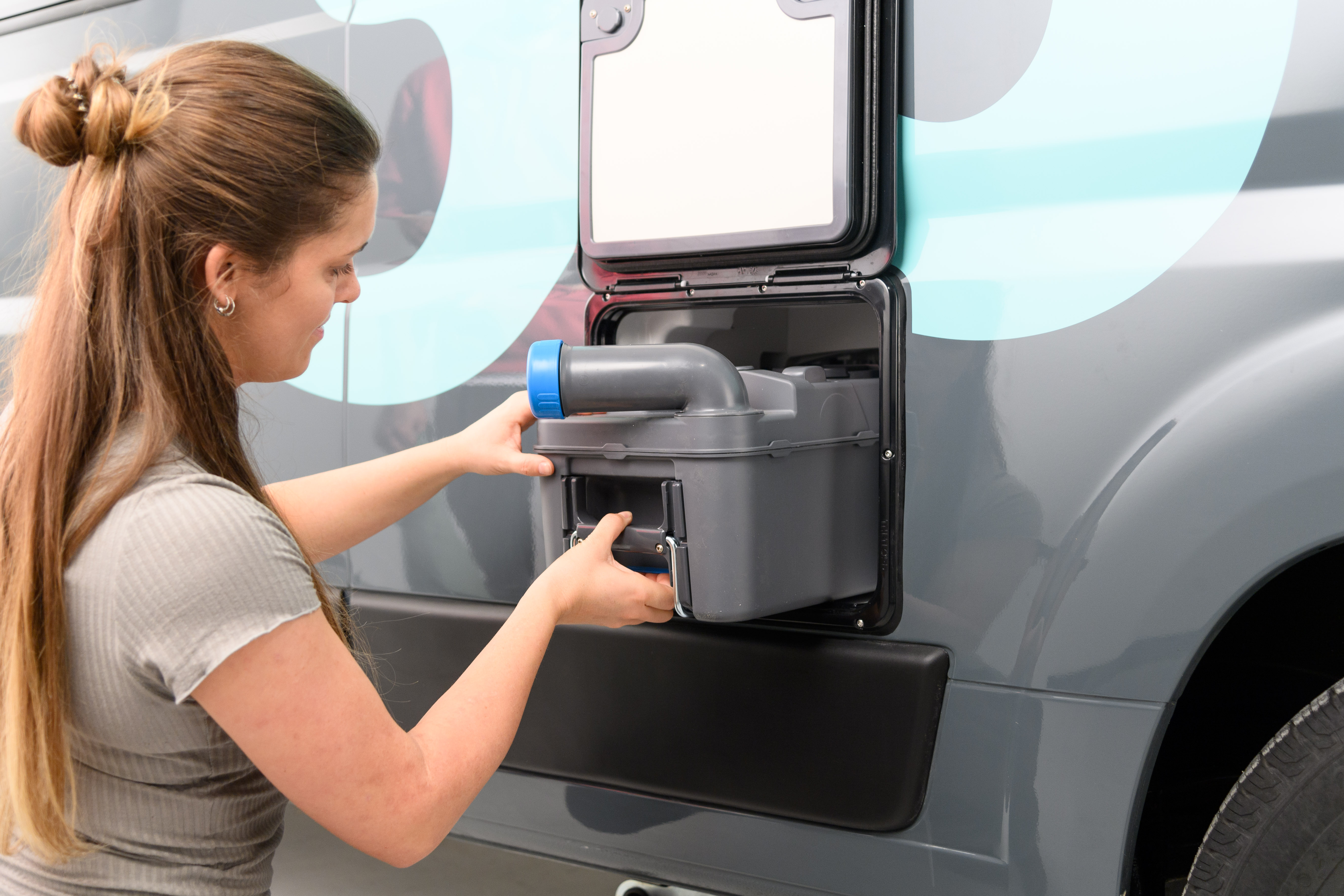

4. Push the blue lever on the tank upwards and pull the tank out at the same time:

5. At the emptying station: Turn the grey pipe 90 degrees, unscrew the blue lid and press your thumb on the opposite blue button (venting for faster drainage).
6. Carefully tip out the toilet cassette, rinse again with water and fill with "Solbio" for the next use.

Click here to go directly to the explanatory video:
