You have the following options for darkening the interior of your Couple Cottage (LMC Innovan 590):

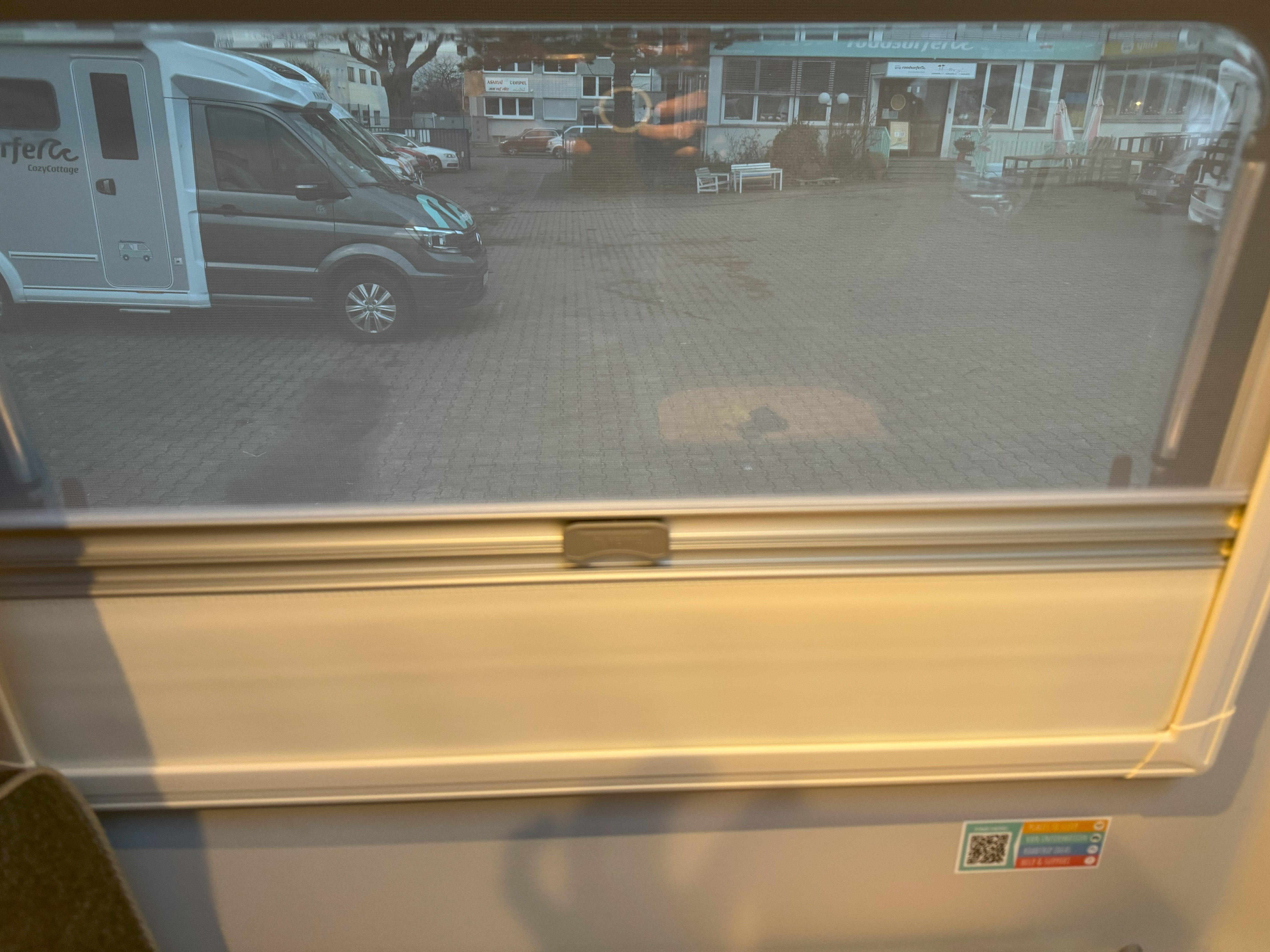

- The blinds in the living area can be raised from bottom to top. A fly net can be stretched from top to bottom on each window in the living area.

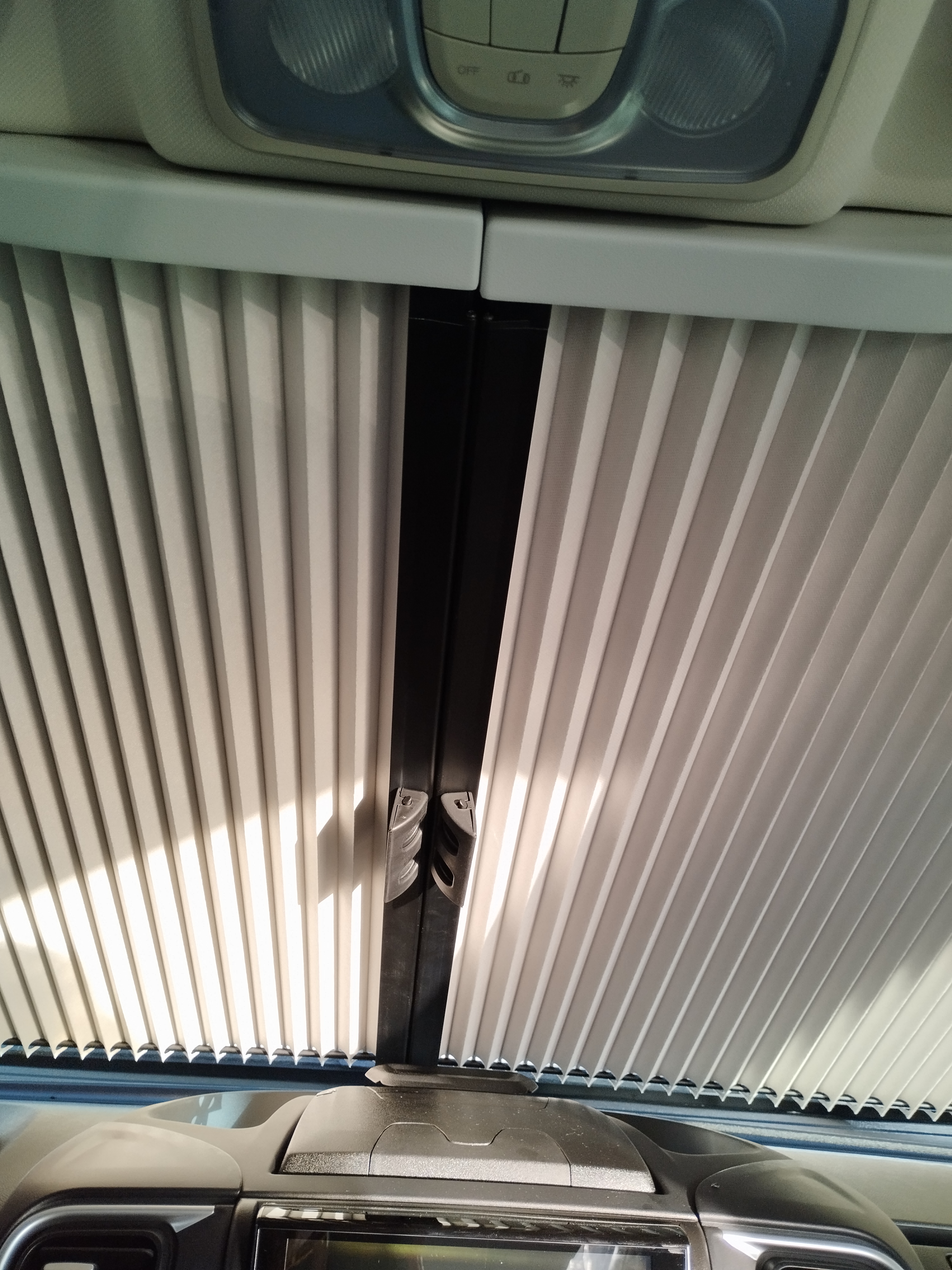

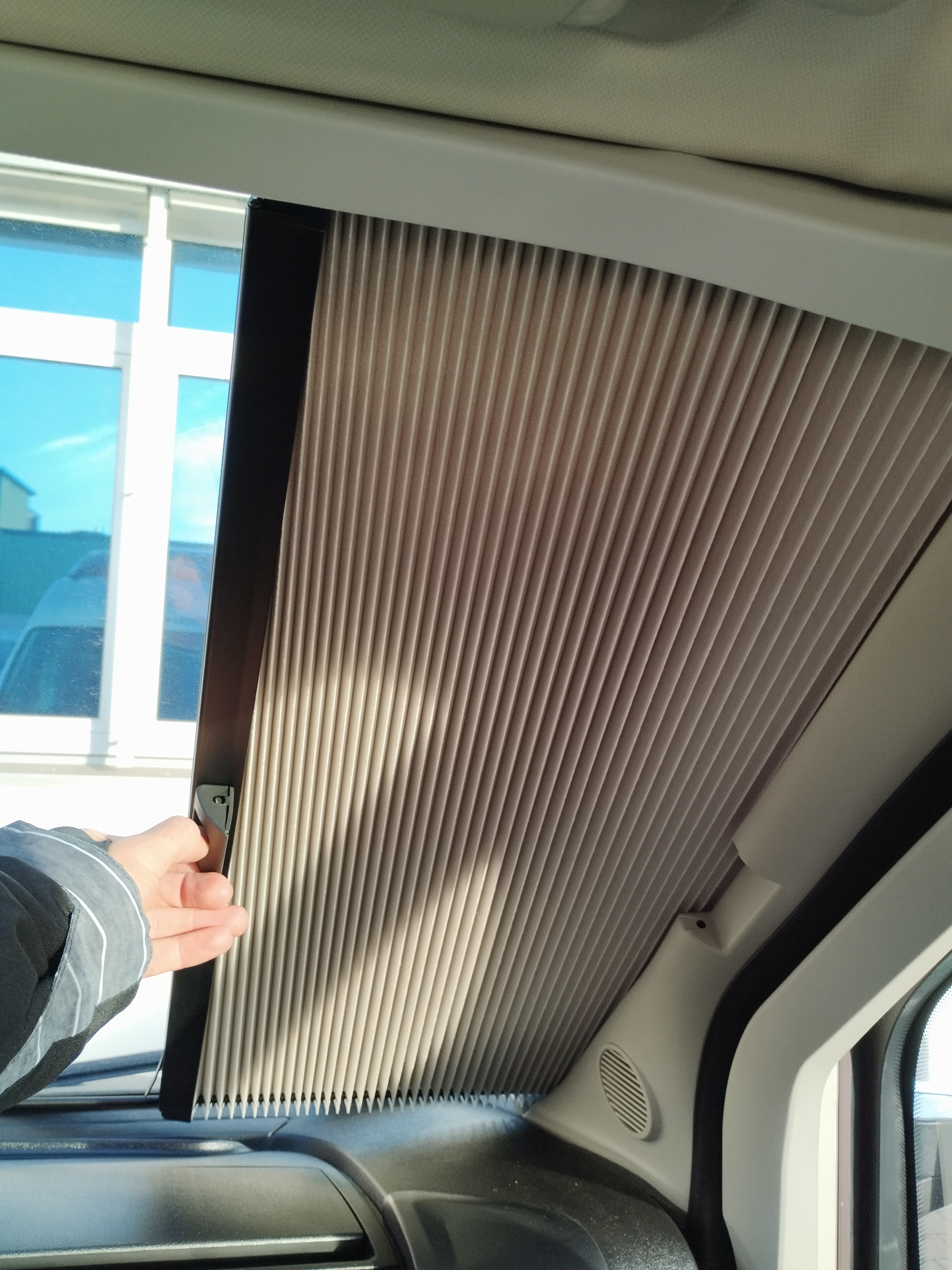

- The blackout on the front windscreen and the side windows in the front doors have integrated blackouts. Press the black button together and unfold the blind. They should be closed carefully and straight.

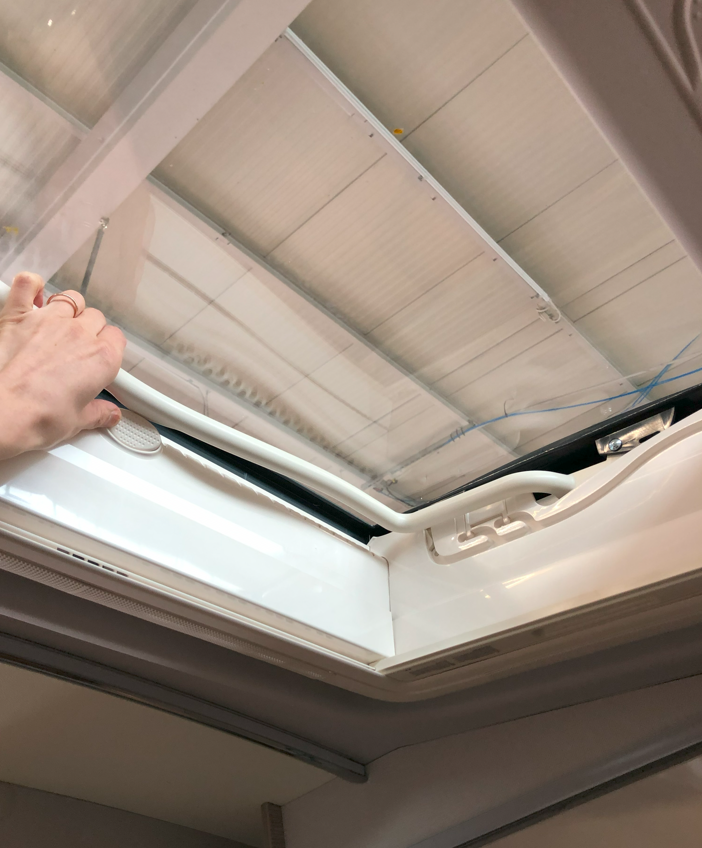

- There are further windows above the bed, the living area and the cockpit. These are also fitted with blinds and fly nets. To open these windows, press in the white button and pull carefully on the white handle.
- There are two more windows in the rear bags. These have a blackout roller integrated into the frame, but no fly net.

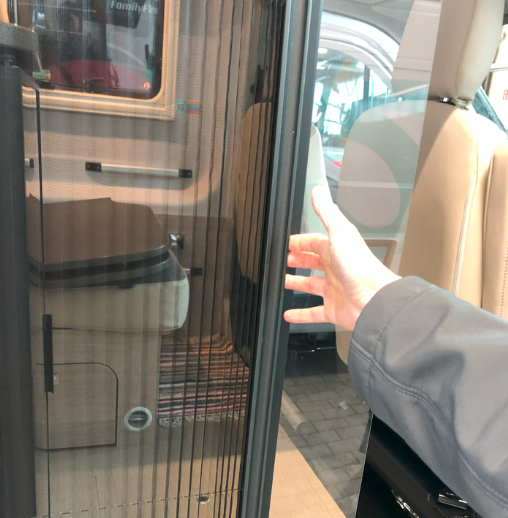

The Couple Cottage also has a fly screen door. It closes on the right-hand side with a piece of Plexiglas. Grasp the rail in the centre and carefully slide it open and closed. - The windows in the living area, kitchen and rear door can be opened by turning the handles to the side and then carefully sliding the window open until it clicks into place at the desired angle.
Please do not open the windows further than 90°!
The window pane will slide out and might fall to the ground and break.
To close the window, only slightly push it further up and then close it down carefully.
