🚾 Toilet - Van Villa (VW T6.1 Knaus Tourer Van)

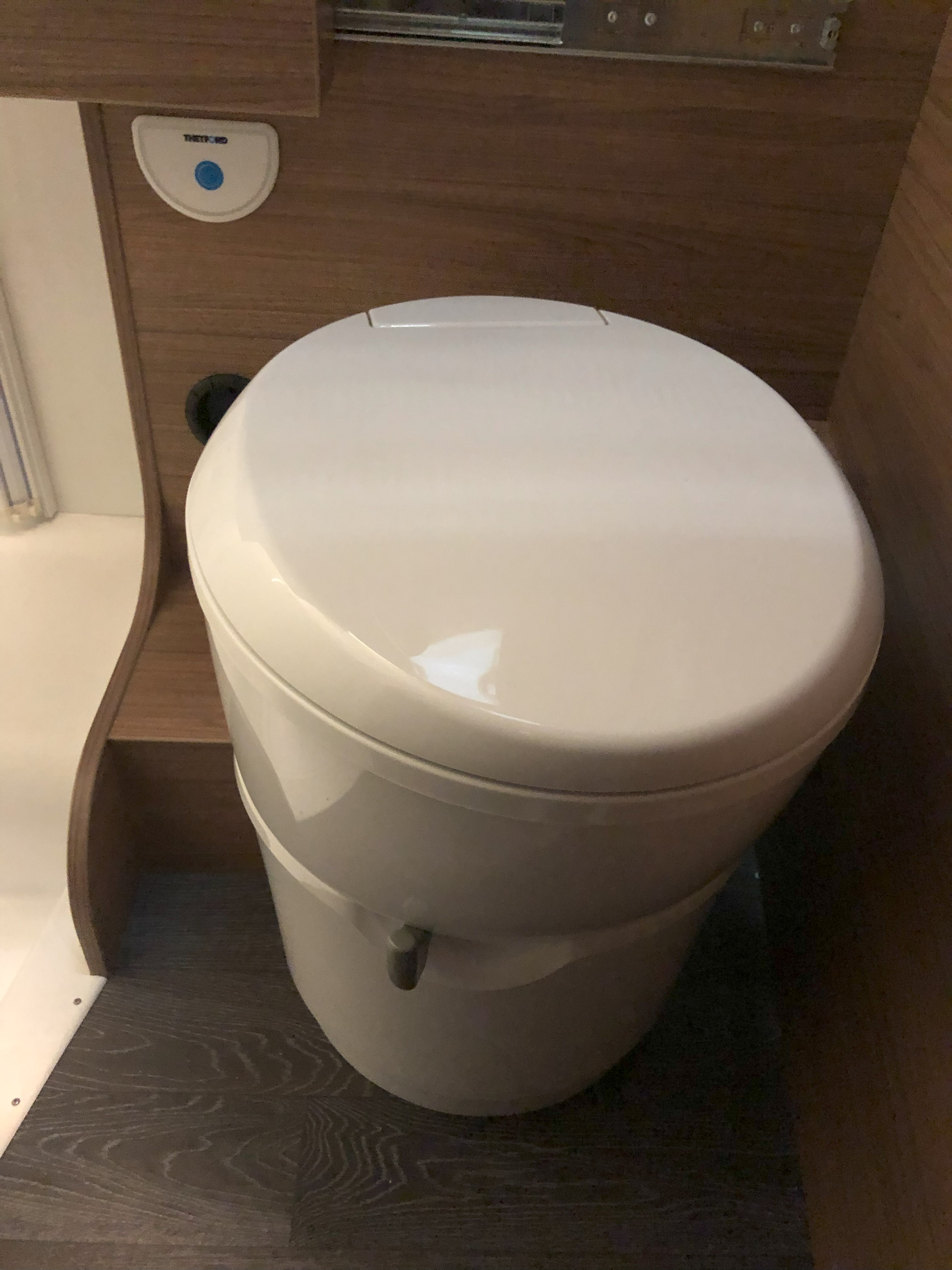

  1. To use: push the grey lever underneath the toilet to the right to open the toilet cassette:
  2. To flush, press the blue button. The fresh water tank must be full and the water pump must be switched on.

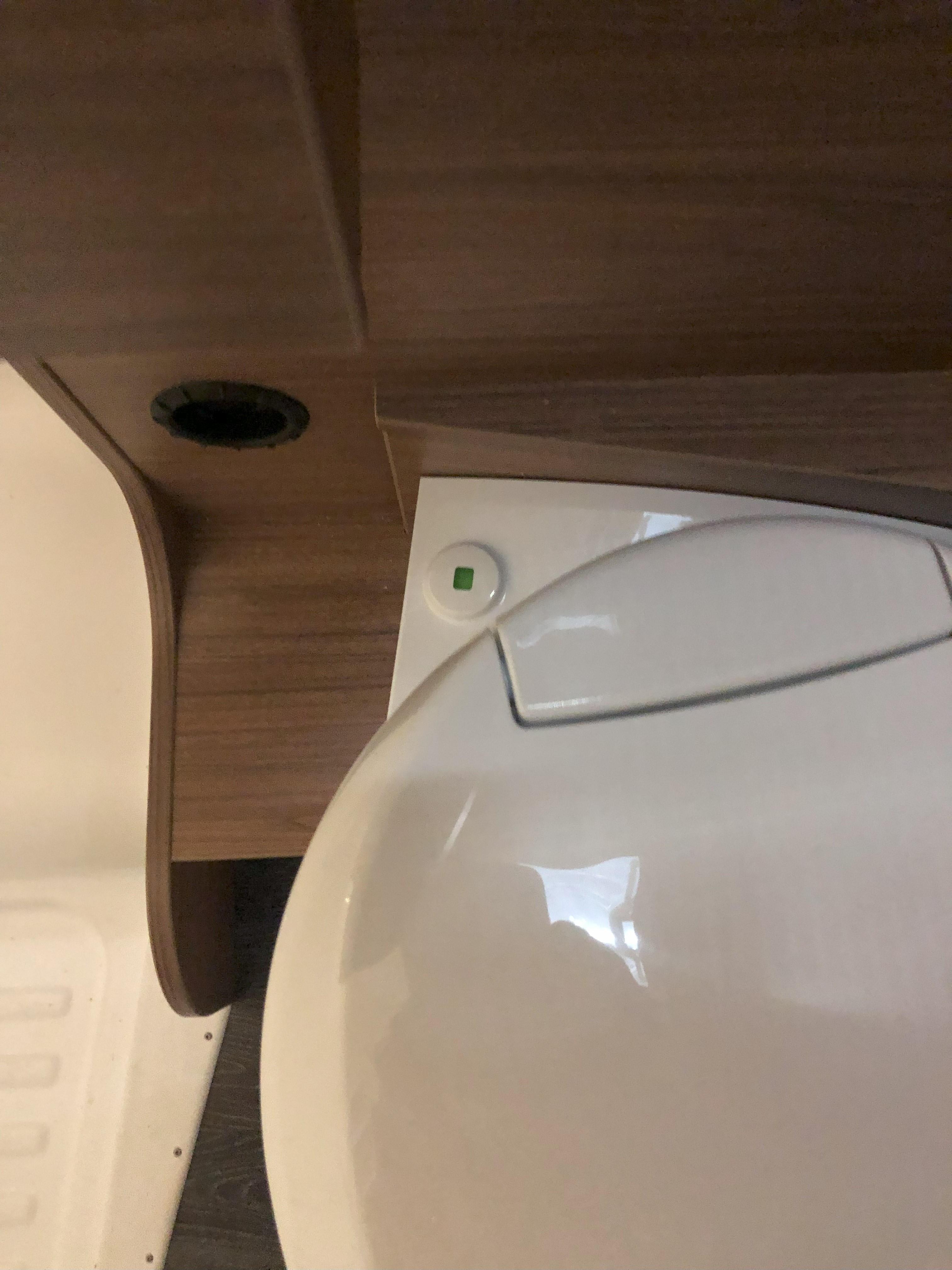

  3. When the toilet cassette is full, the coloured indicator on the left below the toilet changes from green to red:

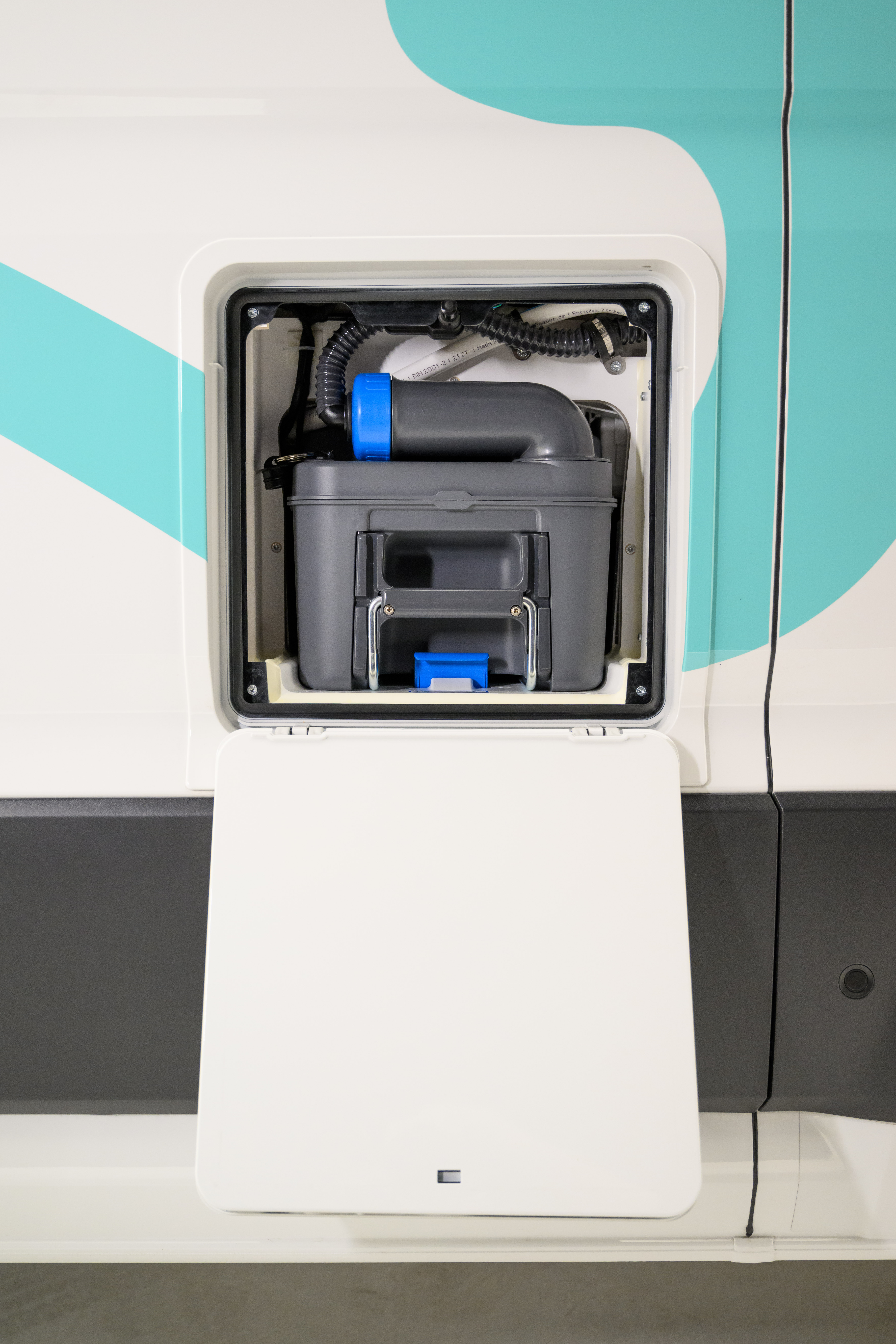

  4. To empty the toilet cassette (approx. every 2-5 days), open the toilet cassette from the outside. The toilet cassette is located on the driver's side of the vehicle. You need a key to open the compartment under the toilet.
  5. Make sure that the grey lever under the toilet seat is closed before you pull out the tank.
  6. Push the blue lever on the tank upwards and pull the tank out at the same time.
  7. At the emptying station: Turn the grey tube 90 degrees, unscrew the lid and press your thumb on the opposite blue button (vent for faster drainage).
  8. Carefully tip out the toilet cassette, rinse again with water and fill in "Solbio" for the next use.

Check the video here on how to empty the toilet cassette:
