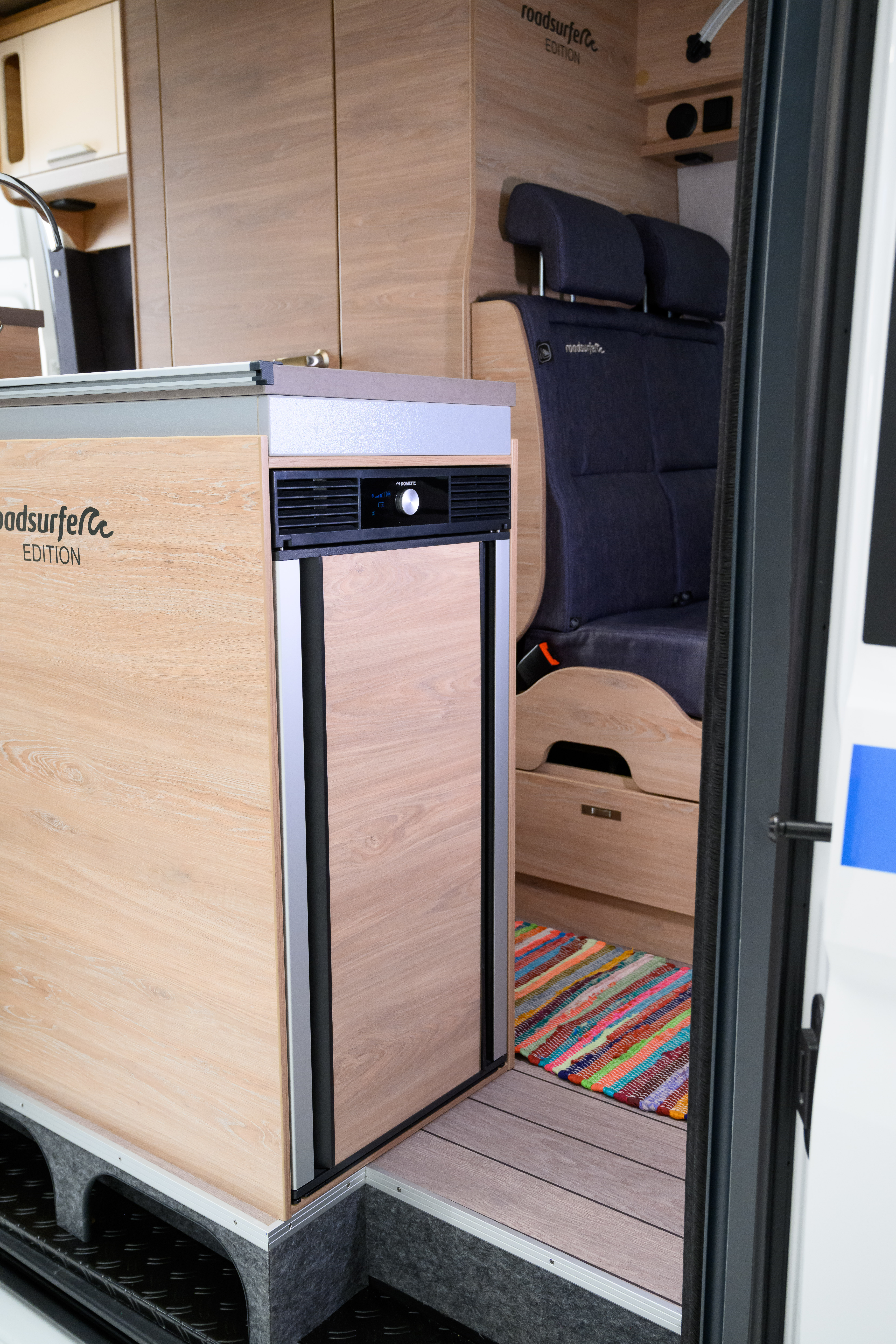

The refrigerator (69 l) with a small ice compartment is located at the front of the kitchen unit:

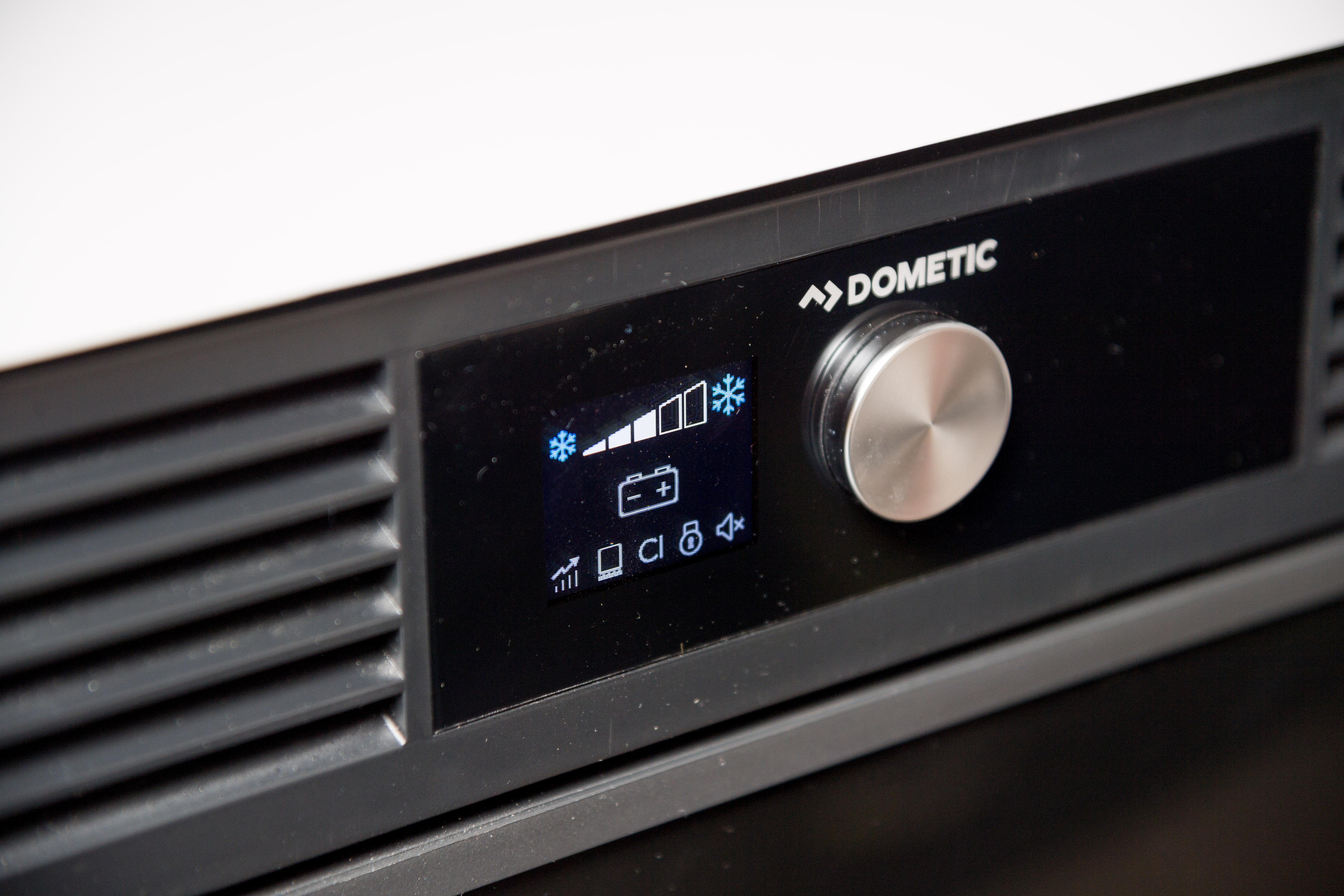

To switch it on, press the round button on the top:
Press it briefly to move through the menu. To set the temperature, turn the knob until the bars between the snowflakes light up. Press again briefly to select the desired temperature and turn the wheel to the desired temperature. We recommend 3 bars (7°-8°C).
You can open the refrigerator from both the left and right side of the door. Make sure you always pull the middle of the handle. If one of the sides does not open properly, make sure that the opposite side is properly closed and correctly engaged in the hinges.
Watch it in the video:
Troubleshooting
What you should always check in case of malfunction:
- Battery charge level- Recharge if necessary or try operating from an external power source.
- Main power switch - Check if it is switched on, otherwise the living area is not supplied with power.
- The fuse of the refrigerator may be damaged.
Before any fuse is pulled, following safety measures is required:
- Turn off the engine and remove the key from the contact.
- Unplug the car from any external power supply.
- Pull carefully on the fuse by pulling from the sides.

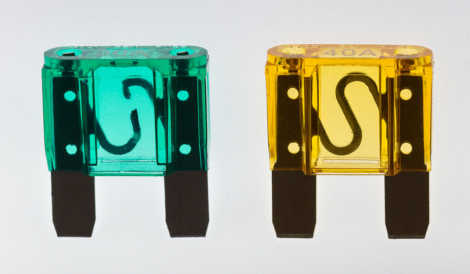

- A damaged fuse can be burnt or have the connector broken (see picture). If so, please replace it. You can find them at petrol stations and hardware stores.

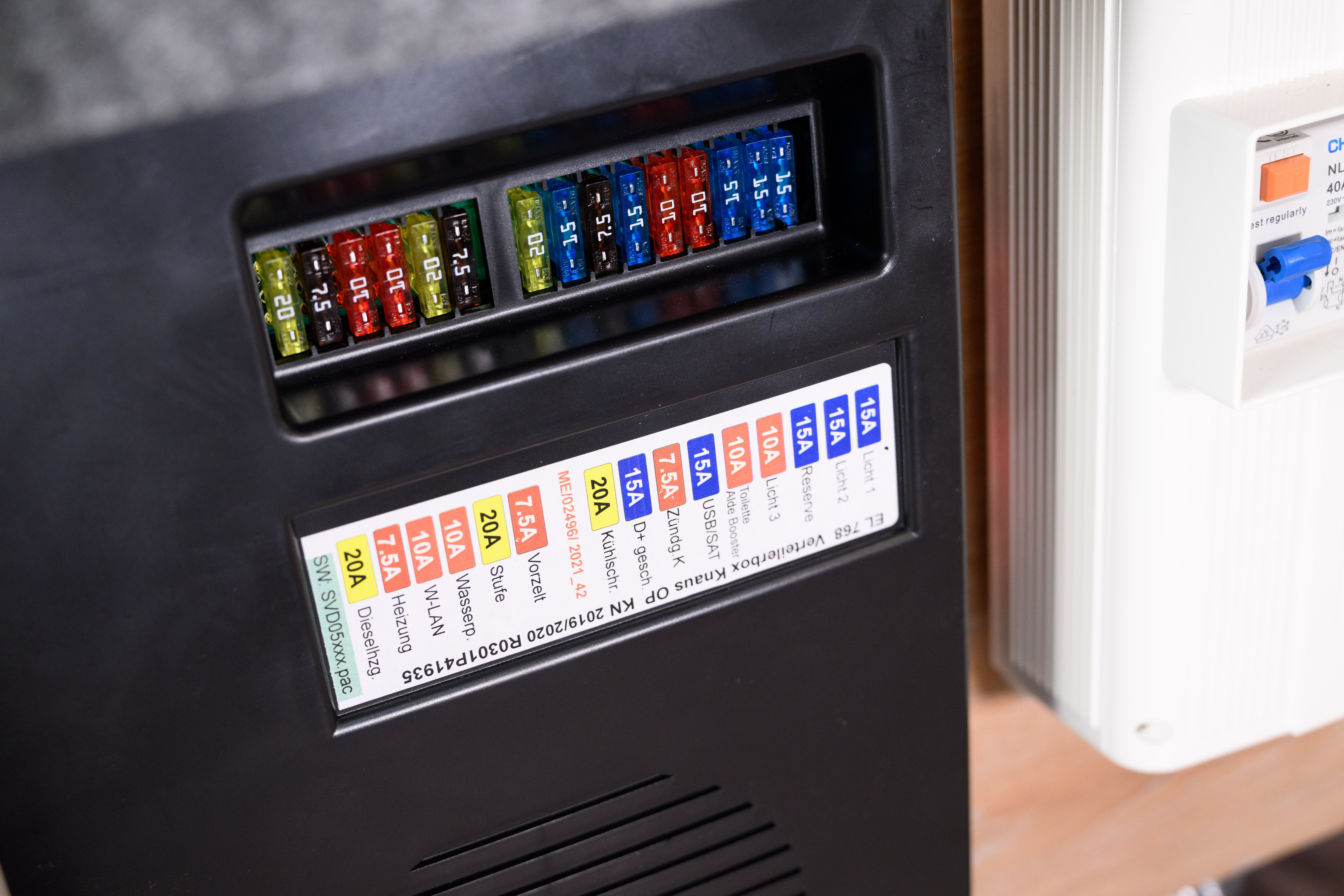

- The fuse box is located in the left cupboard under the bed. Check and replace if necessary this 20A fuse (7th from the left) labelled "Kühlschr.":
- To reset the system completely, drive the car a few metres and then try again to activate the refrigerator.
