🚾 Toilet - Family Finca (Knaus Boxdrive 600 XL)

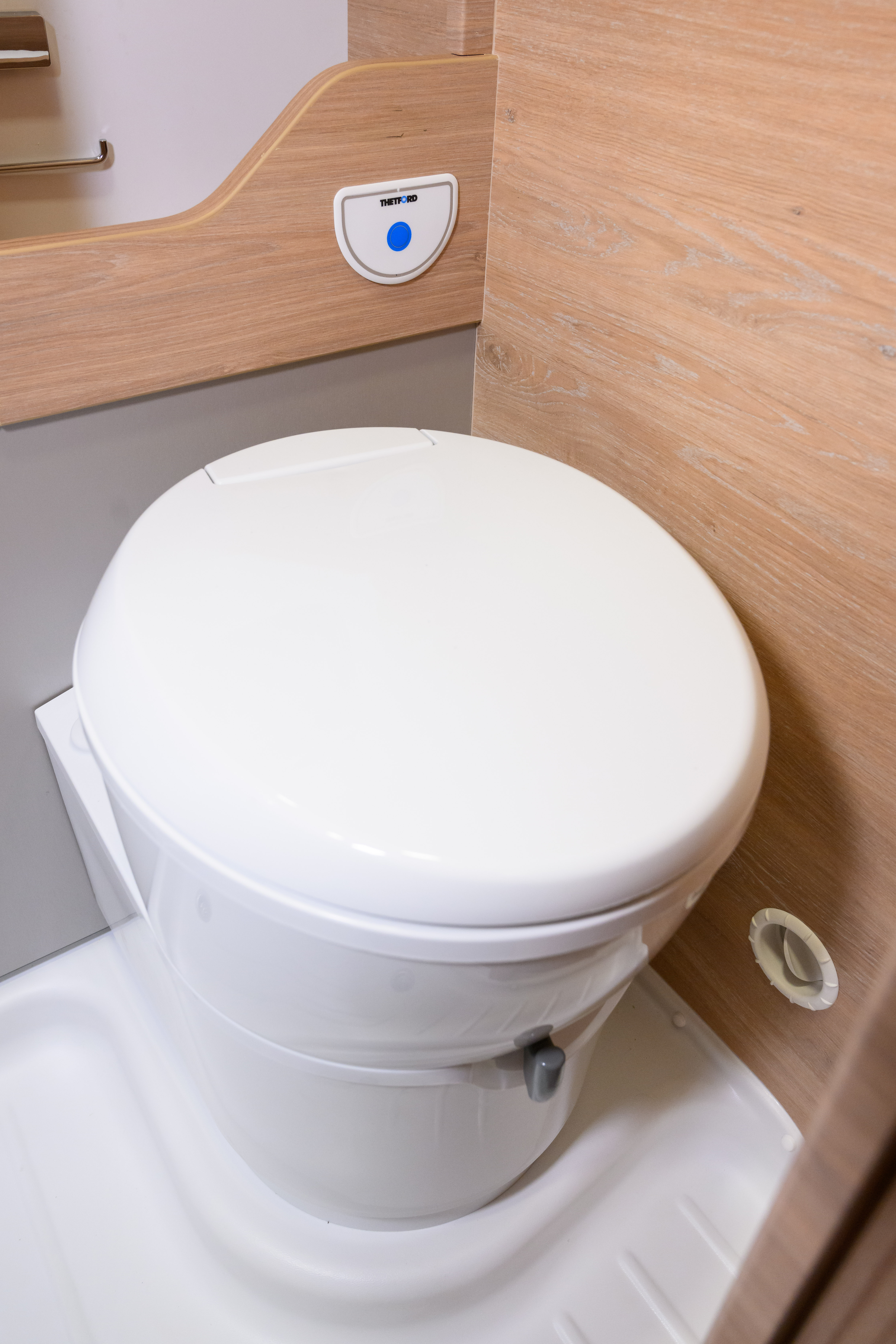

  1. To use: push the grey lever below the toilet to the right to open the toilet cassette.
  2. To flush, press the blue button above the toilet. The fresh water tank must have water in it.
  3. After flushing, push the grey lever to the left to close the toilet cassette.

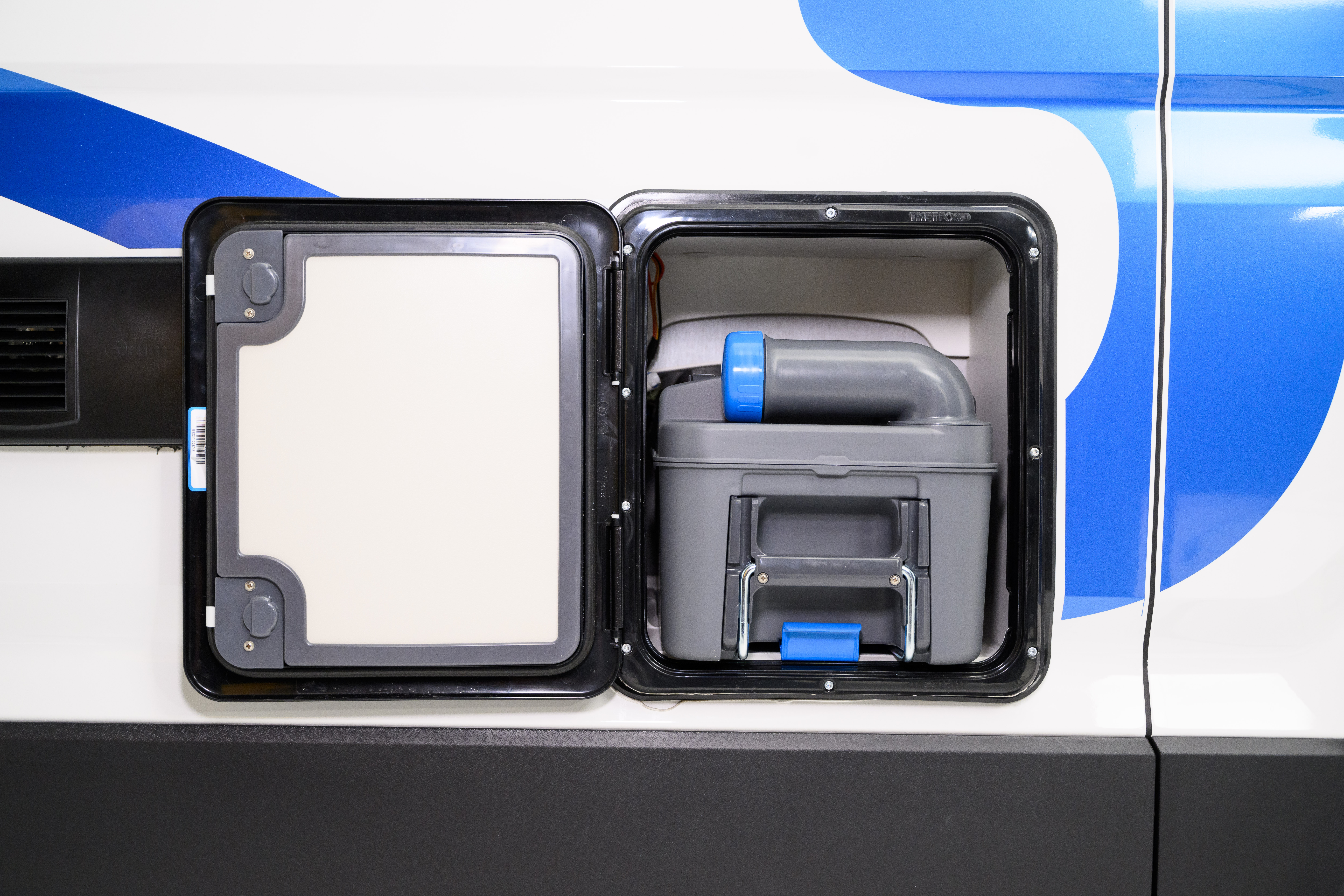

  4. To empty the black water tank, (approx. every 2-5 days), access the tank through the outer compartment door (on the driver's side). To open, use the supplied keys to unlock and press both buttons.
  5. Push the blue lever on the tank upwards and pull the tank out at the same time.
  6. At the emptying station: Turn the grey tube 90 degrees, unscrew the lid and press the opposite blue button with your thumb (vent for faster drainage).
  7. Carefully tip out the toilet cassette, rinse again with water and fill in "Solbio" for the next use.

Click here to watch the video explanation of the toilet:
