To get hot water in the Family Finca:
- Check the fill level of the fresh water tank on the on-board display.
- Switch on the water pump on the display.
- The boiler must be filled with water! Turn the water tap to hot and let the water run briefly.

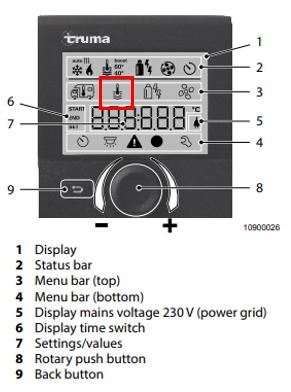

- Switch on the hot water boiler via the lower on-board display (thermometer under water) to heat the water:
- To activate the screen, press the black button briefly.
- Turn the black button clockwise until you see the symbol with a thermometer under water blinking:
- Click on the black button to confirm.
- The text "OFF" will appear. Turn the wheel clockwise to select select the mode: ECO (40℃), HOT (60℃) or BOOST.
- Once you find the desired mode, press the button to select.
- The main menu will appear again and the boiler should be working.
- Wait about 20 minutes until the water in the boiler is hot.
- It takes about 20 minutes for the water to heat up.

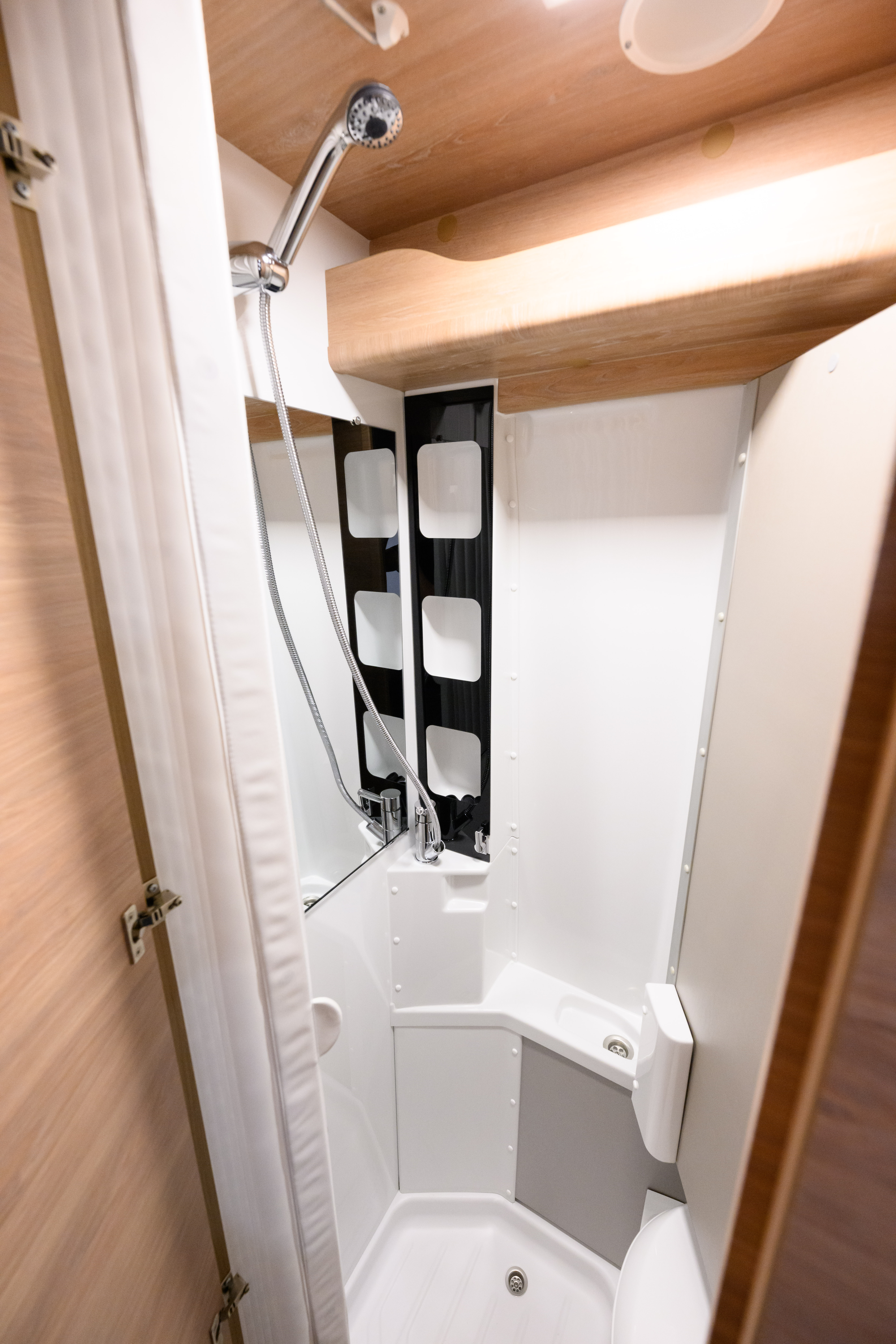

- To take a shower, fold the washbasin and mirror to the side and pull out the shower head hose of the interior shower and insert it into the holder. After the shower, gently push the hose back in.
Attention: The boiler runs on diesel, make sure you have enough!
Watch it in the video:

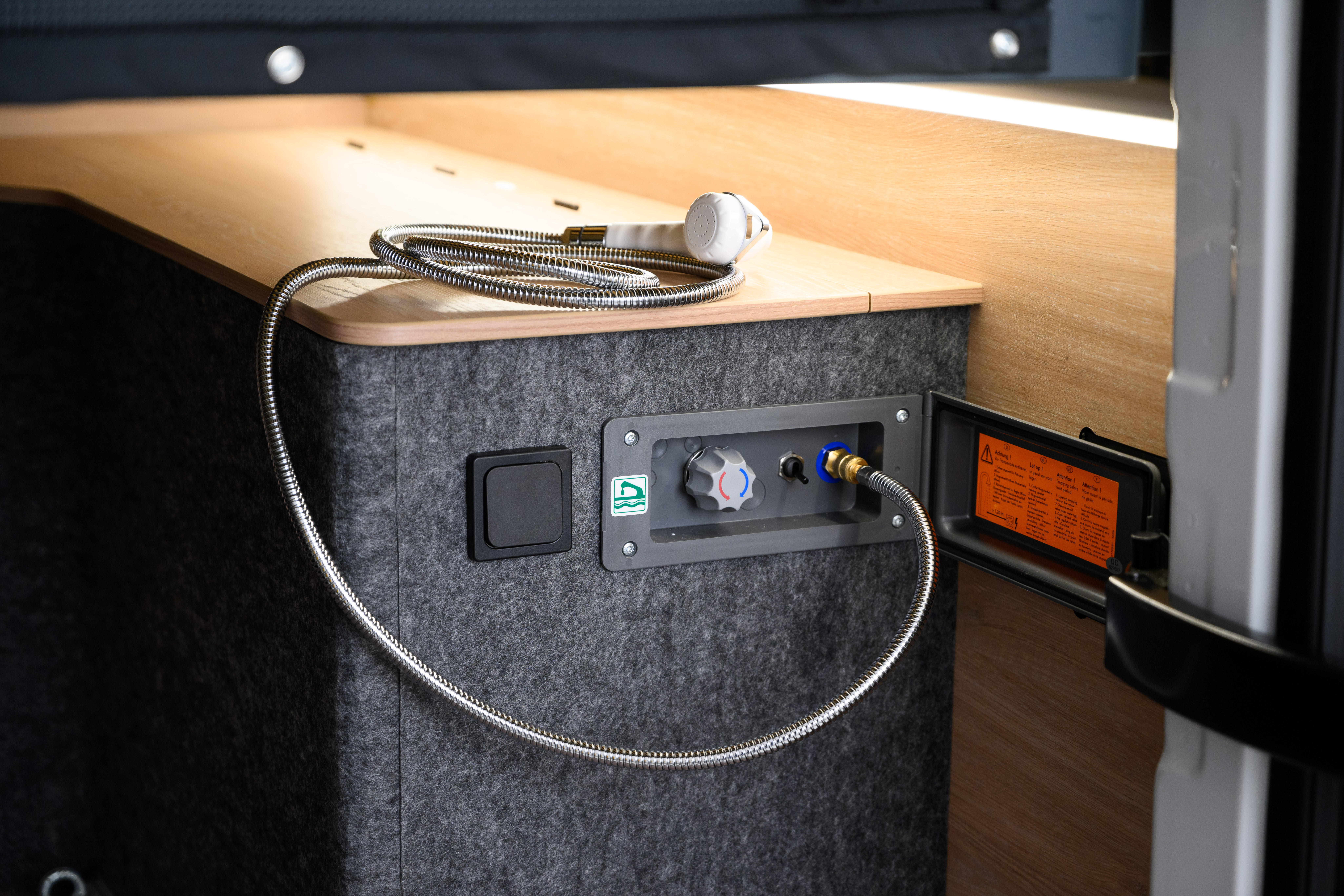

Outdoor shower
The outside shower is located at the back right of the boot. To turn it on, plug in the shower hose and flick the little switch. You can adjust the temperature with the wheel next to the switch.
Troubleshooting
If the heater does not work, check the Truma unit for error codes. The most common is:
W412H: The error occurs when a window is opened. This activates the safety pin that prevents exhaust gases from the heater from entering the vehicle interior. For it to work again, the window must be closed and the error in the unit cleared by resetting the warning.
You found the cause of the error and fixed it? Great! Some errors disappear by themselves.

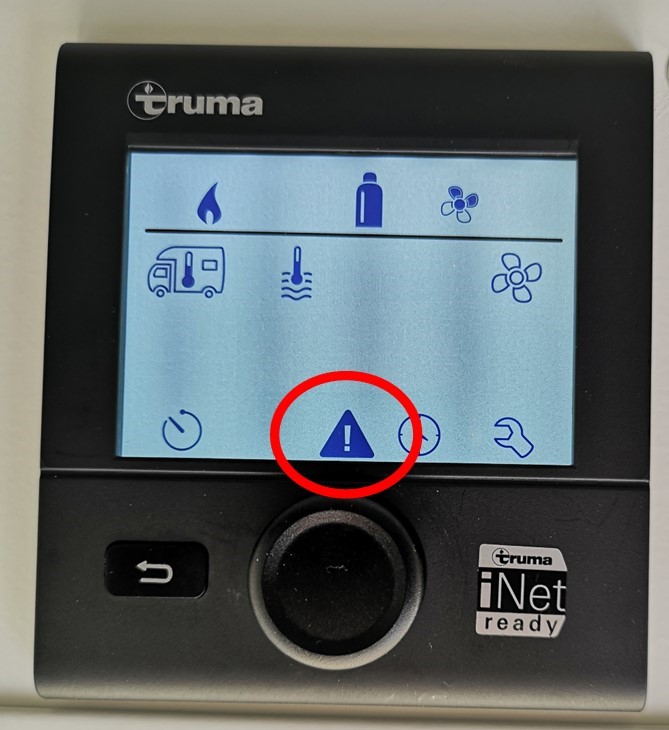

Others need to be confirmed by navigating to the black button to the exclamation mark (by turning the black button):
Now press the black button to confirm the error. The symbol should now disappear and the heater can be put back into operation using the familiar steps.
Resetting the Truma unit after an error/warning message. Only ONCE!!!
In some cases, it helps to manually reset the Truma. Try this only once – if you repeatedly reset it without eliminating the cause, the entire system can be permanently disabled.
