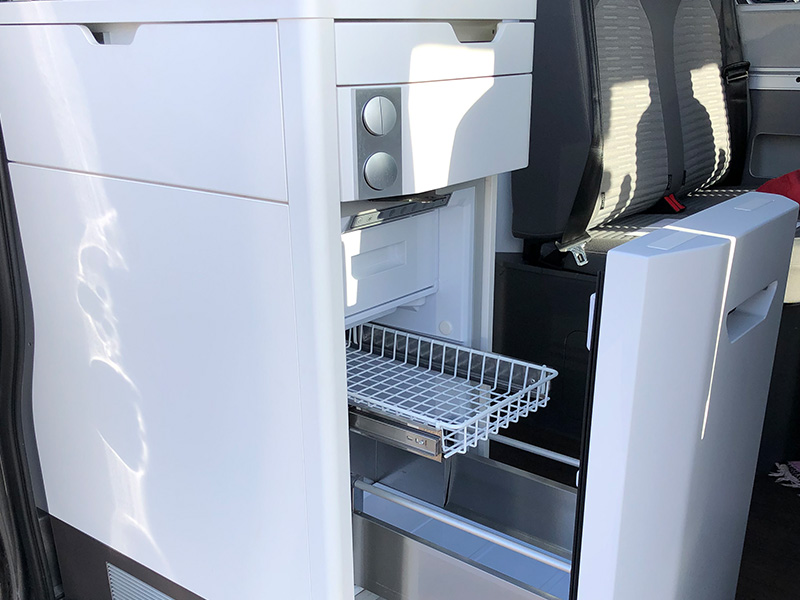

The refrigerator with small ice compartment is located on the front side of the kitchen unit:

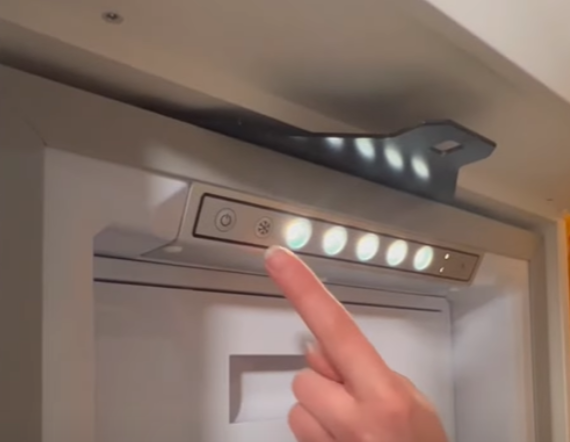

To switch on/off, press and hold the On/Off button at the top of the refrigerator for approx. 5 sec. until the lights light up. Then set the desired cooling level (9°C to 1°C) using the snowflake symbol. We recommend level 3.
Do not be alarmed if all 5 lights light up, when you open the fridge. This only gives more light for you to see the inside of the fridge. To double-check the actual level chosen, press the snow flake button to show you the level again.

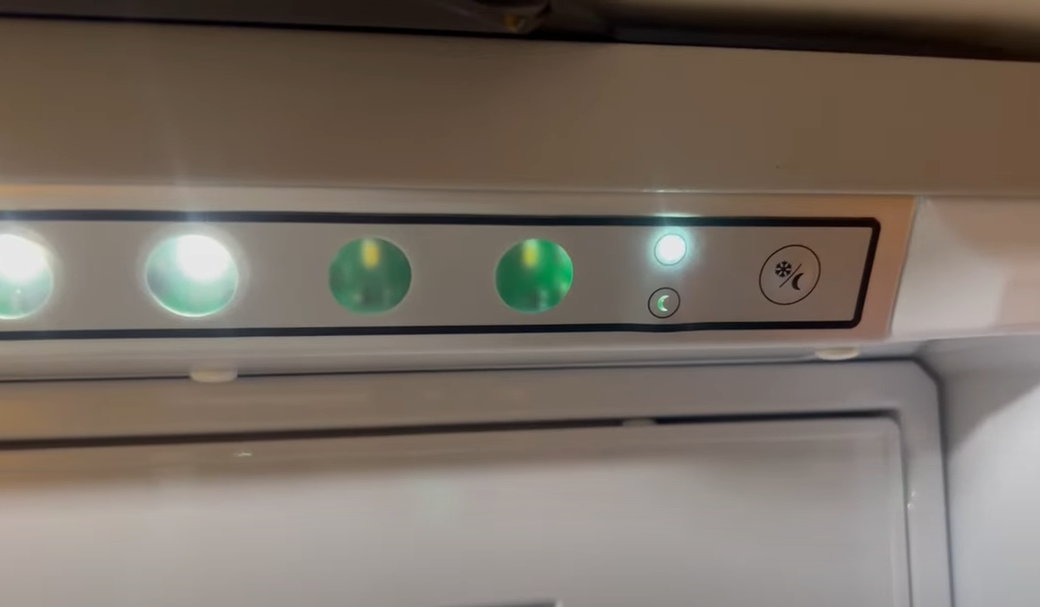

On the right-hand side there is another button with which you can change the cooling mode: a small snowflake "Boost" and a moon "Night mode".
- With Boost, the fridge cools much faster, but also uses more battery.
- Night mode makes the fridge a little quieter for 8 hours.
If the temperature of the refrigerator changes to the maximum by itself, the "Boost" option may be selected.
Watch it in the video:
Troubleshooting
An error always starts with 5x fast flashing of the LEDs. Then the error code is indicated by long flashing. The refrigerator has different error codes. These are the most common ones:
- LED flashes 1x: Battery error - The power supply to the refrigerator is insufficient. Check the charge level of the camping battery, charge it if necessary or try operation via an external power source.
- LED flashes 5x: Refrigerator overheats - This can happen at extremely high outdoor temperatures. In this case, open doors and windows and find a shady spot if possible.
What you should always check in the event of a malfunction:
- Charging status of the camping battery - Charge it if necessary or try operating it from an external power source.
- Main battery switch - Check that it is switched on, otherwise the living area is not supplied with power.

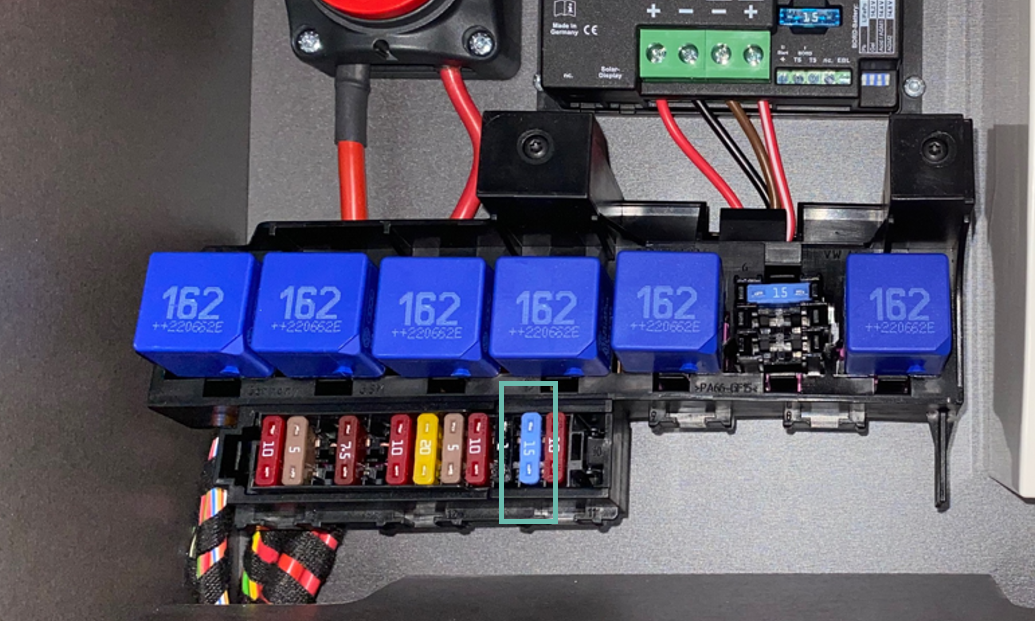

- The fuse box is located in the left cupboard under the bed. Check and replace if necessary this 15A fuse (second from the right):
Before any fuse is pulled, following safety measures is required:
- Turn off the engine and remove the key from the contact.
- Unplug the car from any external power supply.
- Pull carefully on the fuse by pulling from the sides.
- A damaged fuse can be burnt or have the connector broken (see picture). If so, please replace it. You can find them at petrol stations and hardware stores.
Food freezes in the lower refrigeration compartment

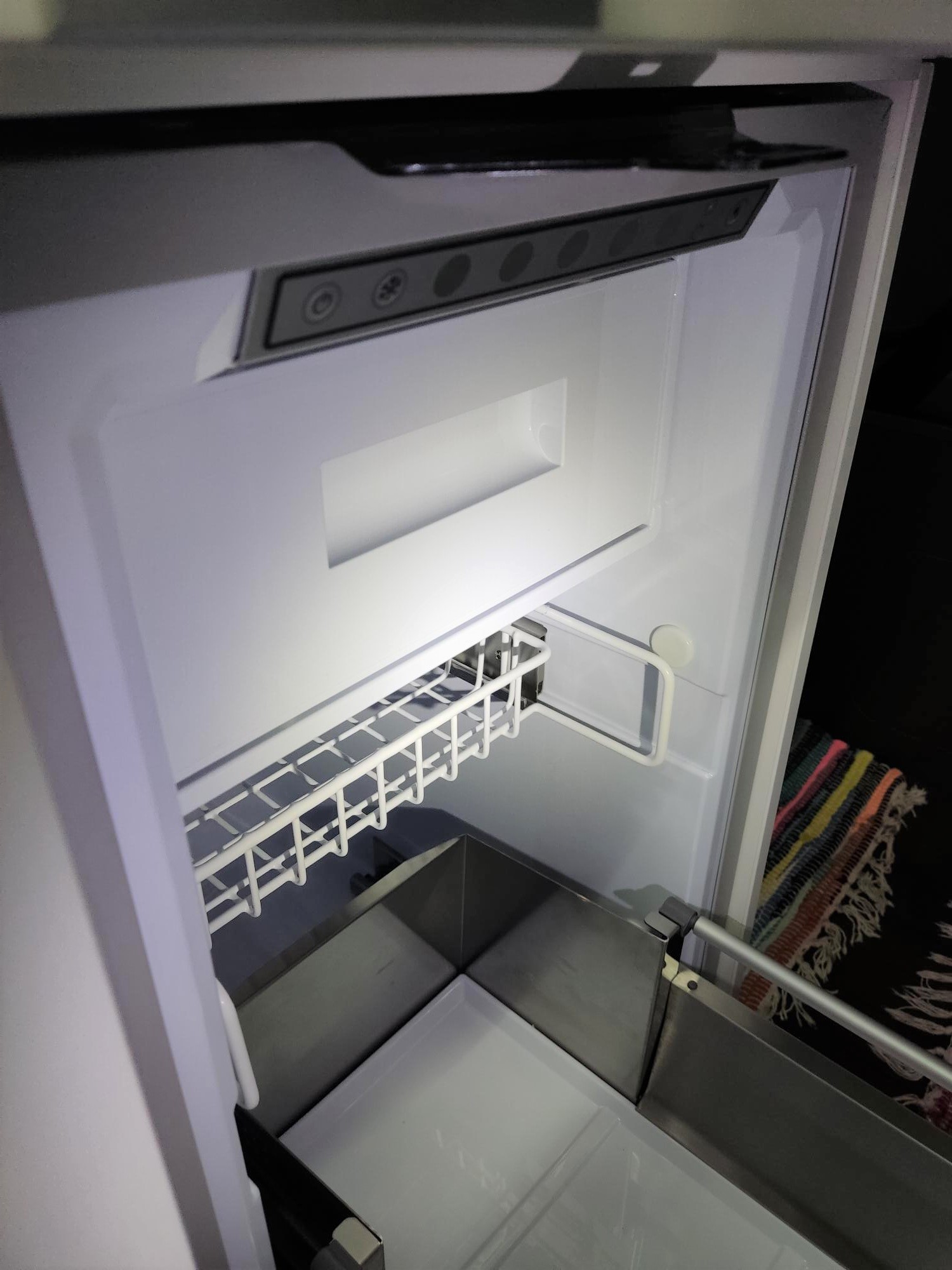

When this happens, the partition between the ice compartment above and the refrigeration area below is usually not inserted correctly. This allows the ice-cold air from the top to reach the bottom and freeze food and drinks unintentionally. Check whether this white tray below the ice compartment protrudes like this:

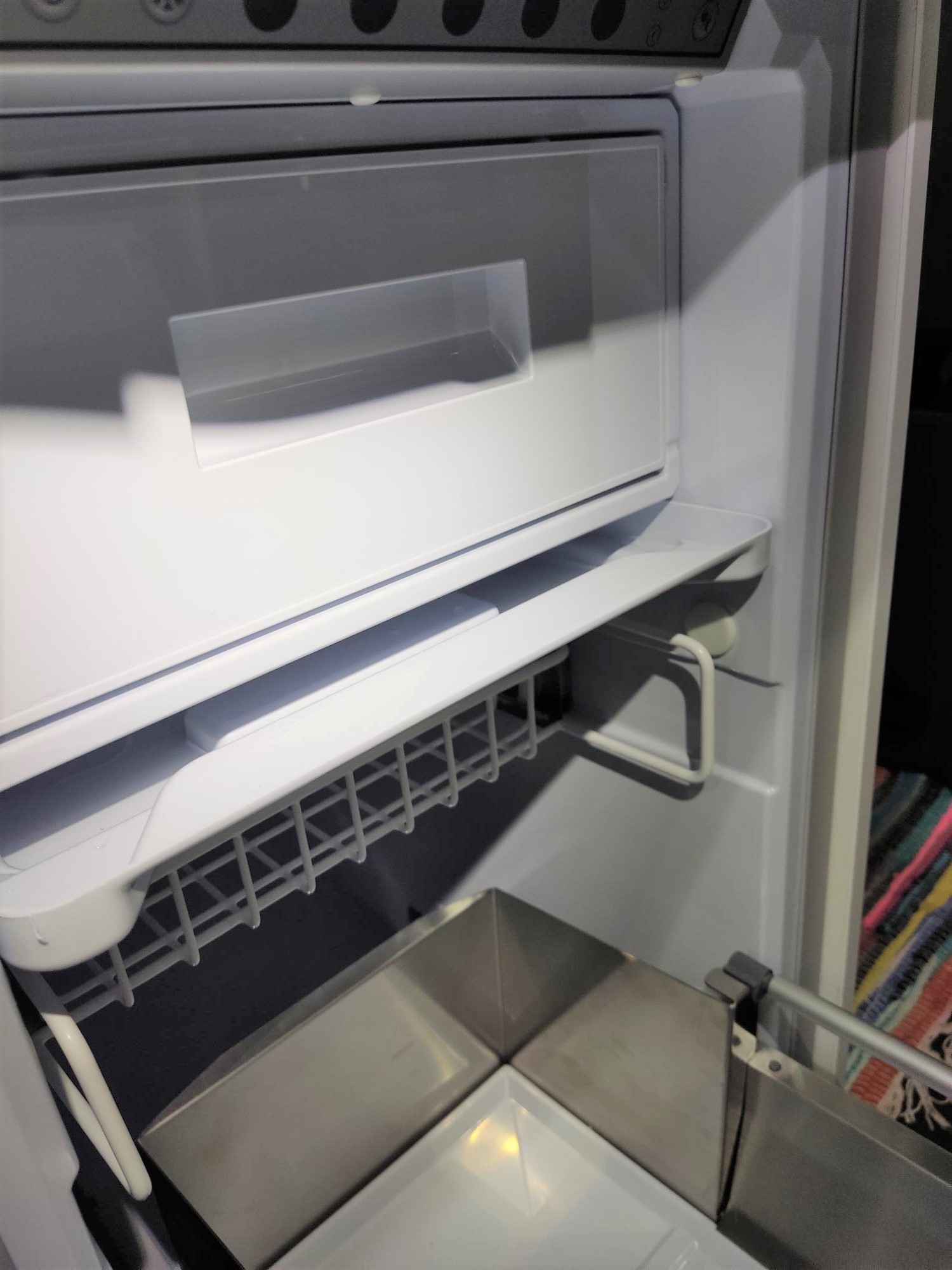

If it does, carefully slide the partition towards the back wall until it is flush:
