🚾 Toilet - Family Finca (VW Grand California)

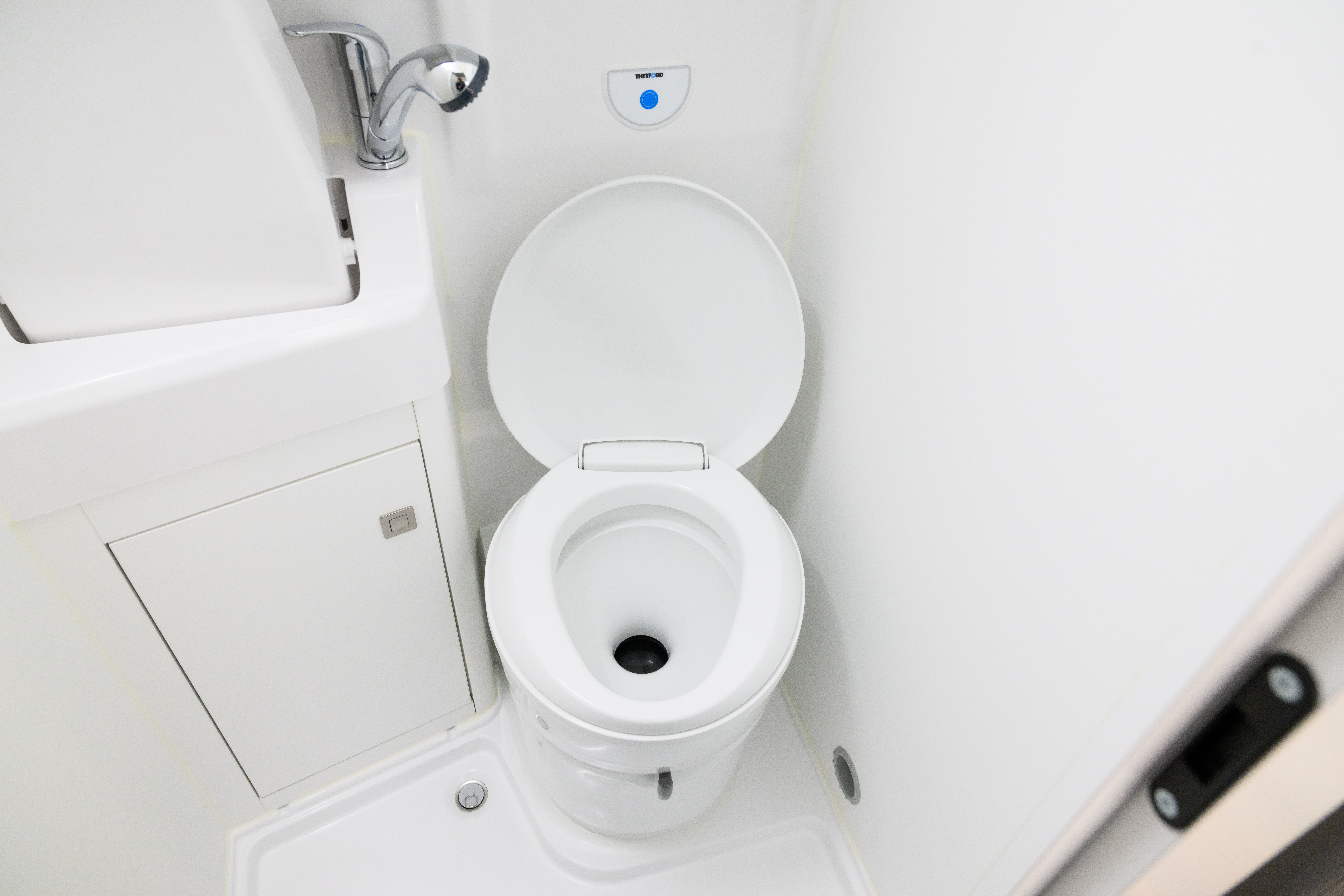

  1. To use: push the grey lever below the toilet to the right, to open the toilet cassette:
  2. To flush, press the blue button. The fresh water tank must be full for this.

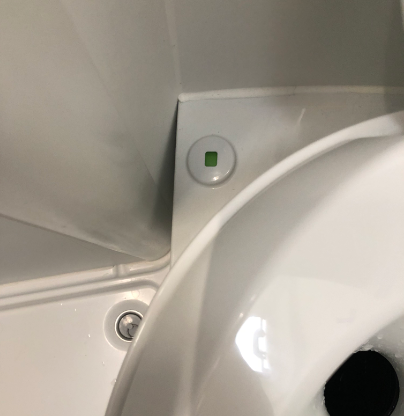

  3. When the toilet cassette is full, the coloured indicator on the left below the toilet changes from green to red:

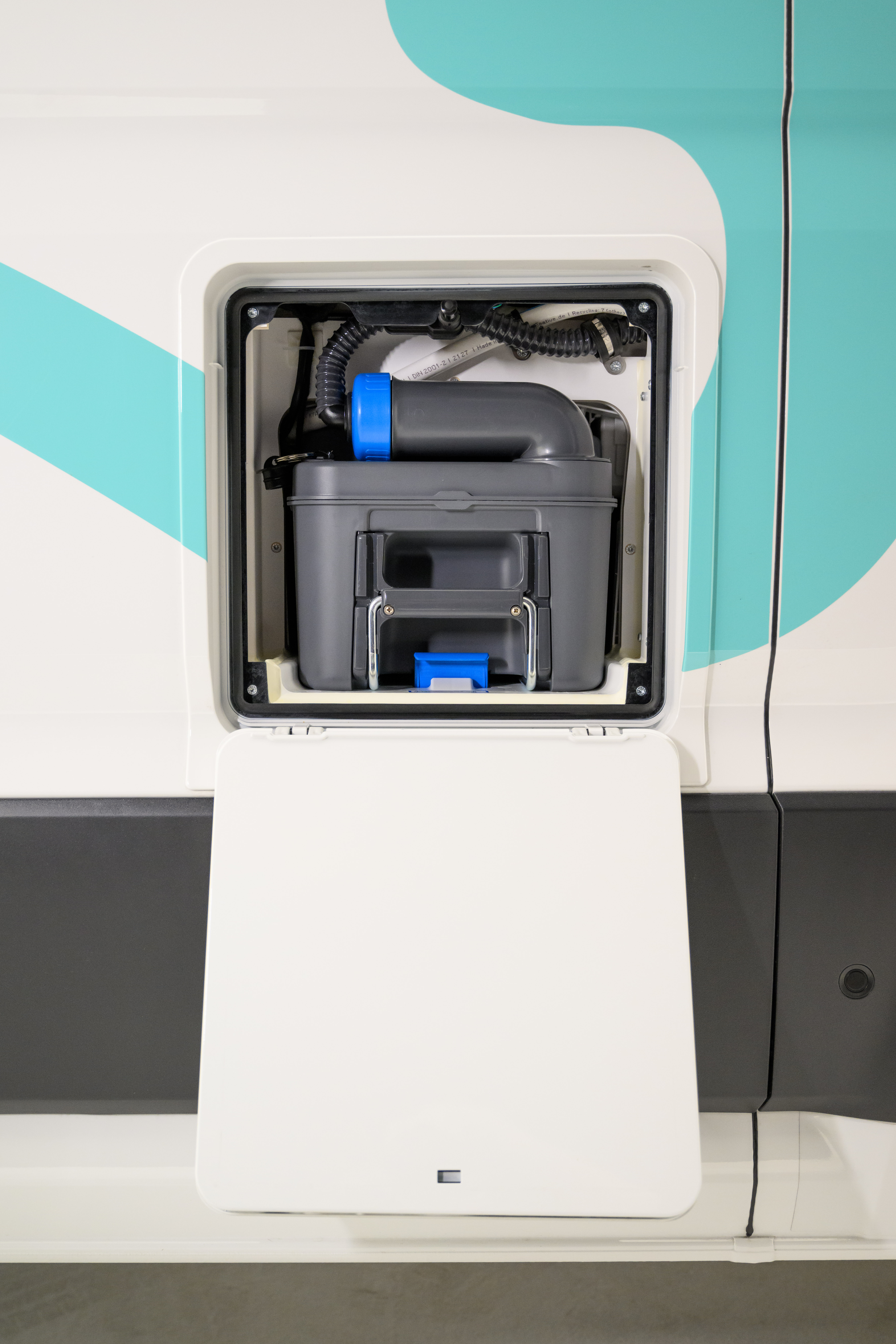

  4. To empty the toilet cassette (approx. every 2-5 days), press the outside compartment on the driver's side at the top with both hands to open it.
  5. Make sure the grey lever under the toilet seat is closed before pulling the tank out
  6. Push the blue lever on the tank upwards and pull the tank out at the same time.MST_8467.JPG
  7. At the emptying station: Turn the grey tube 90 degrees, unscrew the lid and press your thumb on the opposite blue button (vent for faster drainage).

  8. Carefully tip out the toilet cassette, flush again with water and fill in "Solbio" for the next use.

Watch it in the video:

Troubleshooting

If you cannot open the outside compartment, try the following:

  • Unlock the car.
  • Press on the flap in the upper area and try to open it as described.
  • If this does not work, go into the car. Lift up the seat cushion on the back seat and look for a red cord (it might be behind the seat belts).
  • Pull the red cord. The door should now open.
