The bike carrier on your Camper Castle can carry a maximum of 60 kg for three bikes together. The maximum capacity per rail is 30 kg.
Be sure to check the weight, especially if you want to take e-bikes, because most e-bikes exceed the maximum weight!

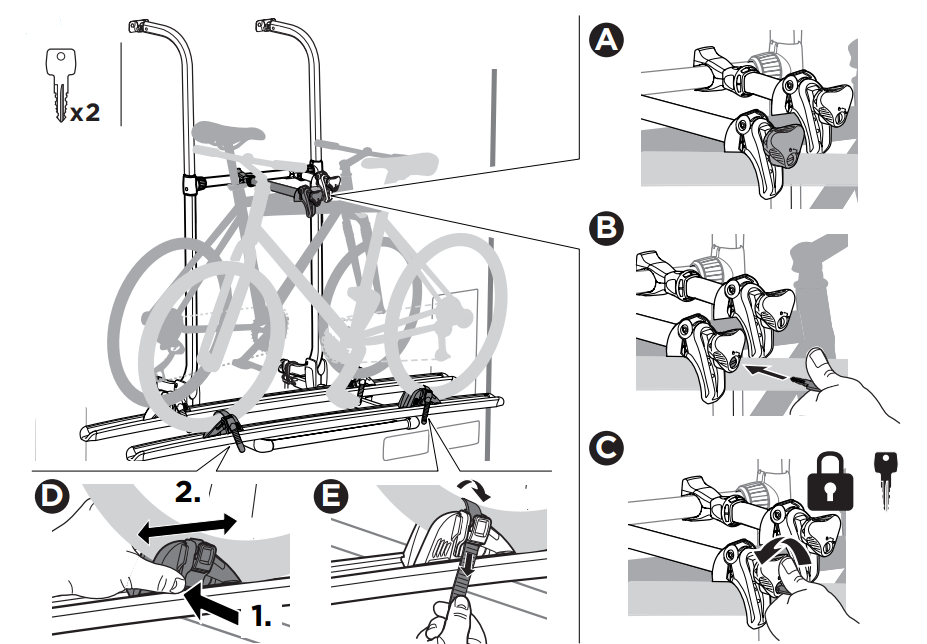

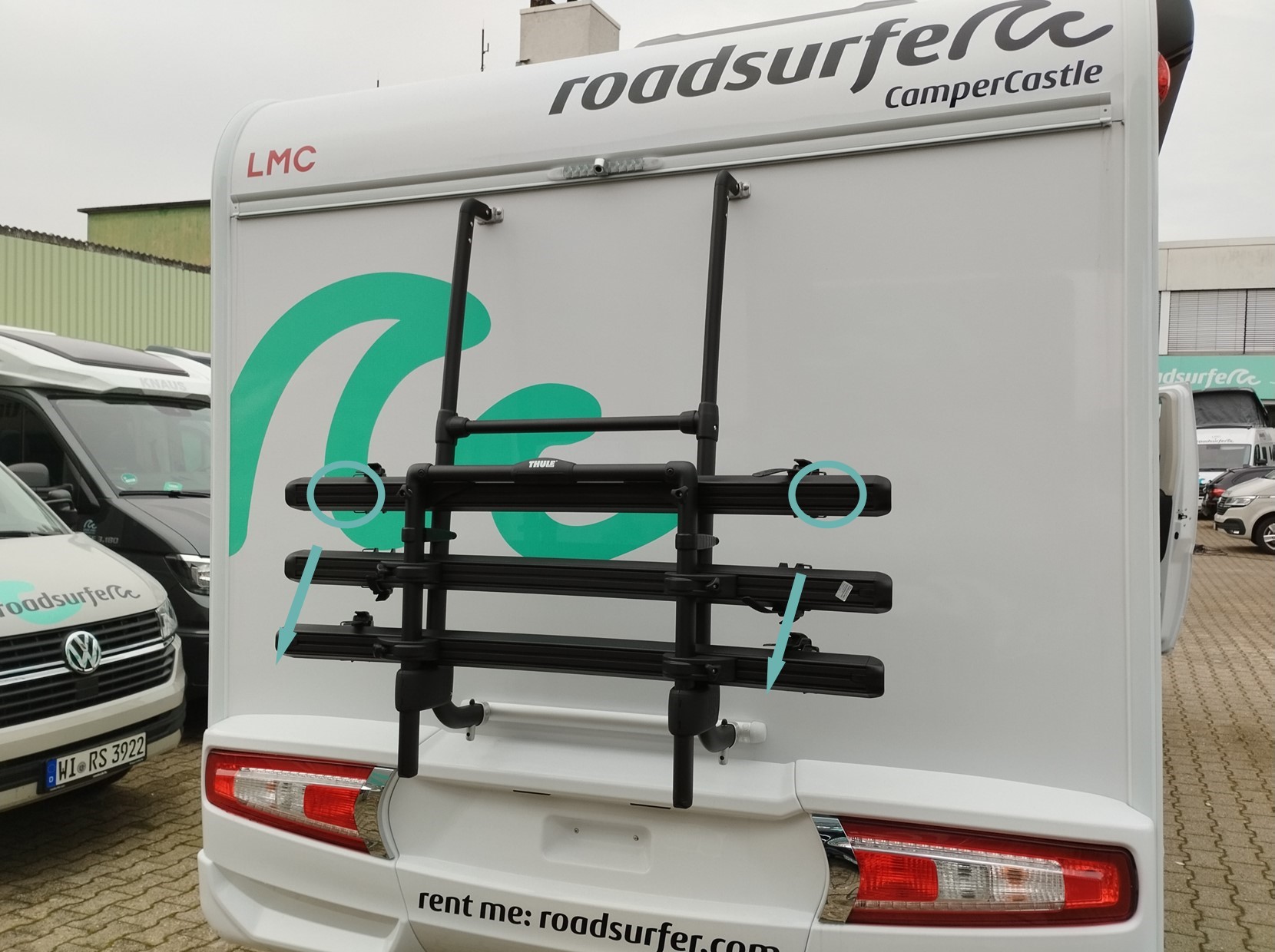

- Lower the bike rack.

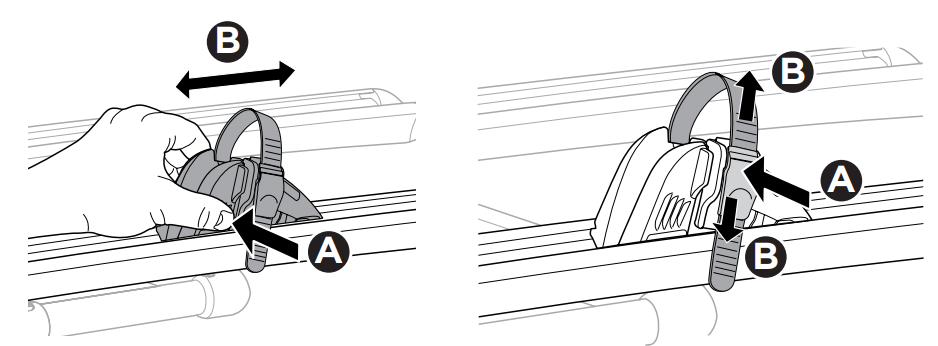

- Adjust the position of the bike straps on the rail according to the bike and open the straps:
- First fasten the frame locks at the top and then strap the bikes to the rails::
- If possible, use a tension strap to secure two bikes.
- Lock the frame locks so that your bikes cannot be stolen. If they are locked, the handle can still be turned but not opened.
- Replace the Italy/Spain warning sign with the reusable cable ties.
Attention
- You are responsible for ensuring that the bikes are secured at all times while participating in road traffic.
- If you are only transporting one bike, use the rail closest to the boot.
- Make sure that the wheels do not cover the rear lights or indicators.
- If you open the boot doors with loaded bicycles, make sure that the bicycles do not damage the side of the van.

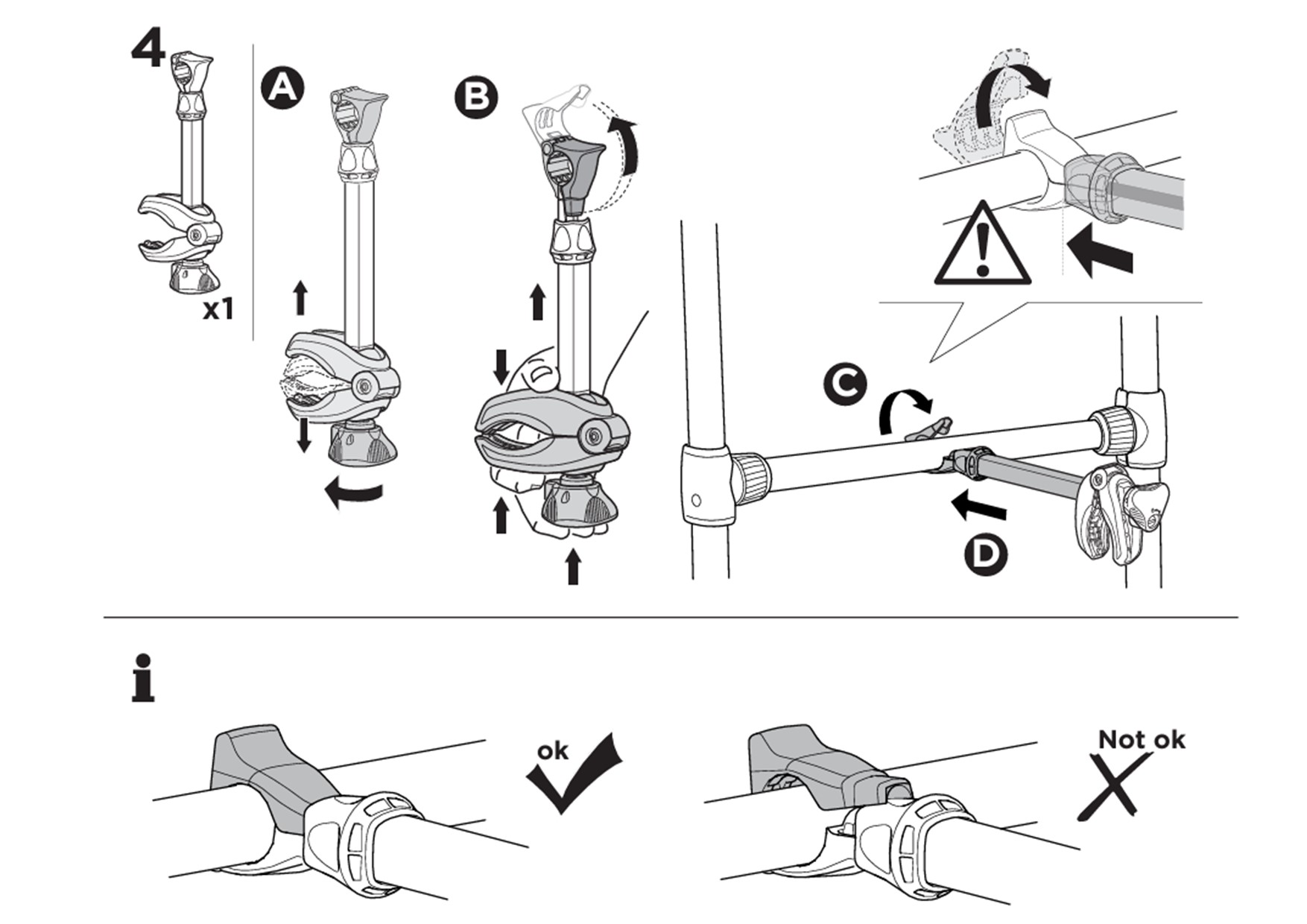

To attach the bicycle arms (if necessary) follow the instructions:
