Here you can find out how to set up the additional roof bed in the Camper Castle (LMC Tourer Lift).

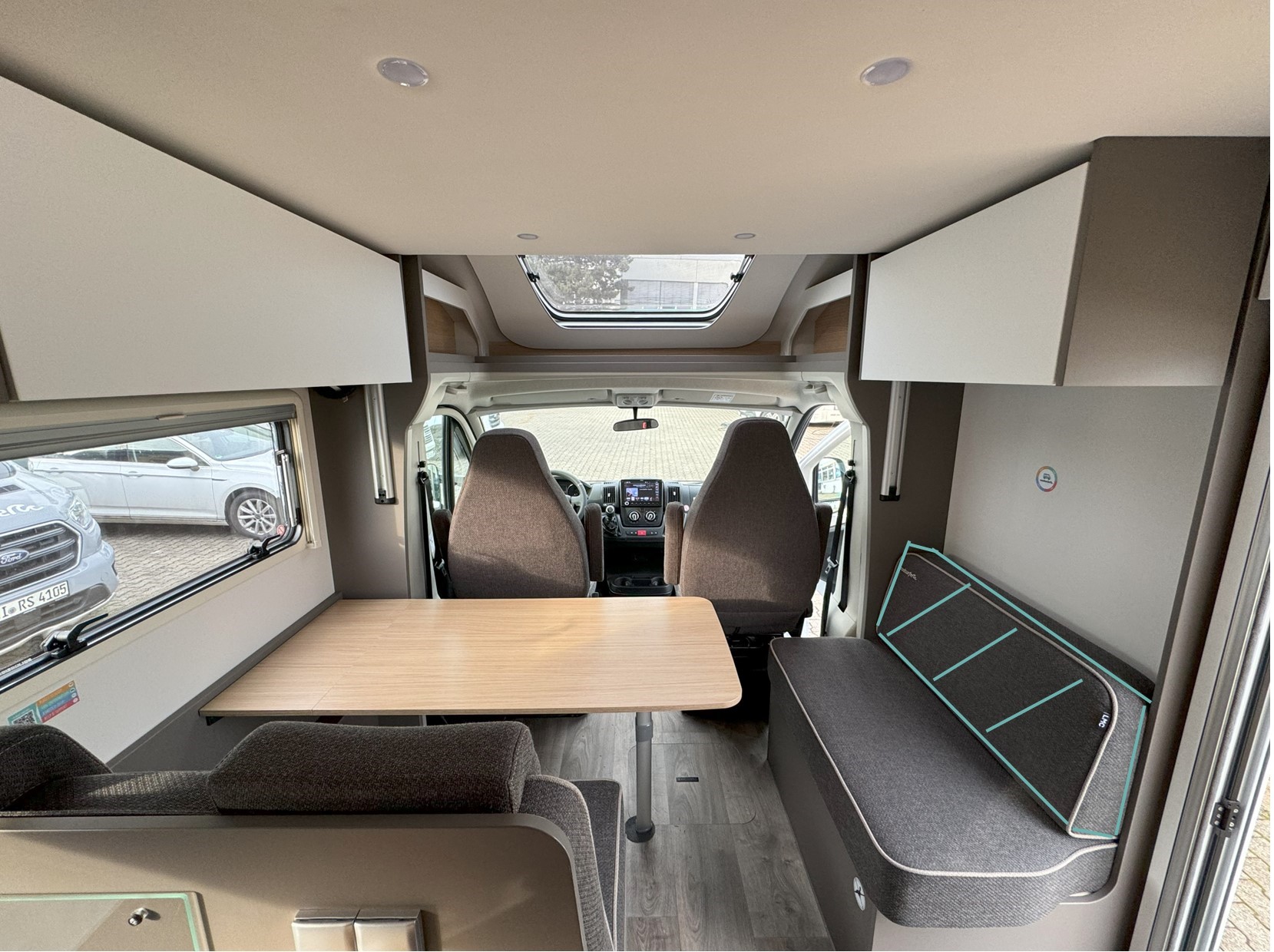

- Lay the seat cushions of the bench seat flat on the seat surface.

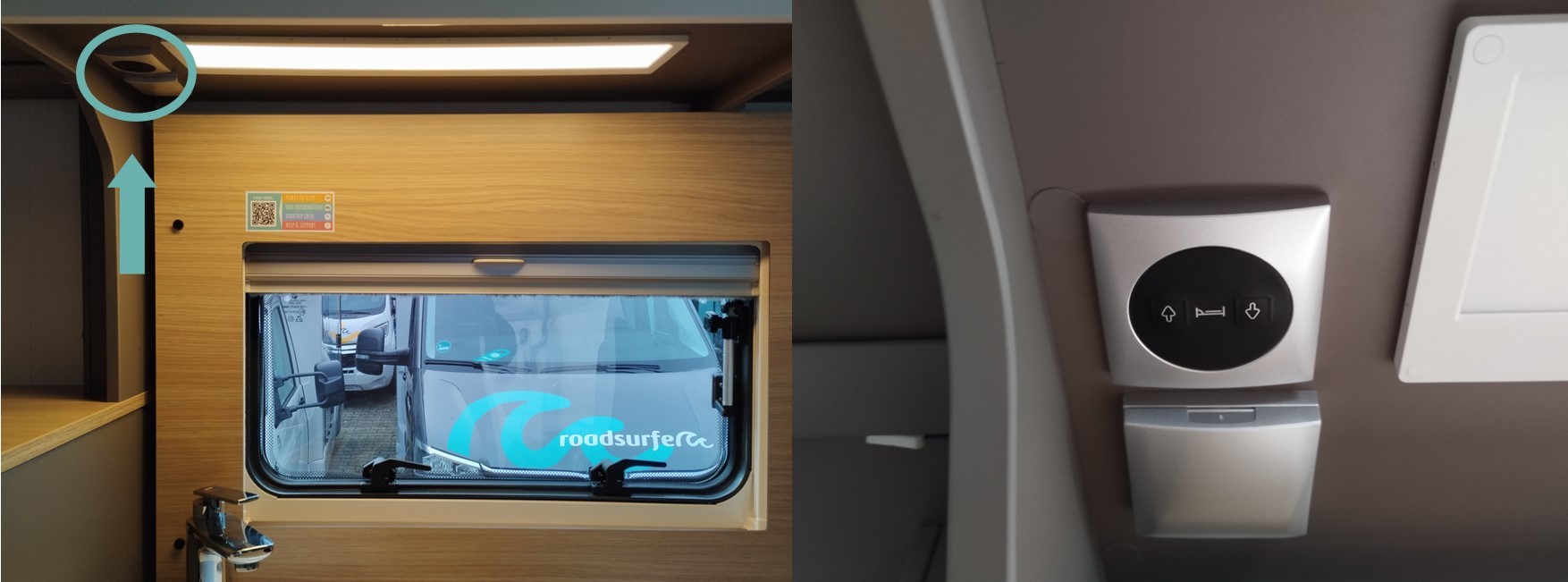

- Find the switch above the kitchen counter:

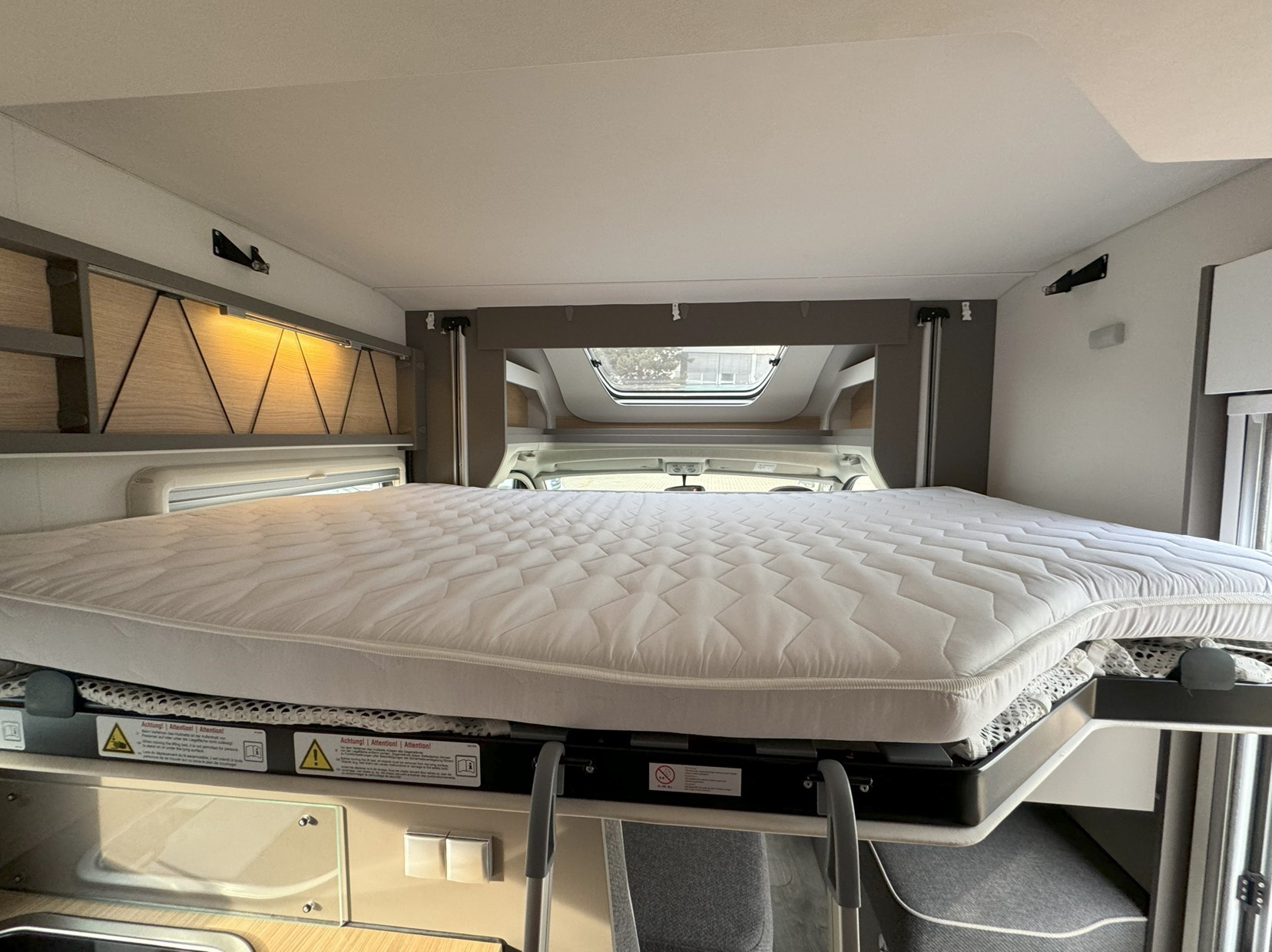

- Press down until the bed is almost resting on the kitchen counter.
- You will find the ladder in the boot. Attach it to the designated place.
Click here to watch the video on how to operate the bed:
Troubleshooting
If the roof bed is not working, you can check the following:
- Check whether the on-board computer is switched on.

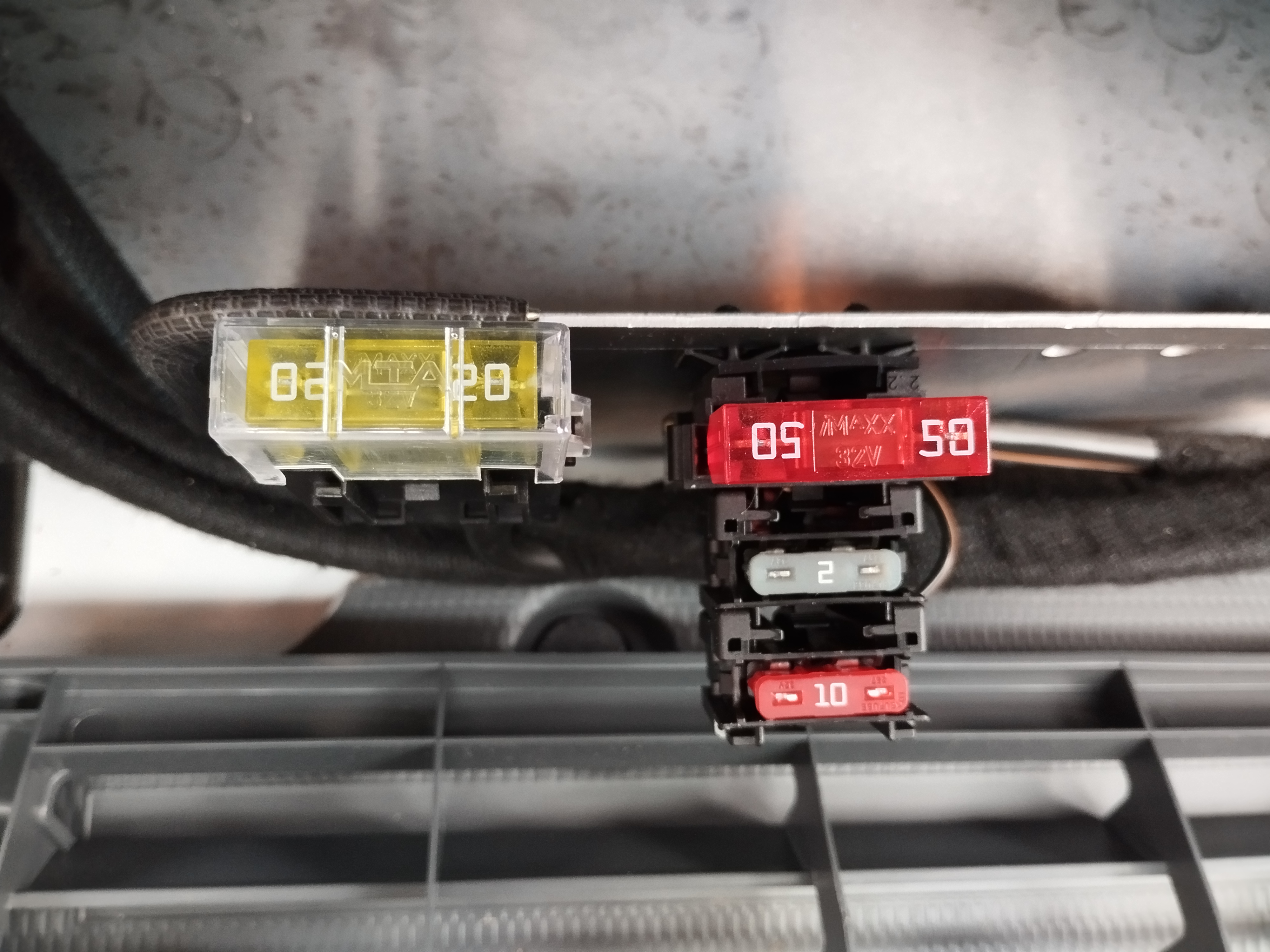

- Check that the fuses are not blown. The fuse for the roof bed is the yellow 20A under the passenger seat. Also check the other fuses under the driver's seat, passenger seat and under the bed.
Before any fuse is pulled, following safety measures is required:
- Turn off the engine and remove the key from the contact.
- Unplug the car from any external power supply.
- Pull carefully on the fuse by pulling from the sides.
- A damaged fuse can be burnt or have the connector broken (see picture). If so, please replace it. You can find them at petrol stations and hardware stores.
