💧 Water leaking under the camper and cold protection valve - Camper Castle (LMC Tourer Lift)

If water is leaking from under the Camper Castle (LMC Tourer Lift), there are several things that should be checked:

• Make sure that the fresh water tank is closed.

• Make sure that the waste water tank is closed.

  Camper Castle LMC (Fiat/Citroen)

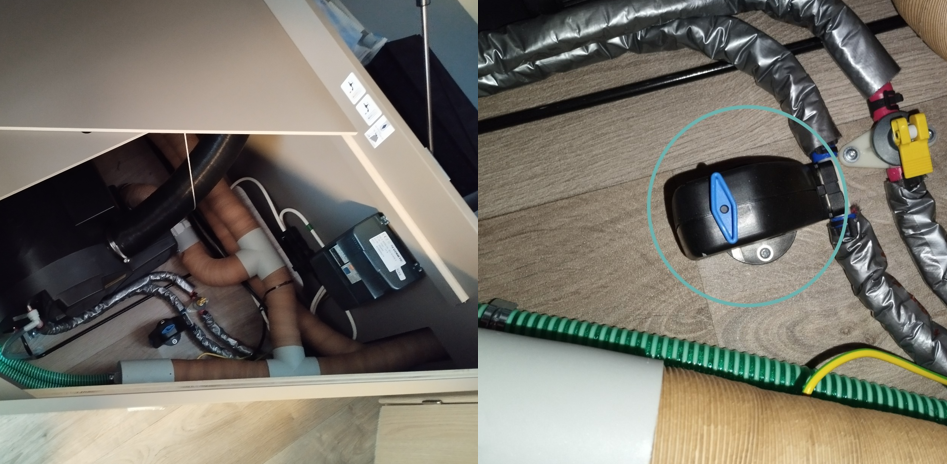

  • Check the cold protection valve to make sure it has not been activated accidentally. The cold protection valve is under the bed under the cover:


  Camper Castle LMC (Ford)

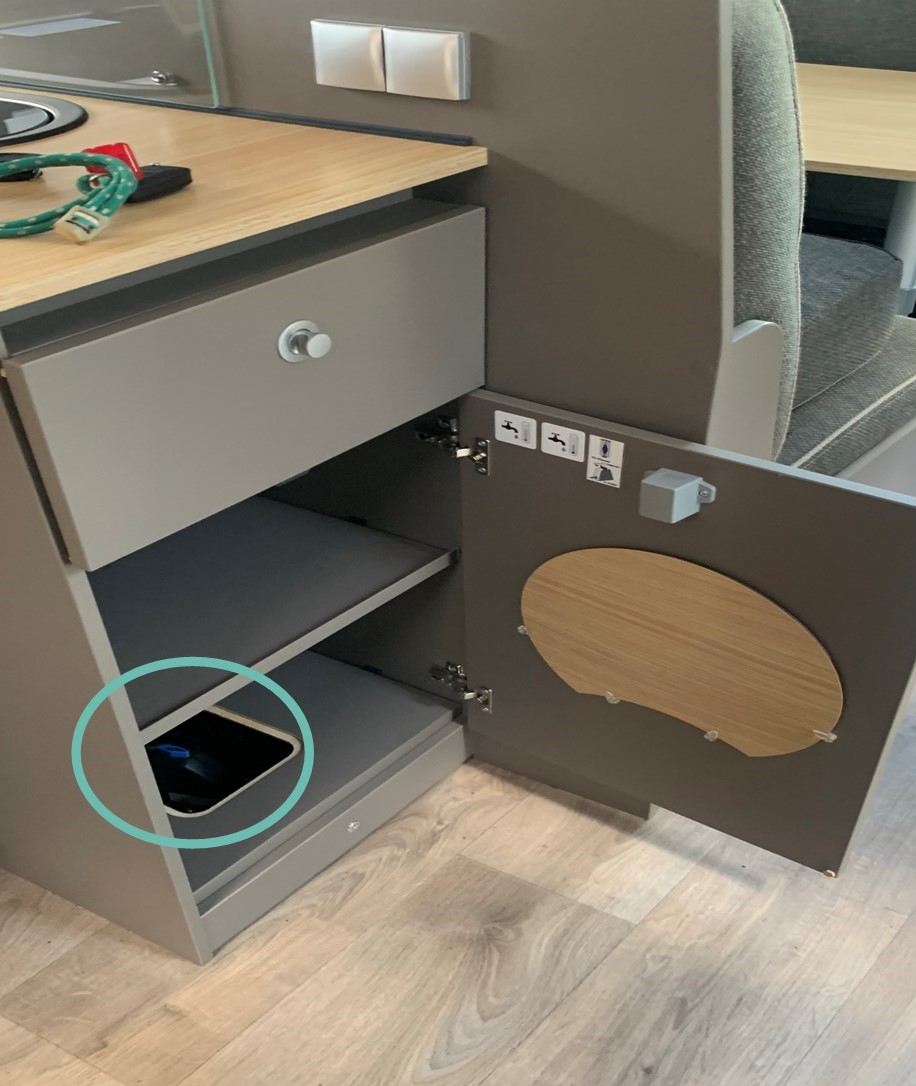

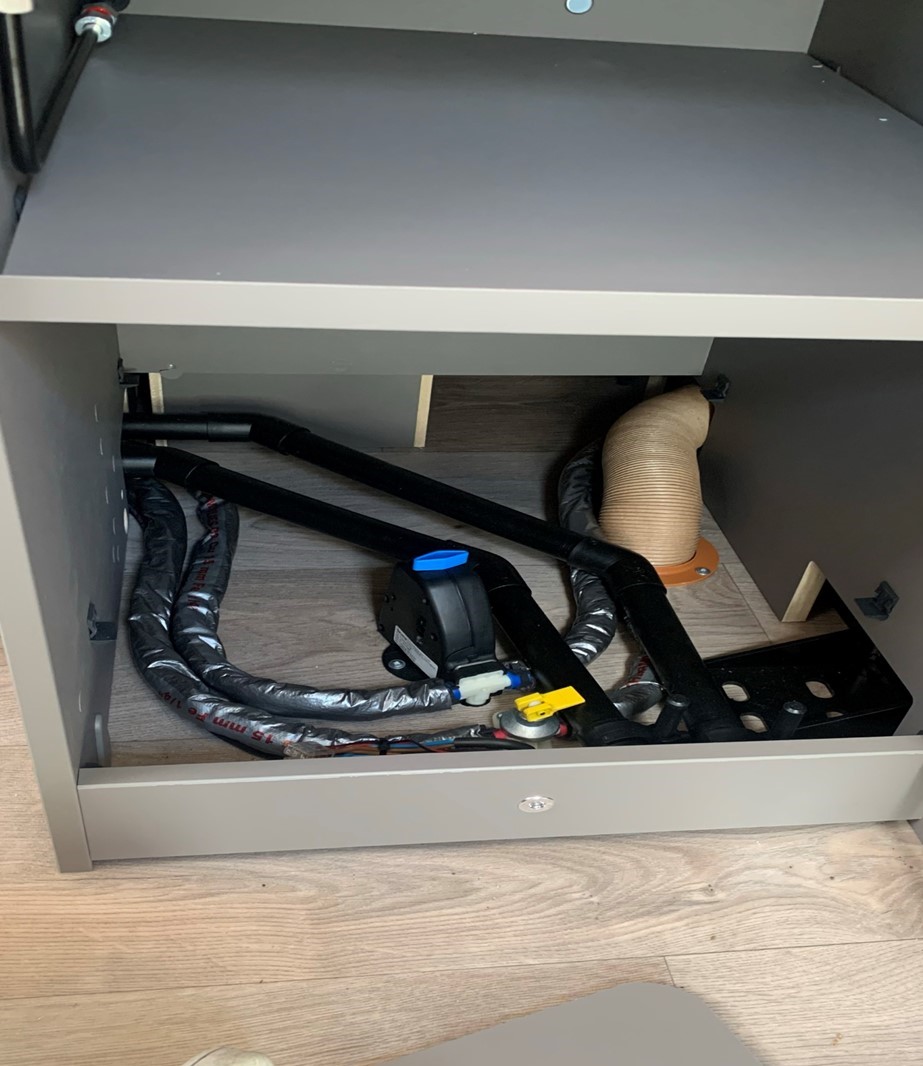

  • Check the cold protection valve to make sure it has not been activated accidentally. The cold protection valve is located under the floor board of the kitchen cupboard opposite the entrance door:


The cold protection (or anti freeze) valve automatically drains the boiler when there is a risk of frost. This prevents the drain from freezing.

The system measures the temperature inside the van. As soon as it is around 3 degrees or lower the system is activated and lets all the water that was in the boiler and the fresh water tank out. To deactivate the system, the room temperature has to be a least 7 degrees, otherwise the blue button will jump out again.

To ensure that the water supply continues to function and the valve is switched on, the blue lever must be turned clockwise and then the blue button must be pressed in.

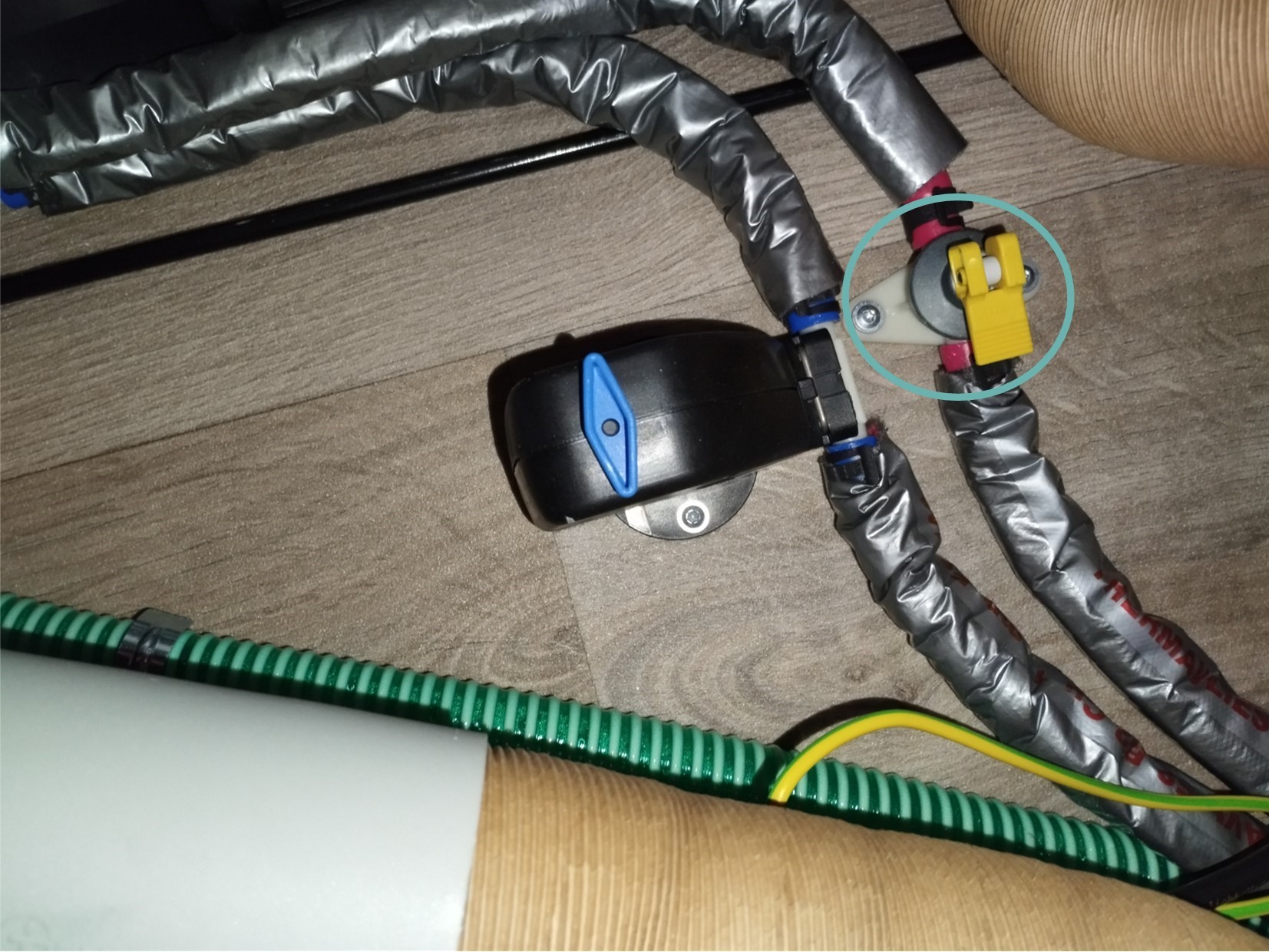

• At this point, also check whether the boiler valve has been opened by mistake. It must be turned downwards:


Watch the video:
