🔄How to reset the BMPro control panel - Liberty Lodge (Thor Tellaro 20A)

Your main panel (BMPro) shows that it is not connected?
This can happen when it is losing the Bluetooth connection and disconnects from the controls of the vehicle.

To reconnect the panel, you need to reset it. This is how:

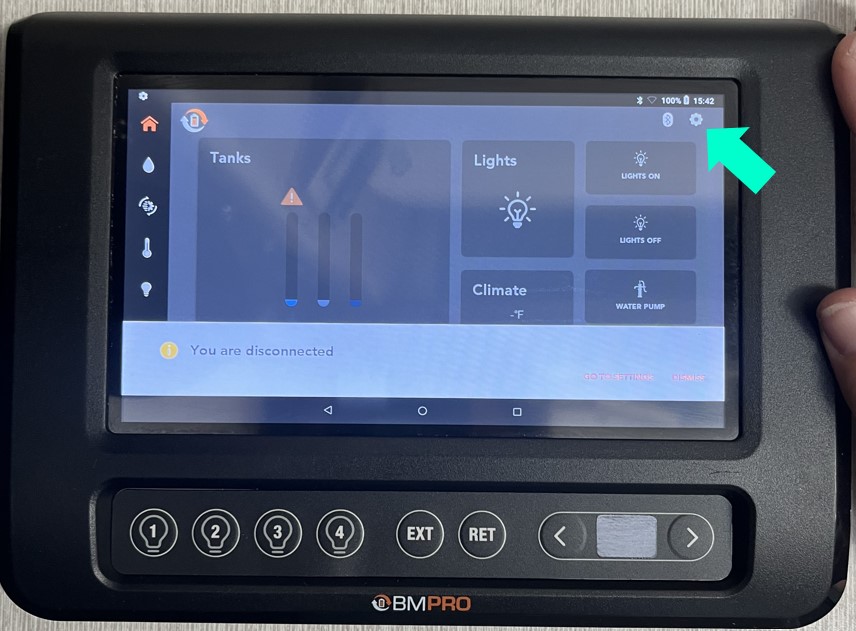

  1. Go into the settings by clicking the cog (3) in the far upper right corner at the main screen of your panel:
    BMPro panel settings arrow.jpg

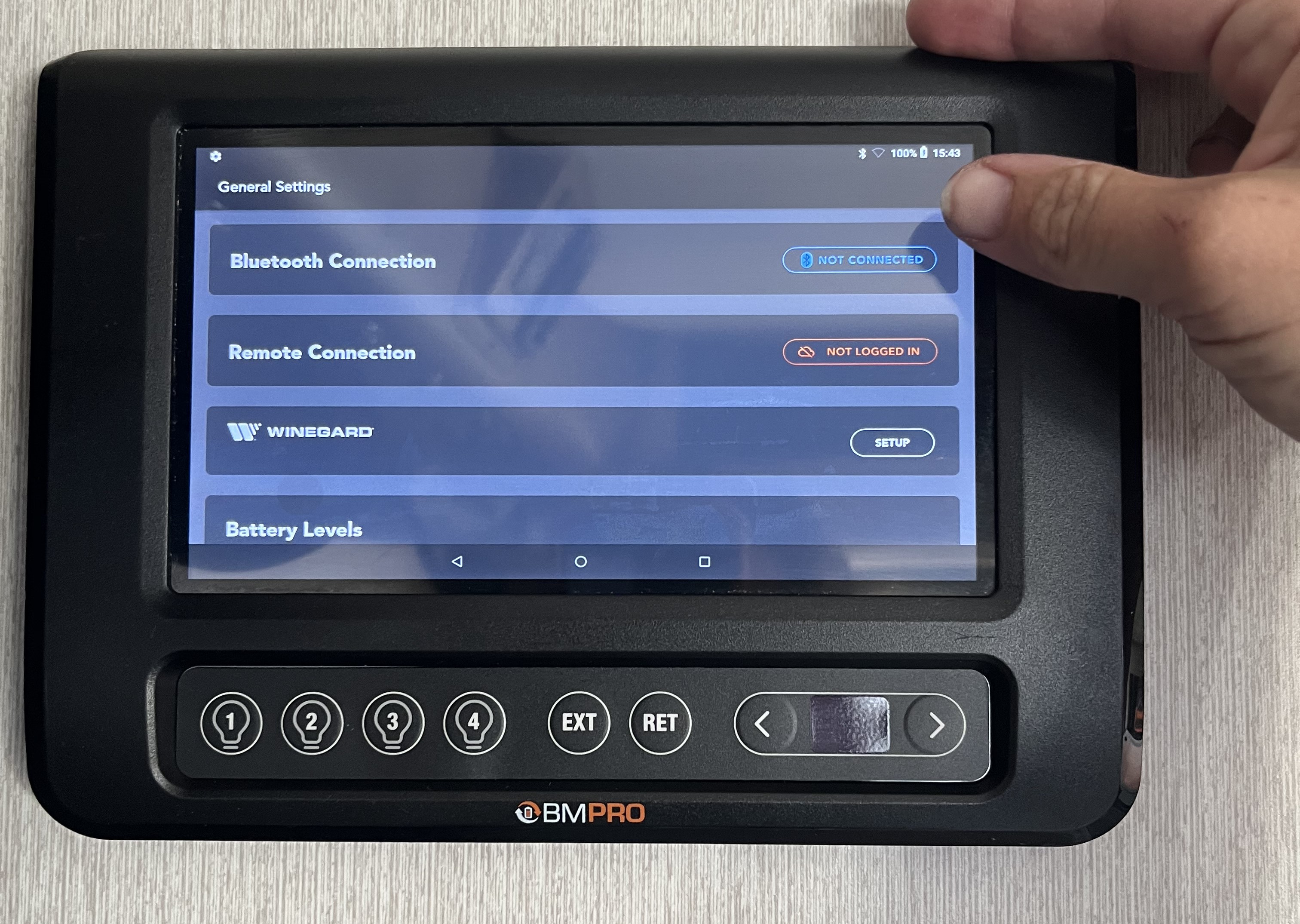

  2. Select the Bluetooth connection to get the Bluetooth pairing screen:
    BMpro panel bluetooth.jpg

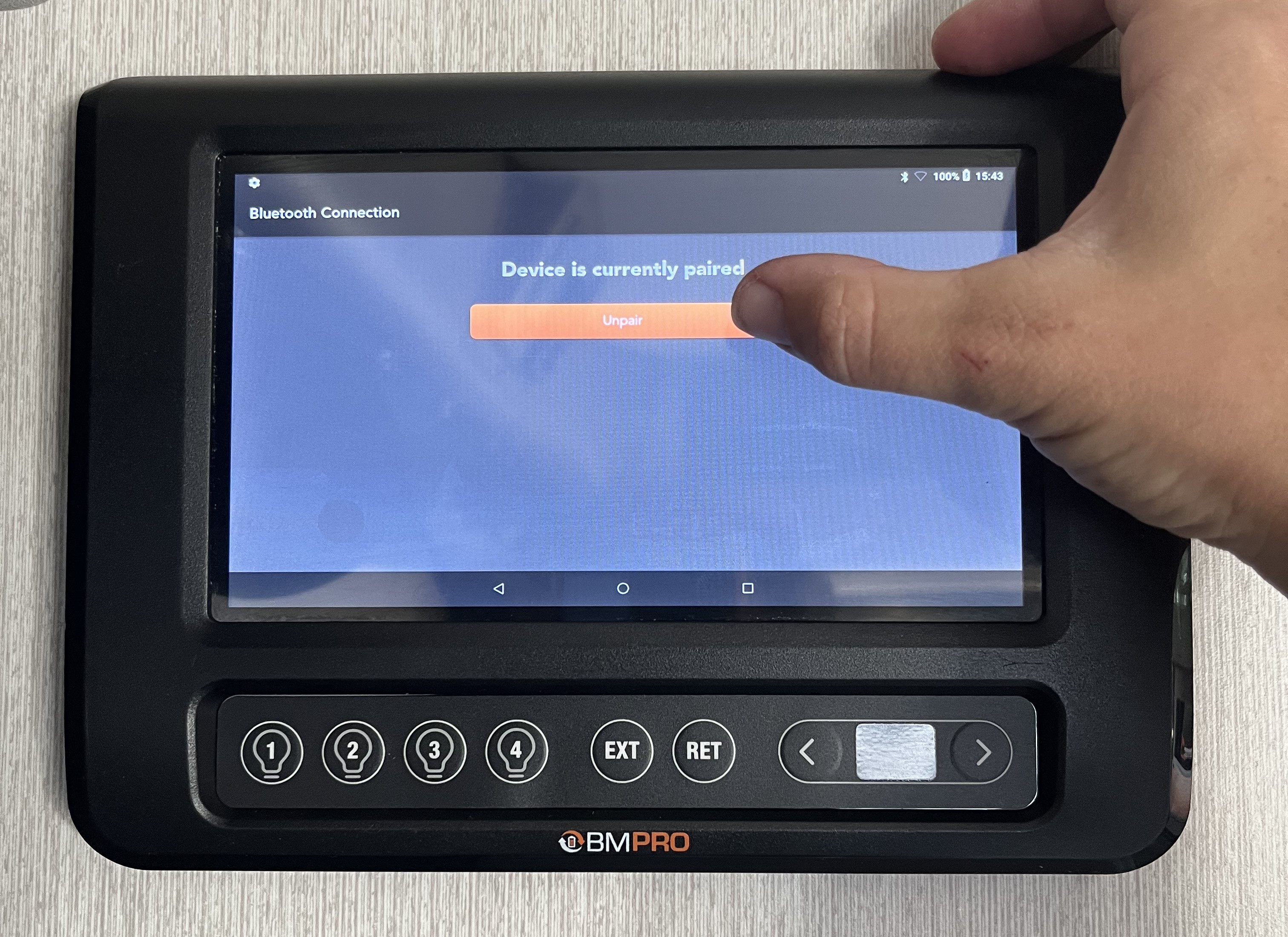

  3. Unpair the panel:
    BMPro Panel unpair.jpg
  4. Repair the Bluetooth to get the controls working again: Follow the instructions on the screen to pair the device.

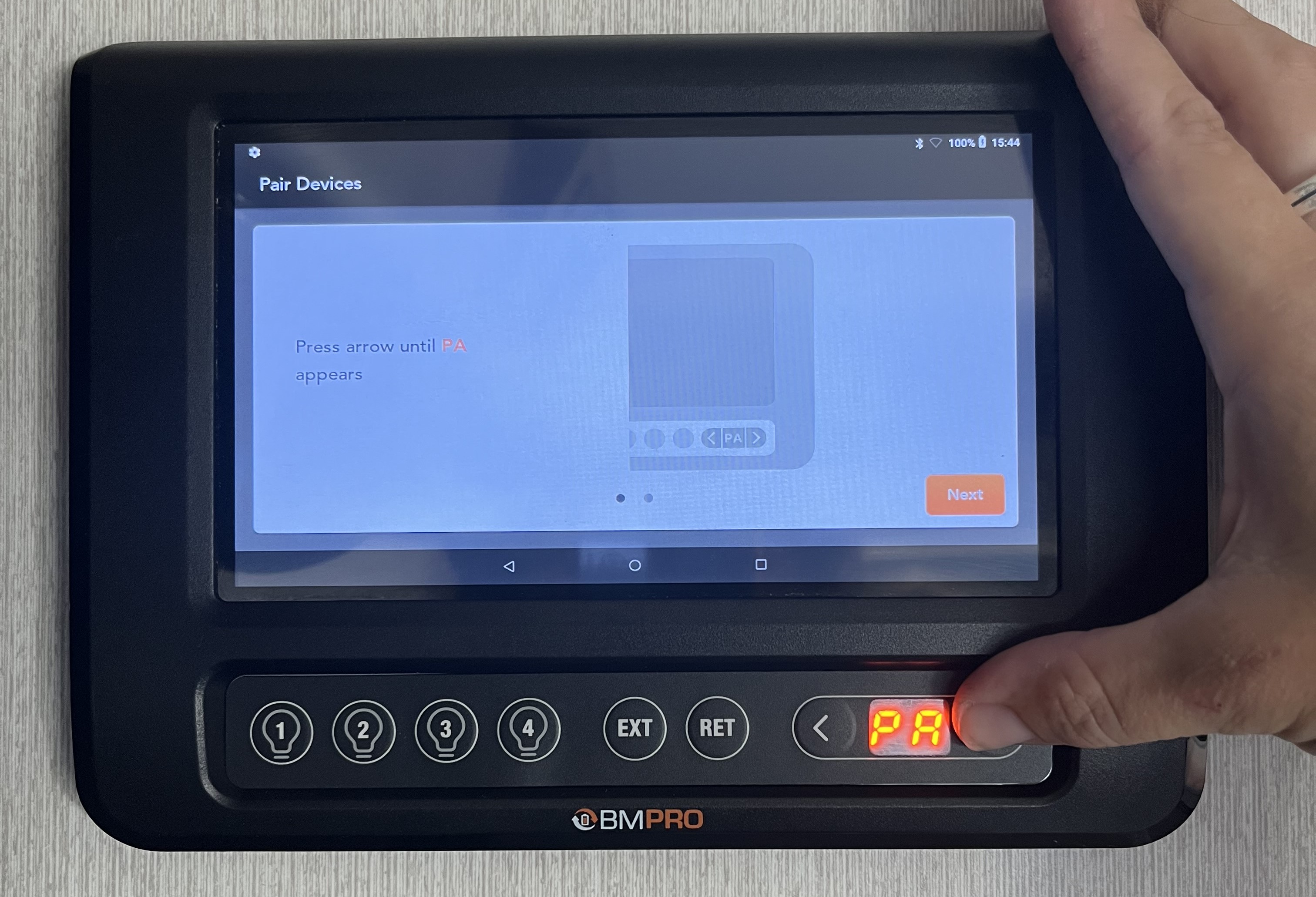

    Hit the right arrow until you see PA appear:
    BMPro Panel PA.jpg

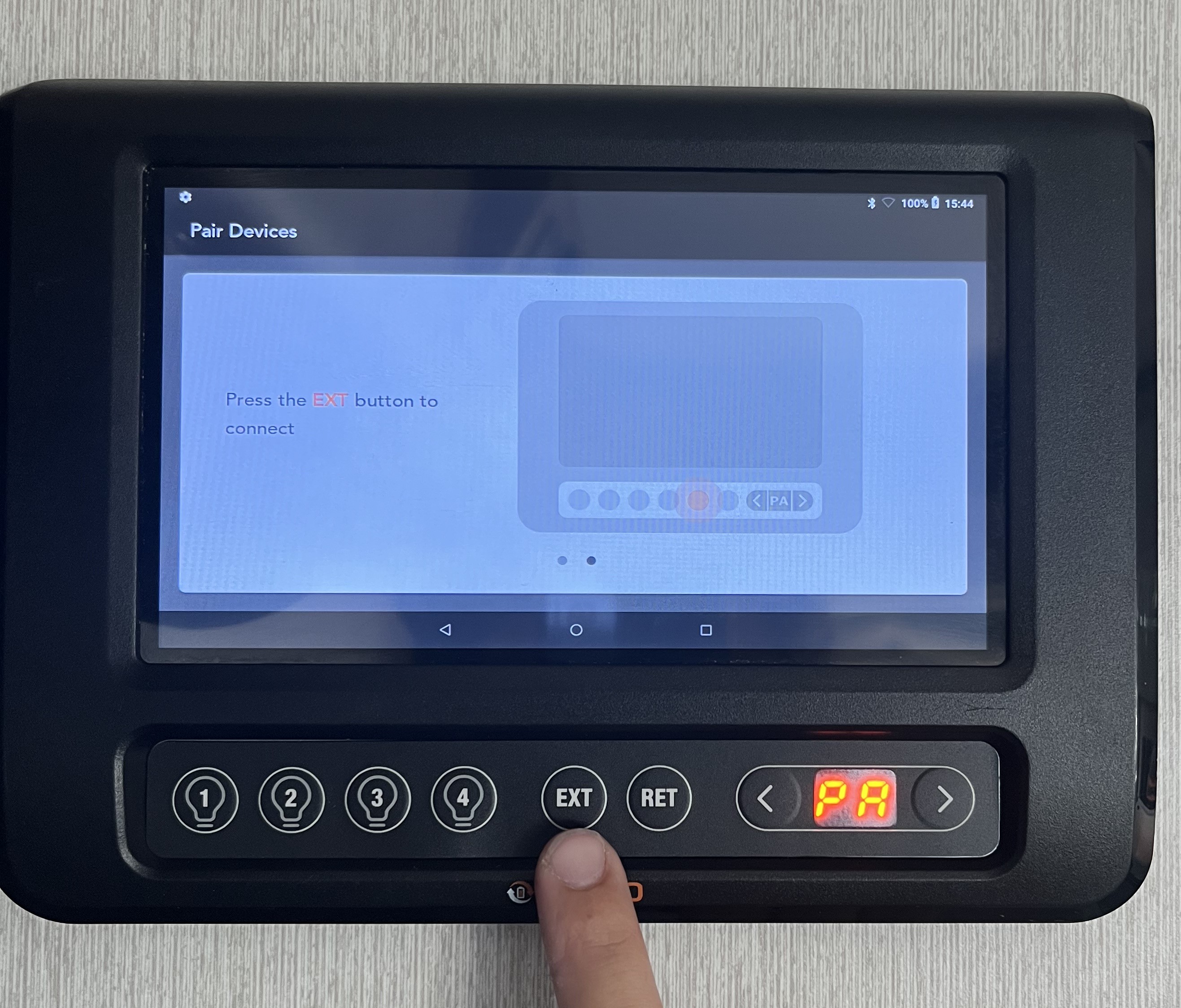

  5. Hit “Next” on the screen and then press the EXT button to connect:
    BMPro Panle EXT.jpg

It might take up to 1 minute for the system to reconnect. Your control panel should now be working again.
