💺 Turning front seats - Liberty Lodge (Thor Tellaro 20A)

To turn the front seats, do the following:

  1. Move the seat all the way forward, adjust the backrest to a vertical position and fold the armrest(s) upwards.
    Important: Open the corresponding side door!

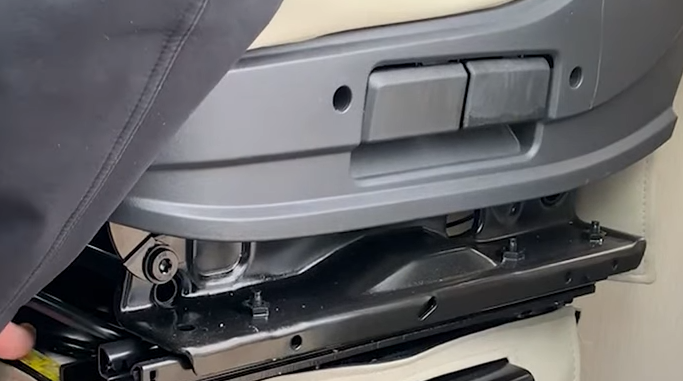

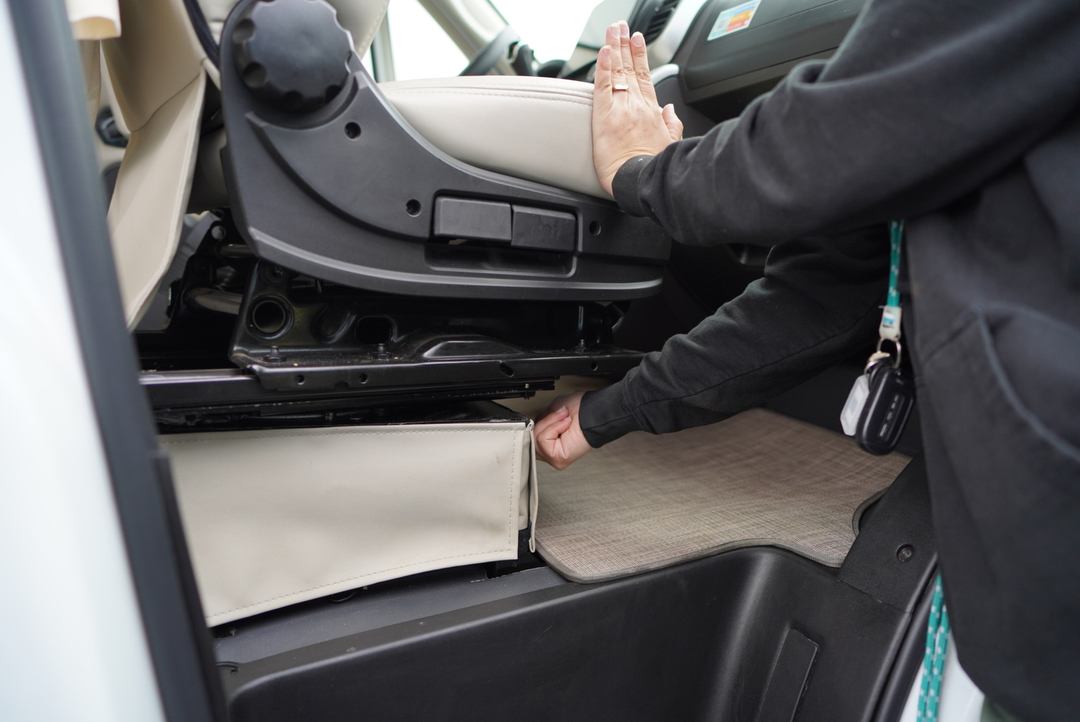

  2. With the door open, operate the lever at the bottom of the driver's seat and turn the seat inwards. On the passenger seat, the lever is on the left.
  3. Be sure to release the handbrake when turning the driver's seat, if this impedes the movement of the seat.

Please note the following:

  • Only turn the seat from the outside!
  • When turning the seat back, also ensure that the seat does not jam against the side panel of the vehicle as this could cause damage.


To adjust the height and tilt of the seats, use the two pull levers on the left side of your seat:

To move the seat forward or backwards, use the pull lever on the front of the seat - more towards the right side.

Watch this video for a more detailed explanation:
