To change the gas bottle (2.75 kg) in the Camper Cabin (Ford Nugget), several steps must be followed to ensure safe handling. First of all, check which version are you driving and then, follow the steps on the corresponding drop-down:

Drawer fridge

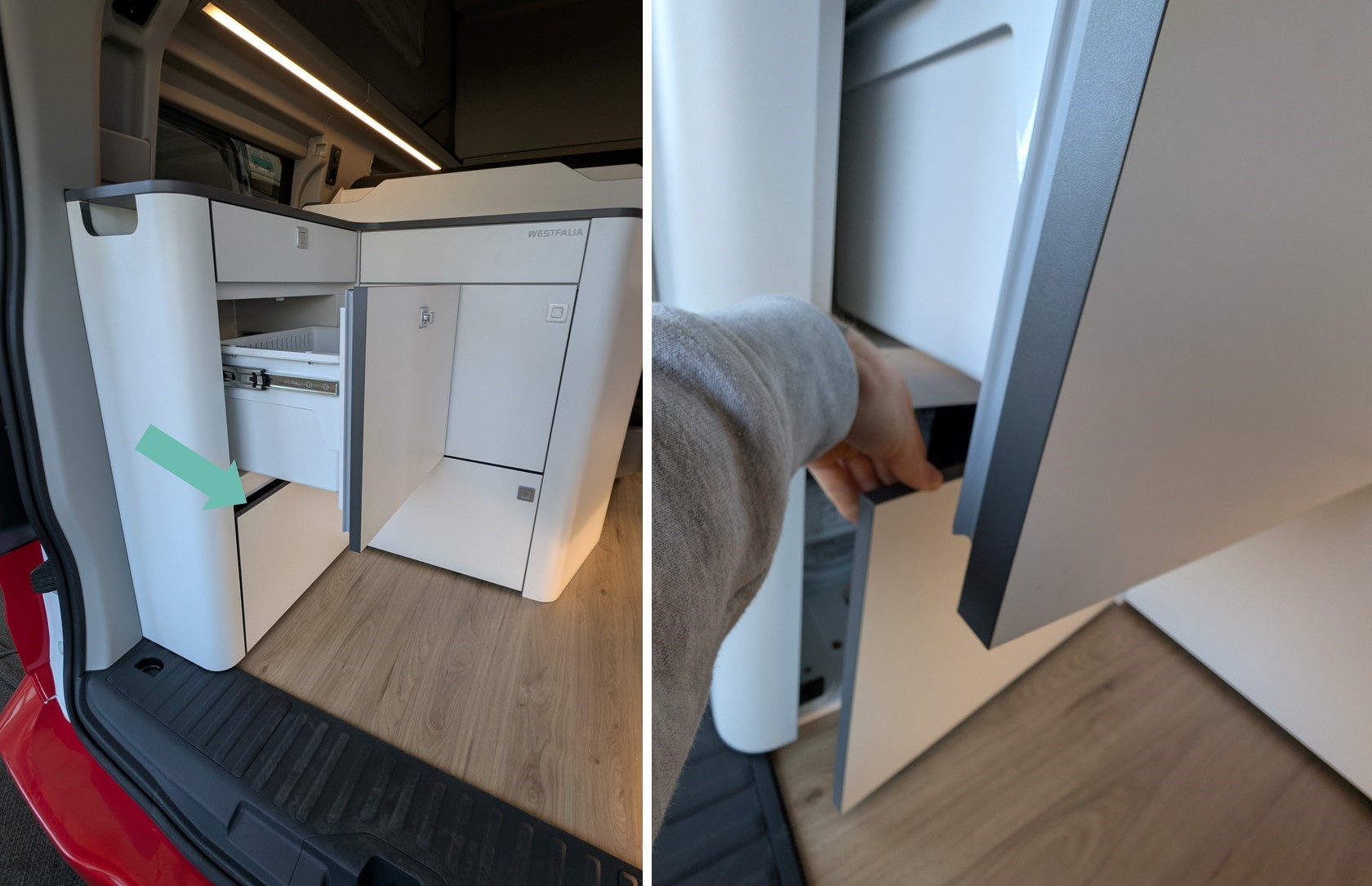

The gas bottle is located in the compartment under the fridge. To access it, open the refrigerator enough so that you can reach into the door below to open it:

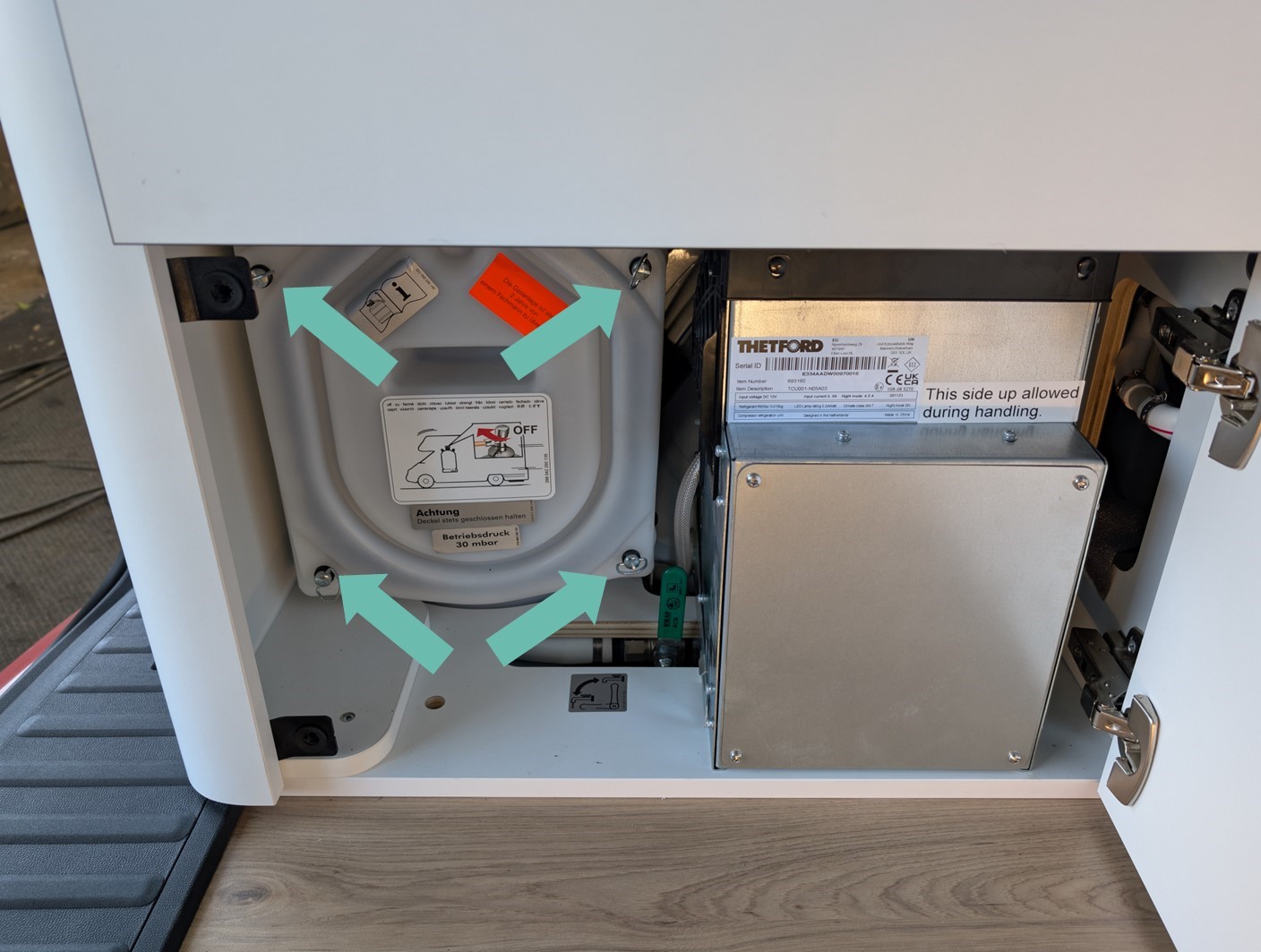

Unscrew all four screws and remove the plastic cover:

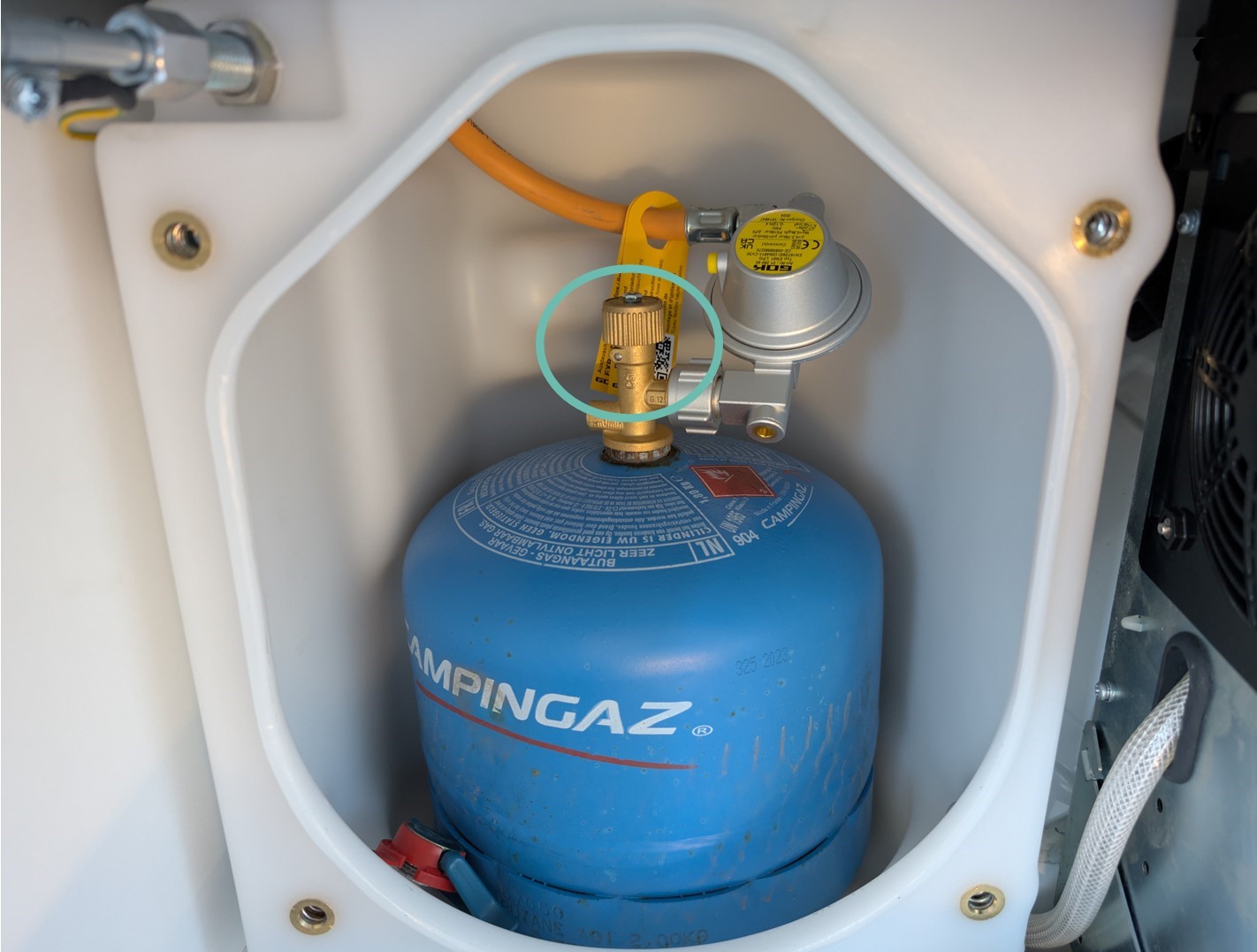

To close turn the golden valve to the "-" symbol:
Loosen the straps around the gas bottle.
Detach the grey metal connector from the gas bottle.
Extract the bottle from the compartment
Remove the brass colored adapter and screw it on to the new bottle
Place the new bottle in the compartment and attach it to the tube using the connector. Make sure it sits correctly and tightly

Fridge door on the top with Camper Display at the rear

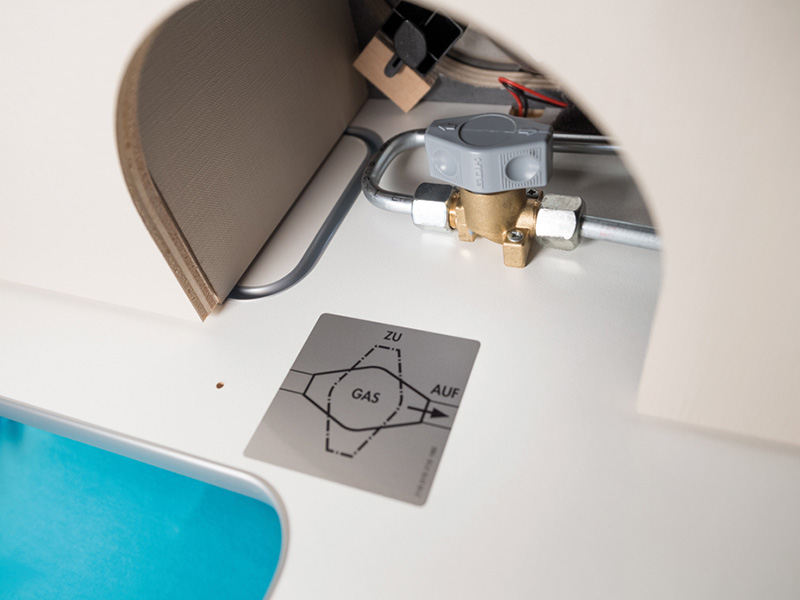

1. Close the safety lever in the kitchen block:
2. Lift up and remove the cushion or board of the sleeping bench.

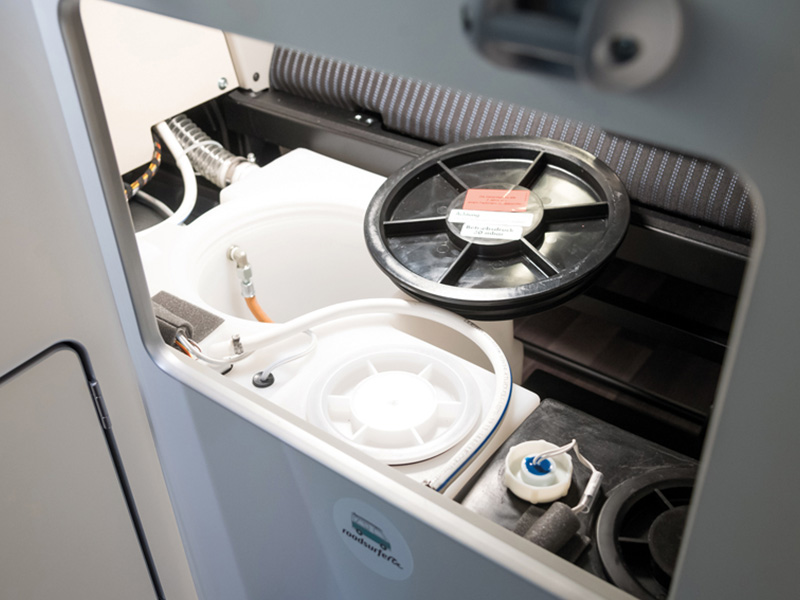

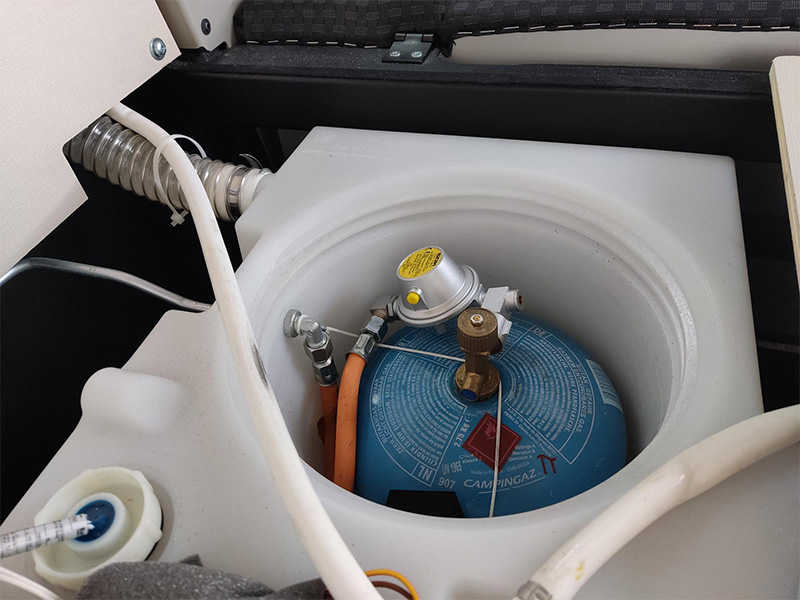

3. Open the black screw cap. The gas bottle compartment is now accessible:
4. Turn the gas valve all the way to "-" to close the gas bottle:
5. Loosen the straps around the gas bottle.
6. Detach the grey metal connector from the gas bottle.
7. Extract the bottle from the compartment
8. Remove the brass colored adapter and screw it on to the new bottle
9. Place the new bottle in the compartment and attach it to the tube using the connector. Make sure it sits correctly and tightly

Fridge door on the top with Camper Display at the front

1. Close the safety lever in the kitchen block:
2. Lift up and remove the cushion or board of the sleeping bench.
3. Open the black screw cap. The gas bottle compartment is now accessible:
4. Turn the gas valve all the way to "-" to close the gas bottle:
5. Loosen the straps around the gas bottle.
6. Detach the grey metal connector from the gas bottle.
7. Extract the bottle from the compartment
8. Remove the brass colored adapter and screw it on to the new bottle
9. Place the new bottle in the compartment and attach it to the tube using the connector. Make sure it sits correctly and tightly

Here you can find more information on the topic: What to do when the gas bottle is empty?
