The roof of the Road House opens manually:
Opening the roof
- Release the tensioning straps on the left and right of the front part of the roof on the inside, thus unlocking the roof.
- Then turn the butterfly-shaped metal handle to release the hooks from the black part.

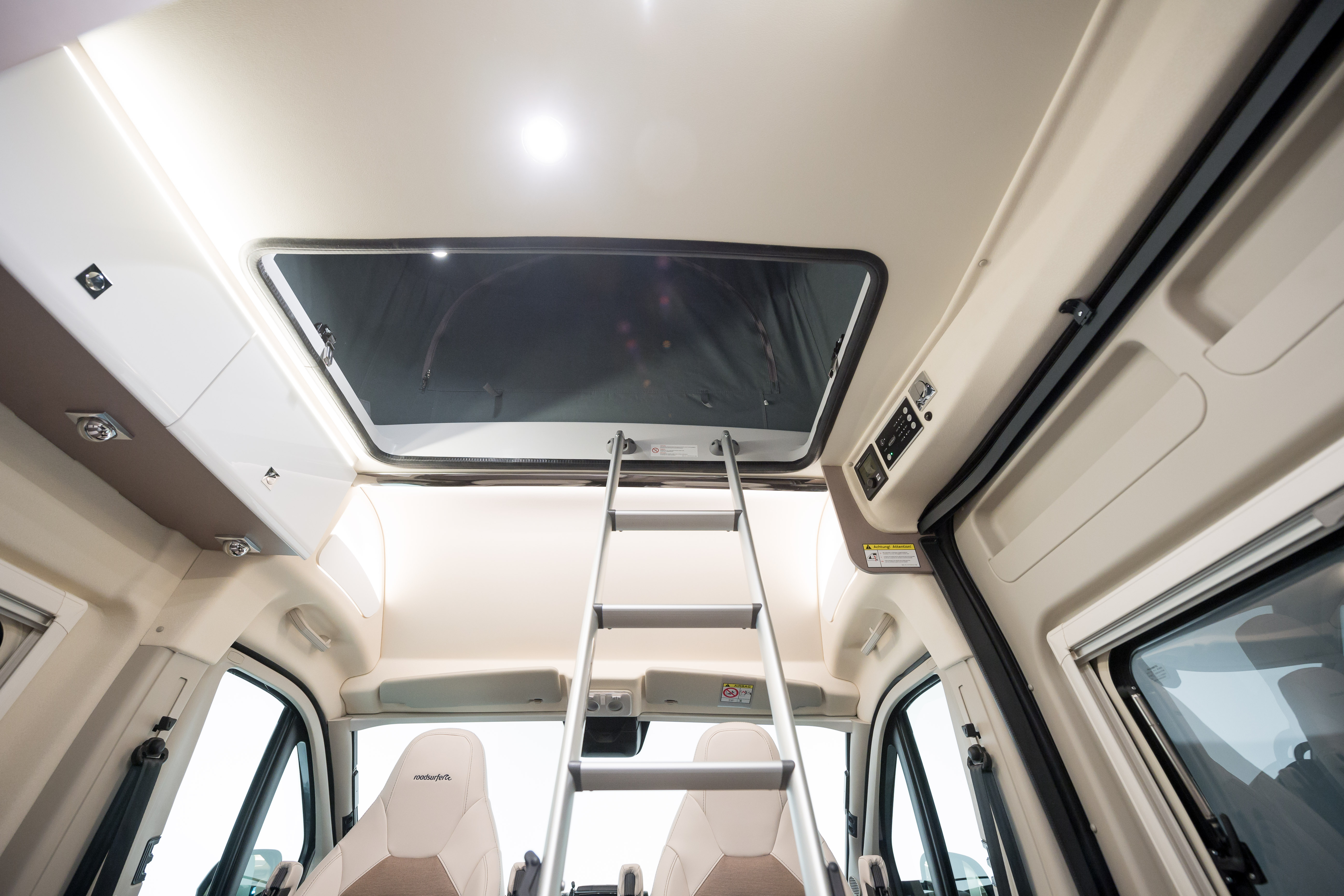

- Reach for the ladder. It should be stowed on the mattress in two separate parts. Attach the ladder and hook it onto the hooks provided.
- Push the roof up and let it open all by itself.

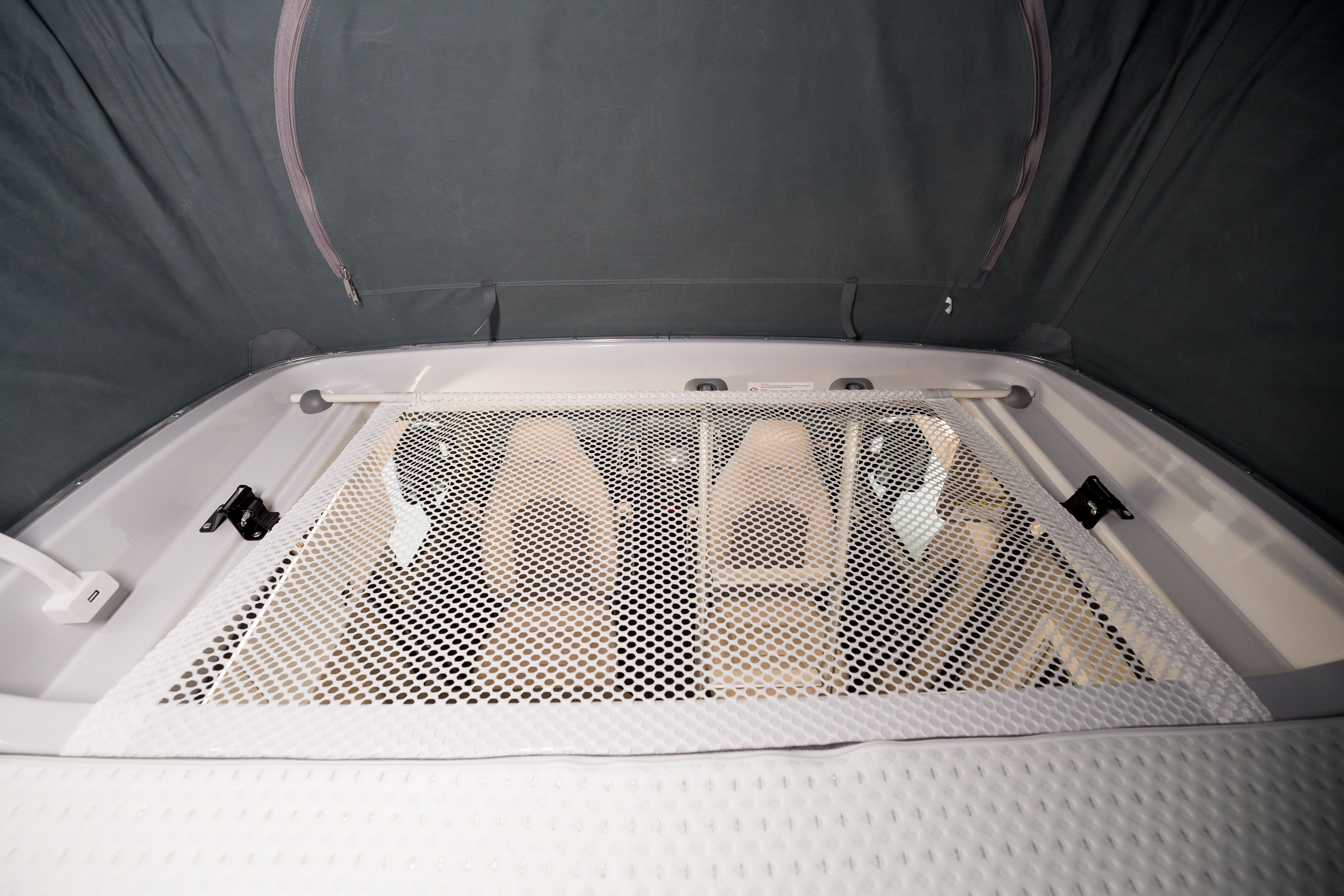

There is a safety net under the top mattress that can be stretched over the opening if necessary to prevent objects and small children from falling down.
Closing the roof
- To close the roof, make sure that all windows in the roof are closed and that nothing is lying on the mattress.
- Climb up the ladder and pull down on the roof handles to close the roof.
- Make sure that the tent fabric does not stick out or get pinched.
- Stow the ladder again on top of the mattress
- First attach the metal hook to secure the roof and then close the fasteners.
Please note the following:
- Never drive with an open roof!
- When retracting and extending the high roof, always open the window or door to equalise the pressure!
- When retracting the roof, always check that nothing is lying on the mattress, the zips on the roof windows are closed and the fabric bellows are not caught in the flaps or sticking out of the side of the vehicle.
Click here to go directly to the explanatory video:
