Find out how to convert the rear bench seat of your Camper Cabin into a bed. There is a slight difference between models, so check which one you are driving and then, select the correct instructions from the drop down menus:
Drawer fridge
- Move both, driver and passenger seat all the way to the front.
- Move the lever on the right hand side of the seat and pull the back seat all the way to the front.
- Move the lever in the center and lift the seat.
- Pull the lifted seat upwards and towards you to let the backrest of the seat down.

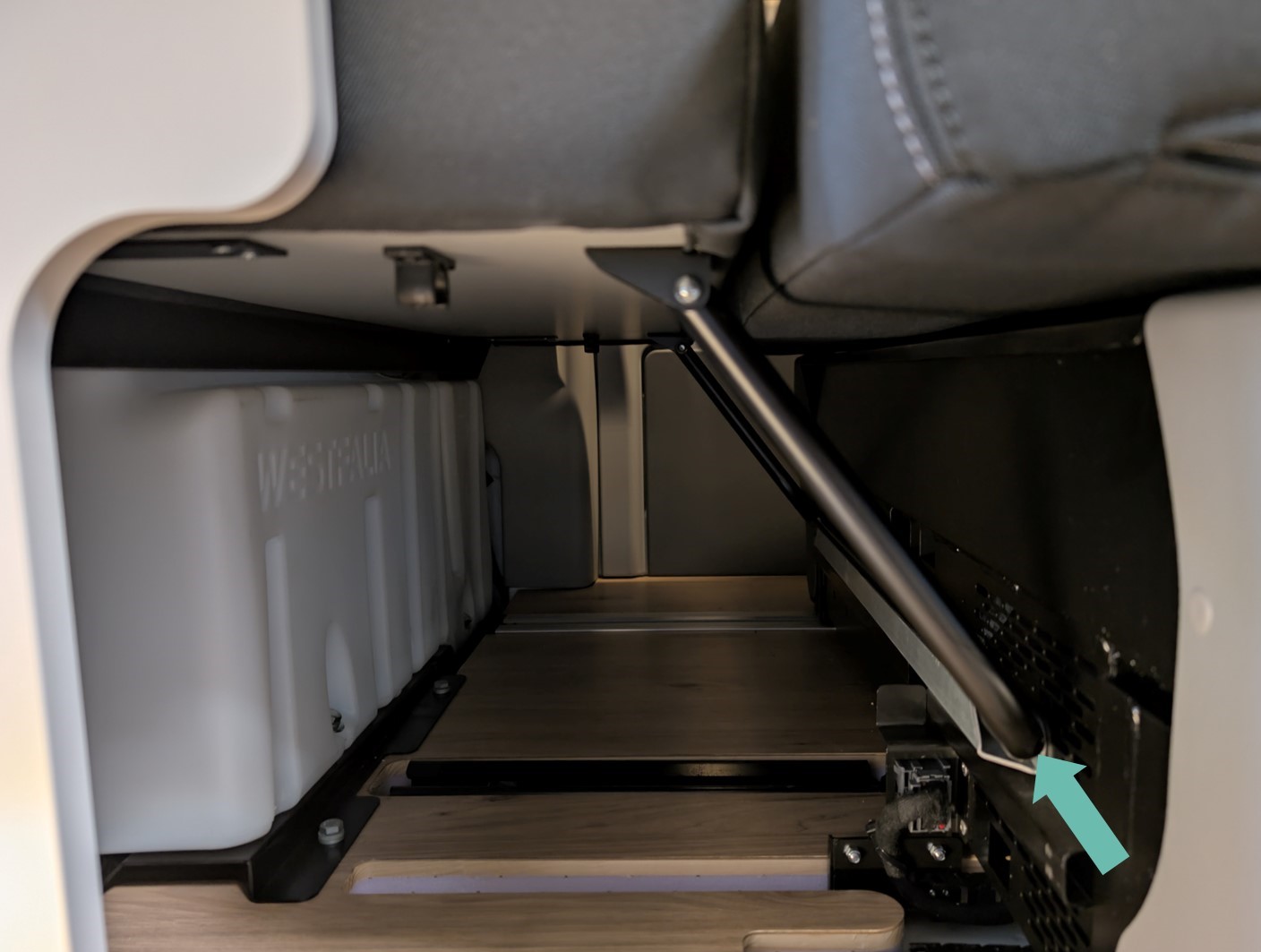

- Fold up the upholstery under the kitchen unit and let the bar snap into the rail on the back seat.
- Place it in the rail attached to the back seat
Fridge door on the top with Camper Display at the rear
Folding the rear bench seat
- Push the driver and passenger seats forward (turn them if necessary).

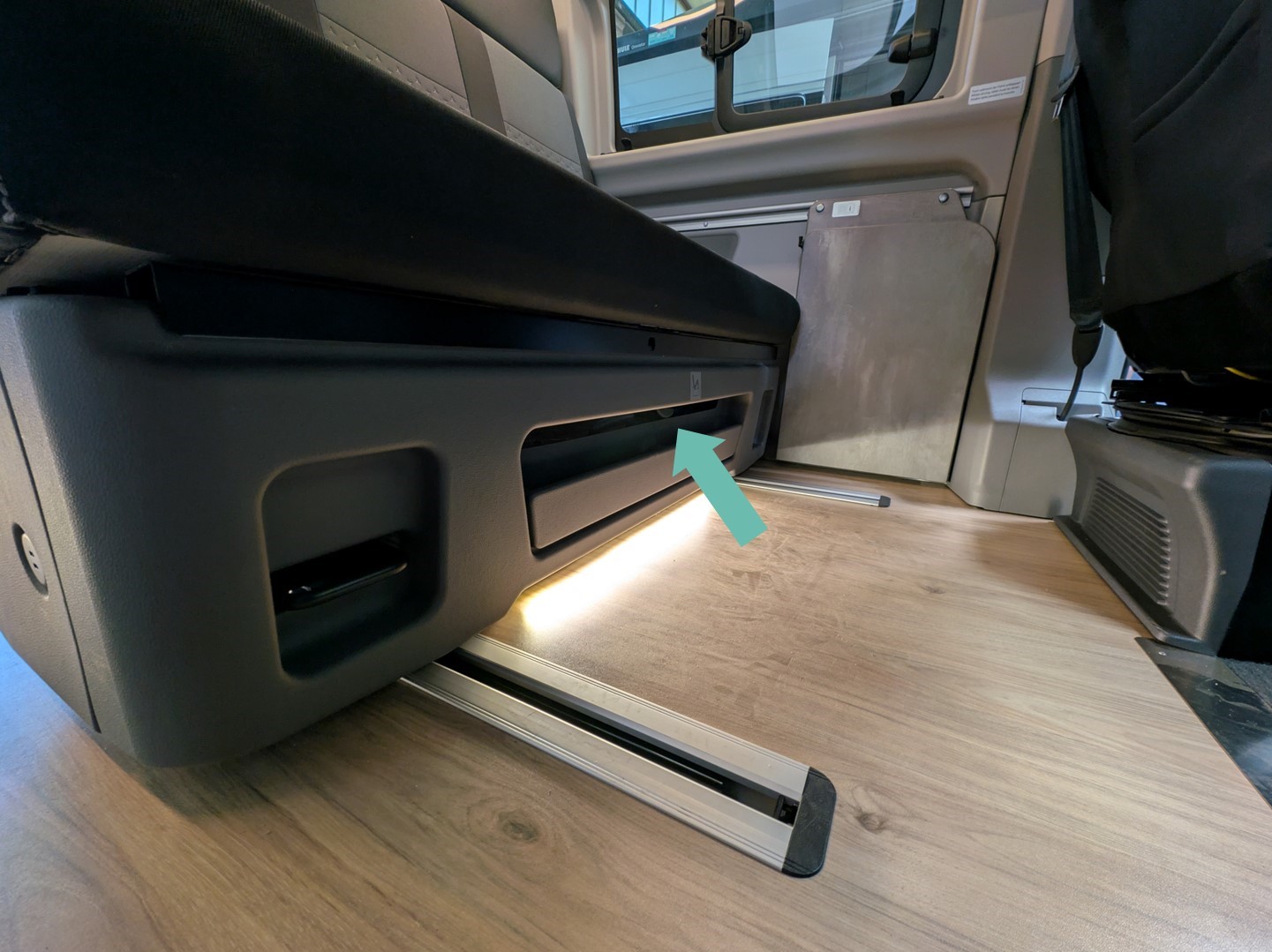

- Sit on the back seat and push the lever at the bottom left of the bench to the left to slide it all the way forward.
Attention: Loosen the belts! - Fold up the upholstery under the kitchen unit and let the bar snap into the rail on the back seat.

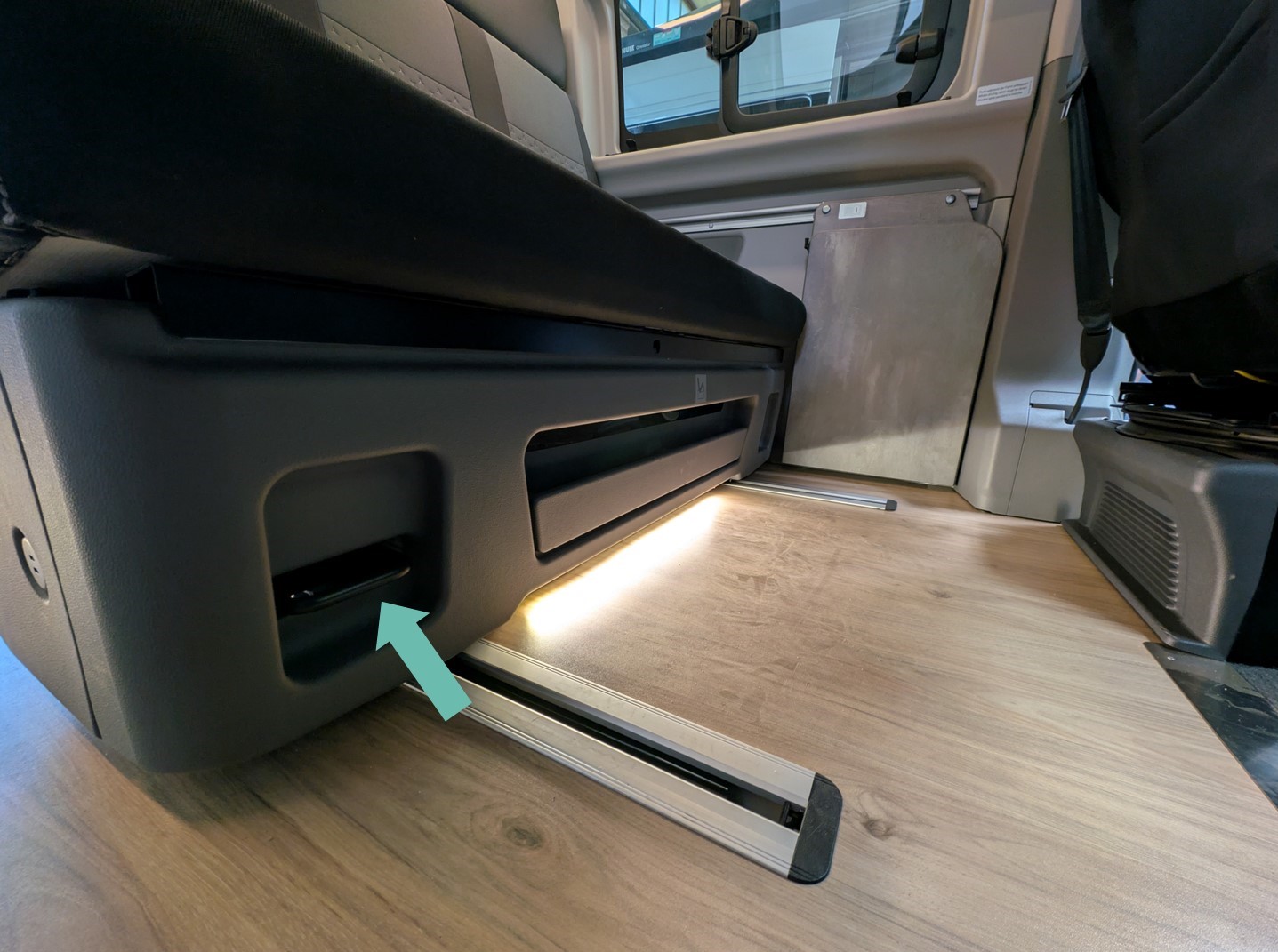

- Push the right lever at the front of the rear bench to the left and lift the seat cushion to the front edge.
- Pull the seat cushion and backrest forwards (the surfaces are almost vertical).
- Then lower both surfaces flat at the same time to create a reclining surface.
Click here to go directly to the explanatory video:
Fridge door on the top with Camper Display at the front
Folding the rear bench seat
- Push the driver and passenger seats forward (turn them if necessary).
- Sit on the back seat and push the lever at the bottom left of the bench to the left to slide it all the way forward.
Attention: Loosen the belts! - Fold up the upholstery under the kitchen unit and let the bar snap into the rail on the back seat.
- Push the right lever at the front of the rear bench to the left and lift the seat cushion to the front edge.
- Pull the seat cushion and backrest forwards (the surfaces are almost vertical).
- Then lower both surfaces flat at the same time to create a reclining surface.
Click here to go directly to the explanatory video:
