The roof of the Camper Cabin can be opened manually. There are slight differences between the individual models. So check which model you are driving and then select the correct instructions from the dropdown menus:
Drawer fridge
Open the roof
- Open the windows or a door to reduce the pressure

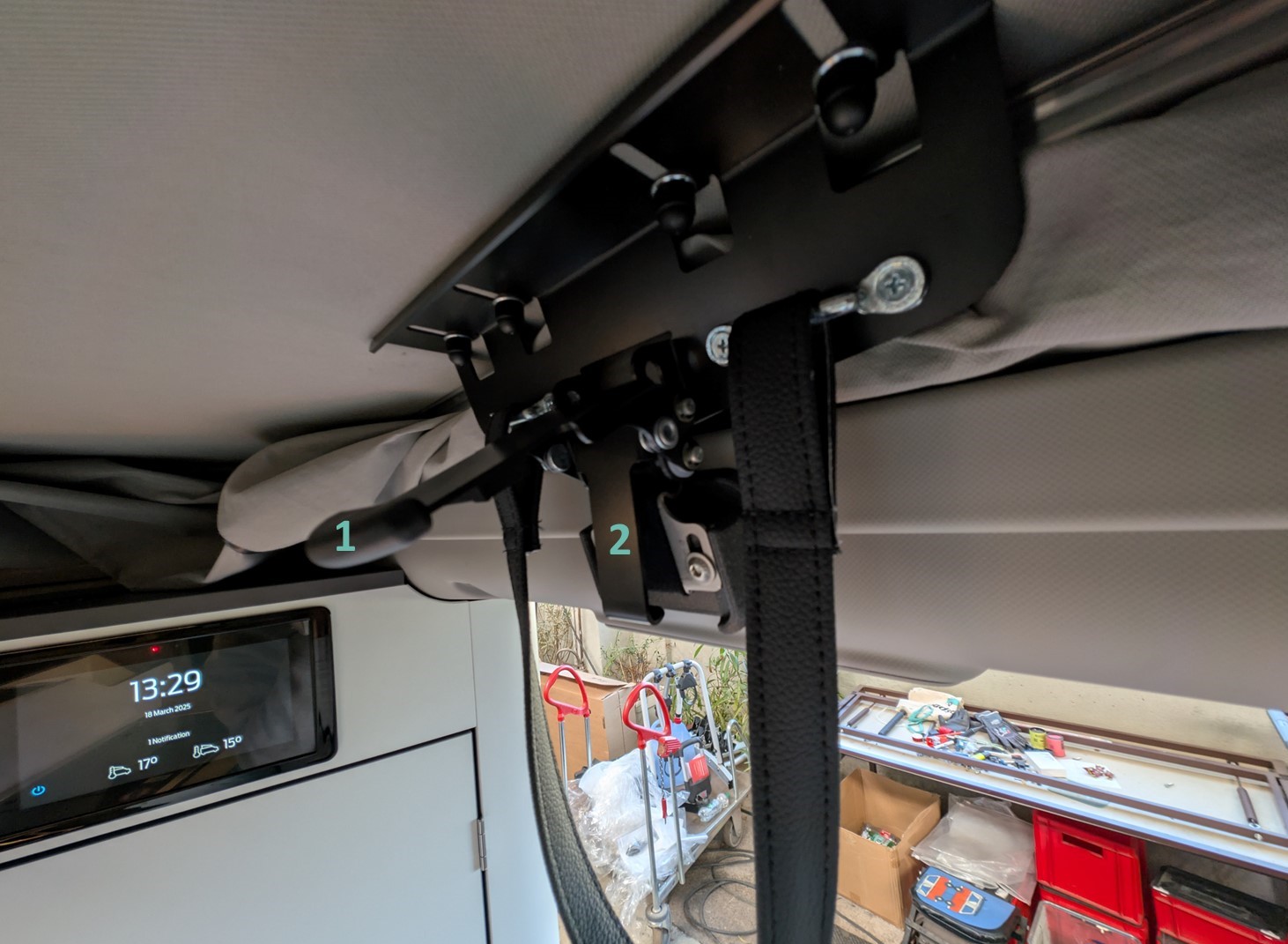

- Open the roof lock by swinging the handle (1) upwards and unlocking the hook (2).
- Push the roof upwards until it is fully open.
- A ladder stored in the rear wardrobe makes it easier to climb up.
Close the roof
- Open the windows or a door to reduce the pressure
- Pull the bed down and make sure nothing is left on it.

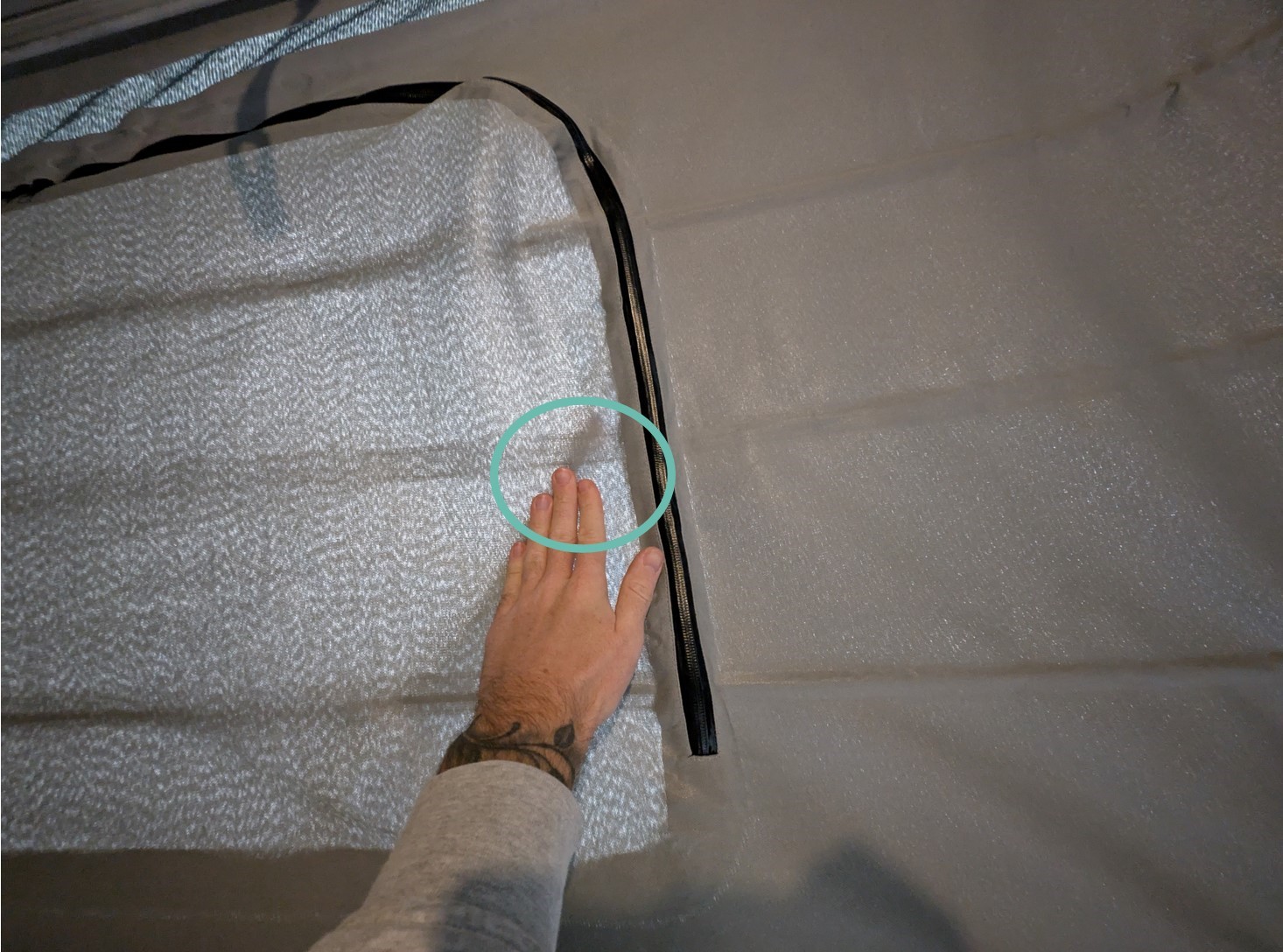

- Unlock the right gas spring. To do this, press the tent on the passenger side in the marked area in the picture:
- At the same time, pull the pop-up roof down with the strap. Be careful, because at some point the roof will no longer be held by the gas springs and can fall on your head!
- Close it to about 20 cm and then pull the tent inside.

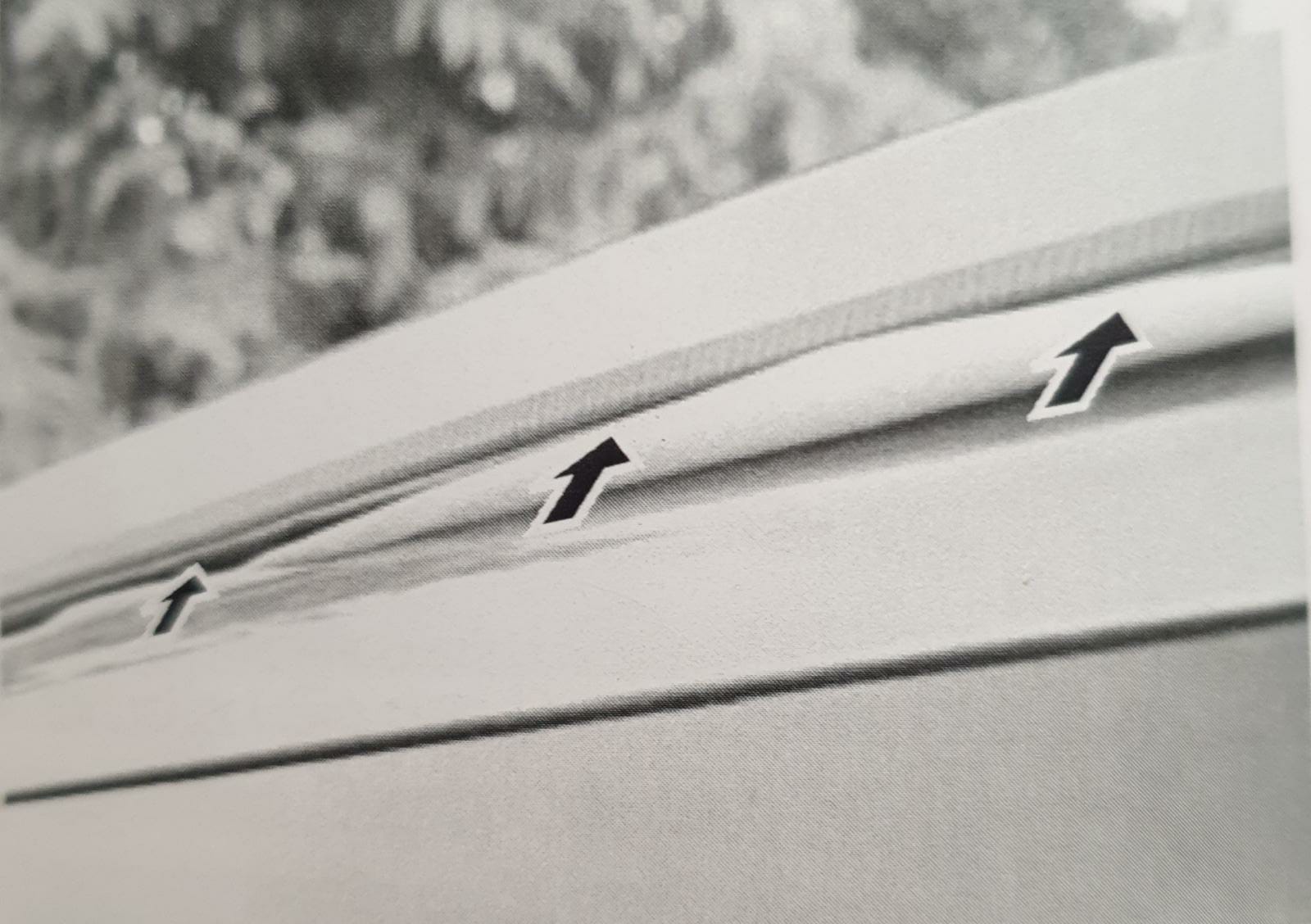

- Check from the outside whether the tent is trapped between the roof and the vehicle. If so, lift the roof slightly and push the protruding tent inside.
- Roll up the fabric, close the roof lock: Hook in the hook (2) and swing the handle all the way down to lock it.
You can find the video explanation here:
Fridge door on top with Camper Display in the rear
Open the roof
- Open the windows or a door to reduce the pressure.

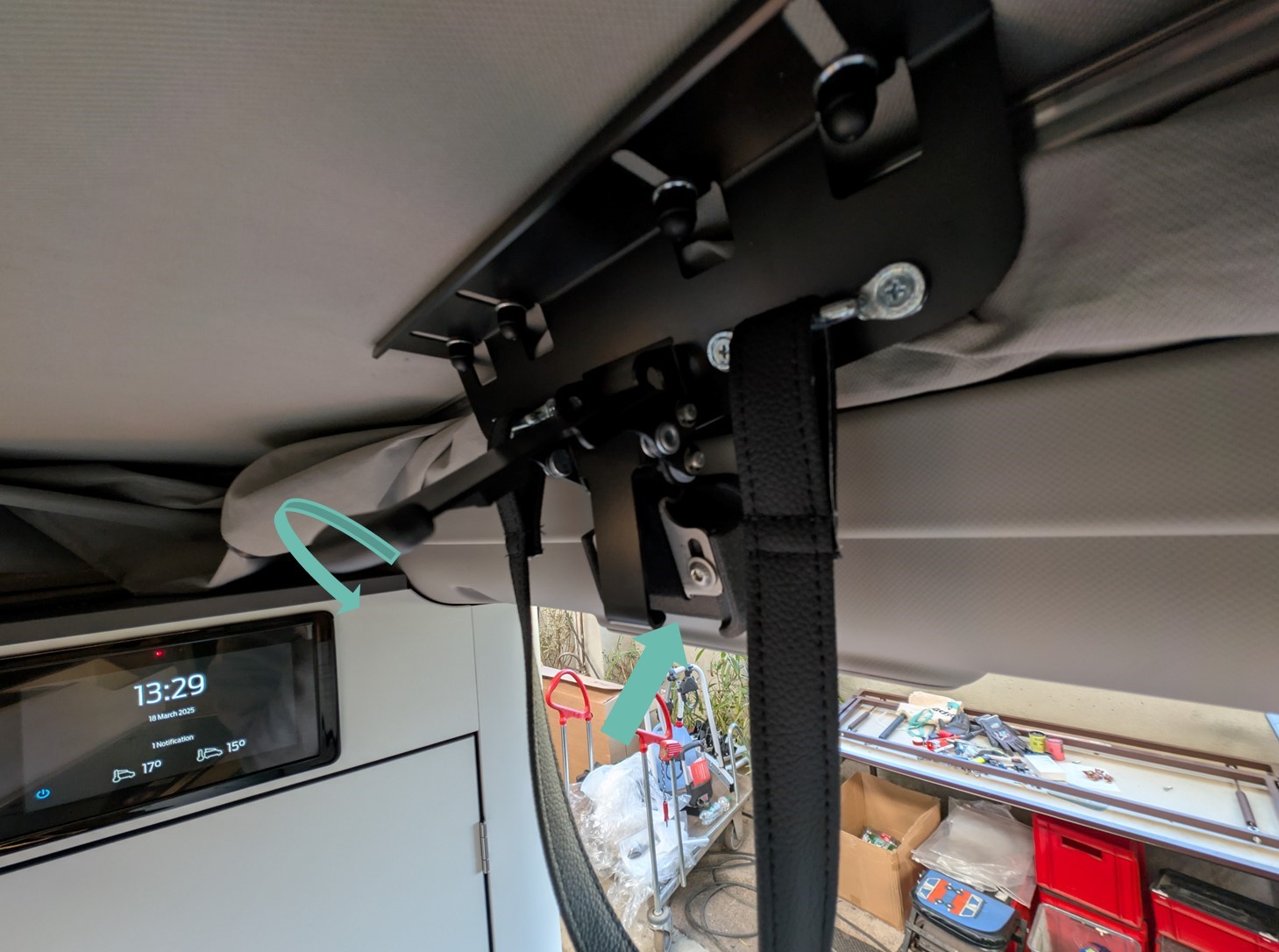

- Release the locks of the roof inside by swinging the handle in the middle upwards and unlocking the hook underneath.
- Push the roof up evenly.
- Pull the bed slightly towards you to make it completely flat.
- A ladder in the rear wardrobe makes it easier to climb up.
Close the roof
- To close the roof, make sure that all windows in the roof are closed and nothing is left on the mattress.
- Release the roof bed from the mounts, place it straight on the rails and pull it firmly so that it lies completely flat.

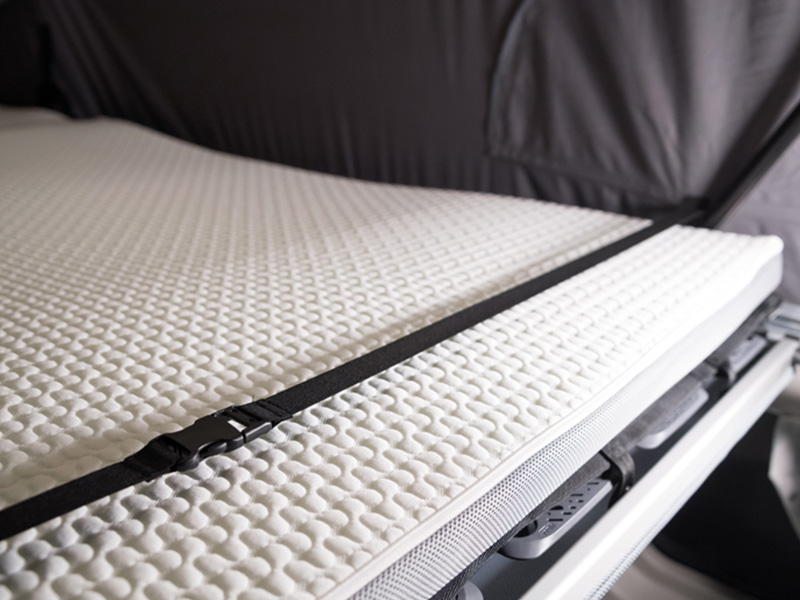

- Secure the mattress with the straps provided for this purpose:
- Then press against the red mark on the right gas spring to be able to pull the roof down.
- At the same time, pull the pop-up roof down with the strap. Be careful, because at some point the roof will no longer be held by the gas springs and can fall on your head!
- Close it to about 20 cm and then pull the tent inside.
- Make sure that the tent fabric is not sticking out or getting trapped.

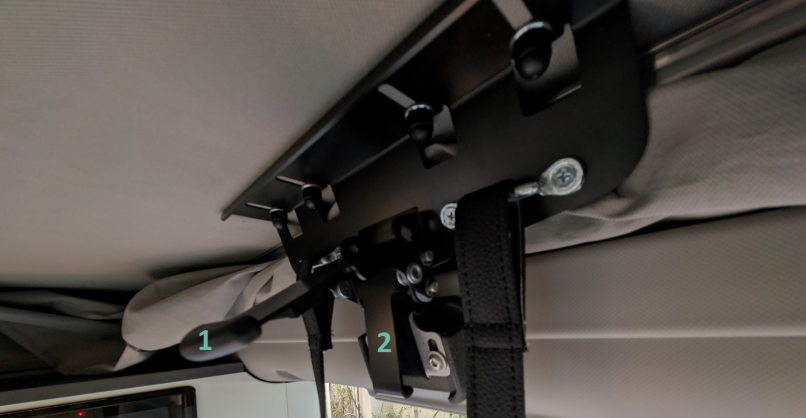

- Roll up the fabric, close the roof lock: Hook in the hook (2) and swing the handle (1) all the way down to lock it.
Click here to go directly to the explanation video:
Fridge door on top with Camper Display in the front
Open the roof
- Open the windows or a door to reduce the pressure.
- Release the locks of the roof inside by swinging the handle in the middle upwards and unlocking the hook underneath.
- Push the roof up evenly.
- Pull the bed slightly towards you to make it completely flat.
- A ladder in the rear wardrobe makes it easier to climb up.
Close the roof
- To close the roof, make sure that all windows in the roof are closed and nothing is left on the mattress.
- Release the roof bed from the mounts, place it straight on the rails and pull it firmly so that it lies completely flat.
- Secure the mattress with the straps provided for this purpose:
- Then press against the red mark on the right gas spring to be able to pull the roof down.
- At the same time, pull the pop-up roof down with the strap. Be careful, because at some point the roof will no longer be held by the gas springs and can fall on your head!
- Close it to about 20 cm and then pull the tent inside.
- Make sure that the tent fabric is not sticking out or getting trapped.
- Roll up the fabric, close the roof lock: Hook in the hook (2) and swing the handle (1) all the way down to lock it.
Click here to go directly to the explanation video:
Please note the following:
- Never drive with the roof open!
- When raising and lowering the pop-up roof, always open a window or door to equalize the pressure!
- When lowering the roof, always check that nothing is left on the mattress, the roof bed is down, the zippers of the roof windows are closed, and the bellows fabric is not trapped in the tabs or sticking out of the vehicle.
- Make sure the tent is dry before closing it to prevent mold from forming.
