The awning is located on the passenger side above the sliding door.
Awning crank
The awning crank handle is stored in the awning itself.

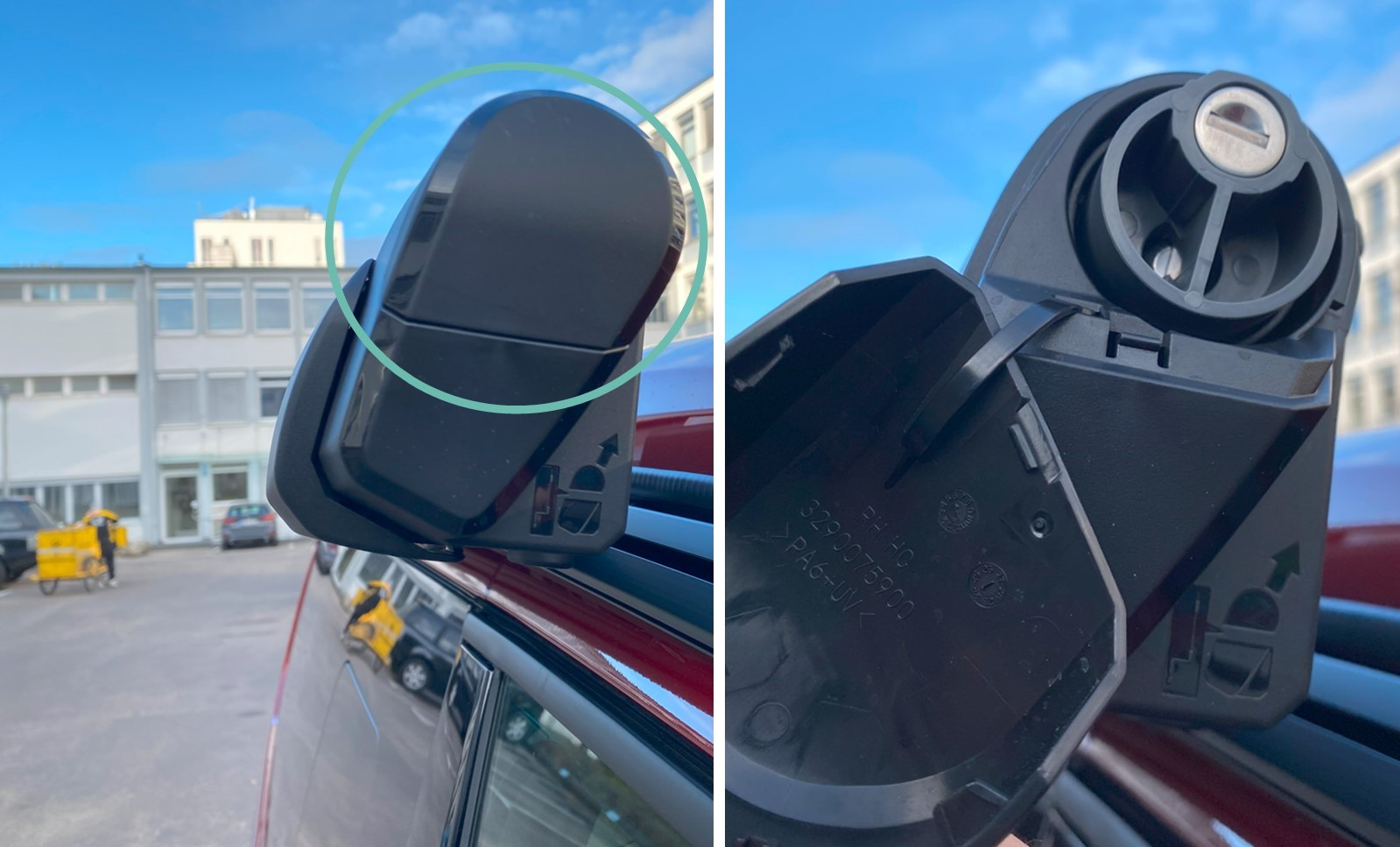

- Slide the marked plastic cover up.

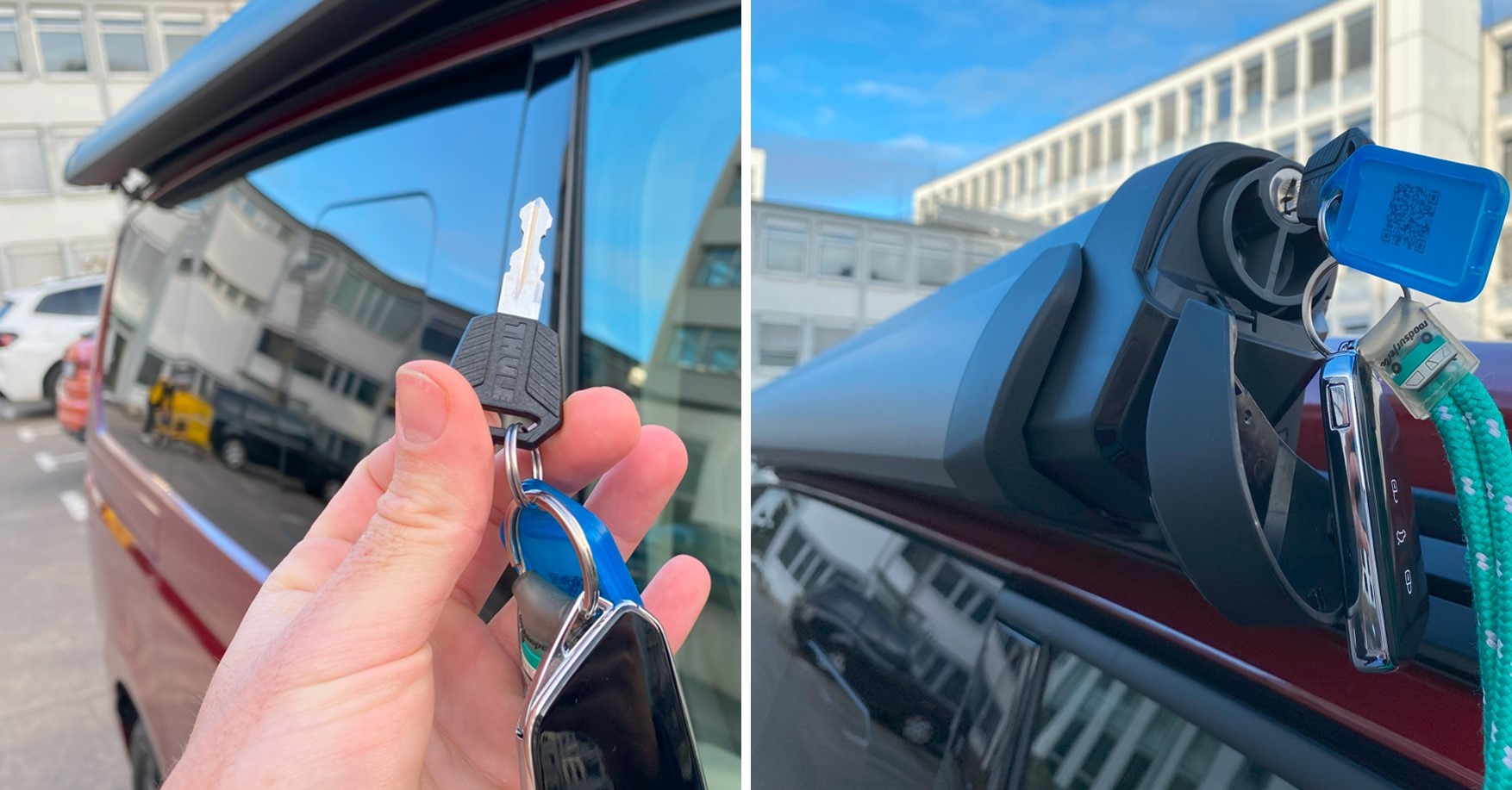

- Use the extra key on the key ring to unlock the awning crank and pull it out completely:

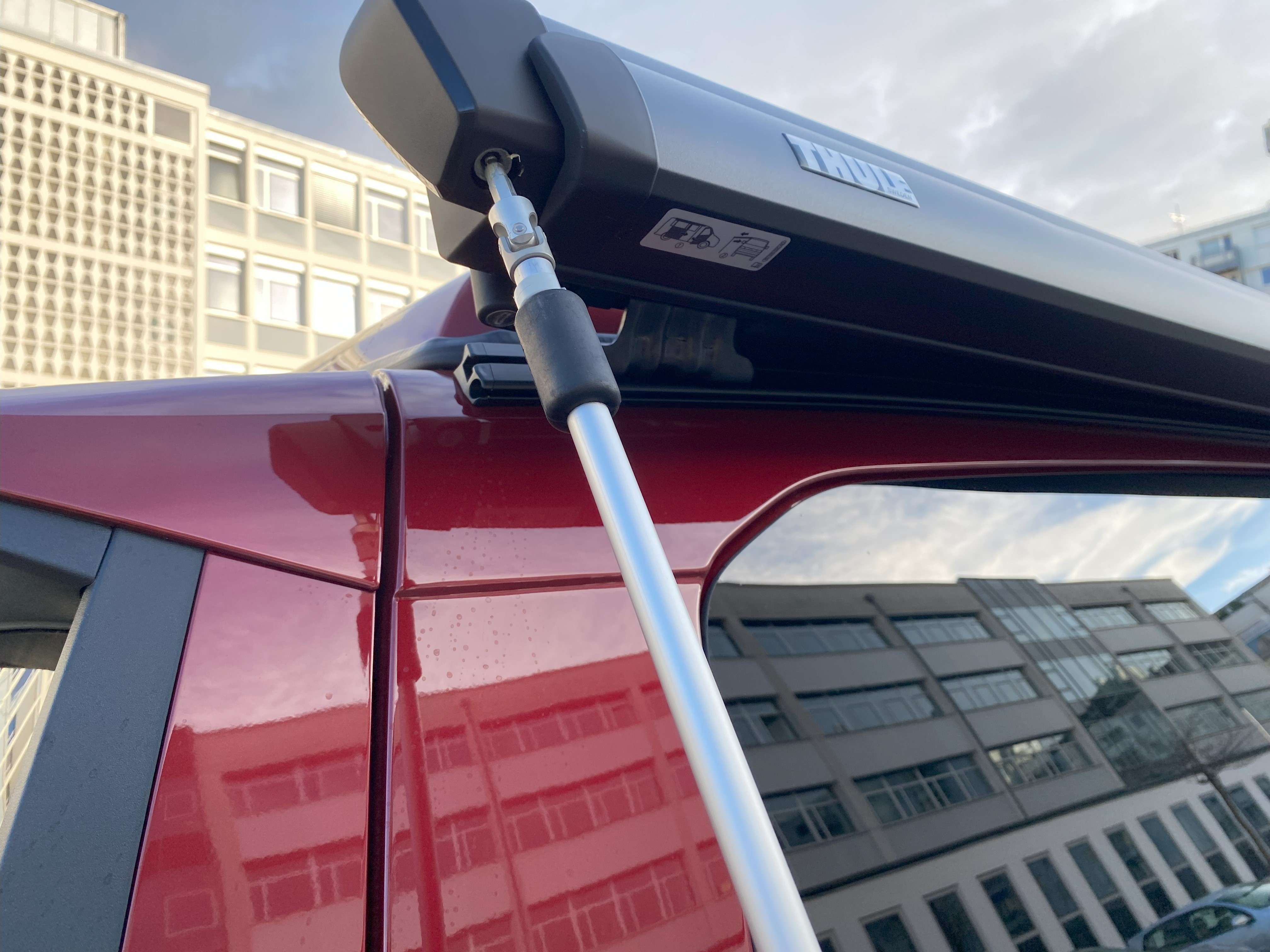

- Insert awning crank at the rear end of the awning:
- Turn counter clockwise to extend the awning (just half meter!)

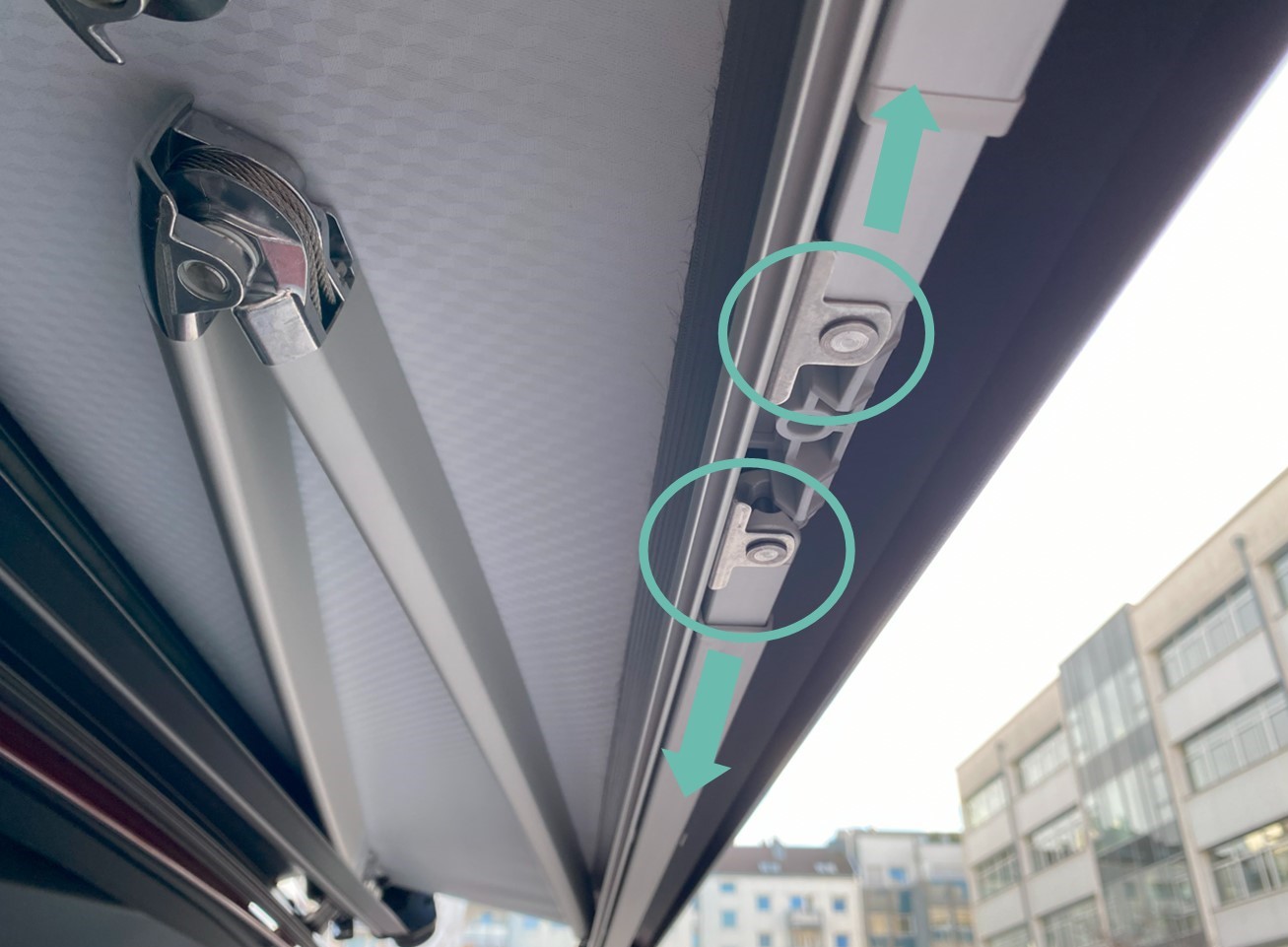

- fold out the awning legs (Push the marked awning feet in the direction of the arrows to be able to unfold the legs):

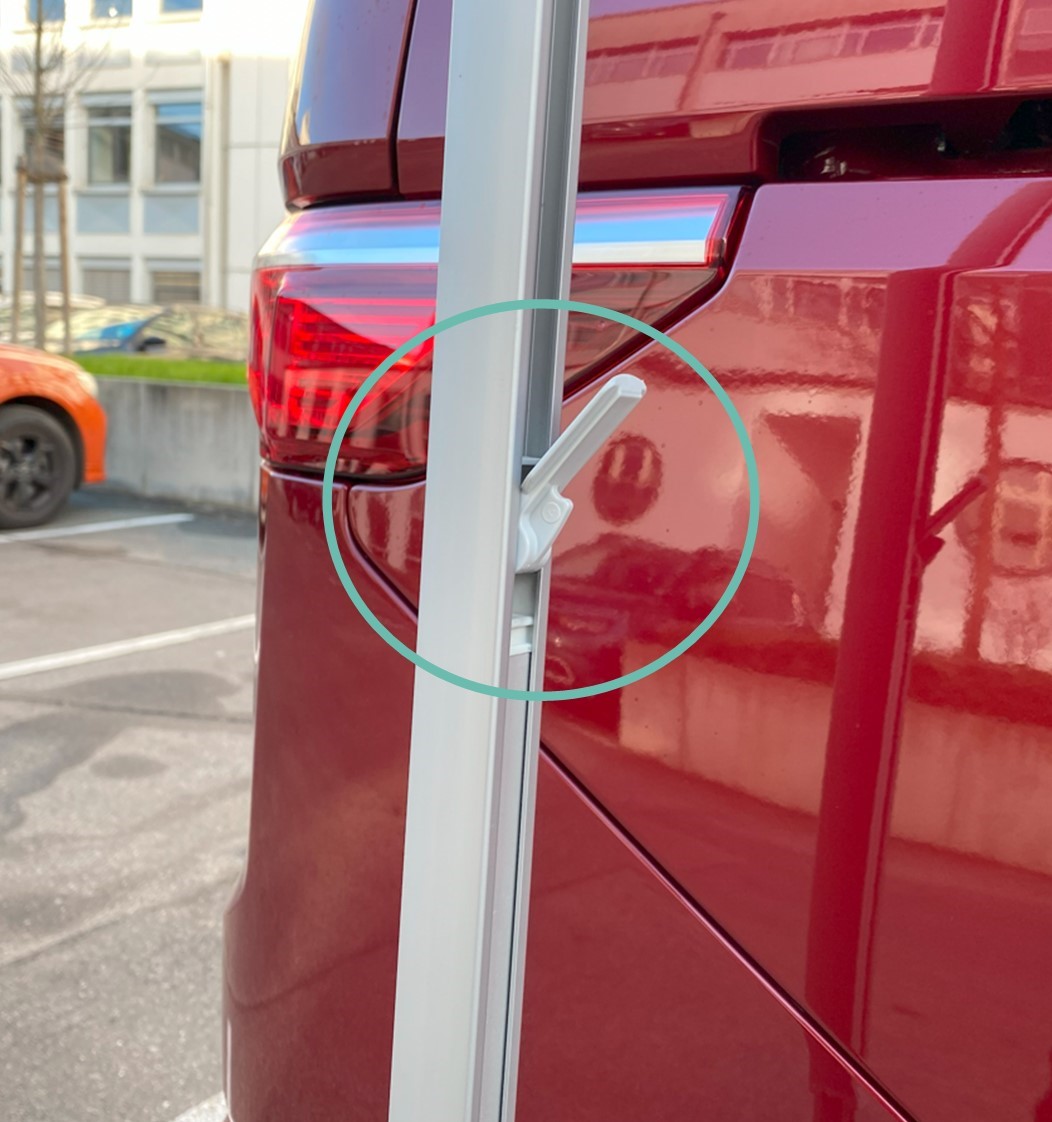

- Fix the awning legs at the desired height:

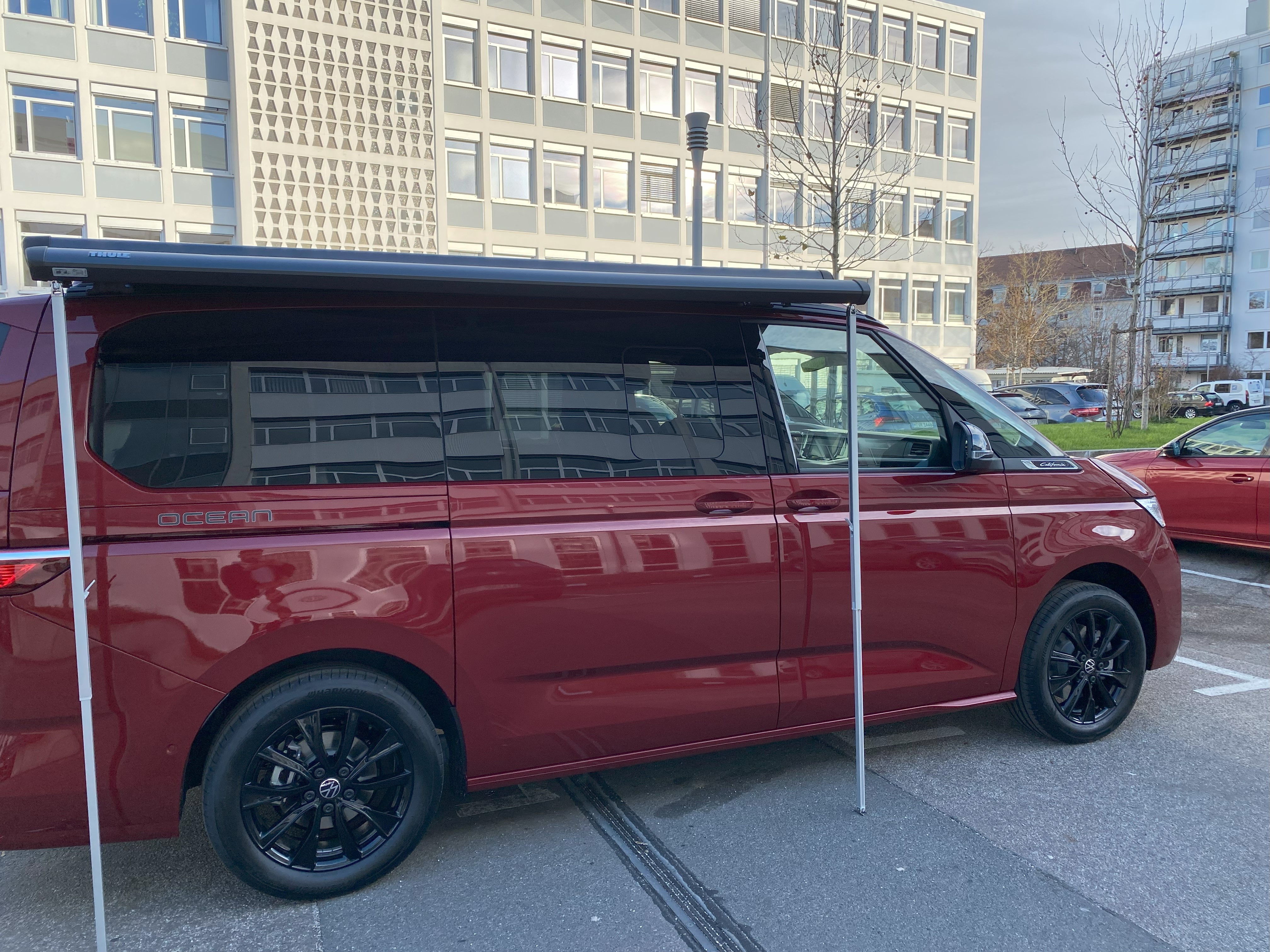

- Extend the awning to the desired length.
