To ensure that all 12V electronic devices work without external power, the camping battery voltage should never fall below 12V (50%).
The lights in the Sunrise Suite work via the camping battery. It must have enough battery to operate.

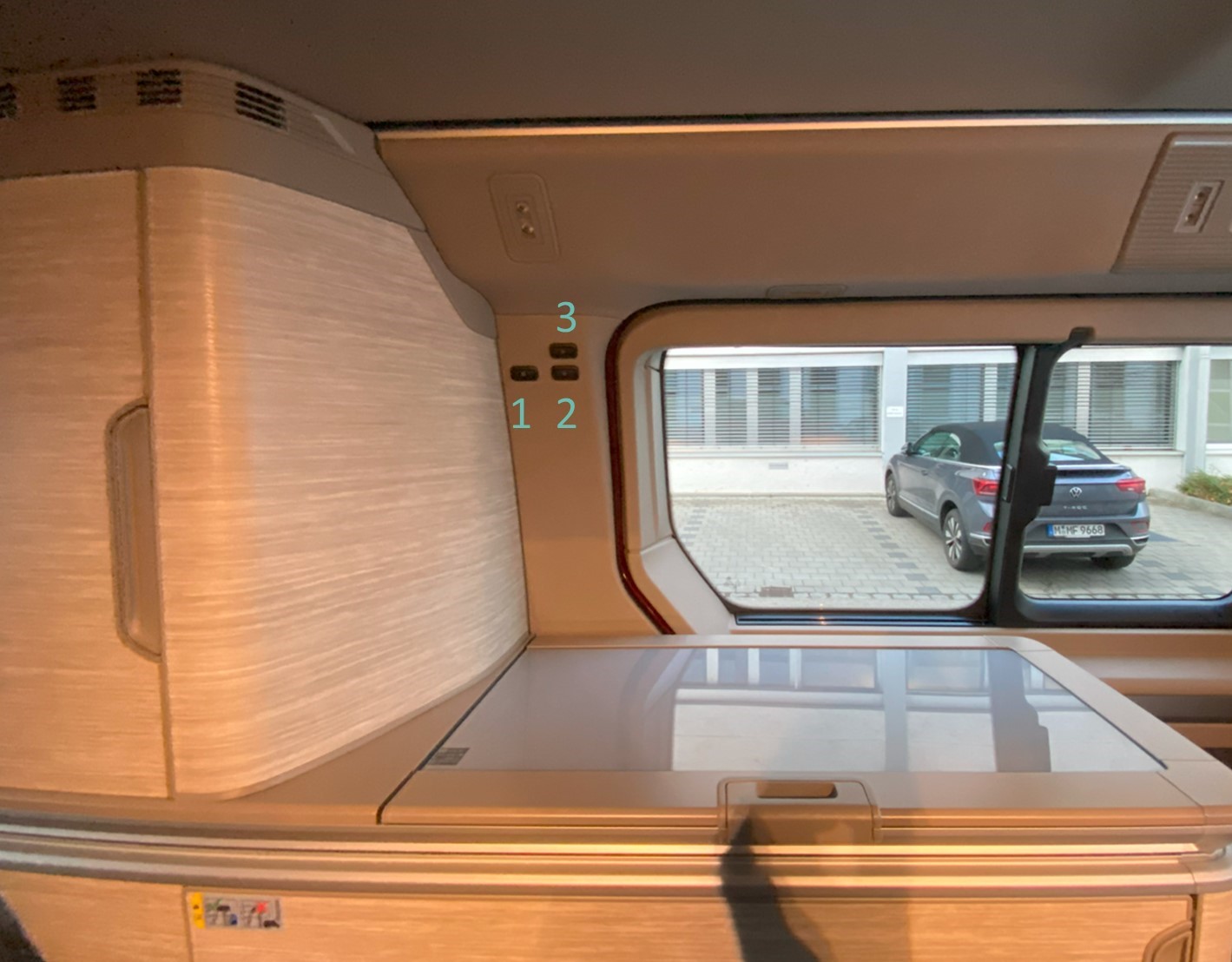

Light switches above the kitchen unit
The three light switches above the kitchen block have the following functions:
1: cabinet light
2: light strip under the hob
3: light strip above the kitchen unit
By holding down a light switch, the respective light is dimmed.

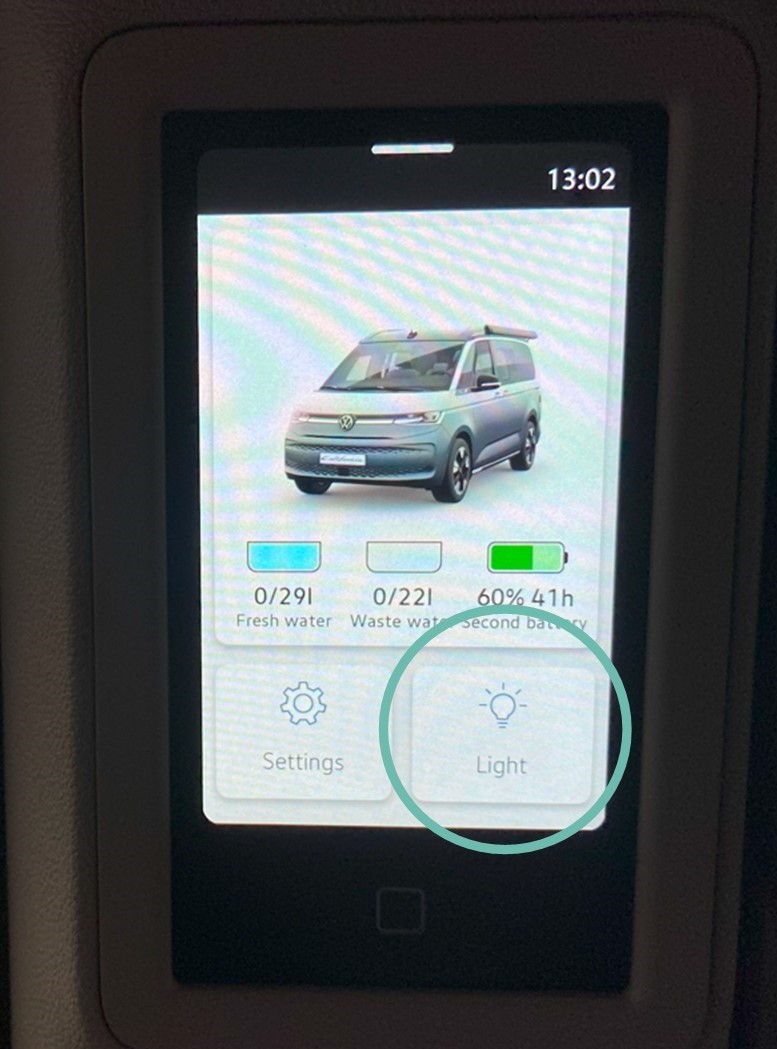

Light control with the board computer

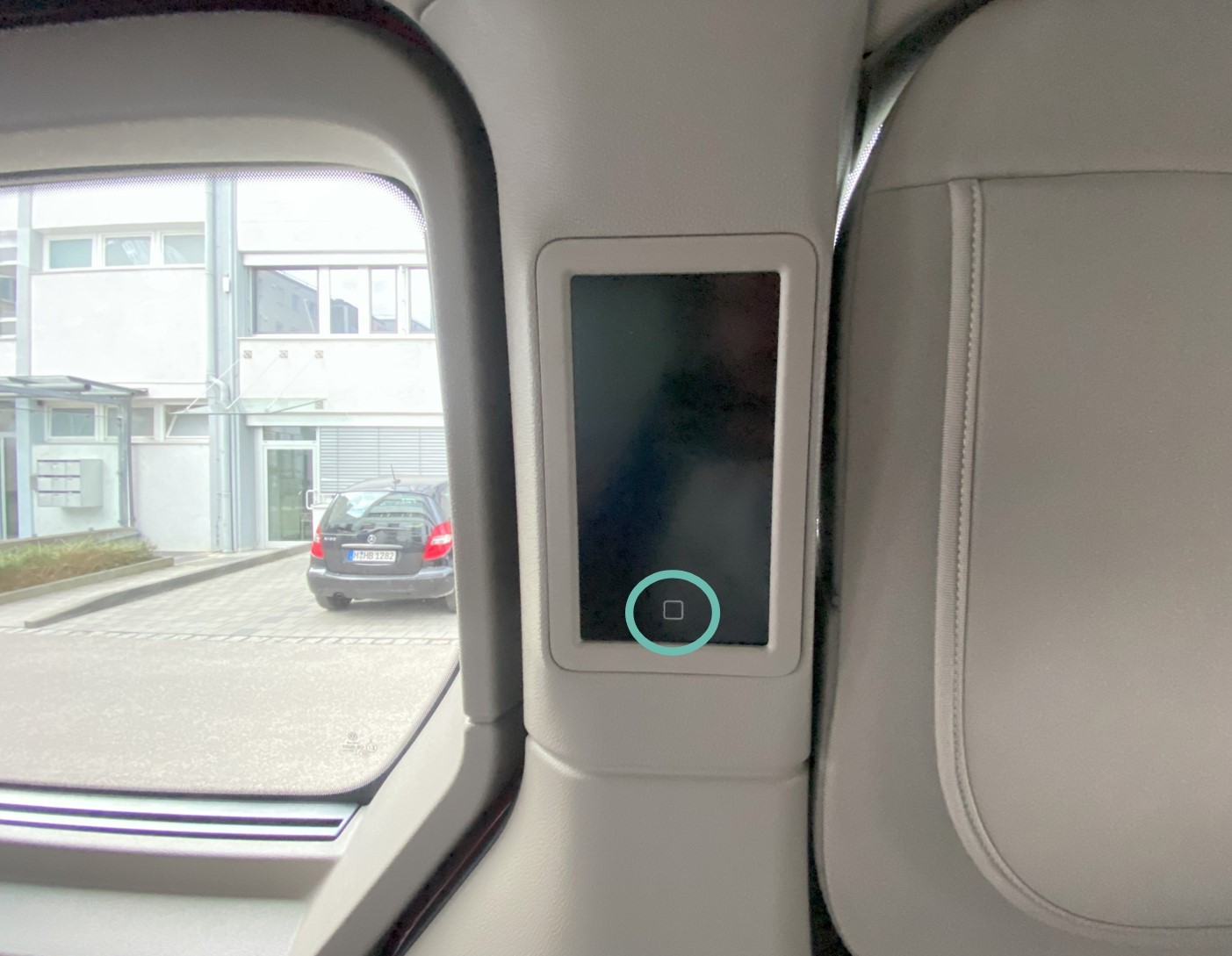

- Press and hold the marked button on the board computer (passenger side next to the sliding door) until it activates:
- Press “Lights”:

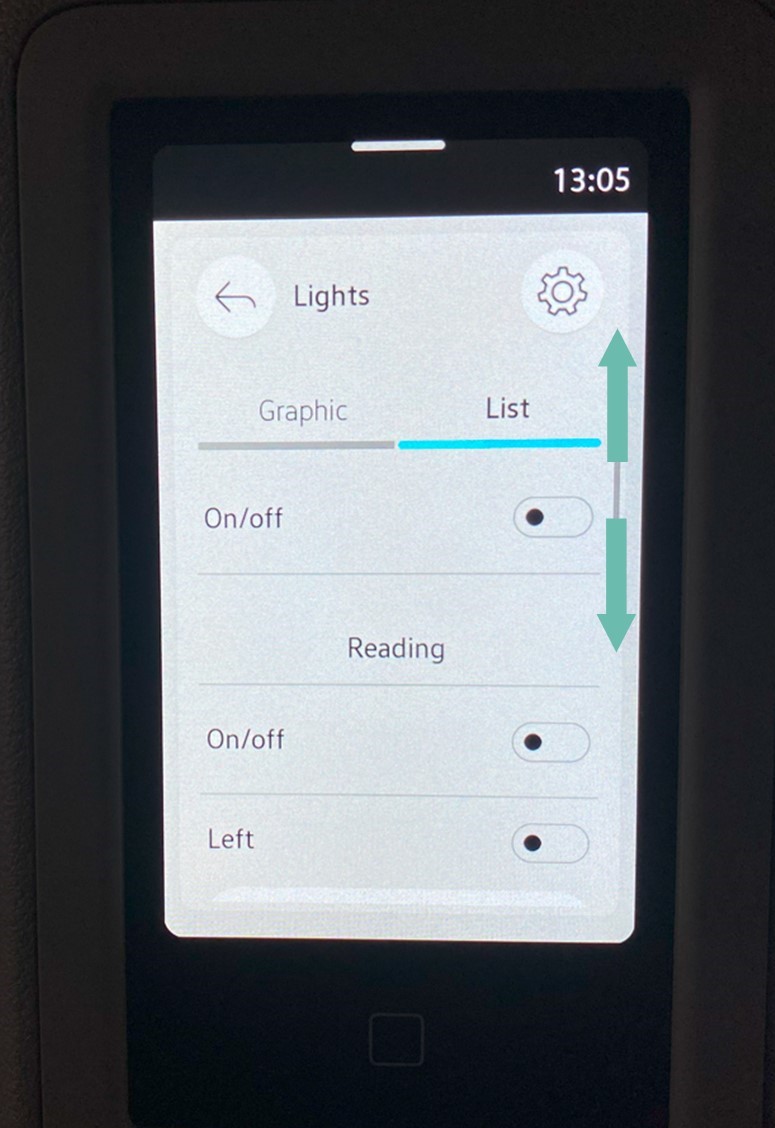

- Each light can be controlled individually (scroll to view more lights):

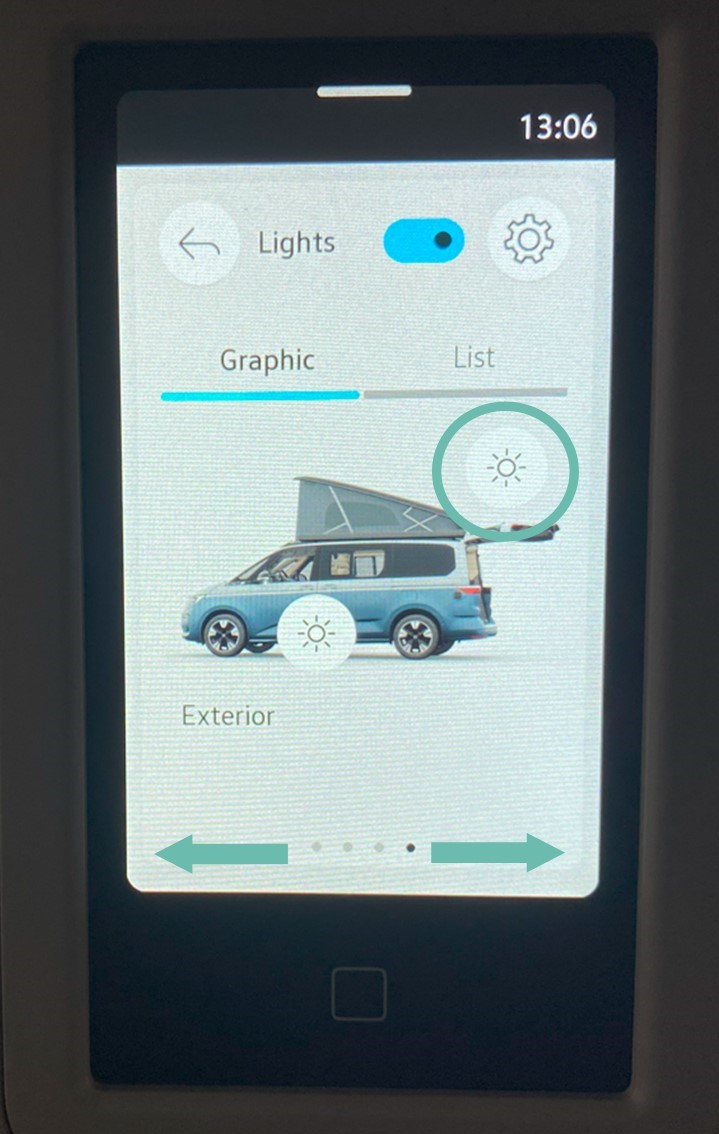

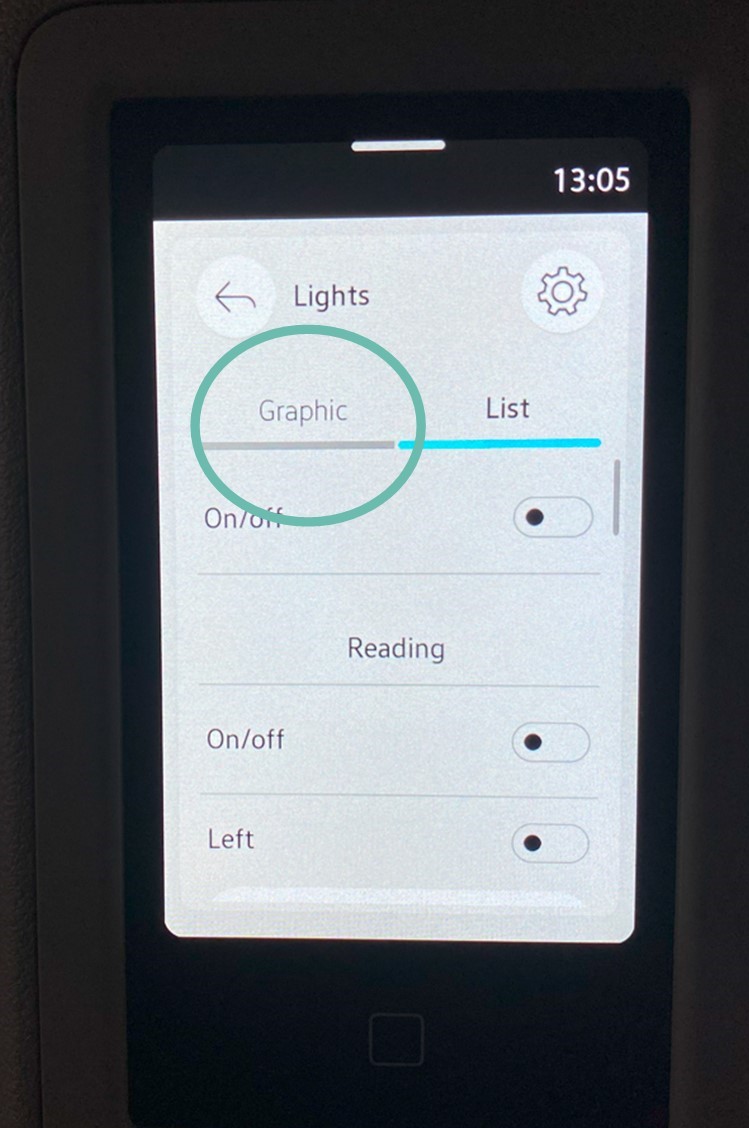

Or press "Graphic" for a different view of the light options:
Sockets in the living area and the cockpit
Without an external power supply, only 12V sockets, USB- C sockets and the 300W marked 230V sockets will work.

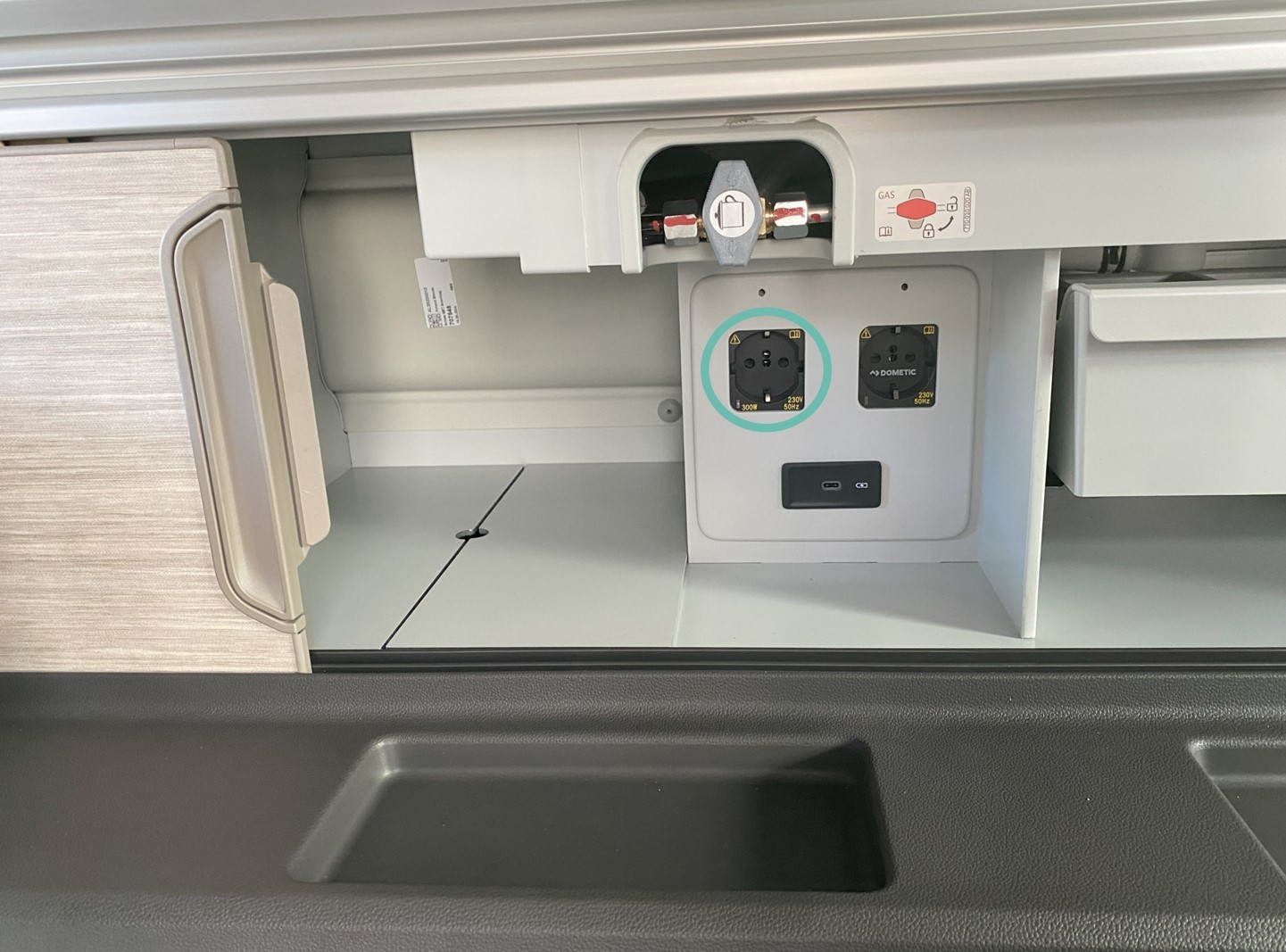

Kitchen unit
The compartment under the hob contains:
1 230V socket
1 USB- C socket
1 300W 230V socket (marked below, works without external power)

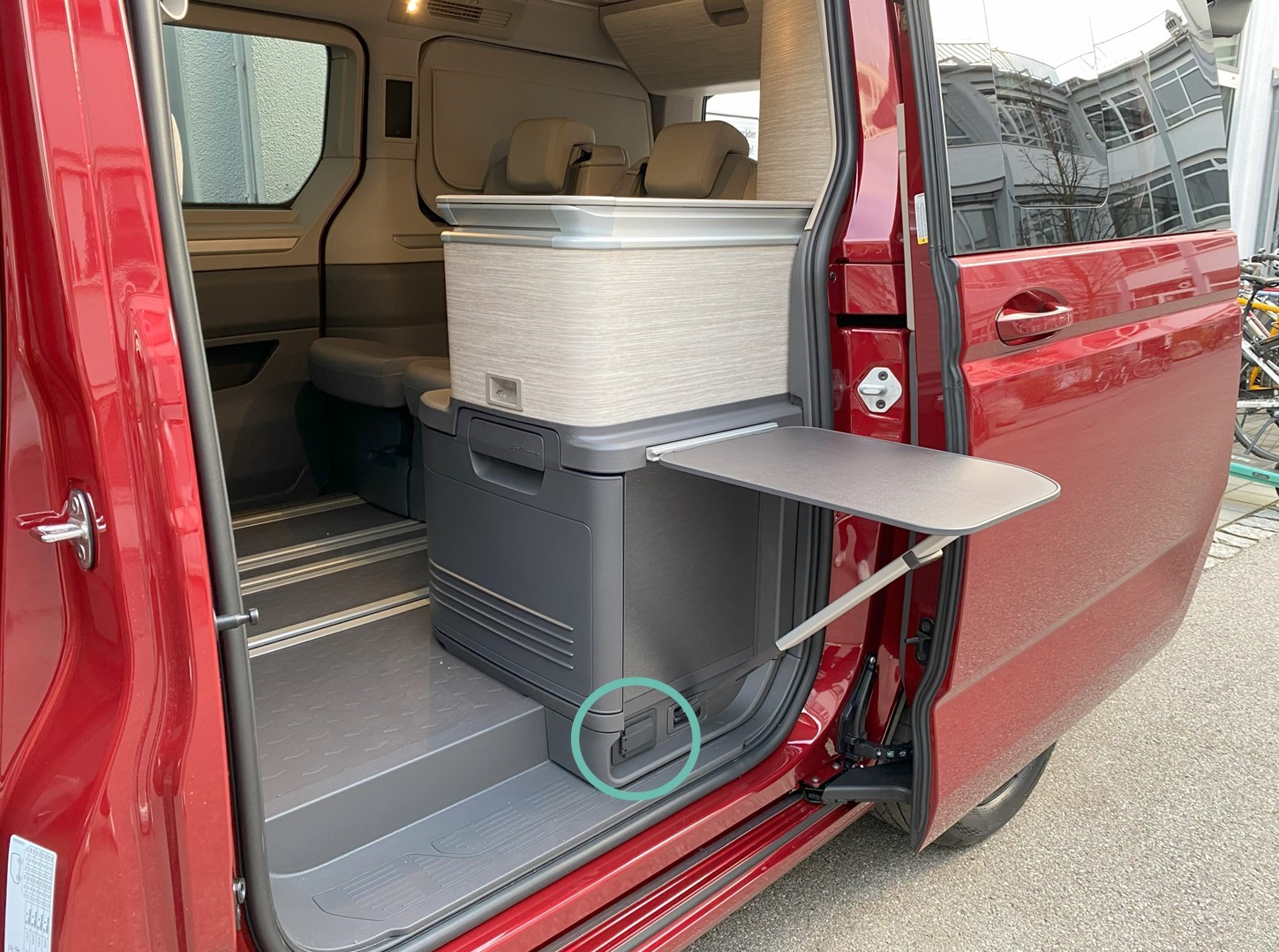

Kitchenette on the outer driver's side
Behind the folding table there is:
1 230V socket

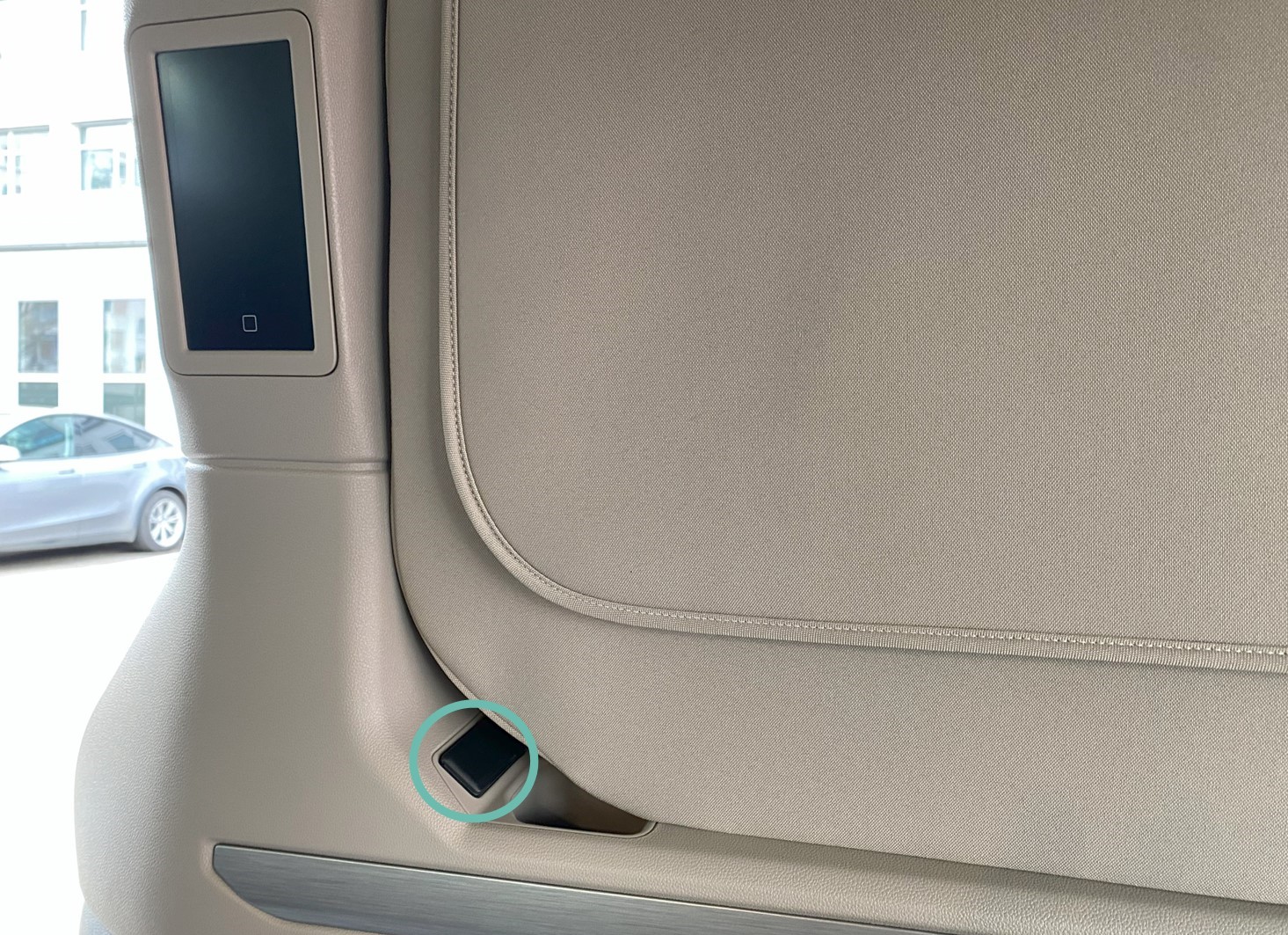

Window frame next to board computer
In the window frame next to the on-board computer, there is:
1 USB-C port

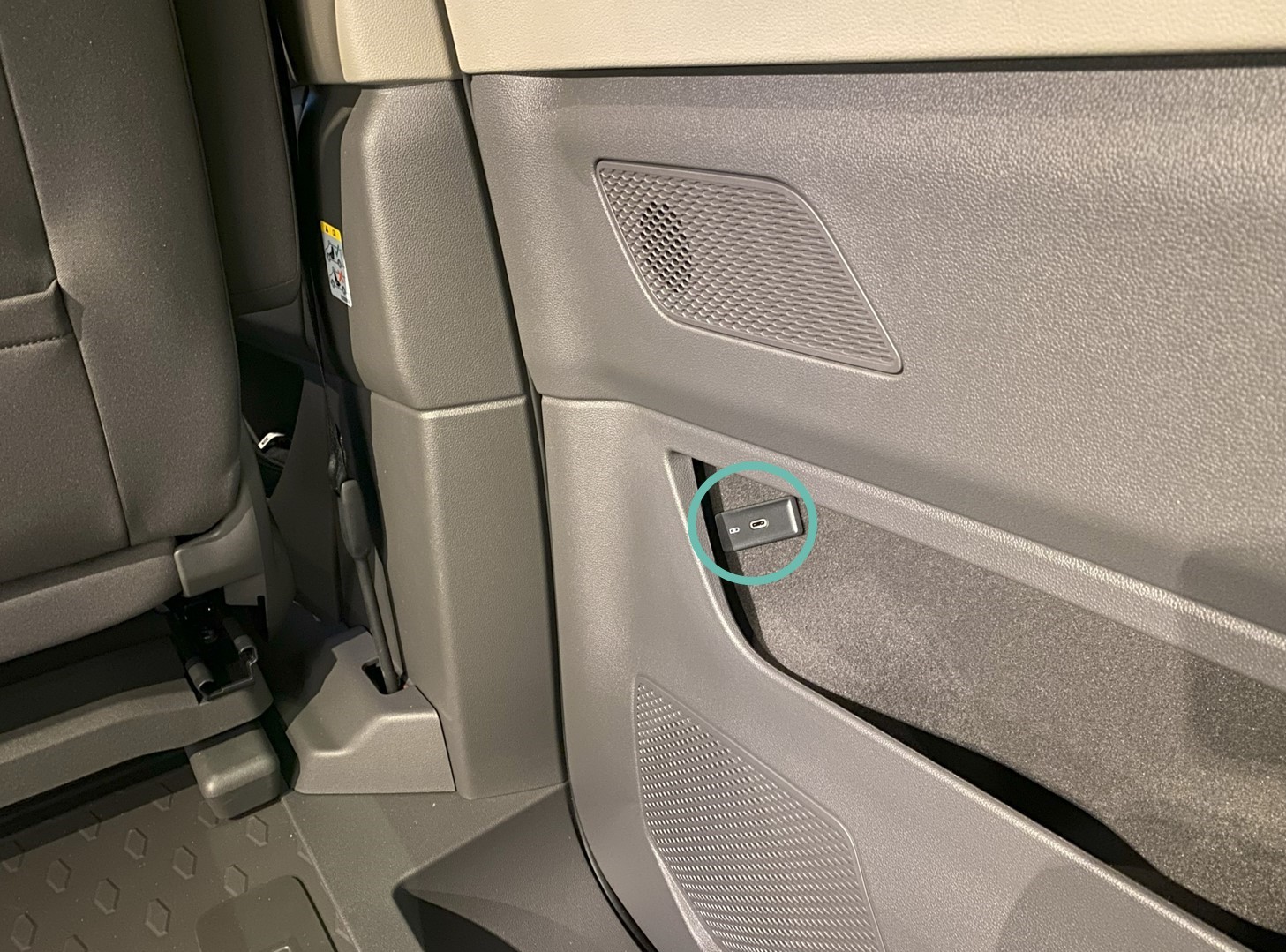

Sliding door passenger side
The sliding door is equipped with:
1 USB-C port

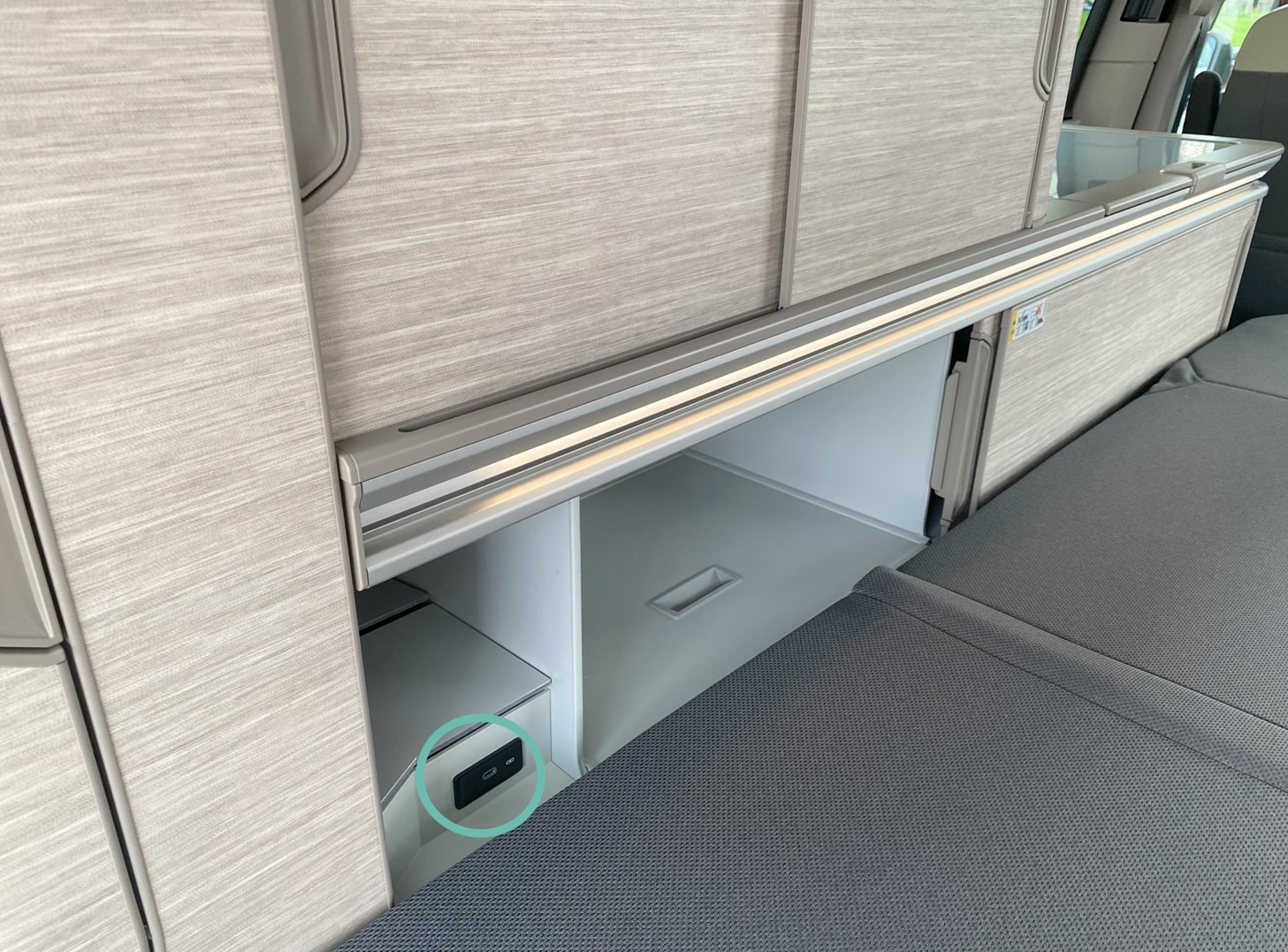

Cabinet rear area
The lower compartment contains:
1 USB-C socket

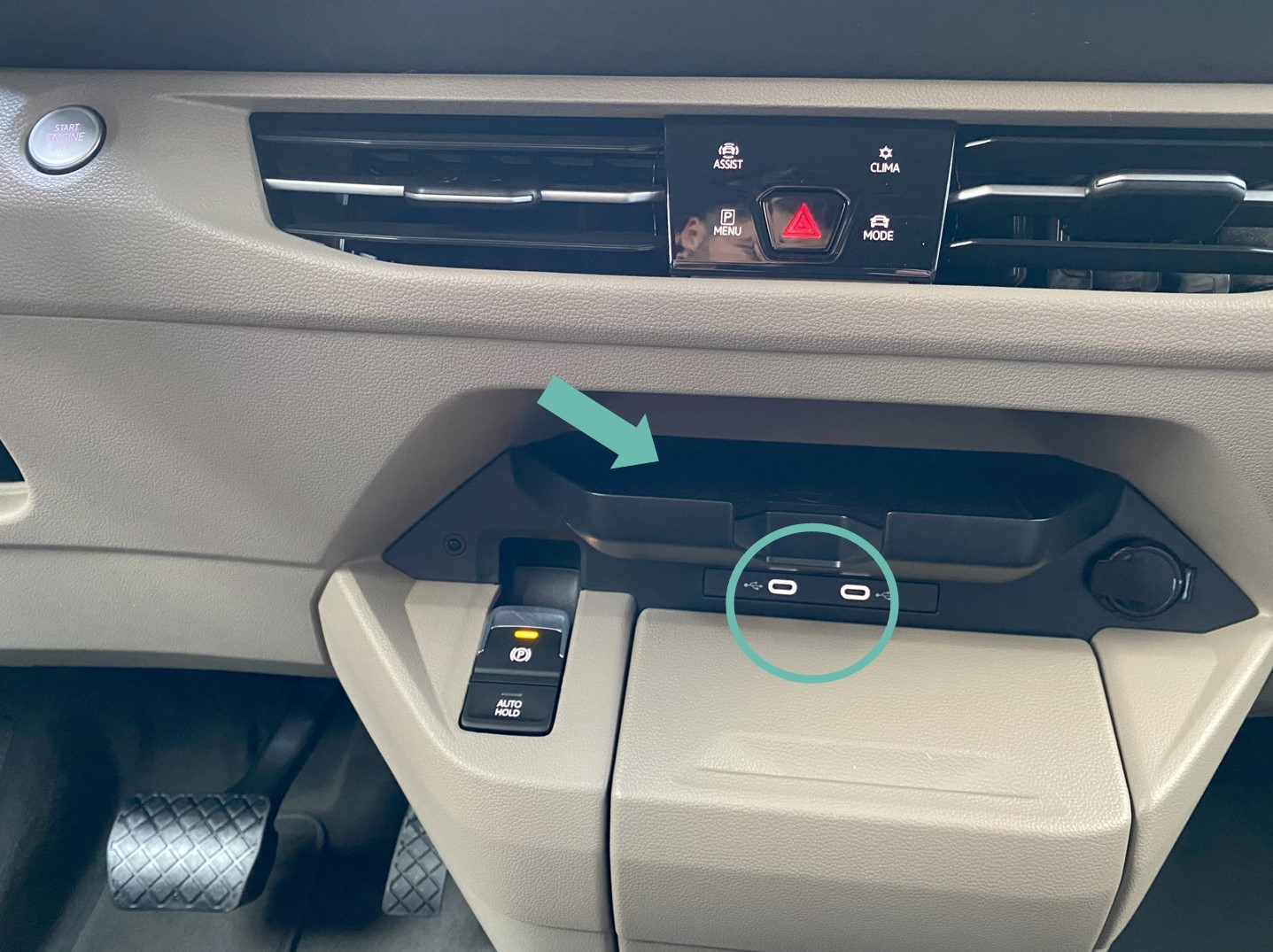

Cockpit
The center console features two USB-C ports and an induction charging pad:

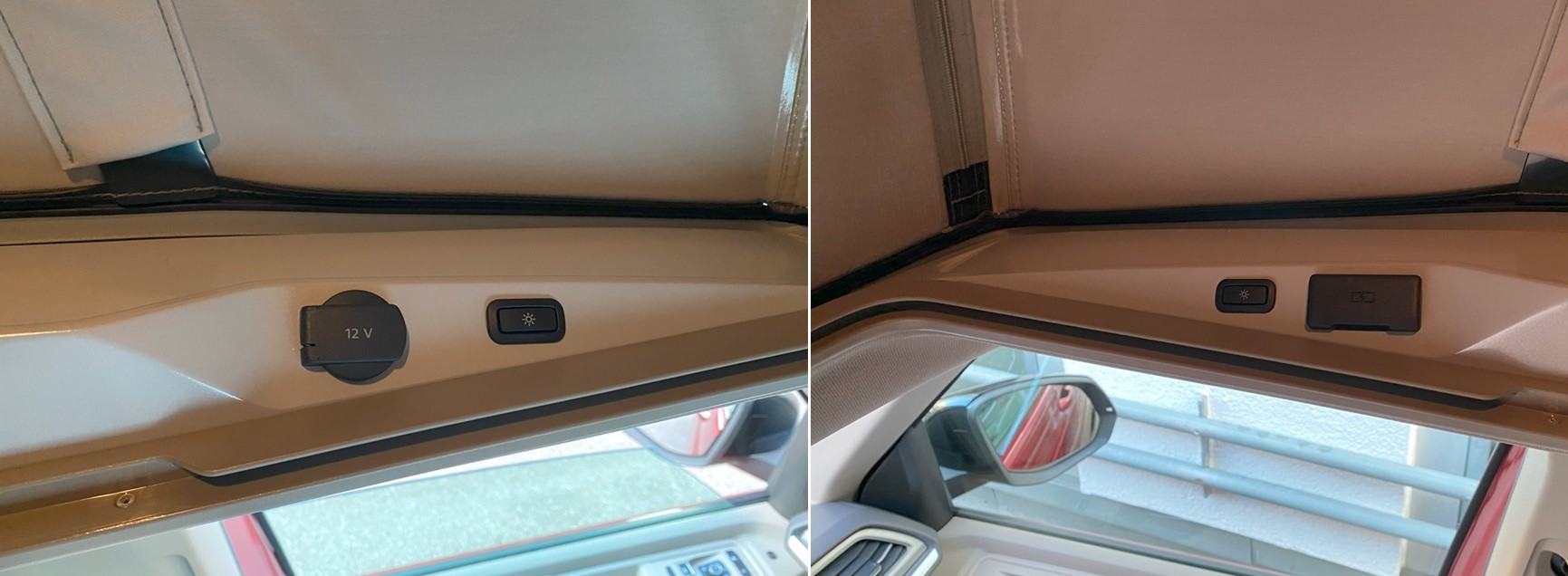

Lights and sockets in the roof
On the driver's side of the roof tent, you will find a light switch and a 12V socket.
On the passenger side of the roof tent, you will find a light switch and a USB-C port.
Lights and sockets in the trunk

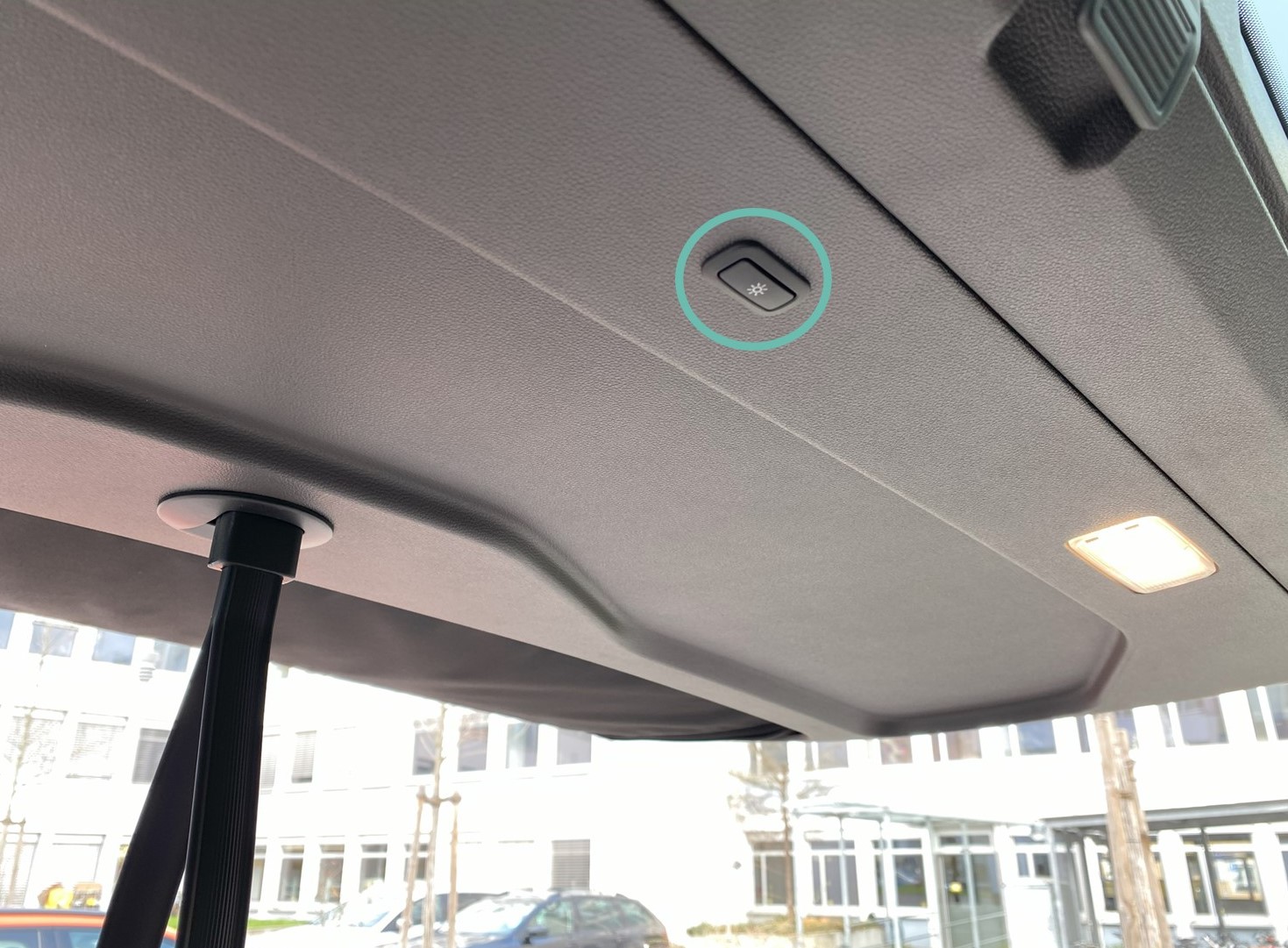

There is a light switch for the trunk light in the center of the inside of the trunk lid:

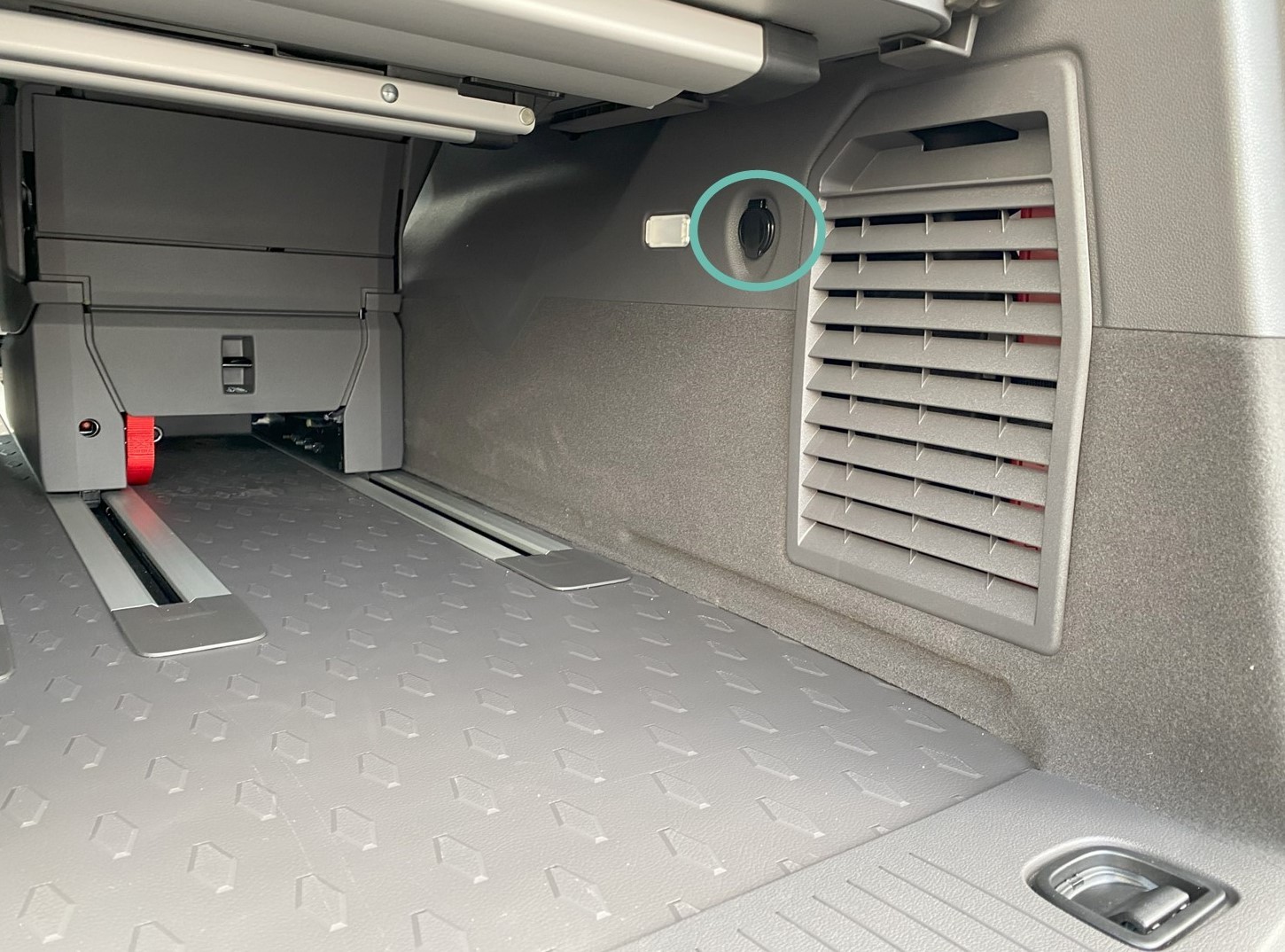

There is a 12V socket in the boot on the passenger side below the bed frame:
