To change the gas bottle (11 kg) in the Couple Cottage (Bürstner Lineo/Signeo), several steps must be followed to ensure safe handling:

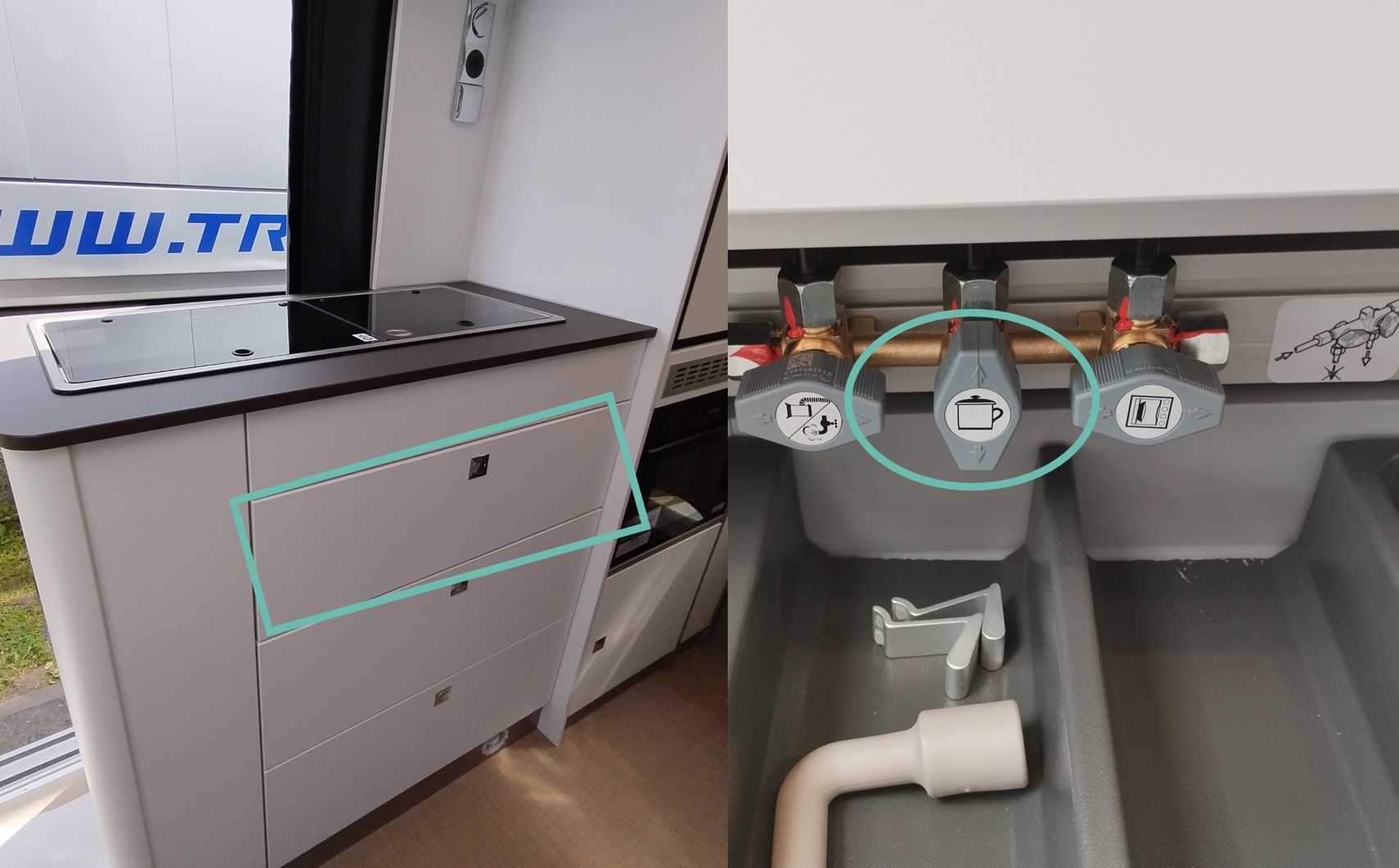

- Close the safety lever in the kitchen drawer (set it horizontal).

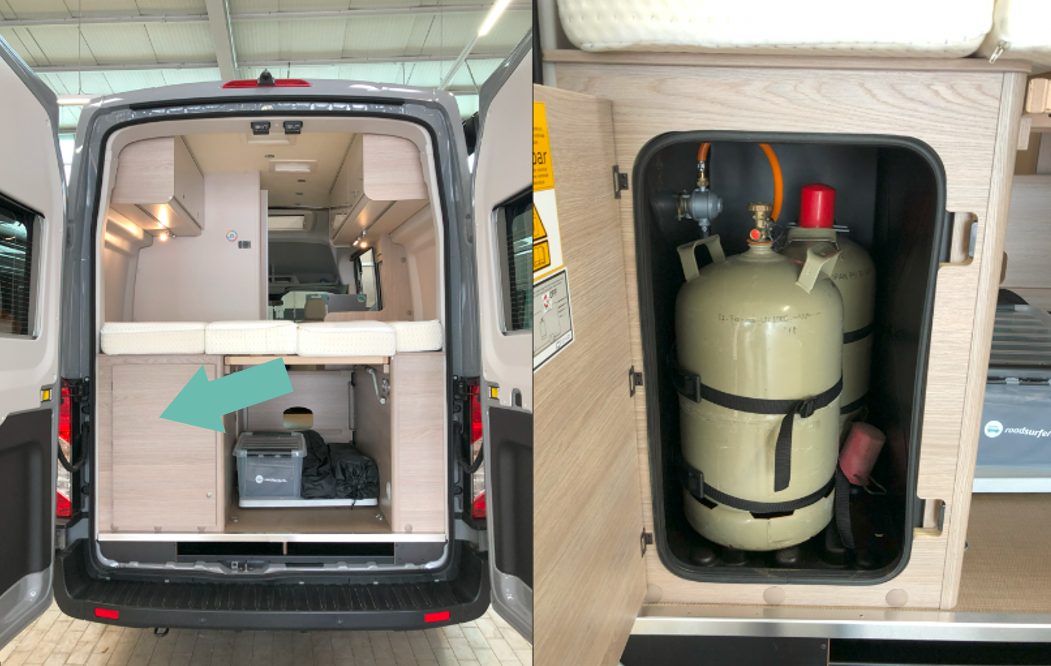

- Go to the boot and open the gas compartment on the left side:
-
First check that neither bottle contains any more gas.
-

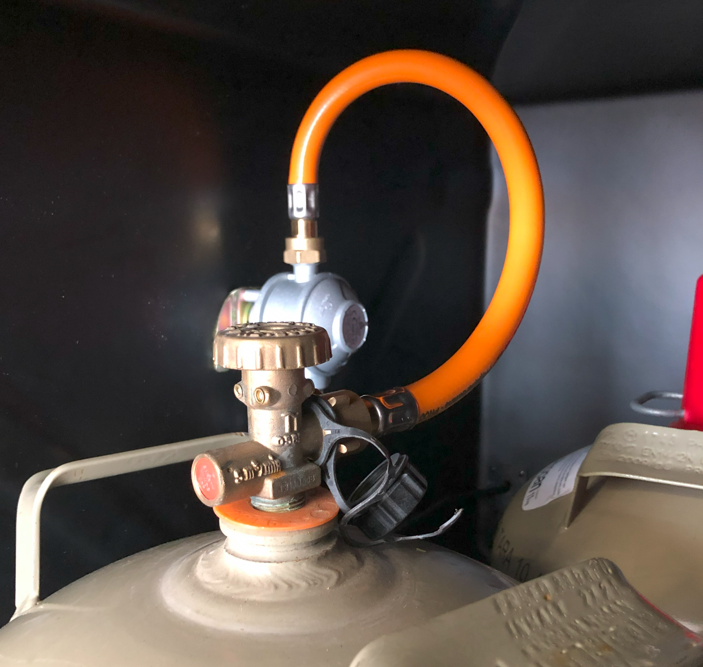

If one or both bottles are empty, close them anyway at the brass-coloured valve, direction "-" .
-
Unscrew the connector from the gas bottle by hand (attention: left-hand thread).
-
Loosen the straps around the gas bottle.
-
Take the bottle out of the compartment and replace it with a full one.
-
Securely fasten the bottle again with the straps.
-
Screw the connector onto the gas bottle by hand (attention: left-hand thread).
Attention
- Do not use any tools to screw the connector onto the gas bottle, otherwise it may not be possible to unscrew it!
-
Be sure to close the stopcocks and the gas bottles while driving!
-
Please also note that for safety reasons the gas compartment must not be used as a storage space.
Please note that bottles purchased outside Germany may require an adapter. Here you will find all possible adapters and information about gas suppliers abroad.
