Here's everything you need to do for a warm shower in your Family Freedom:
- Open the gas supply.

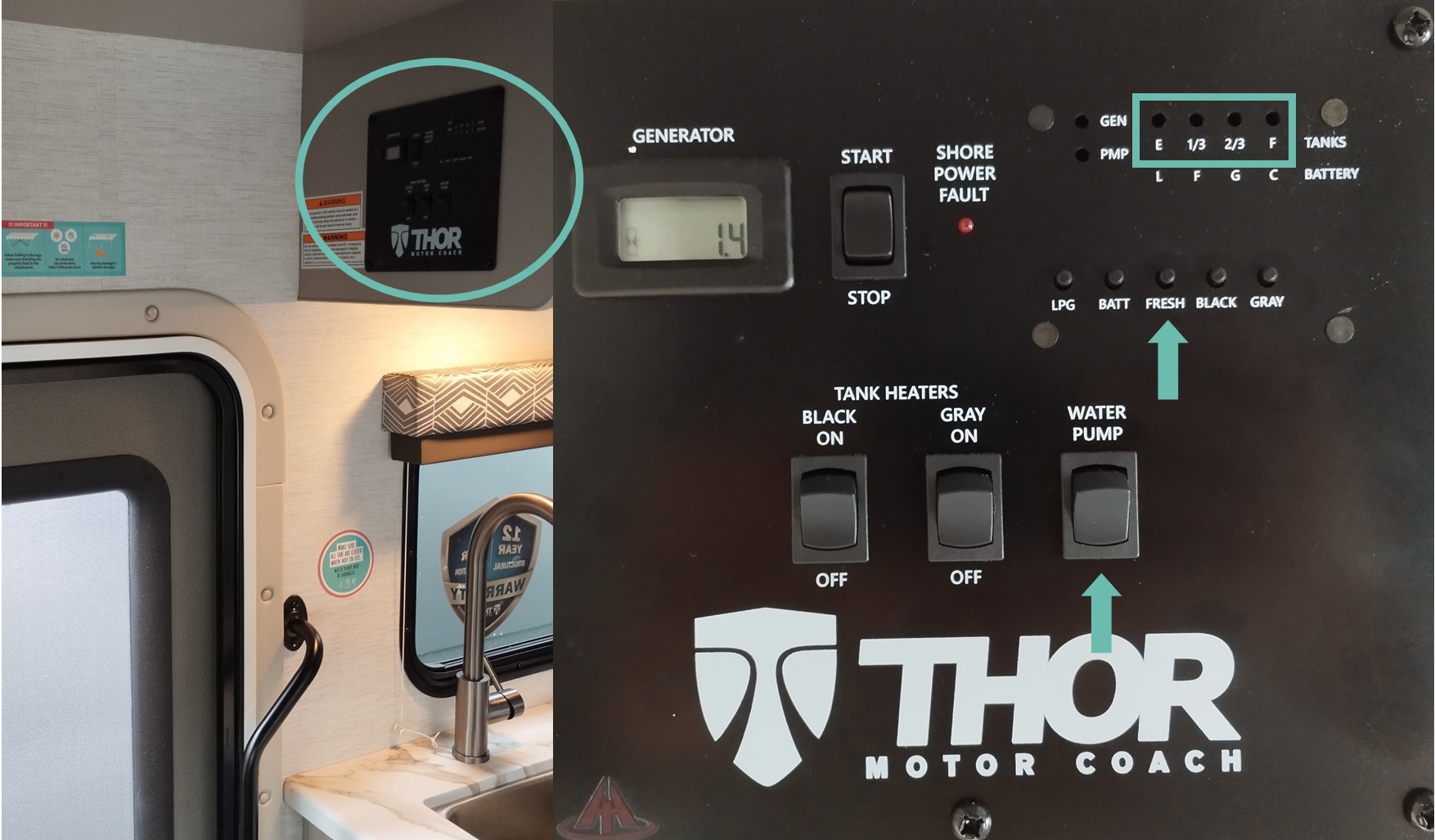

- Check whether the water level is sufficient. Then switch on the water pump on the on-board unit next to the door. We recommend a fill level of 50% for an extensive shower.

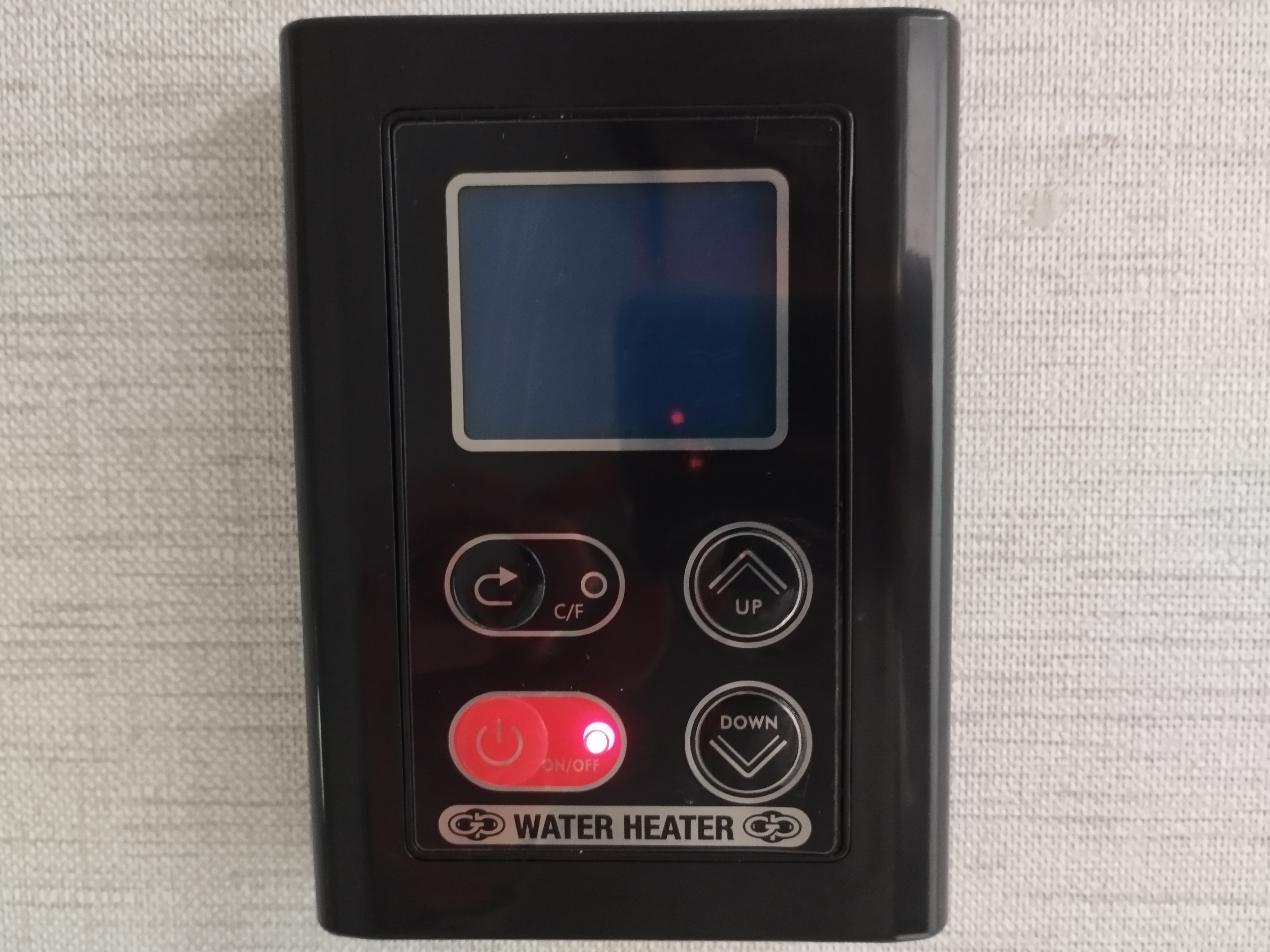

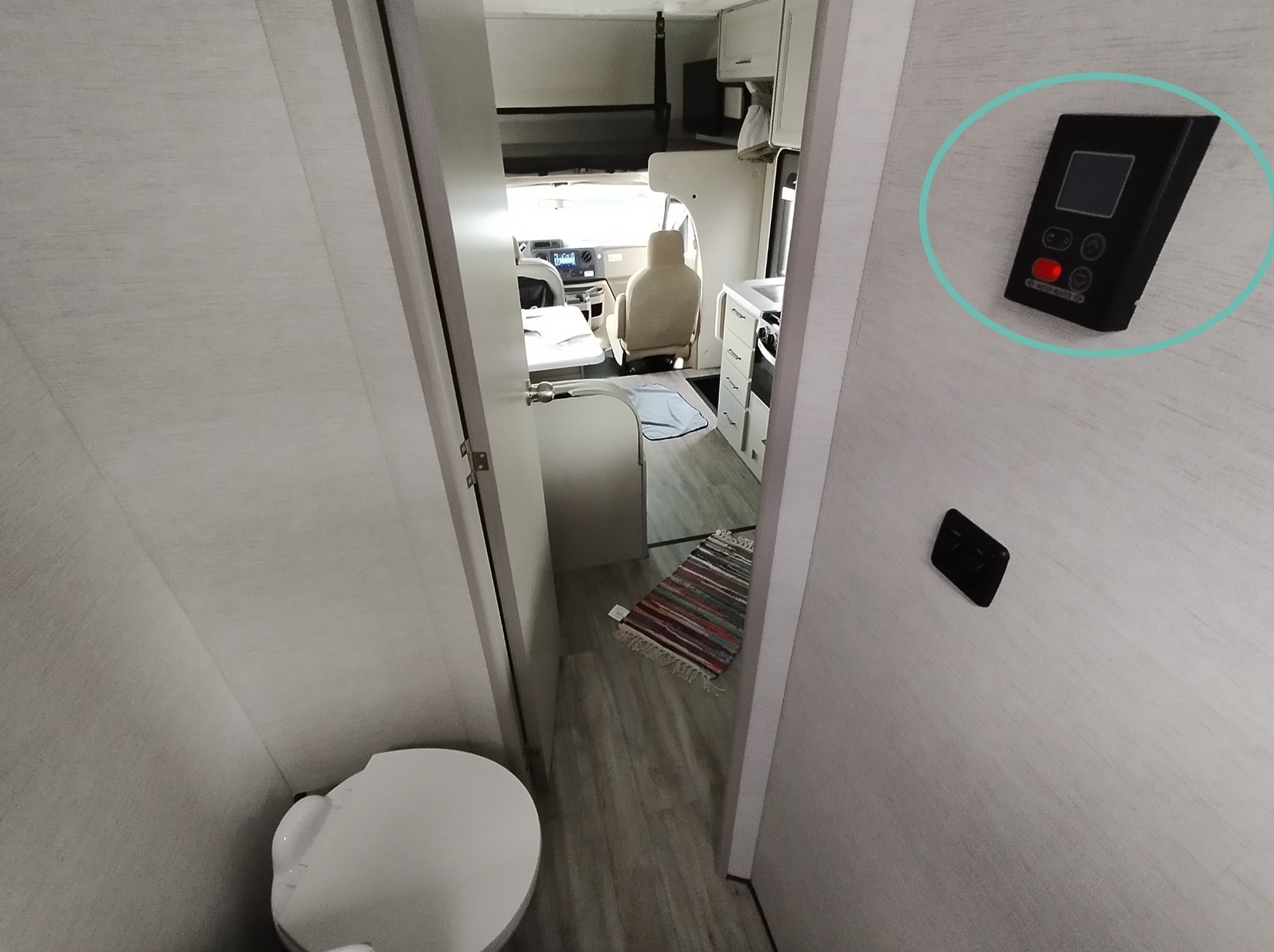

- Then go to the hot water control unit in the bathroom and follow these steps:
- Switch the hot water on and off using the red button.
- Adjust the temperature as required using the buttons on the right.
- Use the top left button to switch between Fahrenheit and Celcius.
Please note: The boiler runs on gas, so you must have gas available to heat the water.
Click here to go directly to the explanatory video:
Indoor shower
To prepare the shower, follow these steps:
- Establish the gas supply
- Start the water pump via the on-board unit.
- For hot water, switch on the hot water control unit.

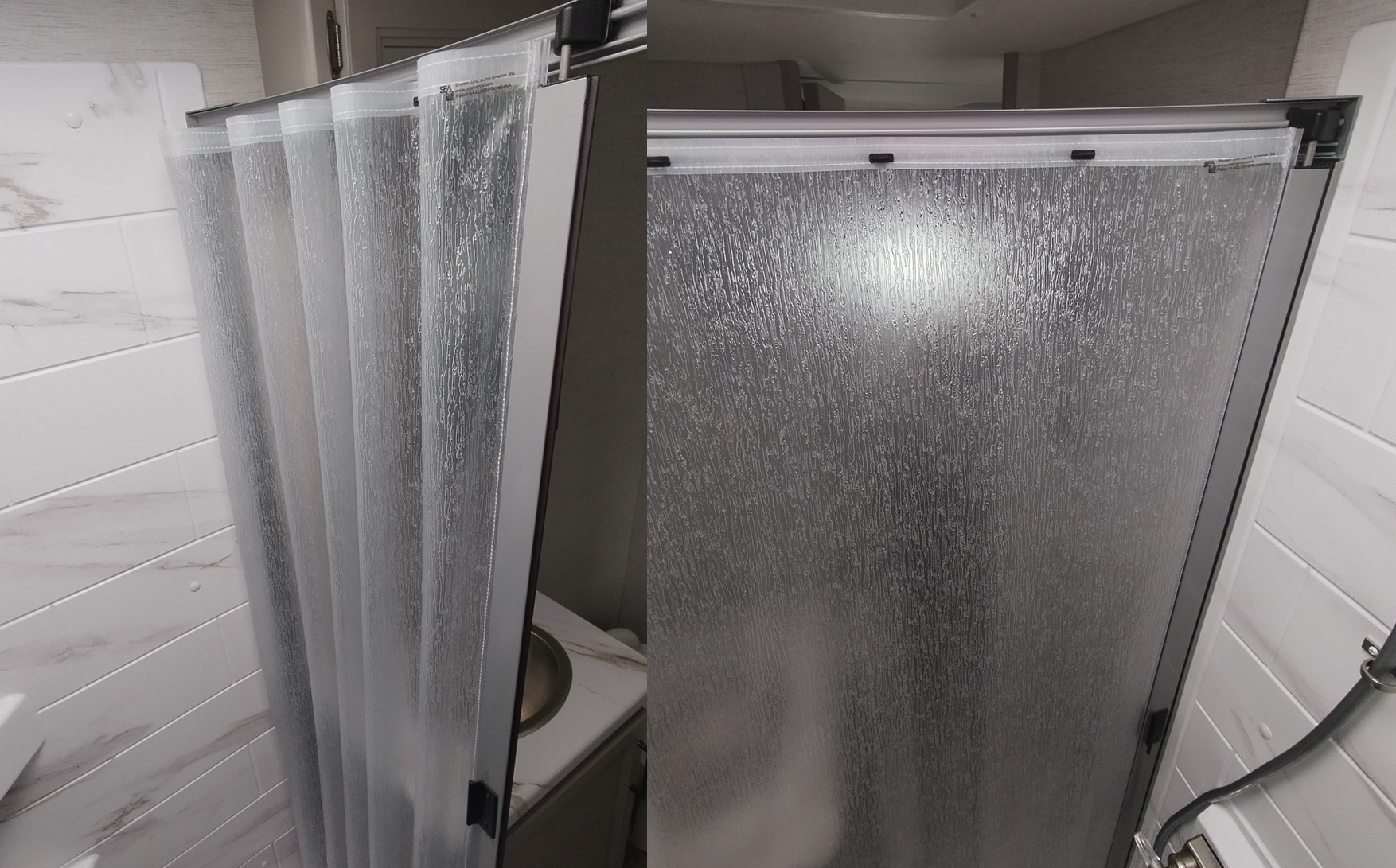

- Close the shower wall from the inside.

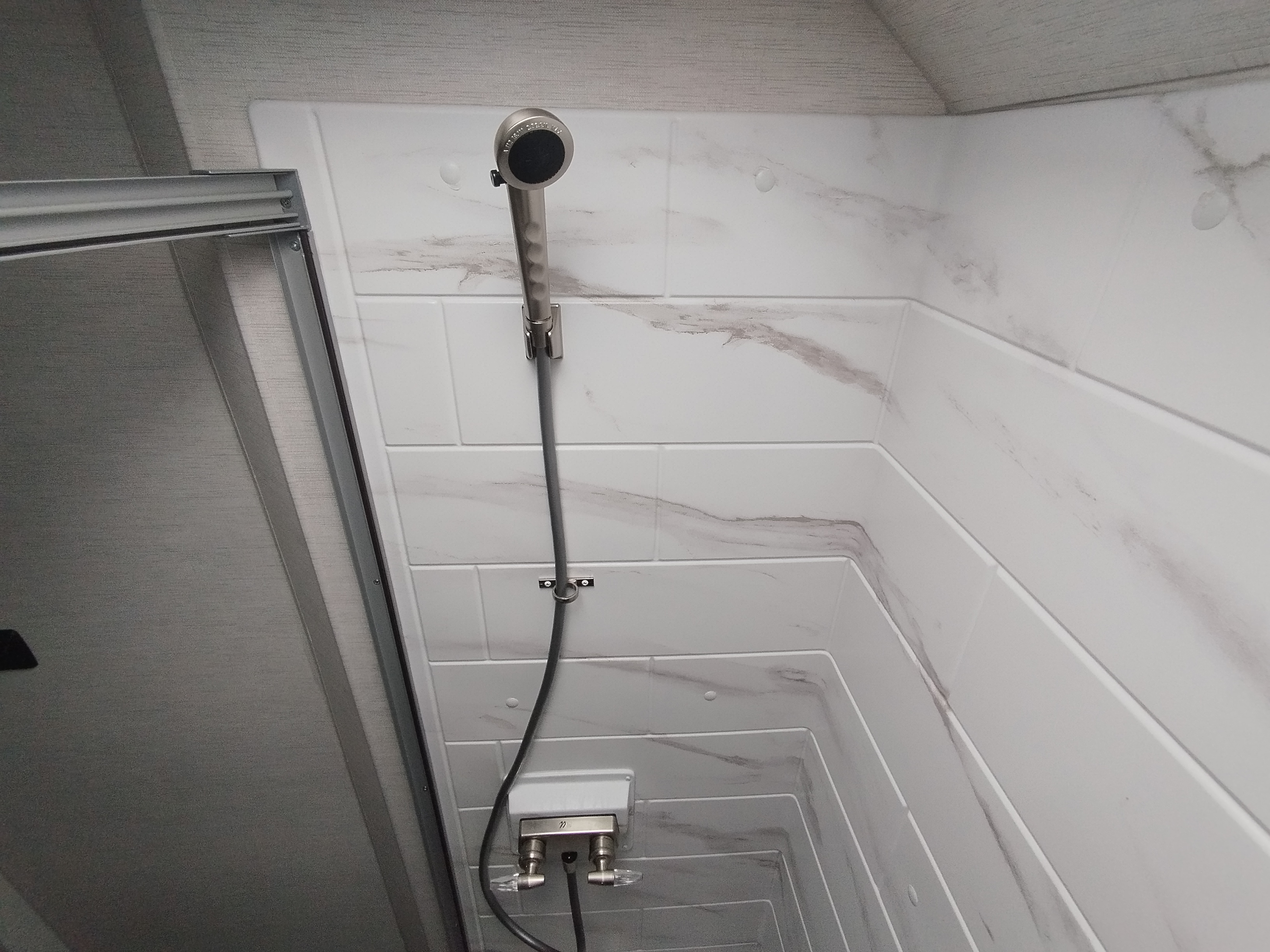

- Use the shower head with the long water hose on the shower rail.
- Use the know on the side of the shower head to adjust the water pressure:

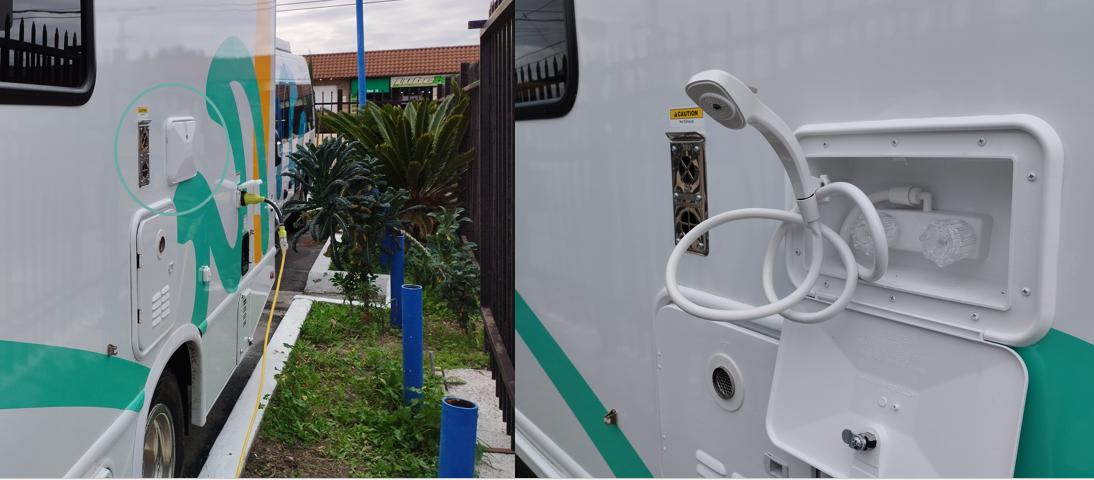

Outdoor shower
To prepare the shower, follow these steps:
- Establish the gas supply
- Start the water pump via the on-board unit.
- For hot water, switch on the hot water control unit.
- Open the outdoor shower valve. It is located on the drivers side above the rear wheel.
- Use the knobs to adjust the water flow and temperature.
Troubleshooting
If an error occurs or the water does not heat up, try the following:
- Check whether gas is generally flowing.
- Make sure that the water pump is switched on via the on-board unit.
- Check if the hot water switch is turned ON.
- Turn off the engine and remove the key from the contact.
- Unplug the car from any external power supply.

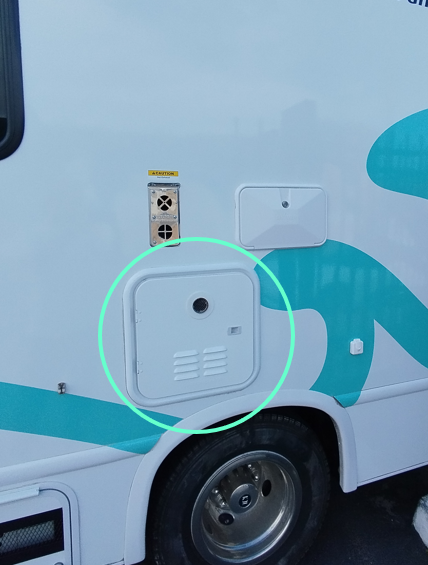

Find the switch in the Exhaust Panel. It is located on the drivers side of the vehicle.

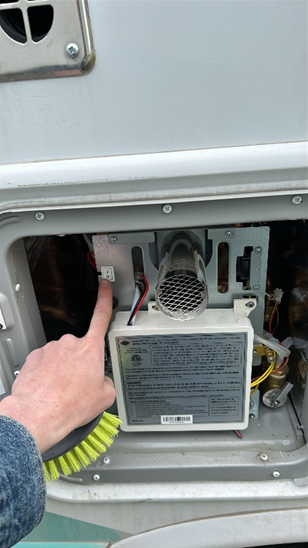

- Find the switch next to the exhaust pipe. Make sure not to touch the exhaust pipe as it might be very hot. Turn the switch to "on".
Shut & lock the exhaust panel.
- Check if the hot water unit is working now.
