There is a slight difference between the Camper Cabin models, so check which one you are driving and then, select the correct instructions from the drop down menus:
Drawer fridge
The table is stowed away on the passengers' side, next to the rear bench.
- Turn the small black lever to the side to release the table

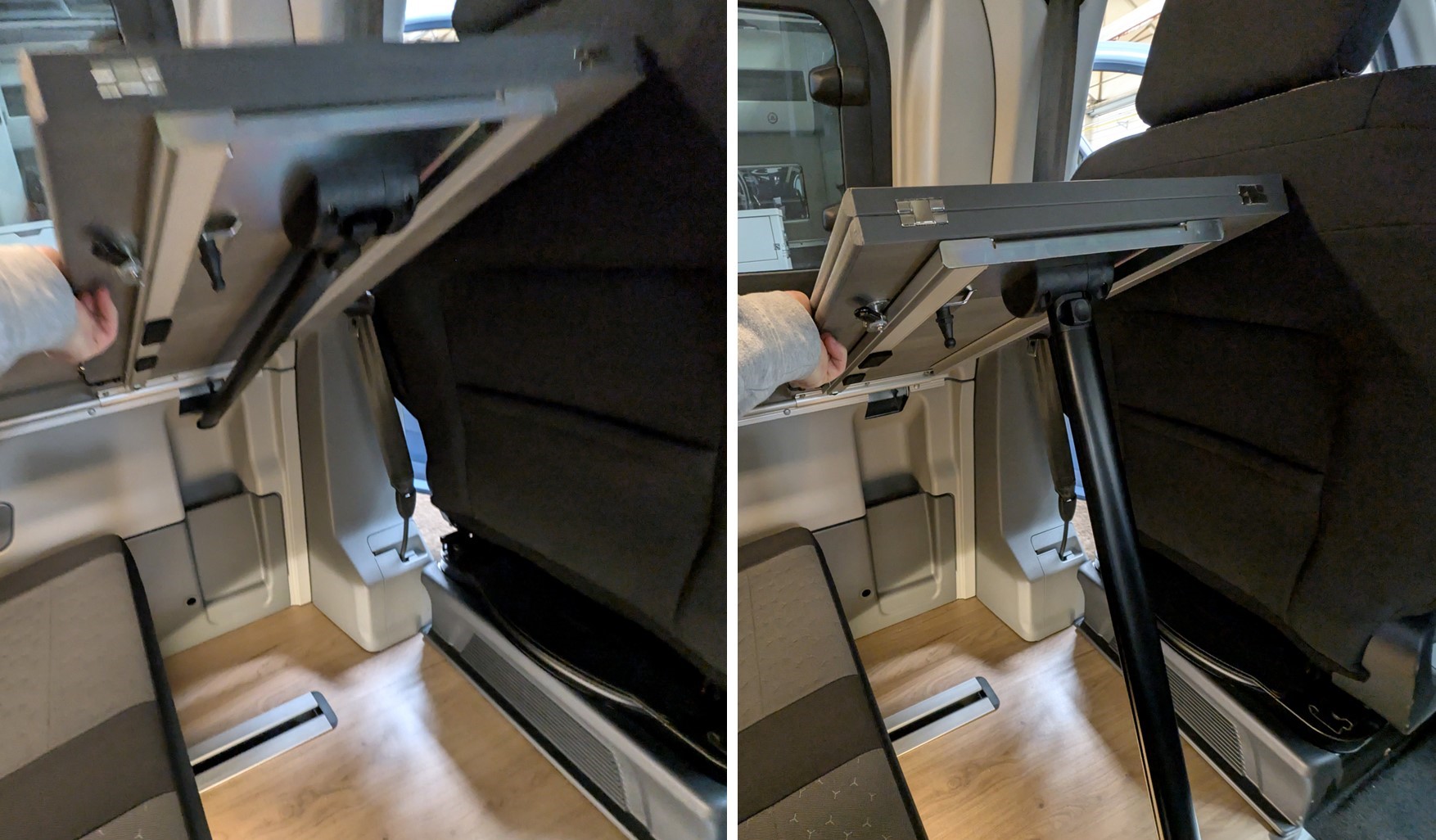

- Swivel the table top upwards and swing out the table support leg until you hear it click into place.

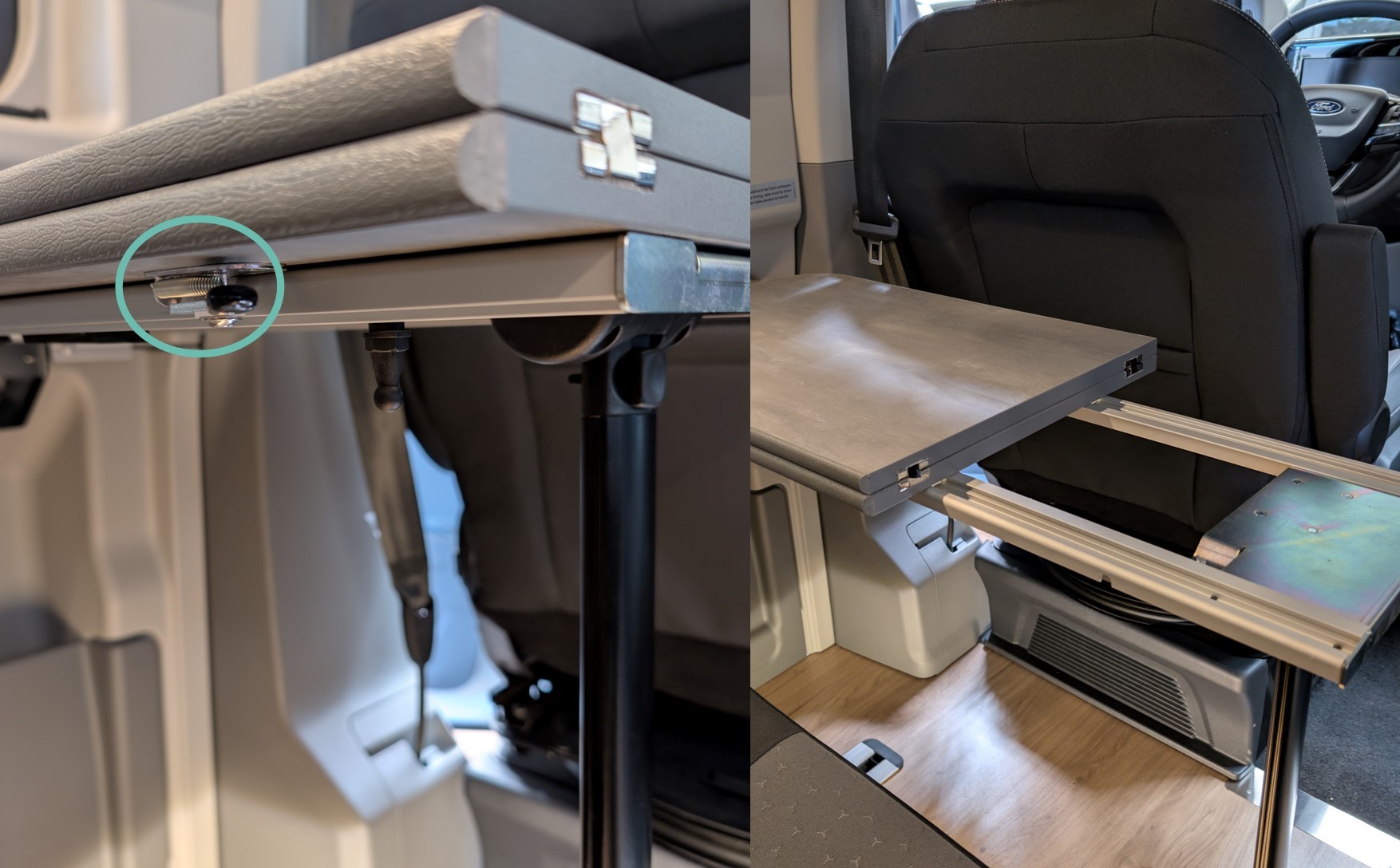

- To extend it to a larger table, loosen the lock and pull out the frame extension completely.

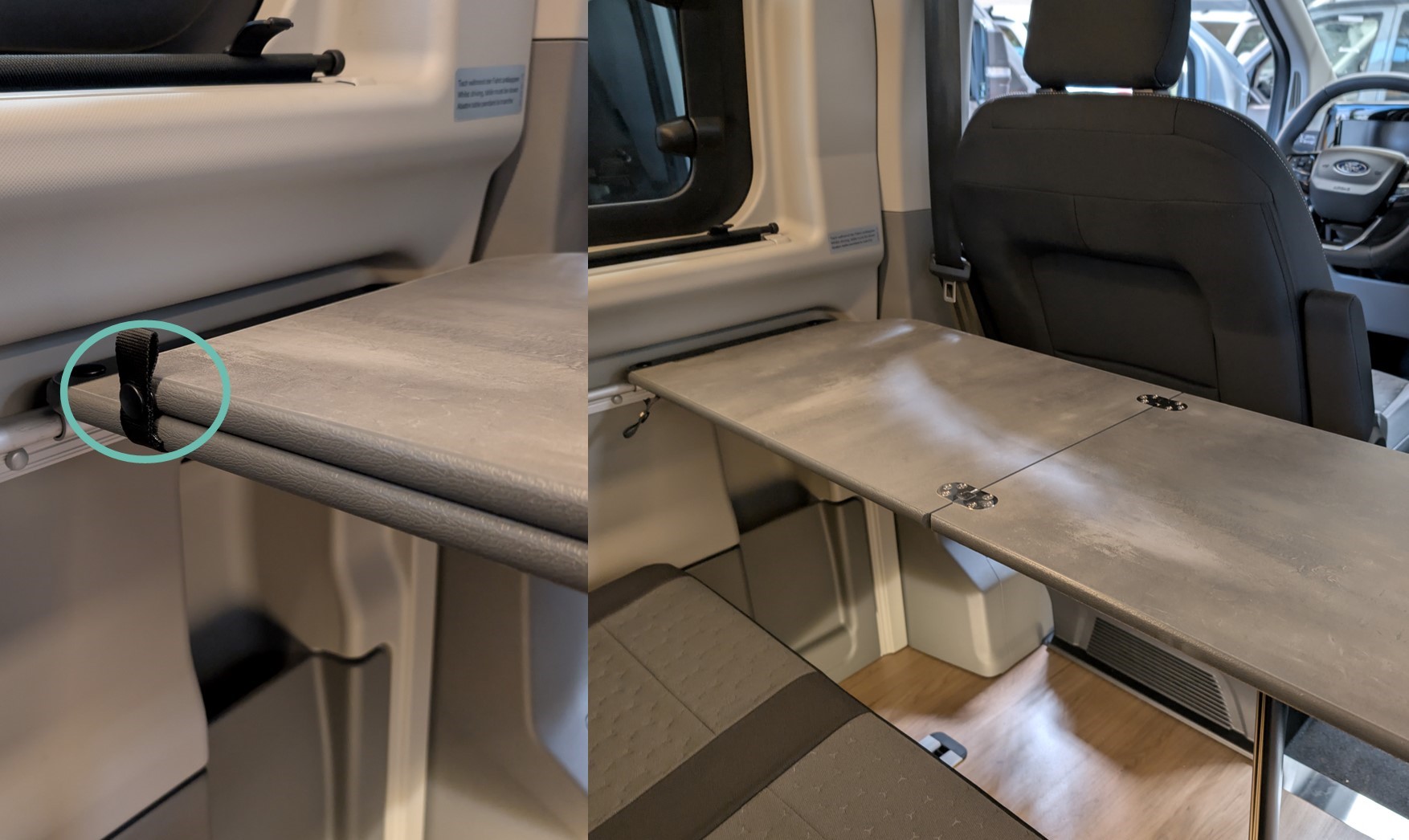

- Open the strap and fold the upper table-top onto the frame extension.
See the video explanation here:
The table is stored on the sliding door (driver´s side).

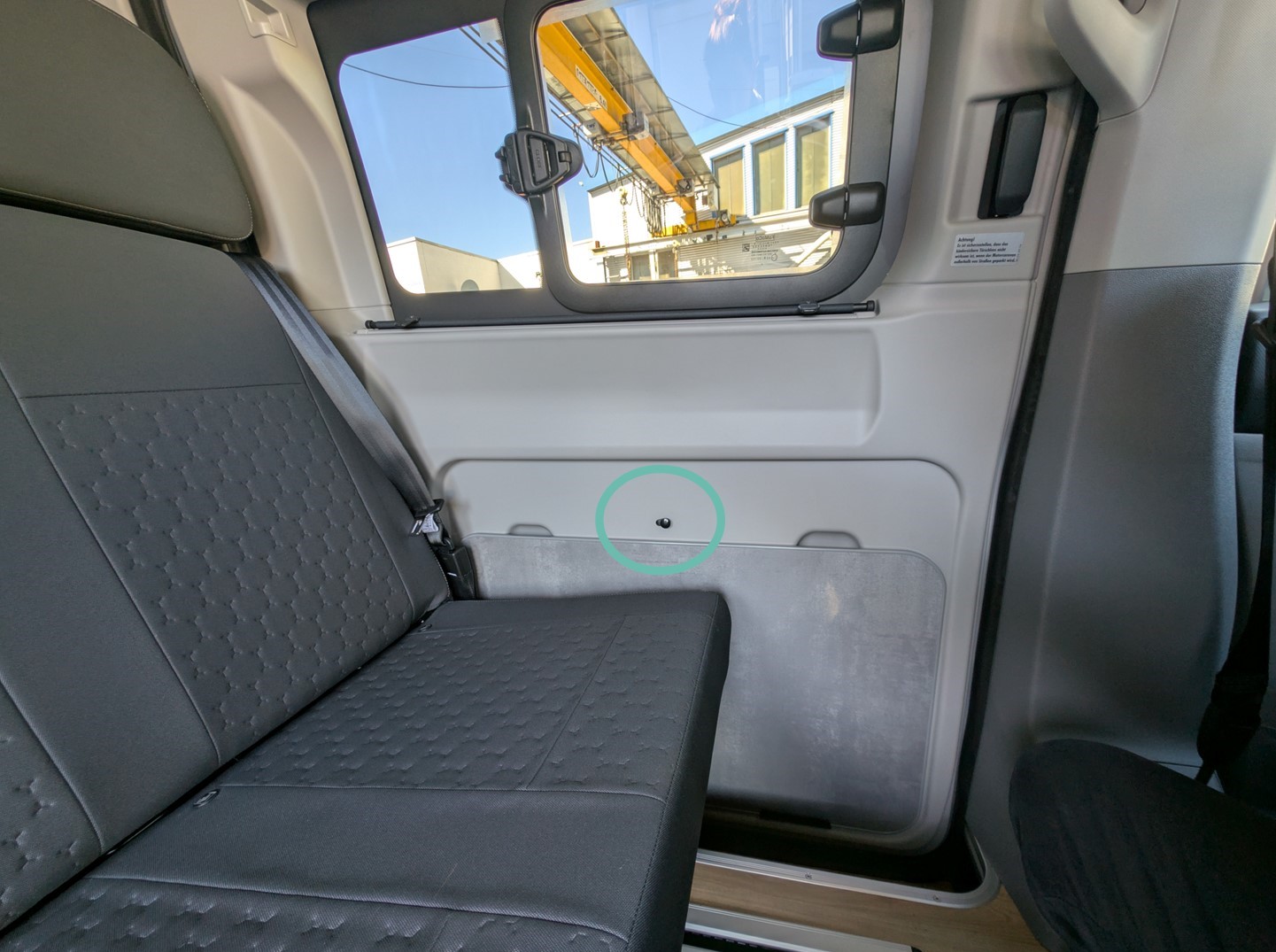

- Move the pin to take out the table top:

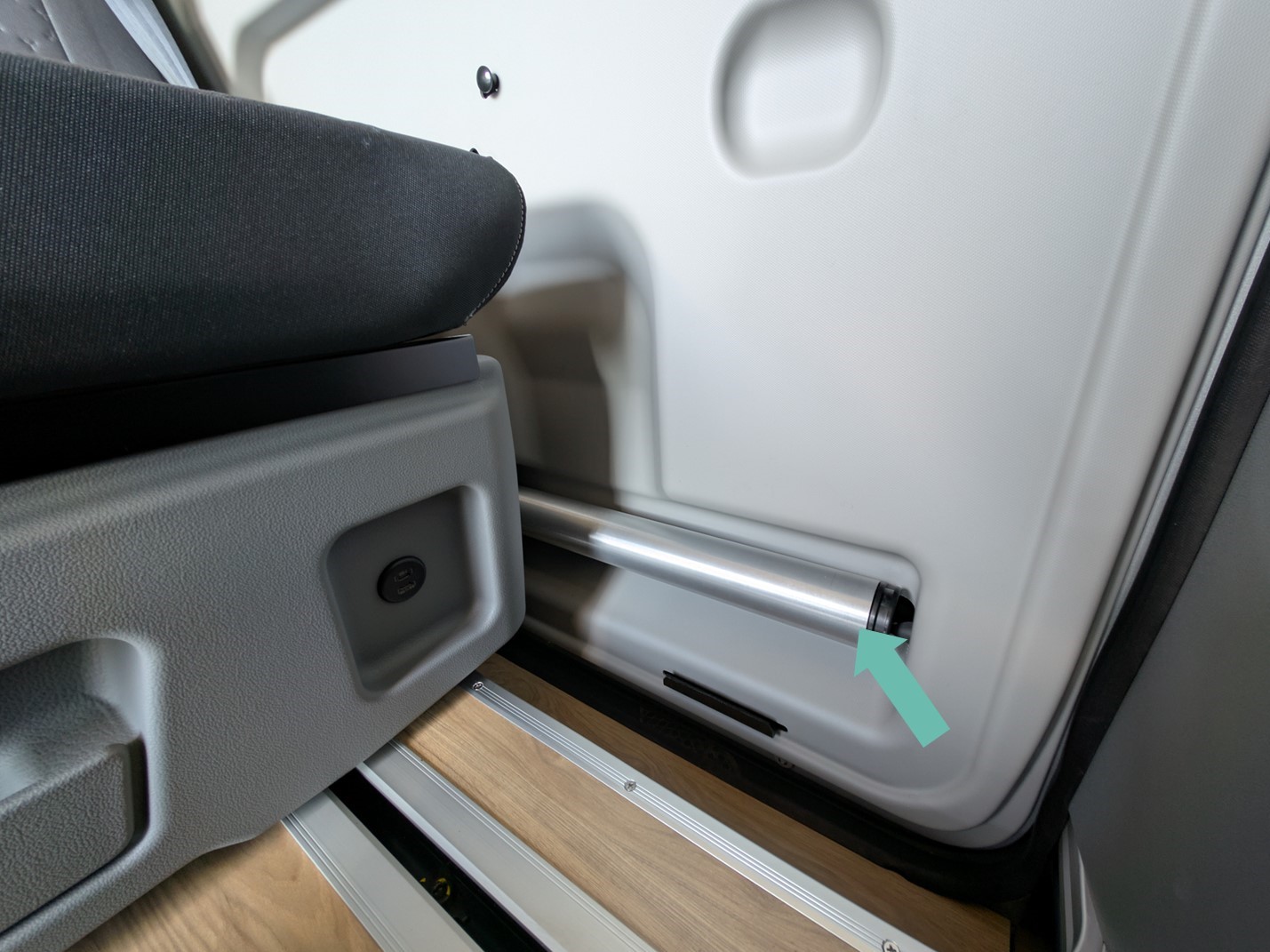

- Also take out the table leg:

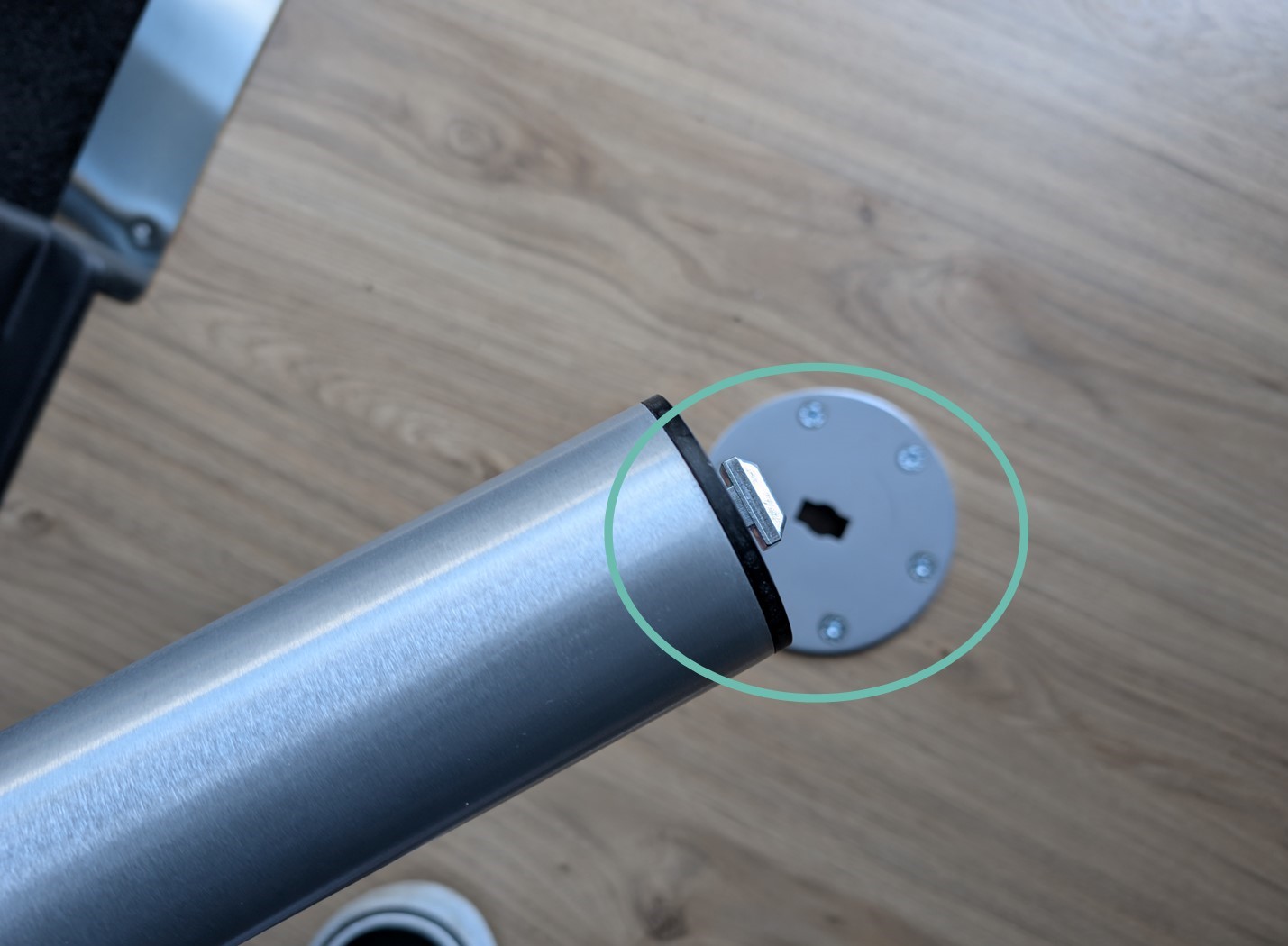

- Place the table leg with the metal pin in the designated holder on the floor and turn it clockwise until it is secure:

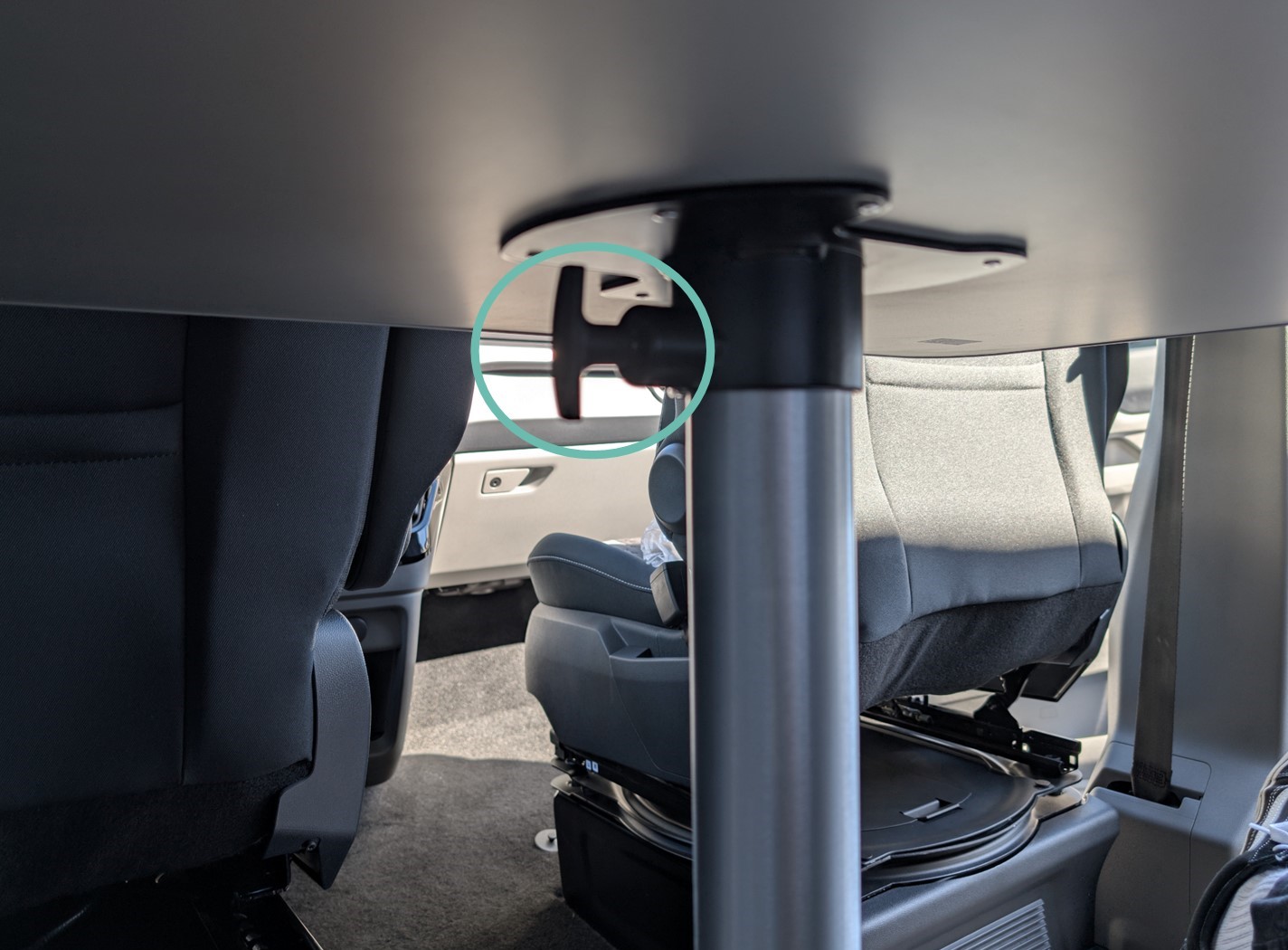

- Place the tabletop on the table leg and turn the marked hand screw clockwise until the table is stable:
You can find the video explanation here:
Fridge door on the top with Camper Display at the rear
The table is stowed away on the passengers' side, next to the rear bench.
- Turn the small black lever to the side to release the table
- Swivel the table top upwards and swing out the table support leg until you hear it click into place.
- To extend it to a larger table, loosen the lock and pull out the frame extension completely.
- Open the strap and fold the upper table-top onto the frame extension.
See the video explanation here:
Fridge door on the top with Camper Display at the front
The table is stowed away on the passengers' side, next to the rear bench.
- Turn the small black lever to the side to release the table
- Swivel the table top upwards and swing out the table support leg until you hear it click into place.
- To extend it to a larger table, loosen the lock and pull out the frame extension completely.
- Open the strap and fold the upper table-top onto the frame extension.
See the video explanation here:
Please note the following:
While driving, the table should be stowed away and properly secured.
