The water system on the Camper Cabin must be activated before use. There is a slight difference between models, so check which one you are driving and then, select the correct instructions from the drop down menus:

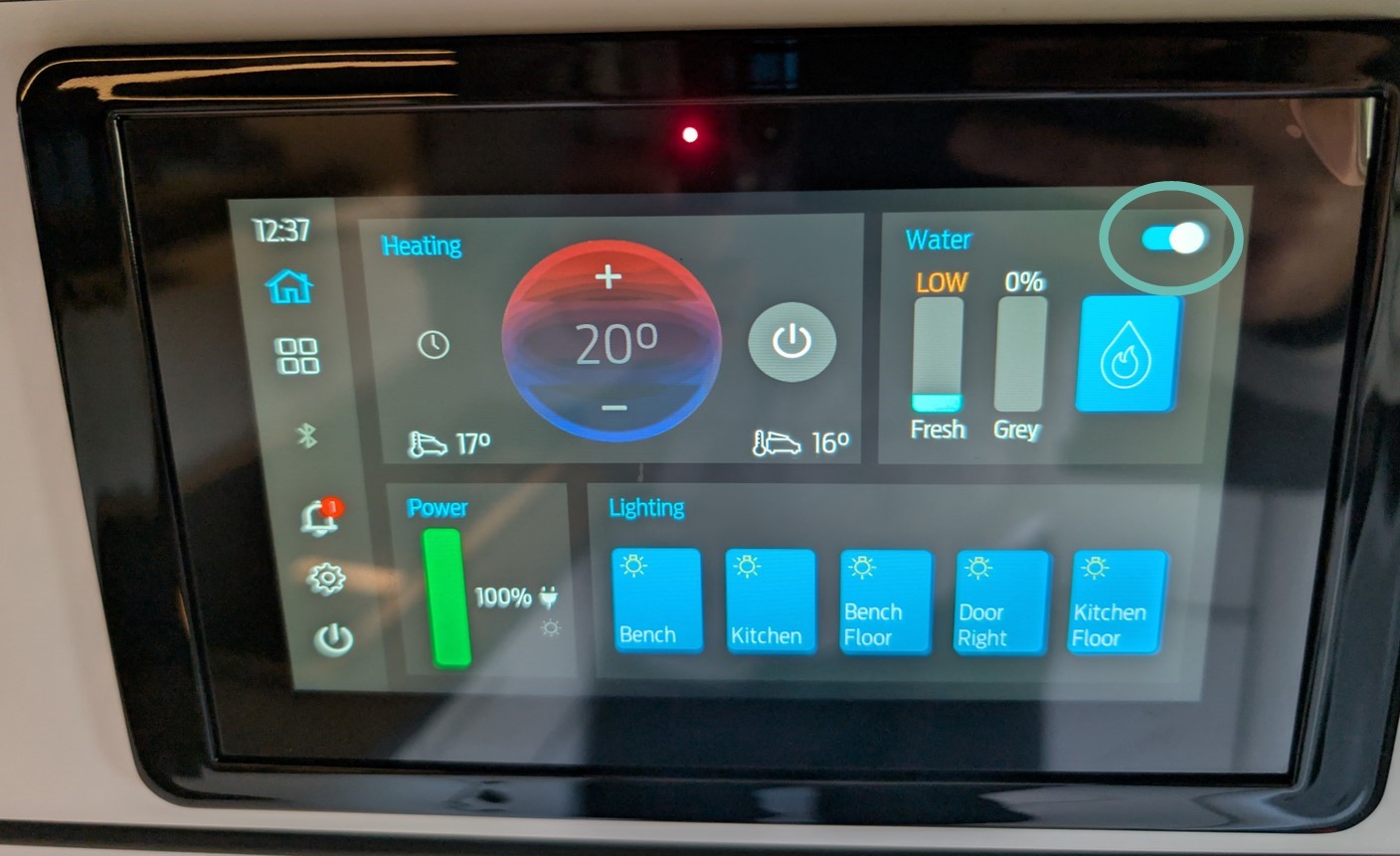

- Activate the water pump using the toggle on the "water" section on the board computer and make sure you have enough water in the fresh water tank:

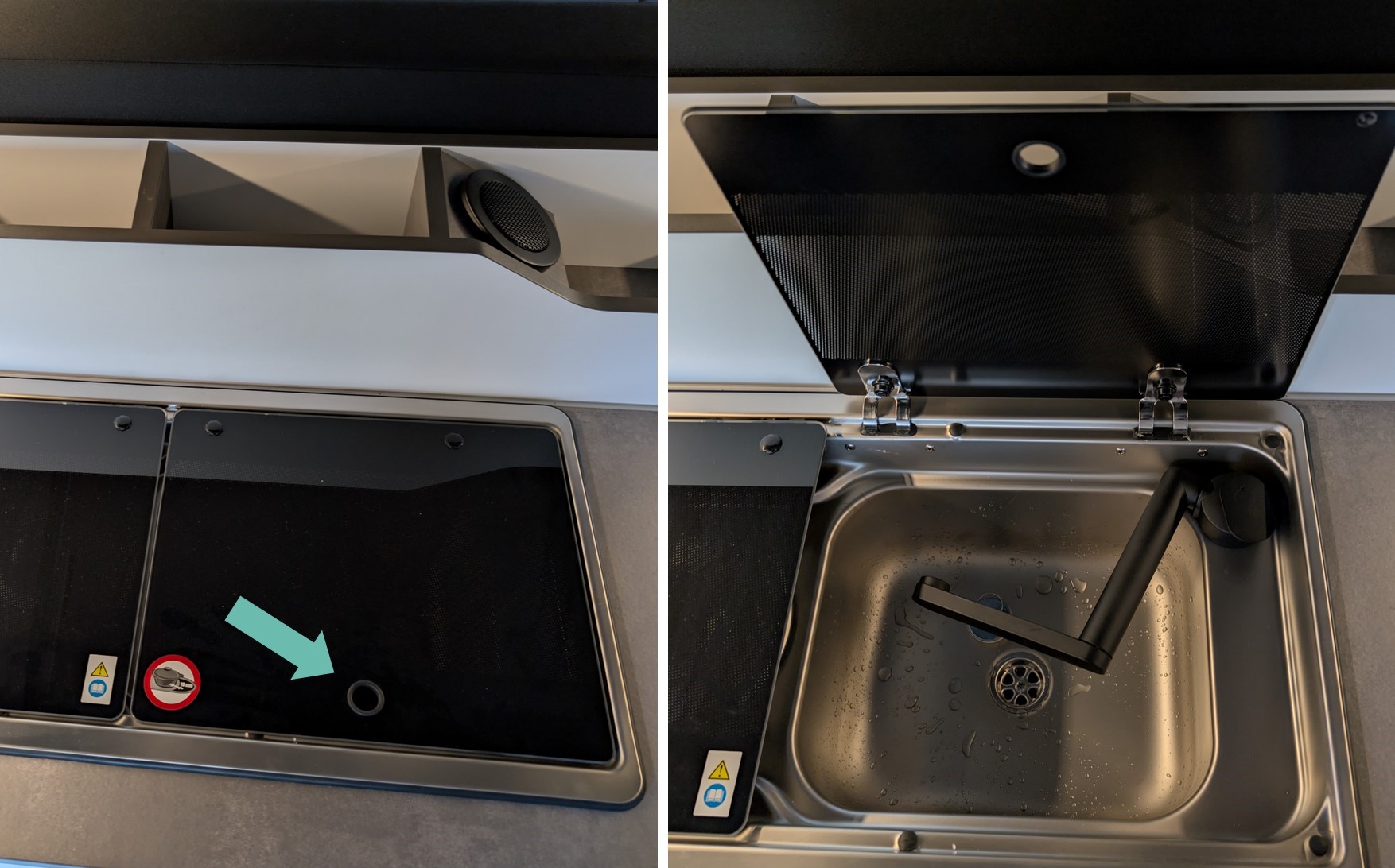

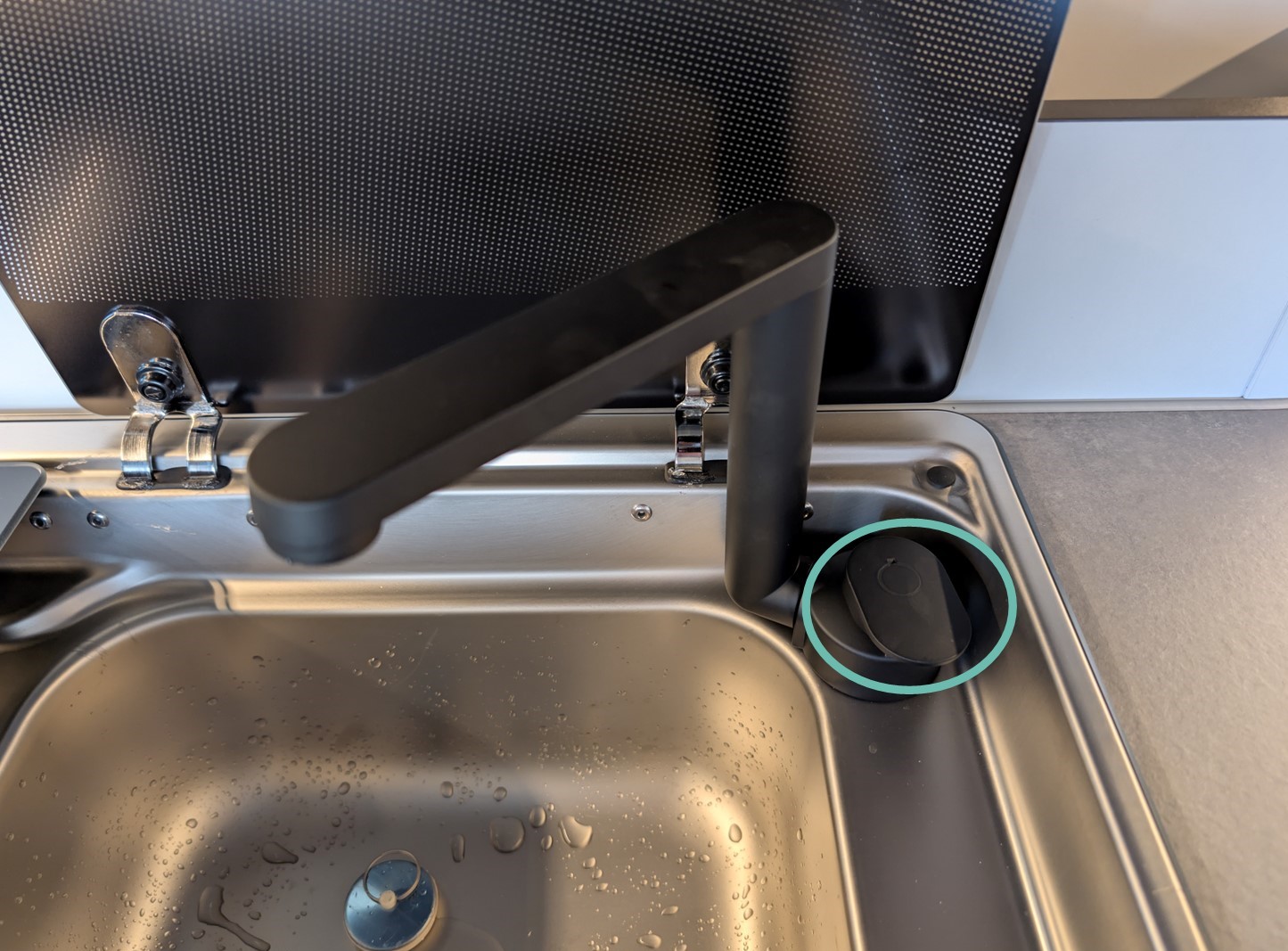

- When the fresh water tank is sufficiently filled and the water pump is activated, open the glass cover of the sink:

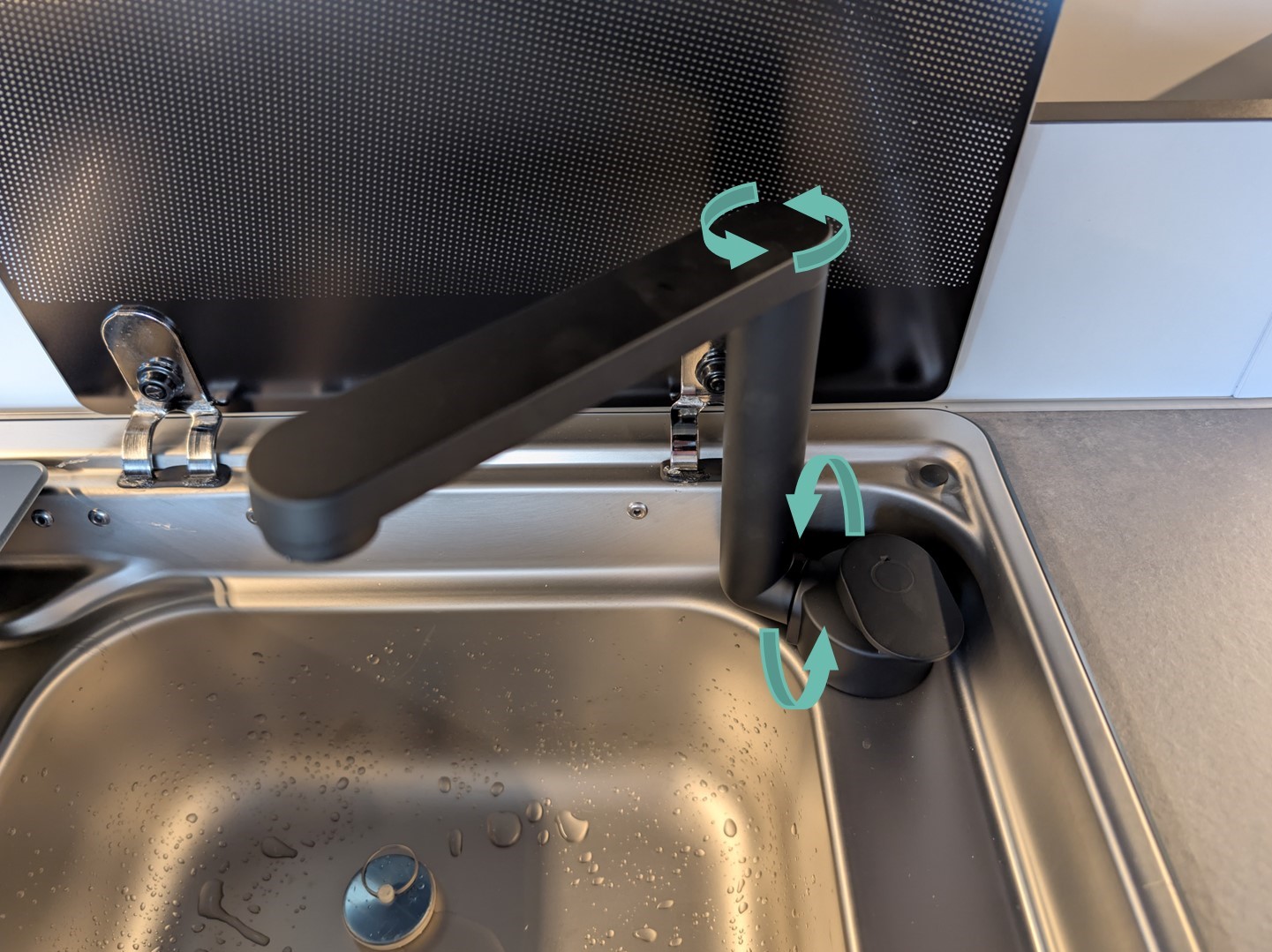

- Turn the tap to the correct position:
- Use the water tap as usual:
Once you are done, switch off the water pump to avoid any damage to it.
The water that drains into the kitchen sink goes into the waste water tank. Remember to empty the grey water tank when the camping indicator shows that it is full.
You can find the video explanation here:
- Activate the board computer by touching the screen.

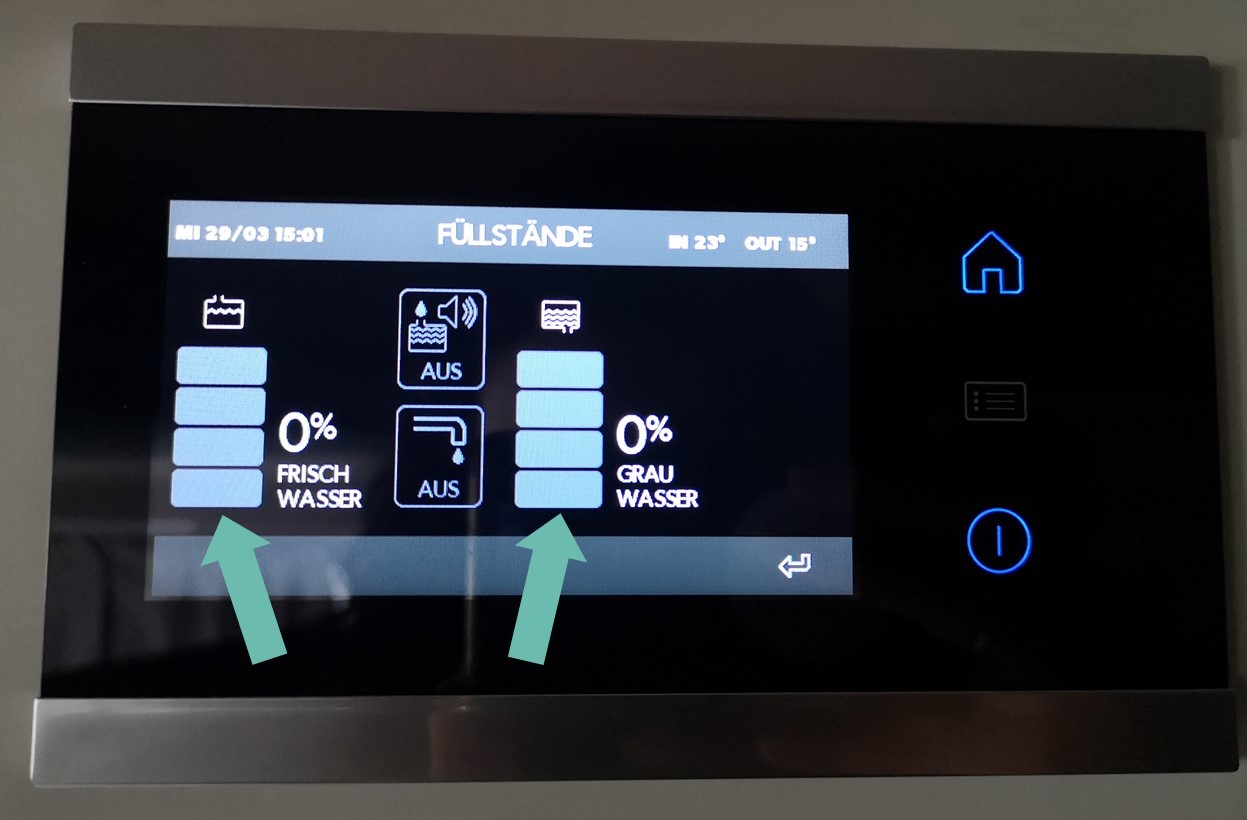

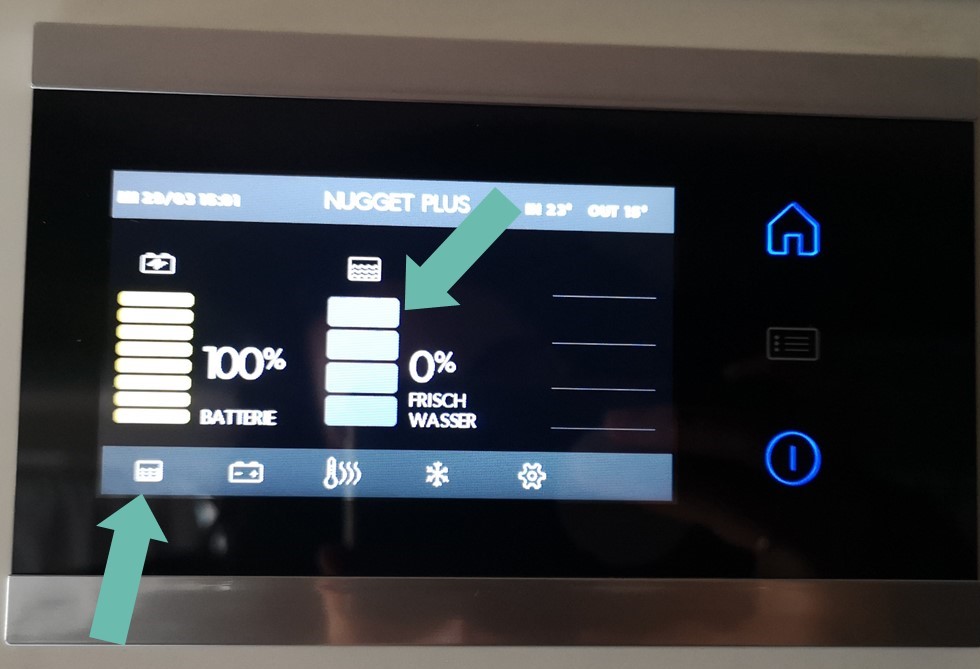

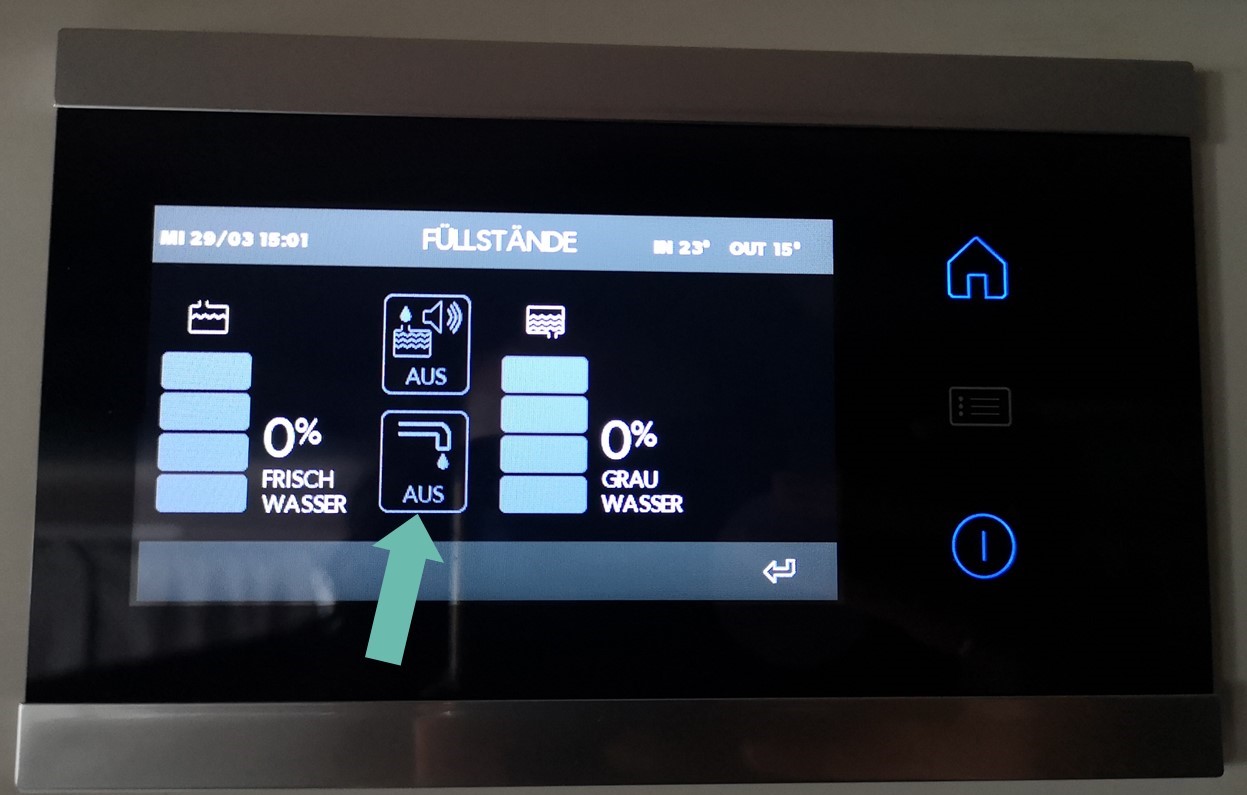

You can check the fresh water tank level on the main screen or press the tank symbol at the bottom left for more information, e.g. gray water tank level: - To activate the water pump press the tank symbol at the bottom left on the board computer and press the tap symbol:

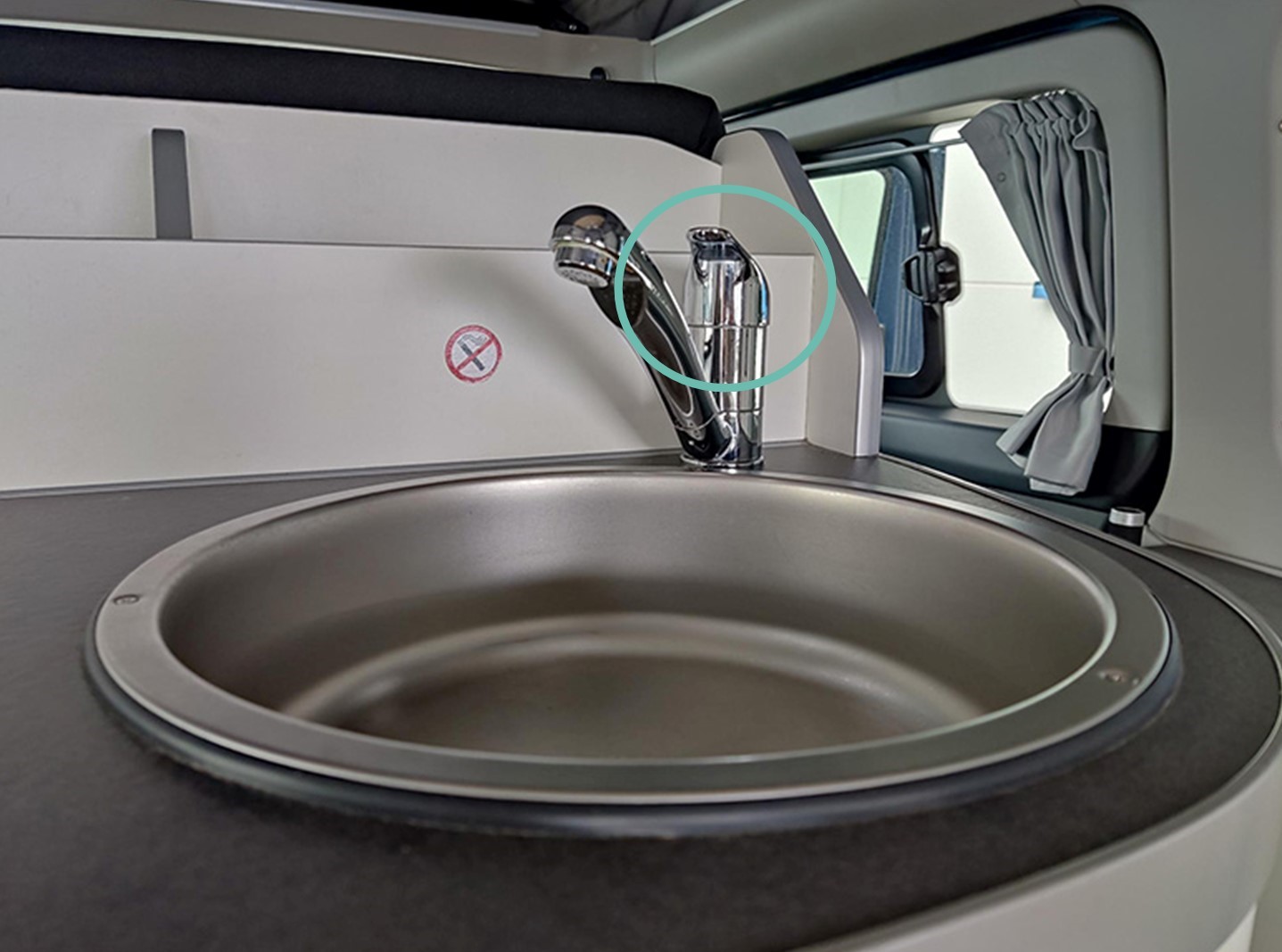

- When the fresh water tank is sufficiently filled and the water pump is activated, open the water tap as usual:
Once you are done, switch off the water pump to avoid any damage to it.
The water that drains into the kitchen sink goes into the waste water tank. Remember to empty the grey water tank when the camping indicator shows that it is full.

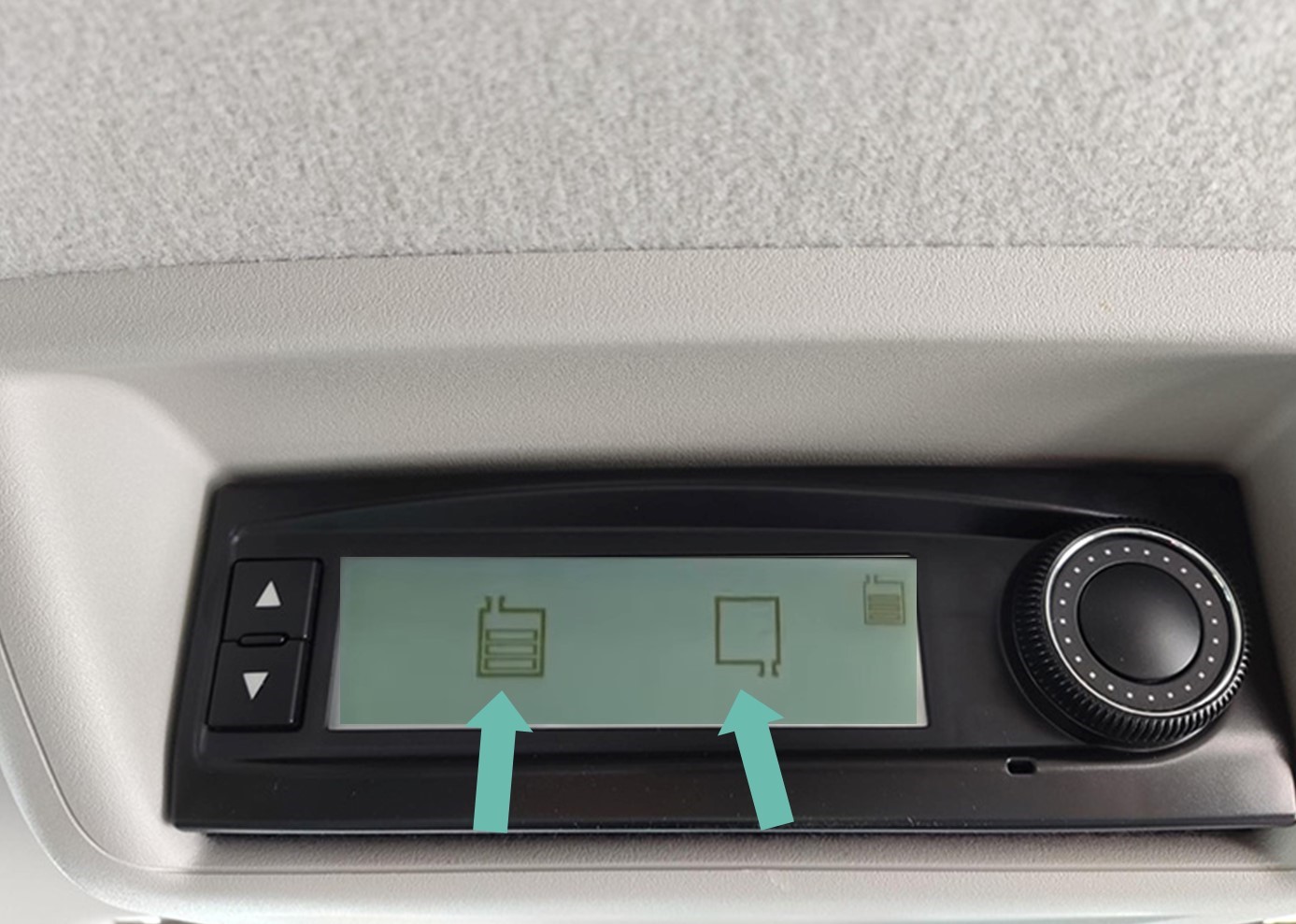

- Activate the board computer by pressing the button. By turning the knob, you can switch between the various menu items. Select the menu item with the water tank and press the button:

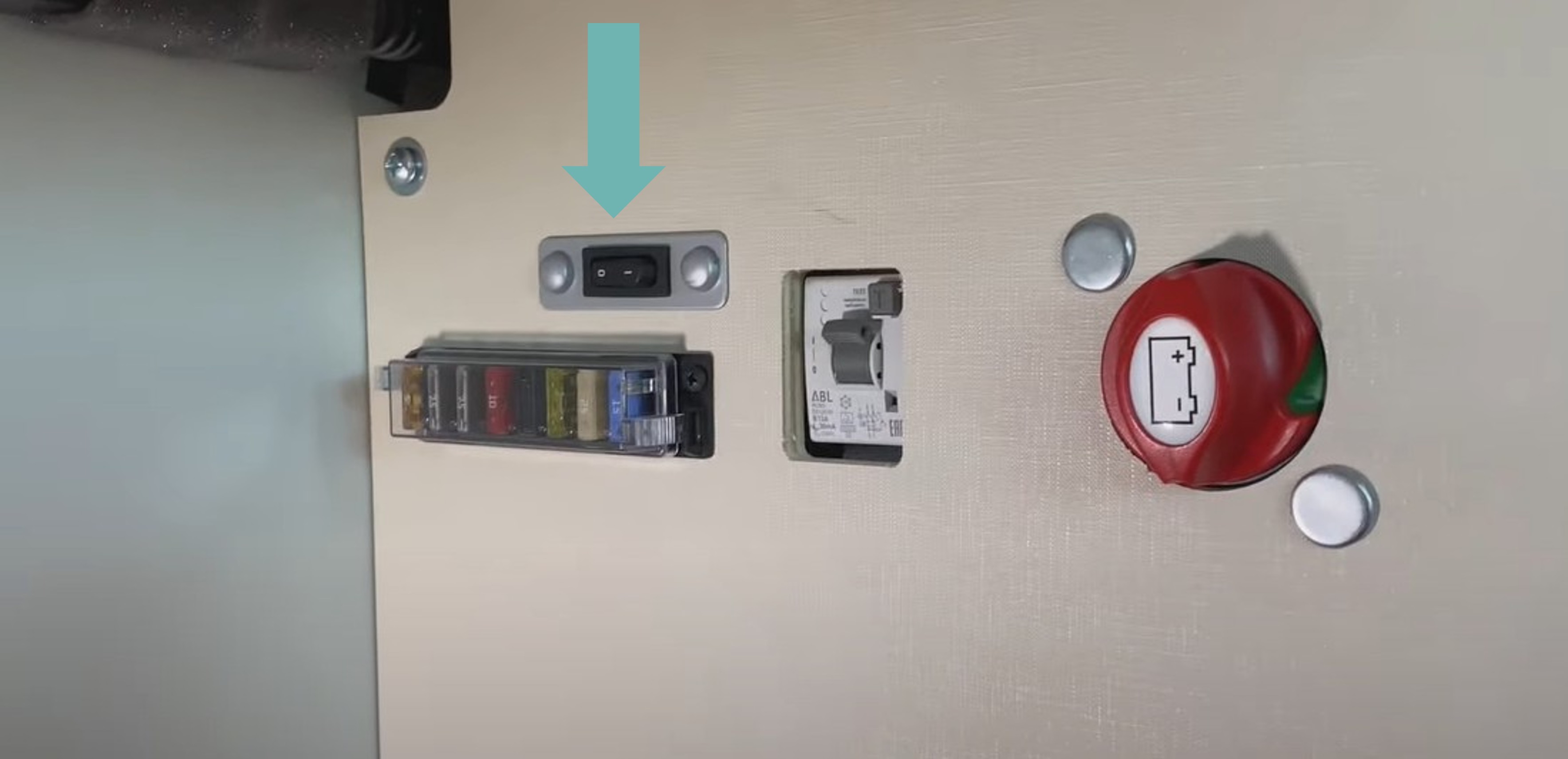

You will see the level of the fresh water tank (left) and the waste water tank (right). - To activate the water pump press the water pump switch in the storage compartment under the sink:
- When the fresh water tank is sufficiently filled and the water pump is activated, open the water tap as usual:
Once you are done, switch off the water pump to avoid any damage to it.
The water that drains into the kitchen sink goes into the waste water tank. Remember to empty the grey water tank when the camping indicator shows that it is full.
See the explanatory video here:
