To change the gas bottle (2.75kg) in the Travel Home (Mercedes Marco Polo), several steps must be followed to ensure safe handling:
- Close the safety lever located in the kitchen
- Go to the trunk of the car and open the rear wardrobe
- Remove the shelf on the very bottom

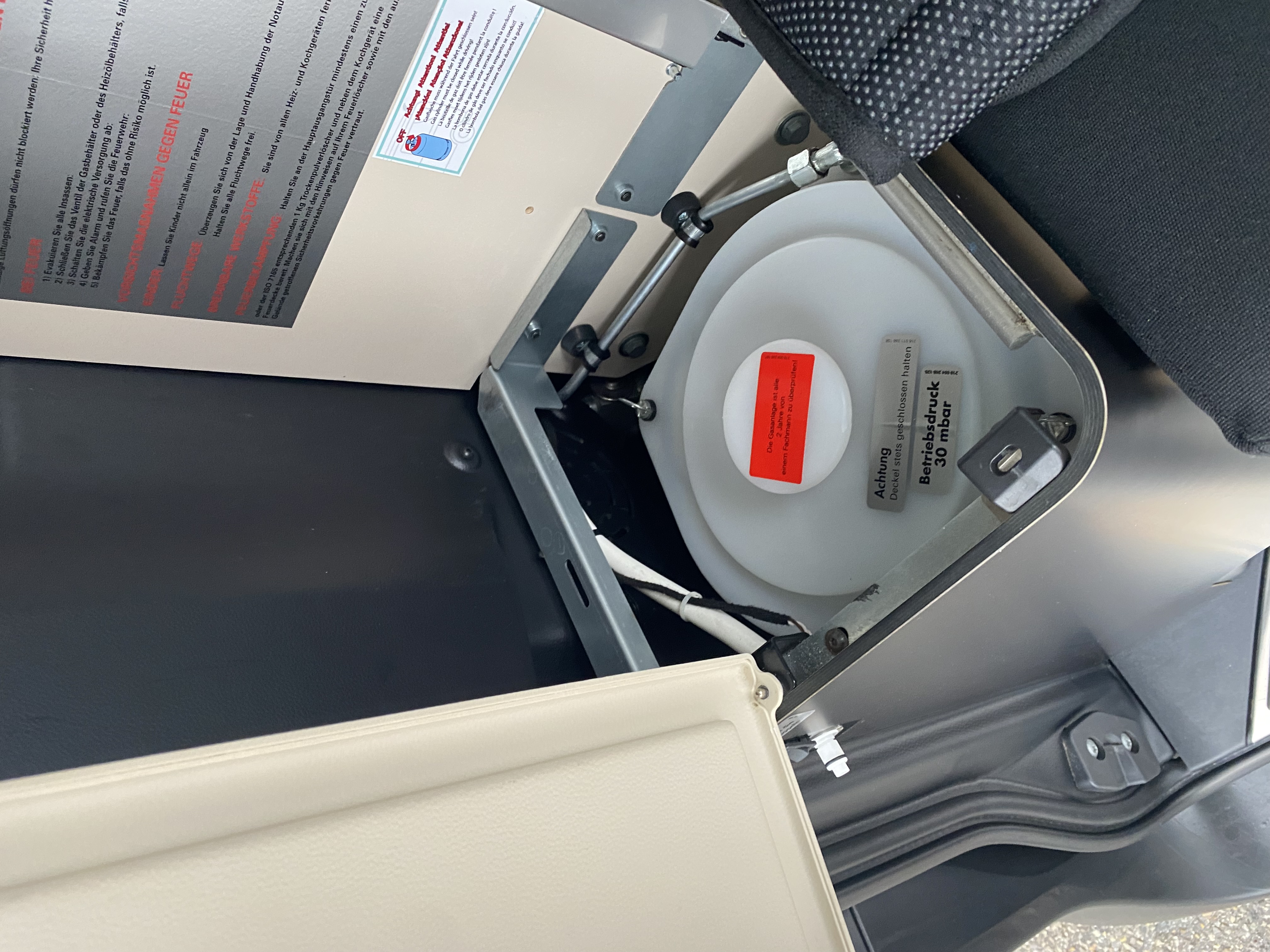

- Open the white screw cover. The gas bottle compartment is accessible now:

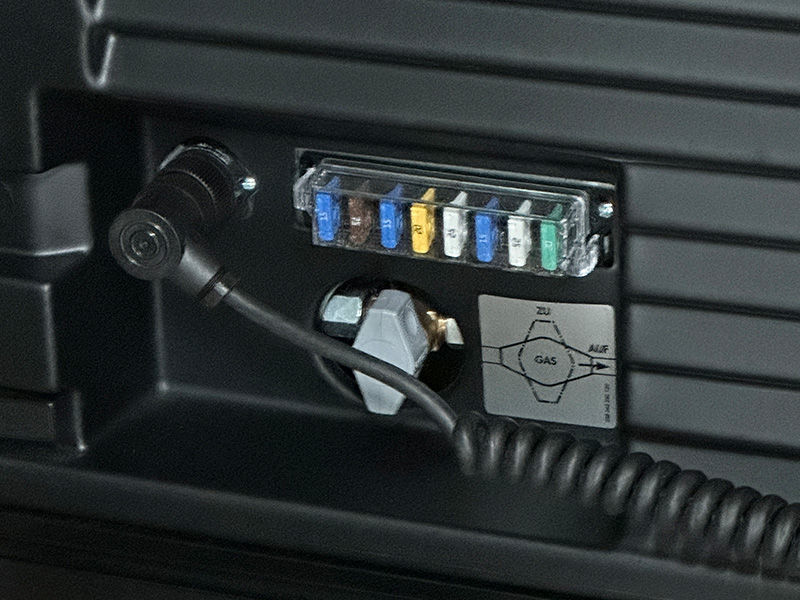

- Turn the gas valve all the way to "-" to close the gas bottle:
- Loosen the straps around the bottle
- Loosen the grey metal connector from the bottle
- Extract the bottle from the compartment
- Remove the brass colored adapter and screw it on to the new bottle
- Place the new bottle in the compartment and attach it to the tube using the connector. Make sure it sits correctly and tightly
Here you can find more information on the topic: What to do when the gas bottle is empty?
