Here you can find out how to convert the rear seat bench of your Camper Cabin into a bed. There are slight differences between the individual models, so check which one you are driving and then select the correct instructions from the dropdown menus:
Drawer fridge
- Move both the driver’s and passenger’s seats all the way forward.
- Move the lever on the right side of the seat and pull the rear seat all the way forward.
- Move the lever in the middle and lift the seat up.
- Pull the raised seat up and towards you to lower the backrest of the seat.

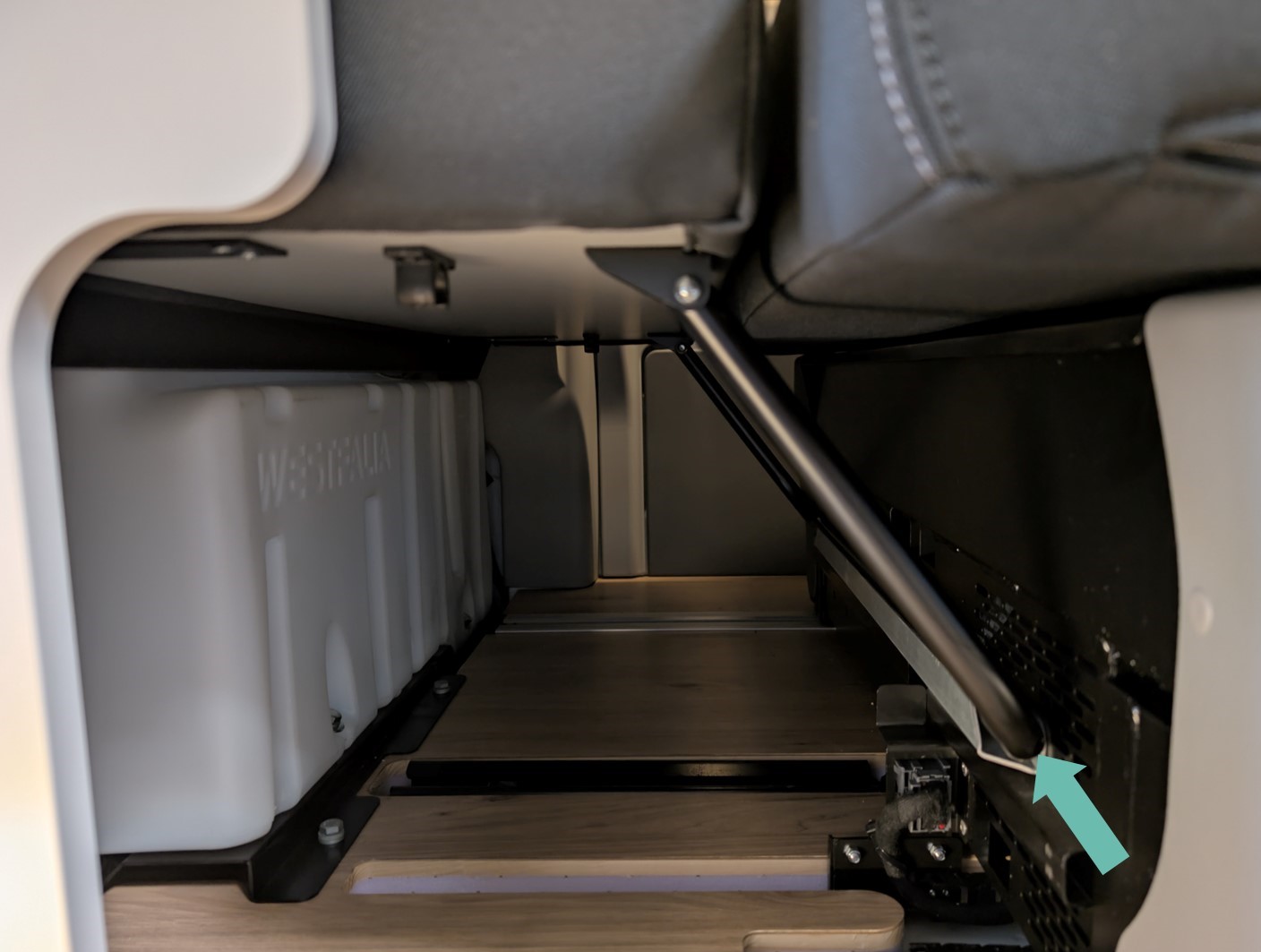

- Fold up the padding under the kitchen unit and let the bar engage in the rail on the rear seat.
- Place it in the rail attached to the rear seat
You can find the video explanation here:
Fridge door at the top with Camper Display at the back
Folding the rear seat bench
- Move the driver’s and passenger’s seats forward (rotate if necessary)

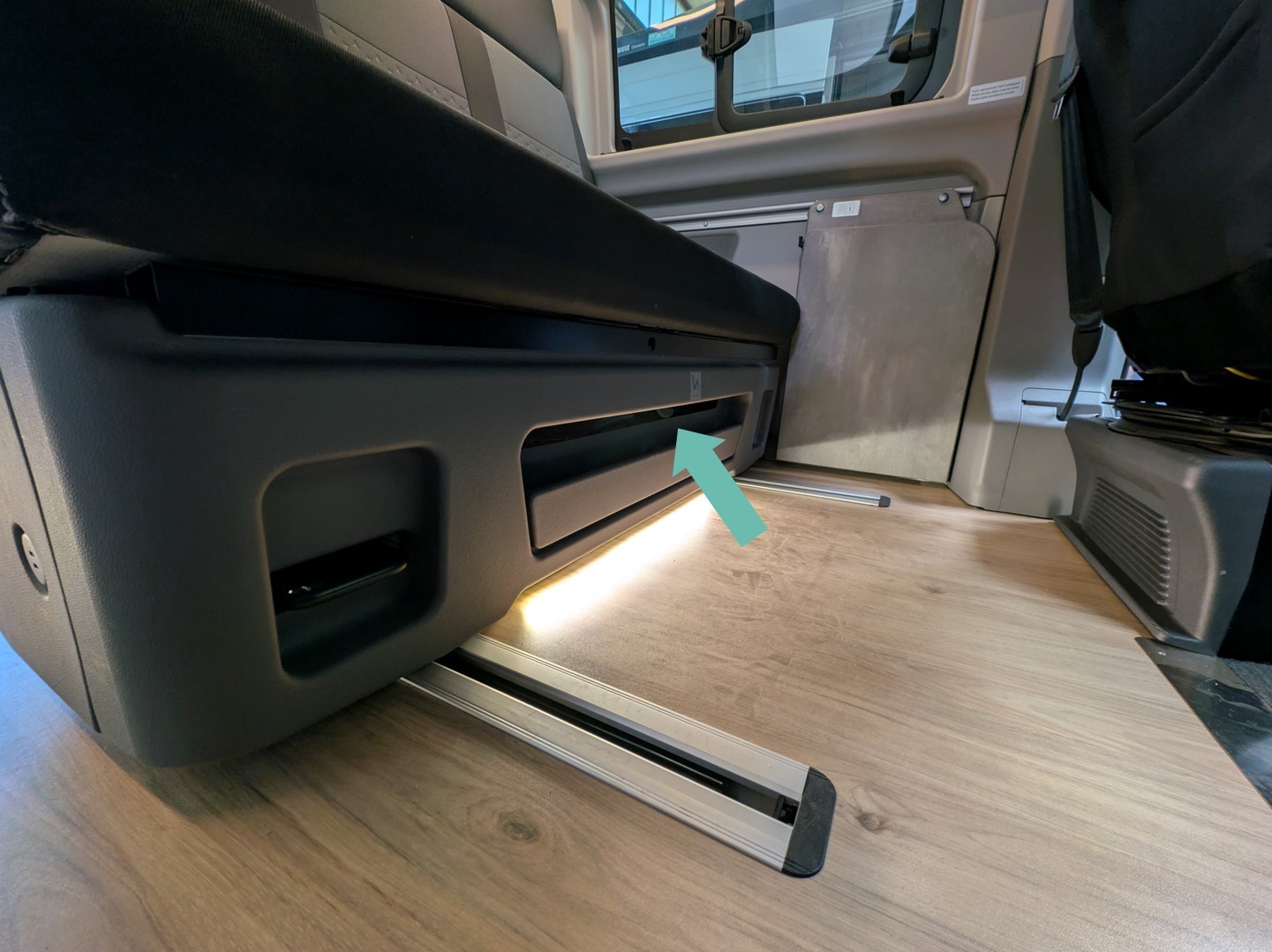

- Sit on the rear seat and, to move it all the way forward, push the lever at the bottom left of the bench to the left
Attention: Release the seat belts! - Fold up the padding under the kitchen unit and let the bracket engage in the rail on the rear seat

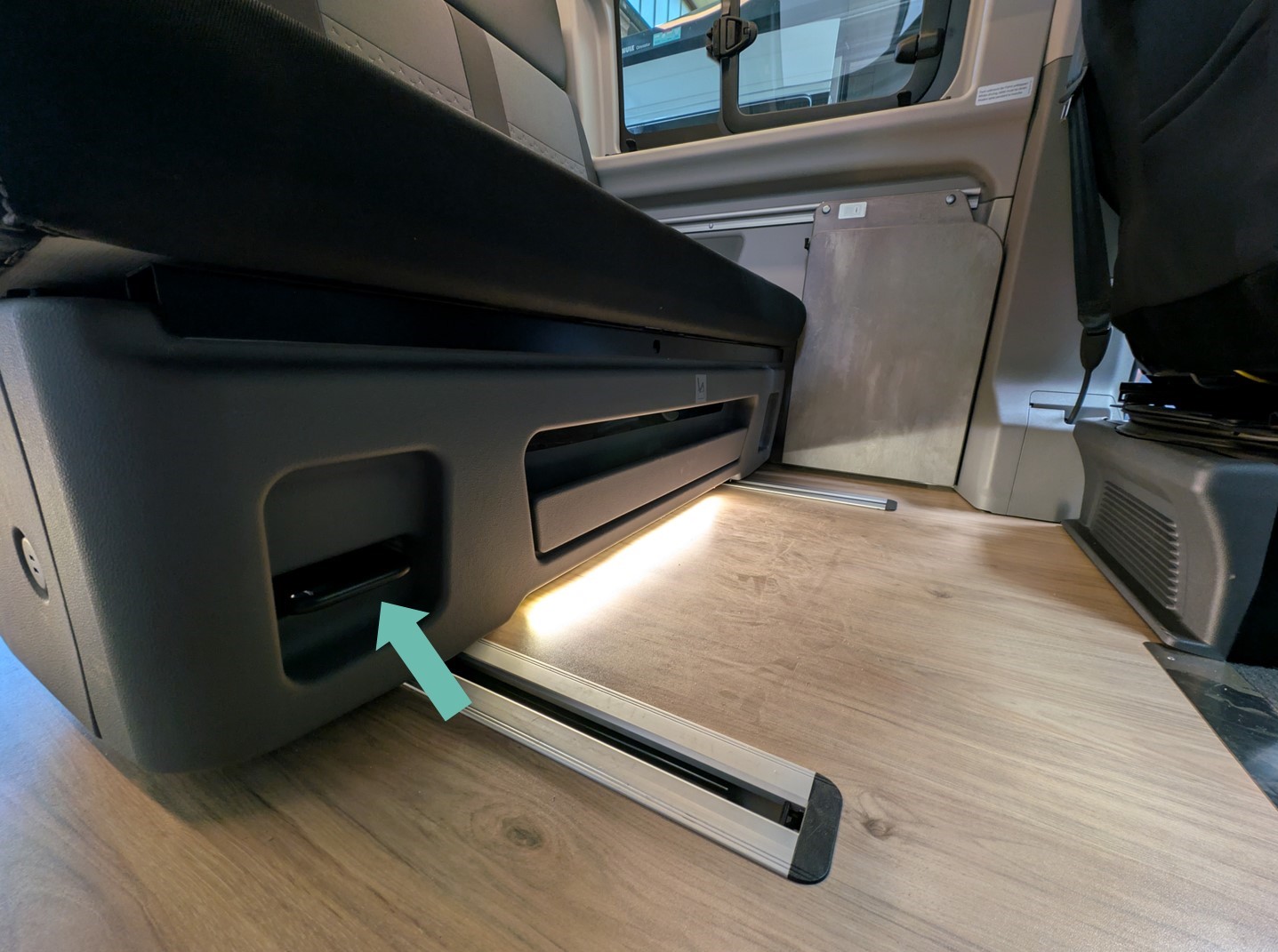

- At the front of the rear seat, push the right lever to the left and lift the seat cushion at the front edge
- Pull the seat cushion and backrest forward (the surfaces are almost vertical)
- Then lower both surfaces flat at the same time to create a lying surface
Click here to go directly to the explanation video:
Fridge door at the top with Camper Display at the front
Folding the rear seat bench
- Move the driver’s and passenger’s seats forward (rotate if necessary)
- Sit on the rear seat and, to move it all the way forward, push the lever at the bottom left of the bench to the left
Attention: Release the seat belts! - Fold up the padding under the kitchen unit and let the bracket engage in the rail on the rear seat
- At the front of the rear seat, push the right lever to the left and lift the seat cushion at the front edge
- Pull the seat cushion and backrest forward (the surfaces are almost vertical)
- Then lower both surfaces flat at the same time to create a lying surface
Click here to go directly to the explanation video:
