To change the gas bottle (2.75kg) in the Sunrise Suite), several steps must be followed to ensure safe handling:

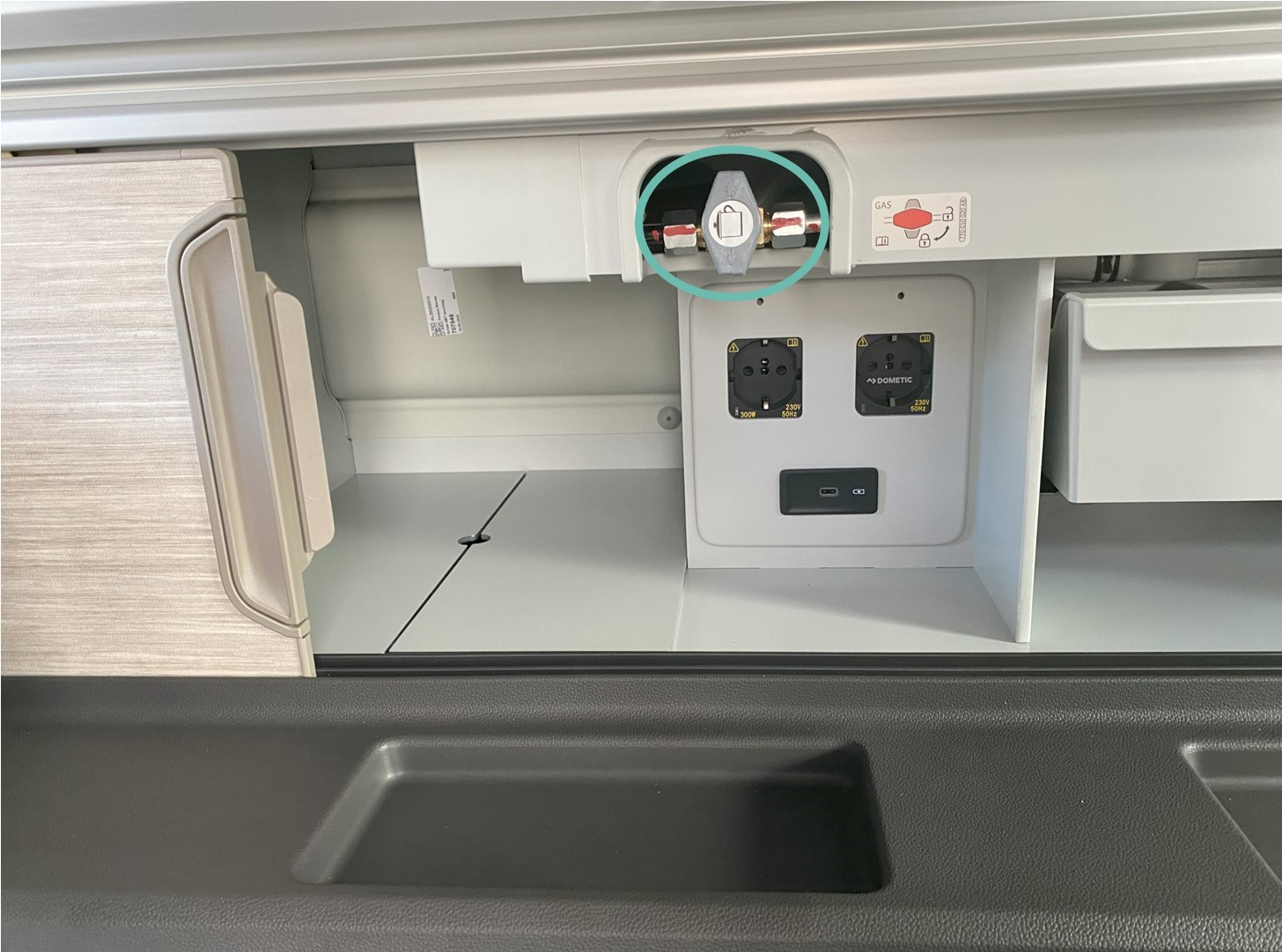

- Close the safety lever located inside the kitchen cabinet:
- The gas compartment is located in the boot on the driver's side under the bed frame.

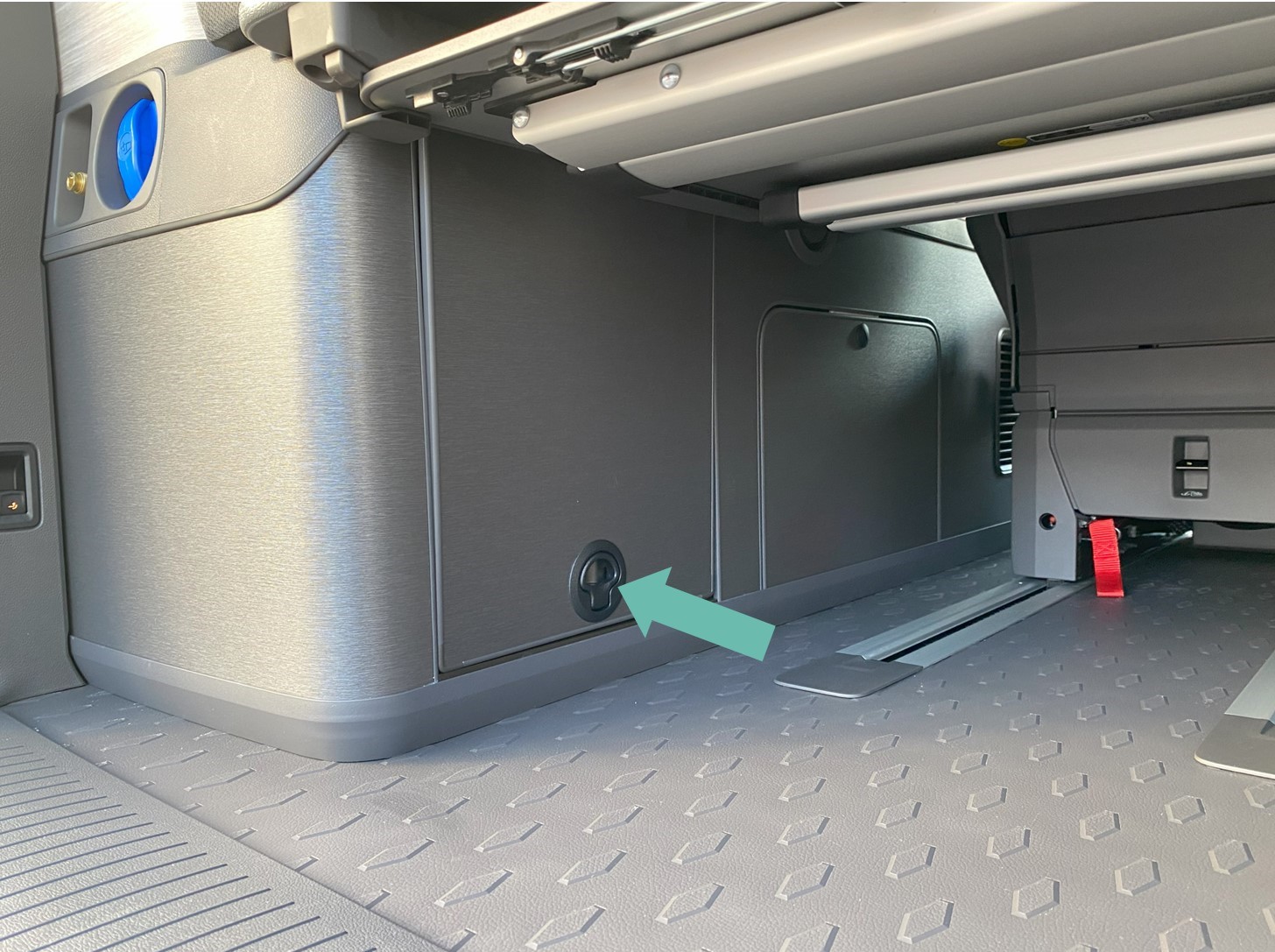

- Pull the opener and remove the wooden cover:

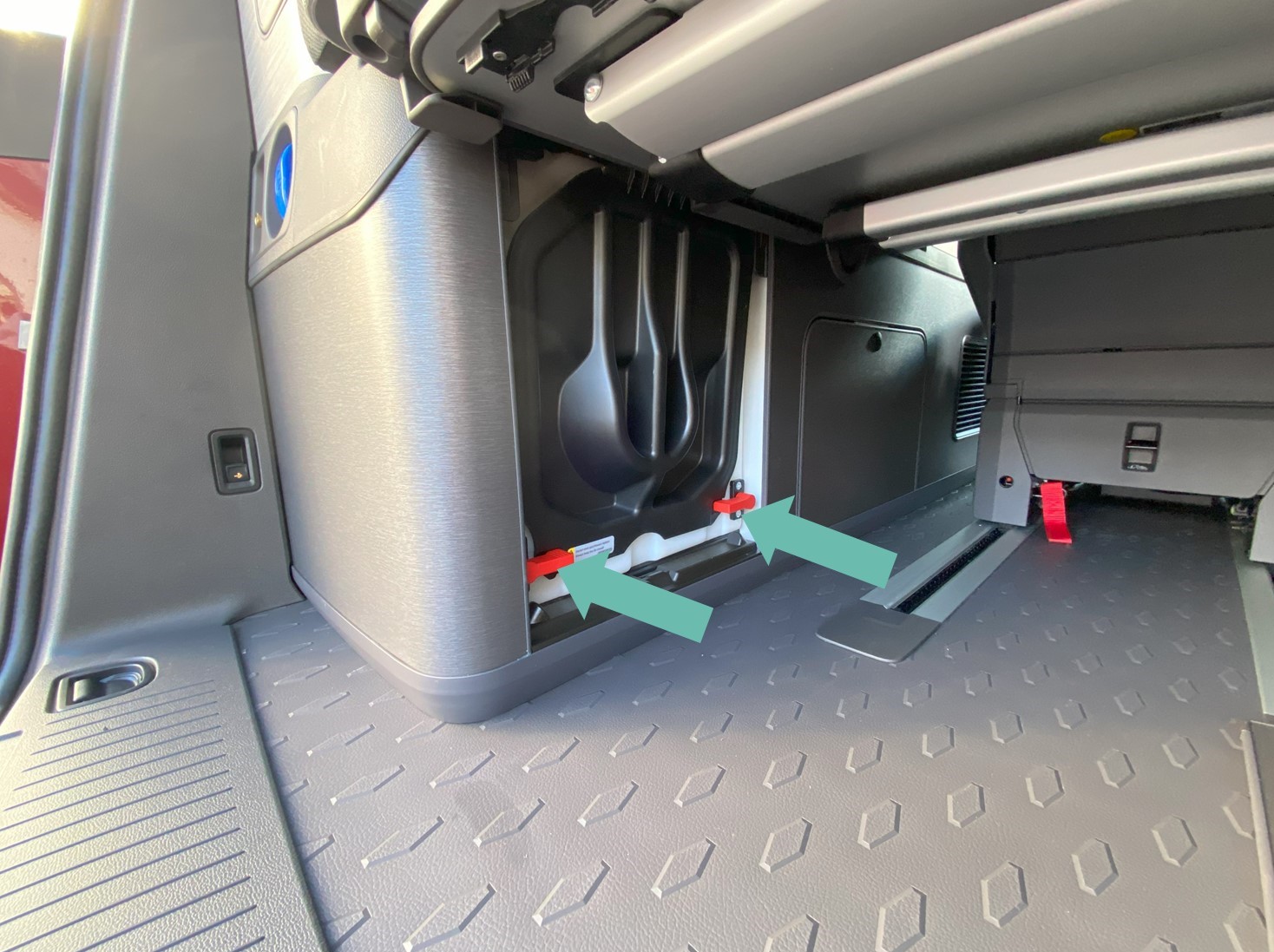

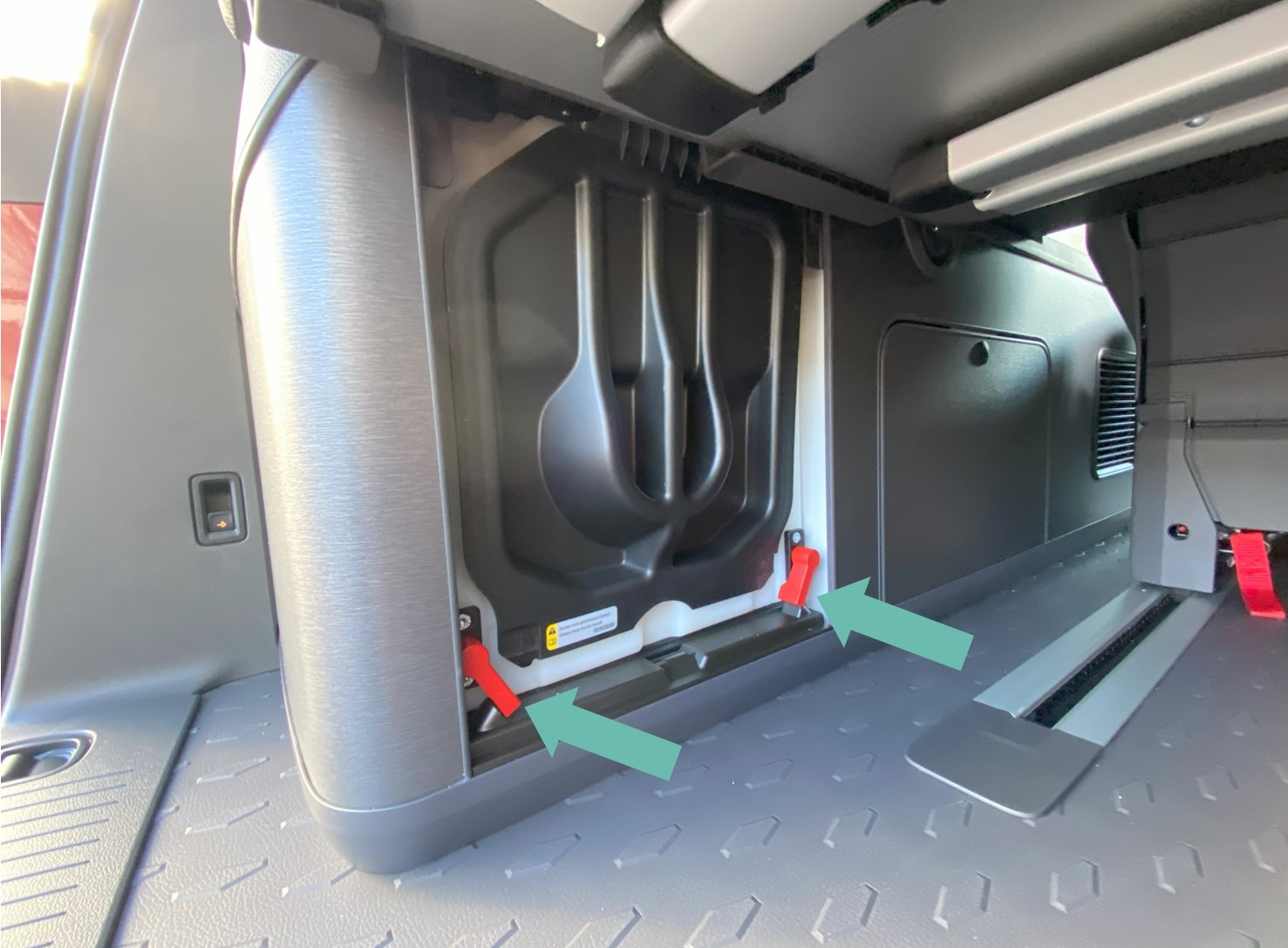

- Turn both red latches to the side to remove the plastic cover:

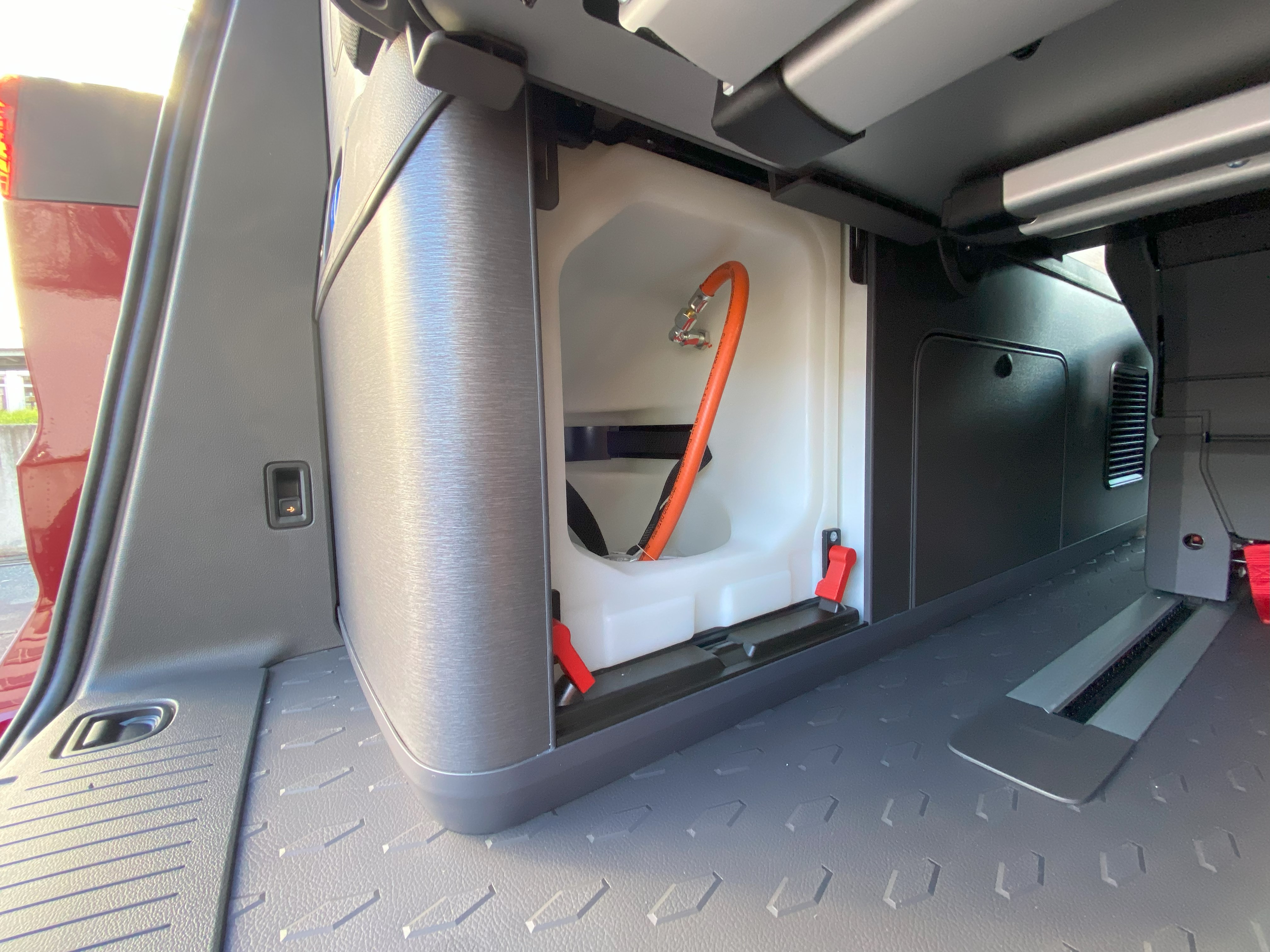

- Open the brass-colored gas cylinder valve: (Picture with gas cylinder follows)
- Turn the gas valve all the way to "-" to close the gas bottle:
- Loosen the straps around the bottle
- Loosen the grey metal connector from the bottle
- Extract the bottle from the compartment
- Remove the brass colored adapter and screw it on to the new bottle
- Place the new bottle in the compartment and attach it to the tube using the connector. Make sure it sits correctly and tightly
Here you can find more information on the topic: What to do when the gas bottle is empty?
Troubleshooting

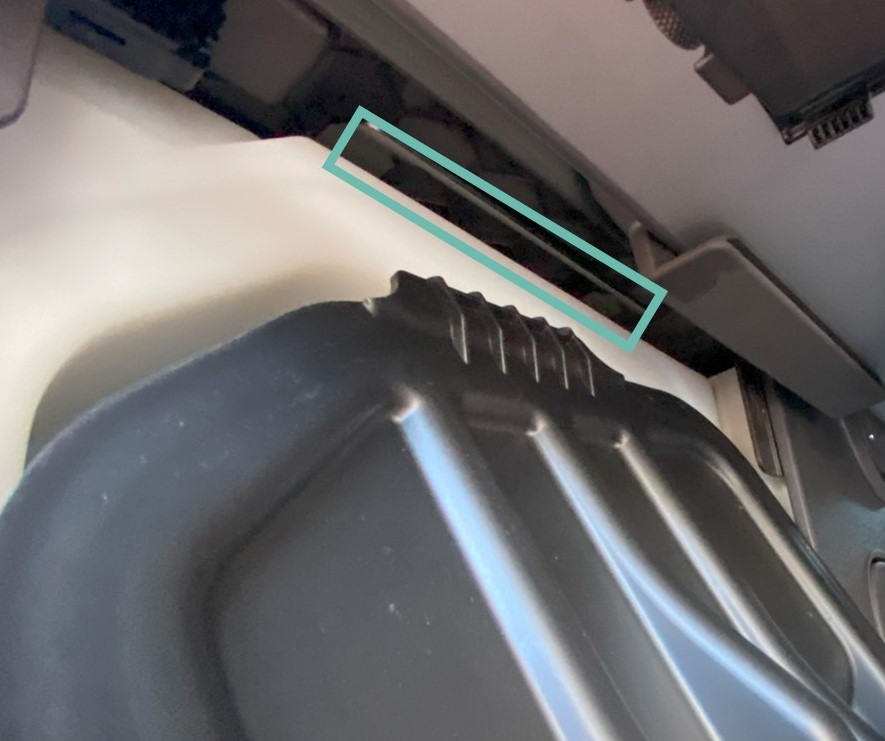

- When closing the gas compartment, make sure to insert the black plastic cover on the upper edge correctly:
