To ensure that all 12V electronic devices work without external power, the camping battery voltage should never fall below 12V (50%).
The light in the Couple Cottage only works when the camper battery is charged or when an external power supply is connected.

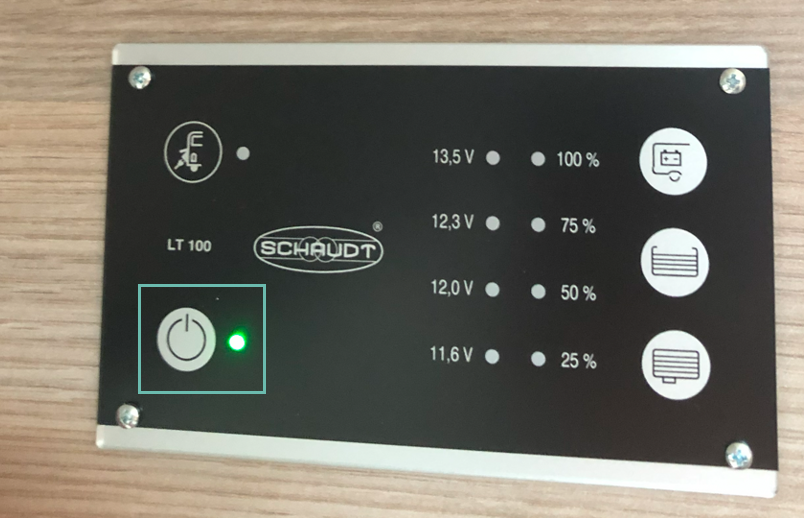

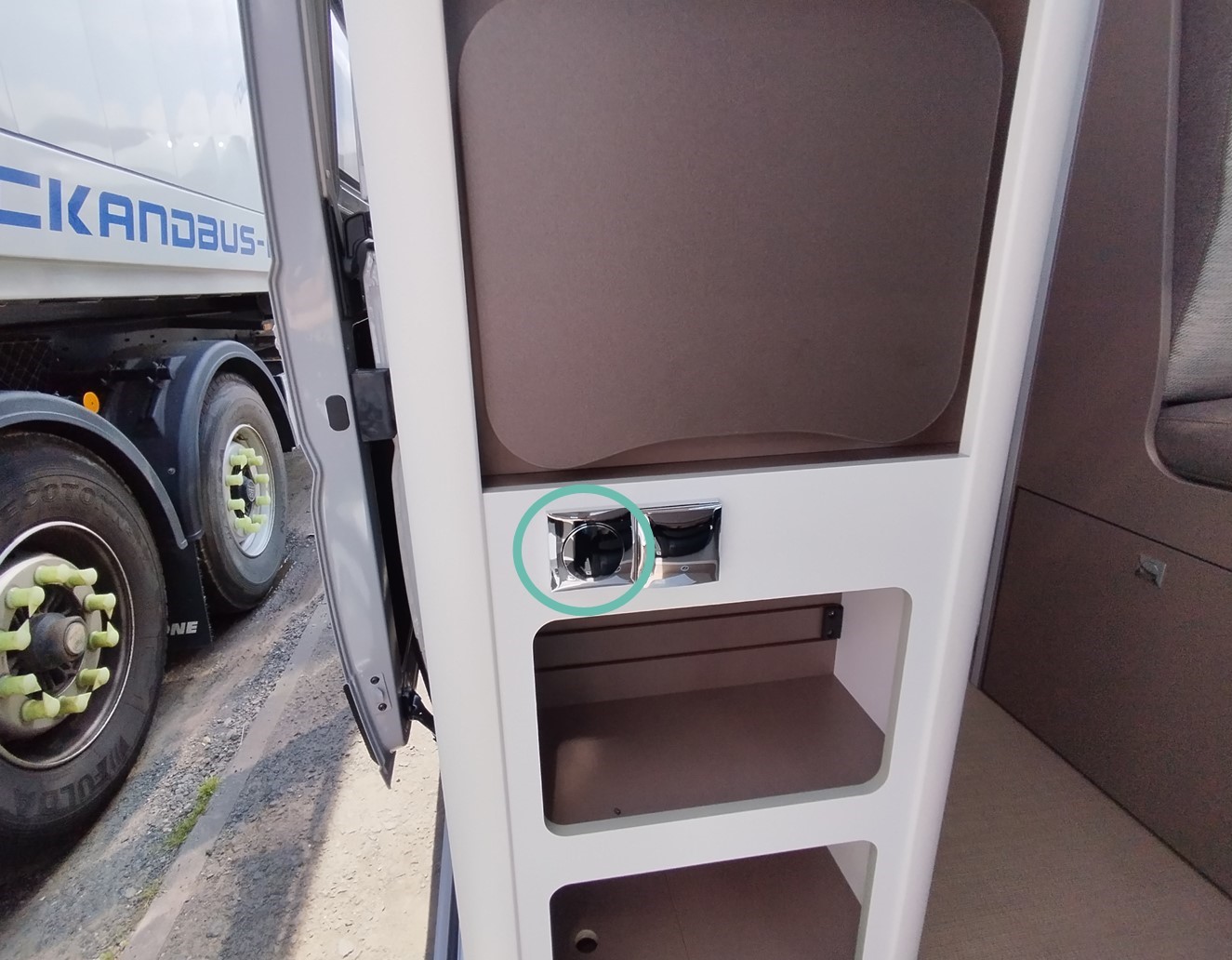

Switch on the Camper Unit at the sliding door to be able to use light and power:

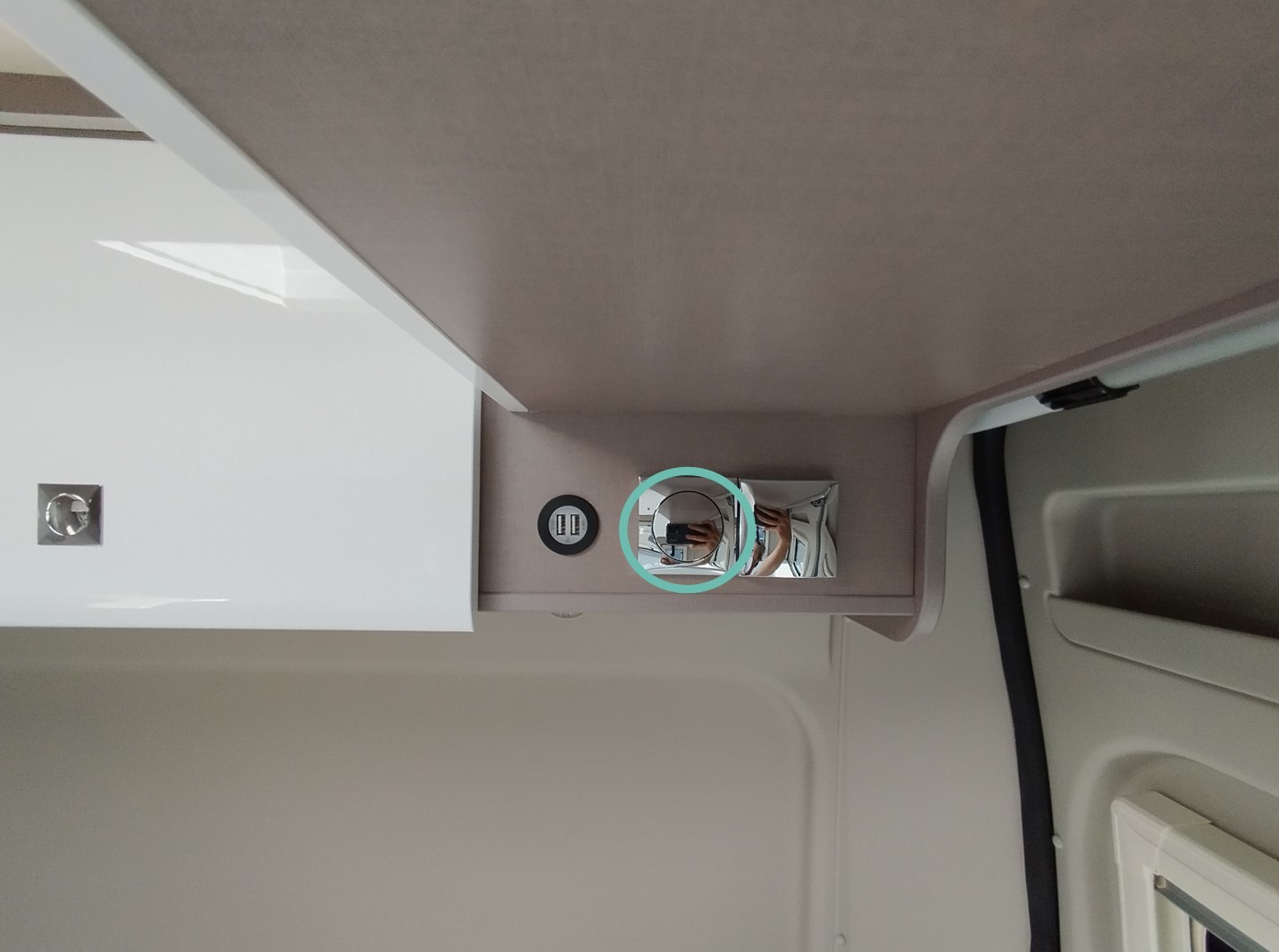

- The light switch for the ceiling lights is on the kitchen unit next to the sliding door:
- The light switches for the lights above the wall cabinets are behind the sink

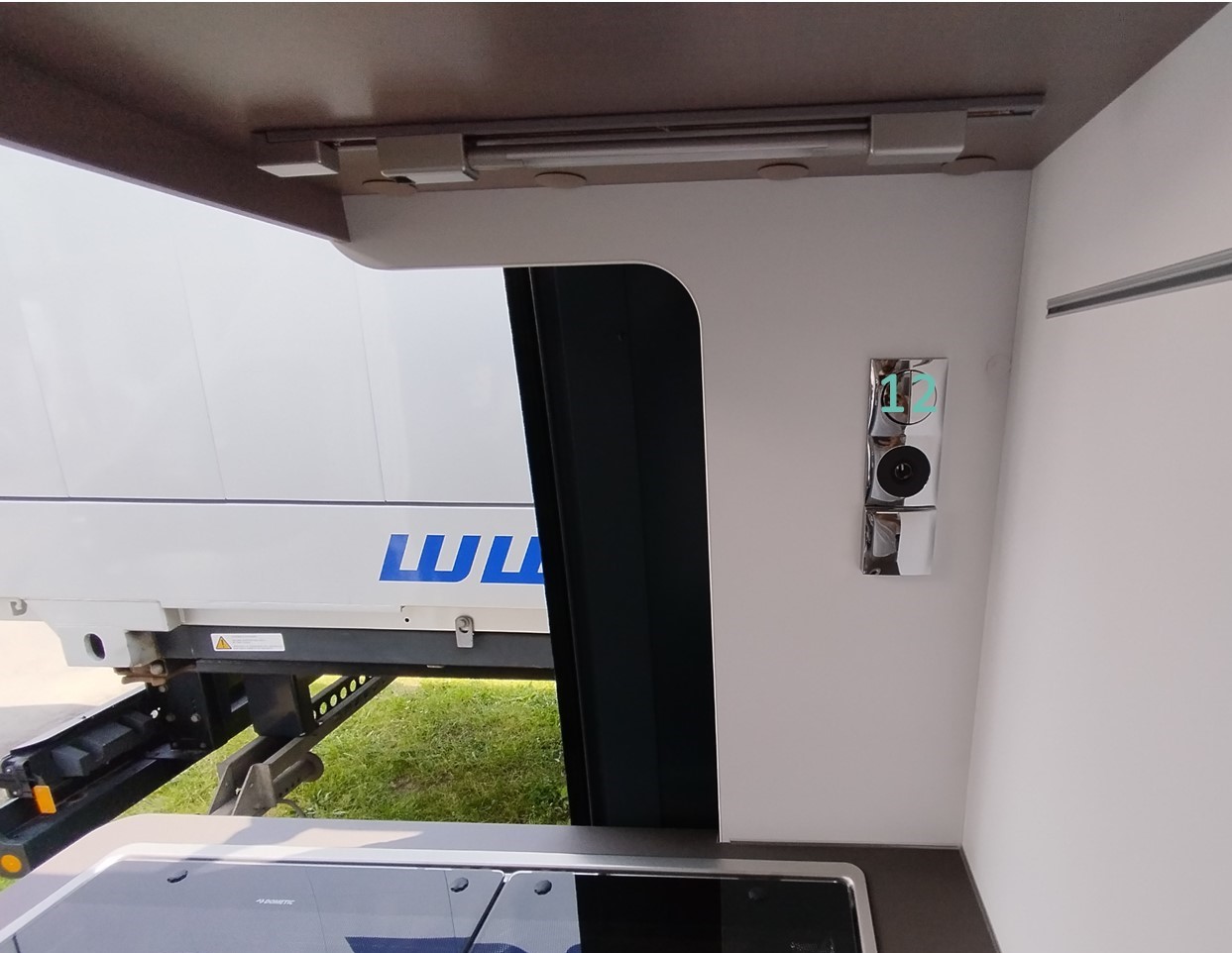

1: living area
2: sleeping area - The light switch for ceiling lights is above the bed:

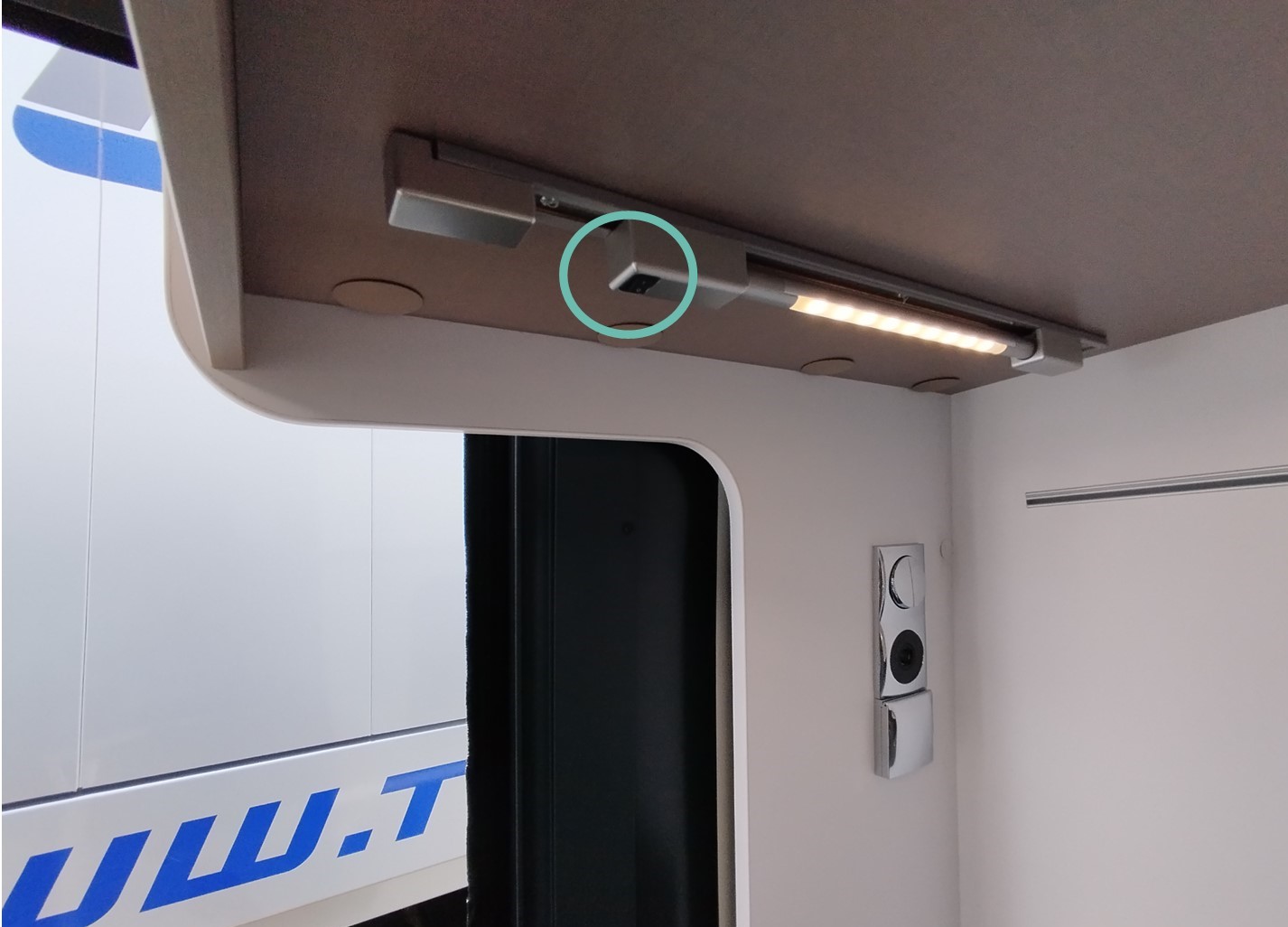

- To activate the light bars, use the switch on the lamp itself:

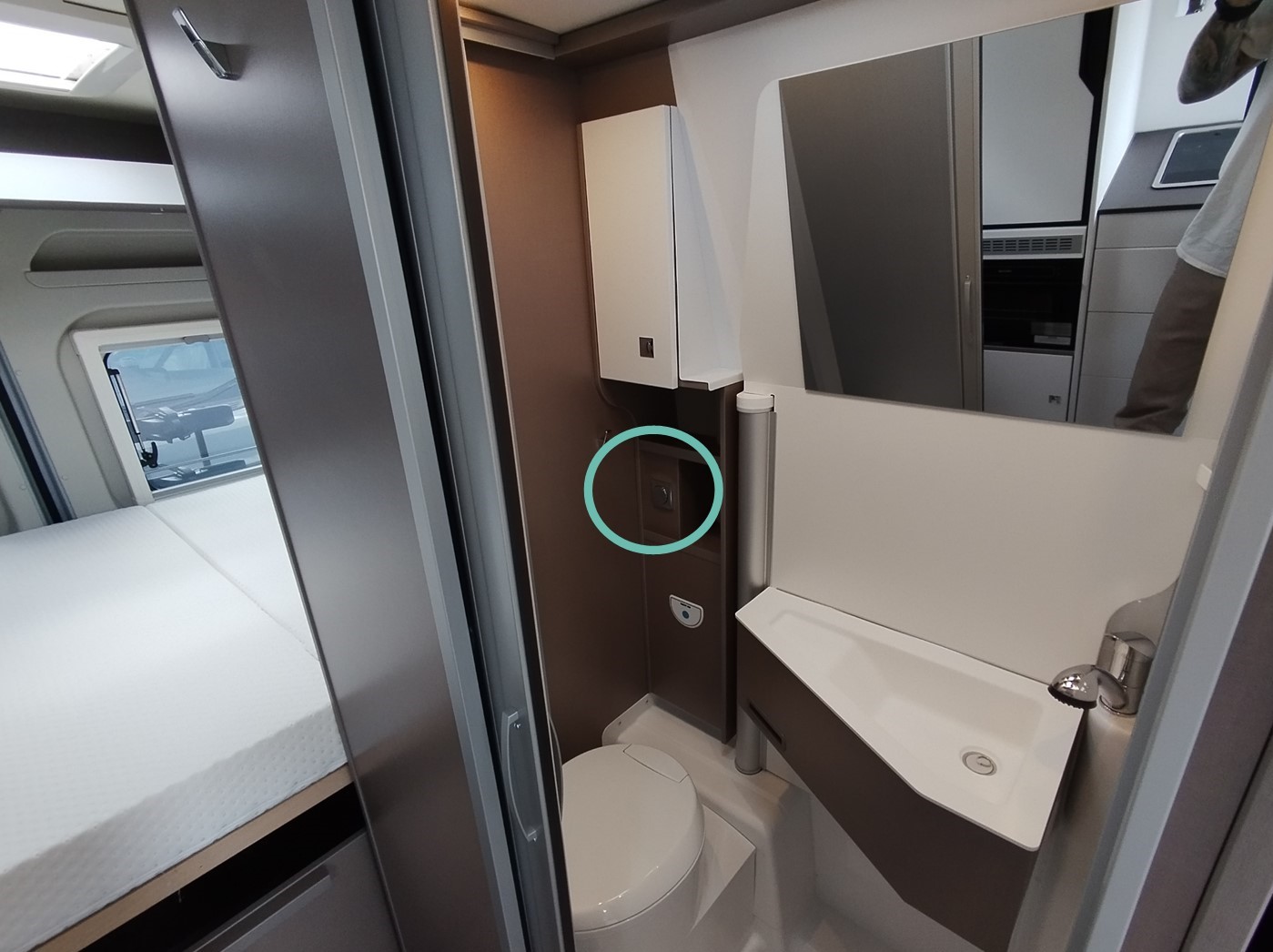

- The switch in the bathroom is for the ceiling light in the bathroom:
There are numerous power sockets and USB ports throughout the vehicle:
- 230V sockets can be found at the entrance next to the light switch, in the kitchen area, above the bed and below the table. These only work when you are connected to external power.
- USB ports (USB Type-B) and 12V sockets can be found in the cockpit, in the kitchen area, above the back seats, above the bed and in the trunk. These also work without an external power connection.
