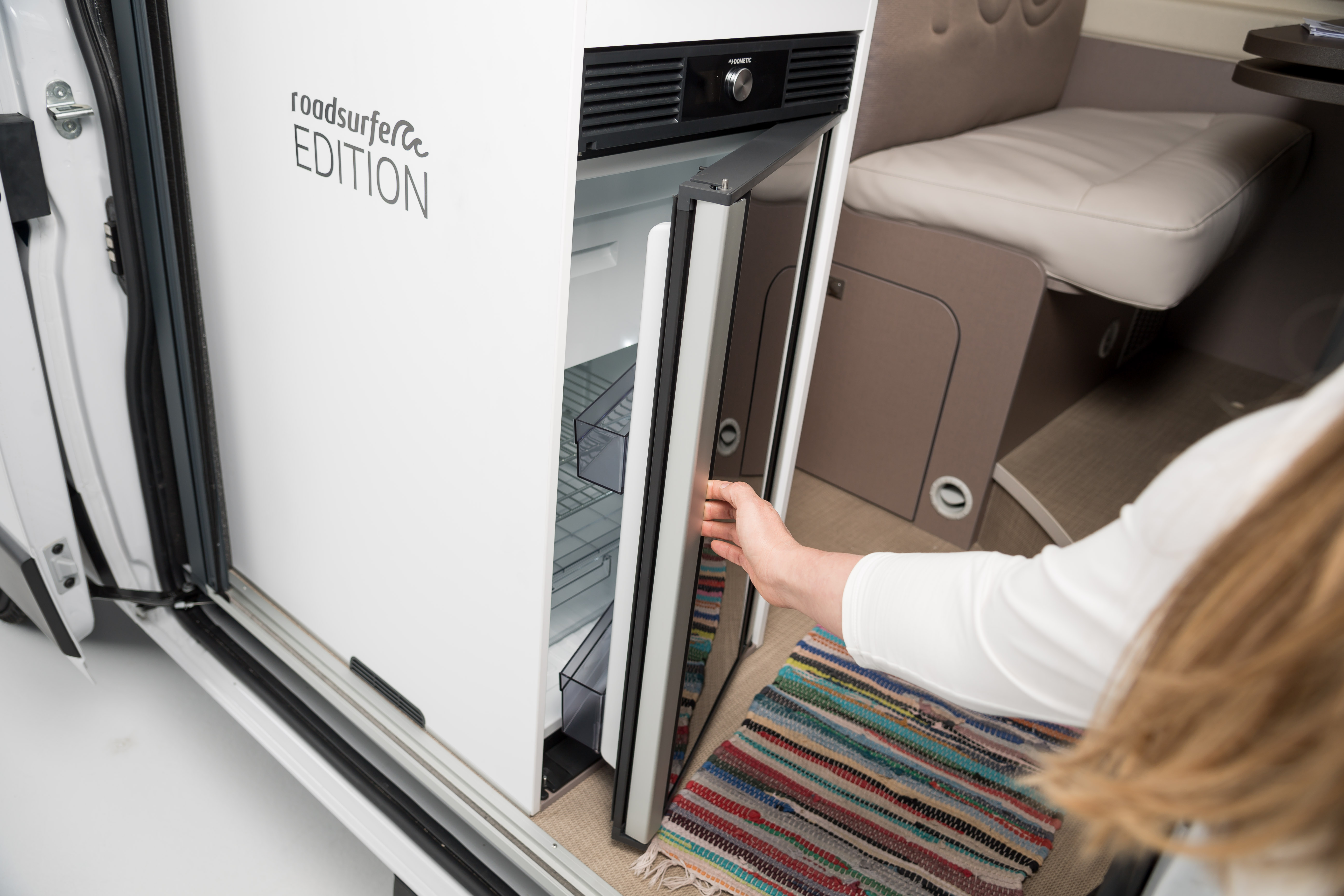

The refrigerator (62L) with small ice compartment is located on the front side of the kitchen unit:

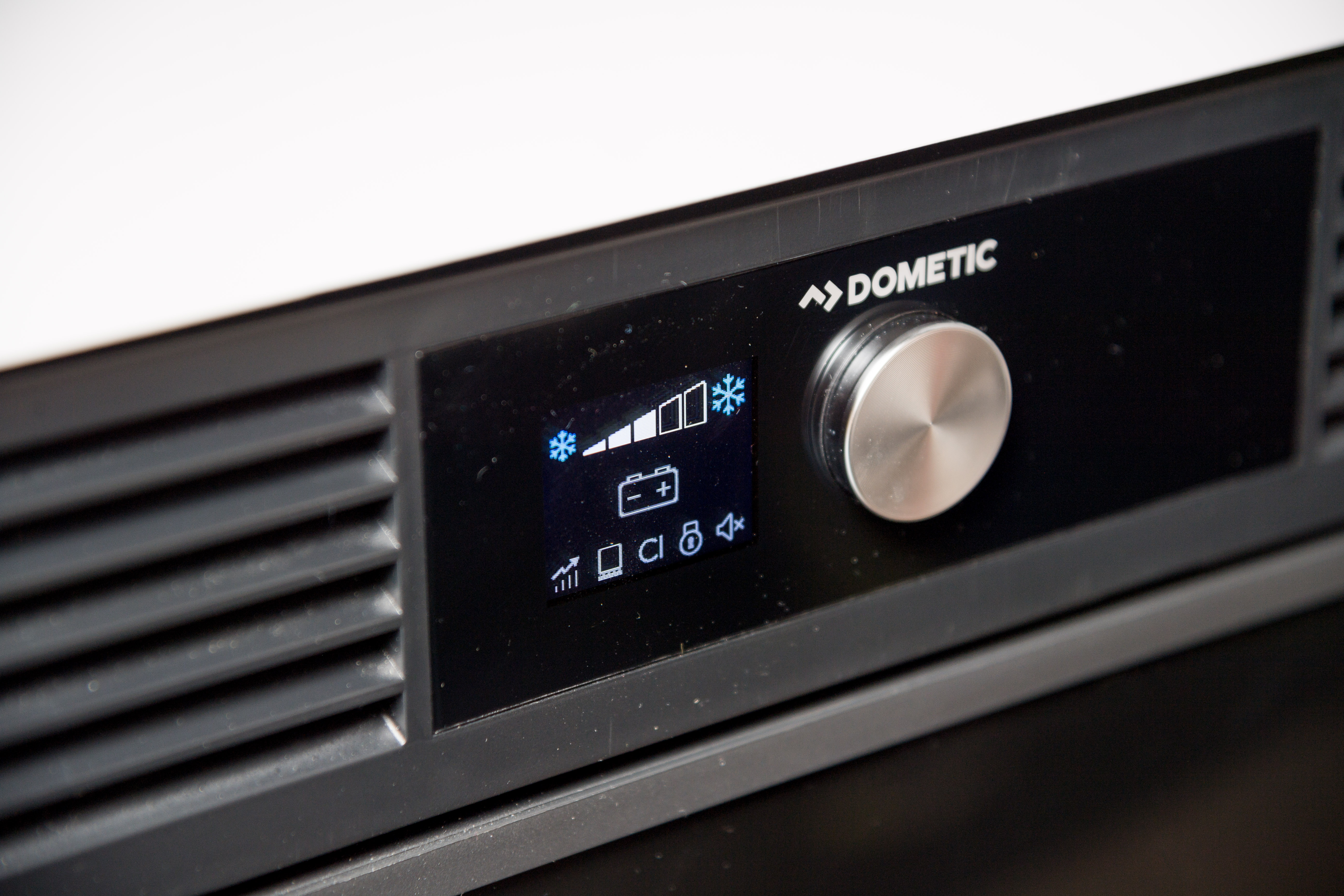

- Press and hold the silver button above the refrigerator door:
- Press the silver button twice and turn it to select the cooling level. We recommend level 3 (7-8°C). Press the silver button once more to confirm the cooling level.
- The door can be opened from both sides. Make sure you always pull from the centre of the handle. If one of the sides does not open properly, check that the opposite side is properly closed and correctly locked into the hinges.
Watch it in the video:
Be a little patient 🥰
Please be aware that it may take a few hours until the fridge is fully cooled down! The warmer the environment is and the more food you put in, the longer it may take.
You can speed up the cooling process by:
- putting food in, that already comes from a fridge
- adding cool-packs/ice-packs
Troubleshooting
If the fridge isn't turning on, make sure you have enough battery. If you do, but it is still not working, start the engine and then try again. This should give the camping battery a push to recharge
If the fridge is still not working, please check if the main Power Switch is switched on = "ein".
If that does not help, we can check if the fridge fuse is damaged or burnt.
Before any fuse is pulled, following safety measures is required:
- Turn off the engine and remove the key from the contact.
- Unplug the car from any external power supply.
- Pull carefully on the fuse by pulling from the sides.

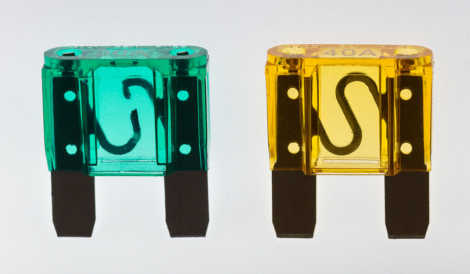

- A damaged fuse can be burnt or have the connector broken (see picture). If so, please replace it. You can find them at petrol stations and hardware stores.

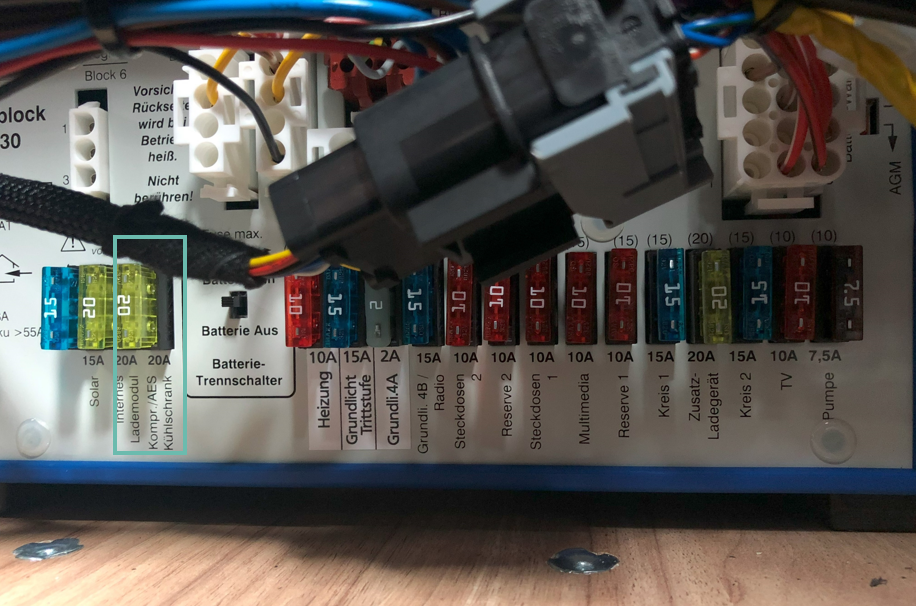

The fuse you are looking for is a 20A fuse, third from the left. Underneath it is marked "Kühlschrank". Check and replace if necessary:
