Here is how to prepare the extra roof bed in Camper Castle (Bürstner Limited T).

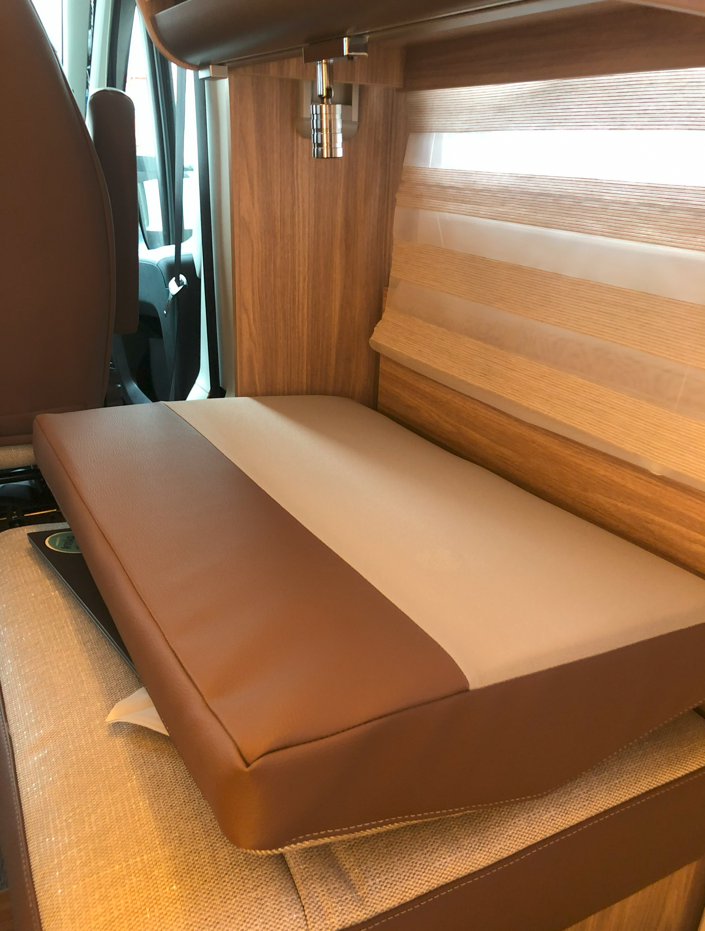

- Place the bench seat cushions flat at the seating area.

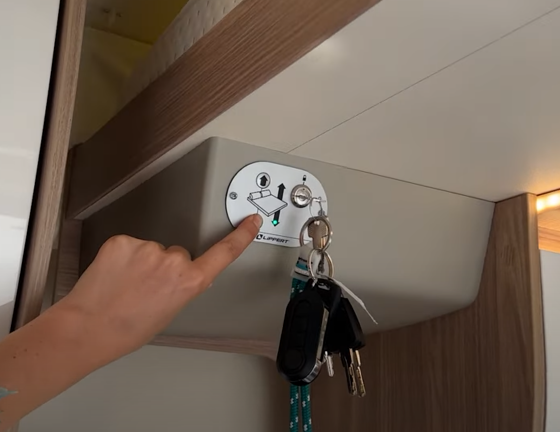

- Activate, with keys that are in your keychain, the buttons below the bed. The button is in the corner next to the kitchen counter.

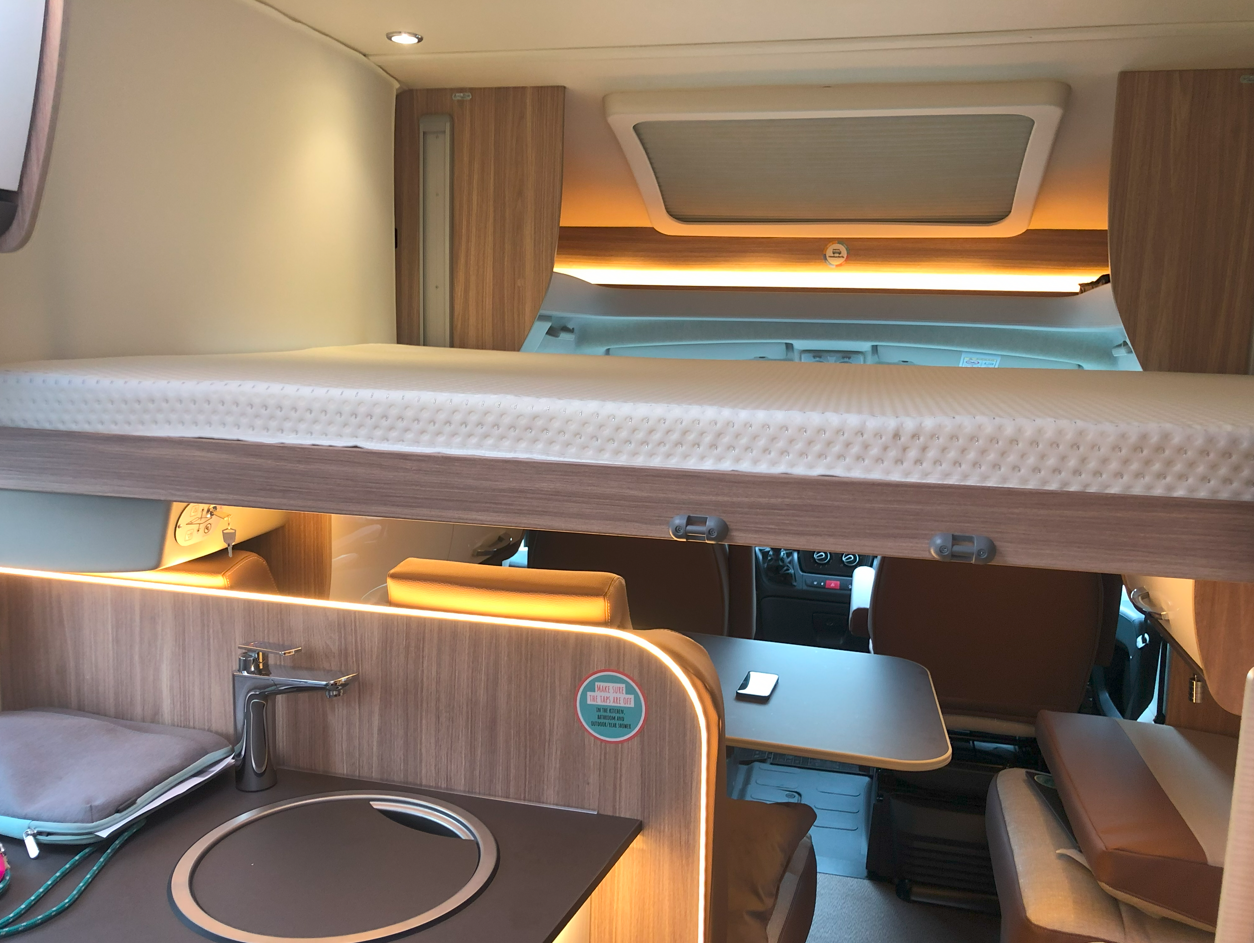

- Then press down ⤵️ until it almost rests on the kitchen counter.
-

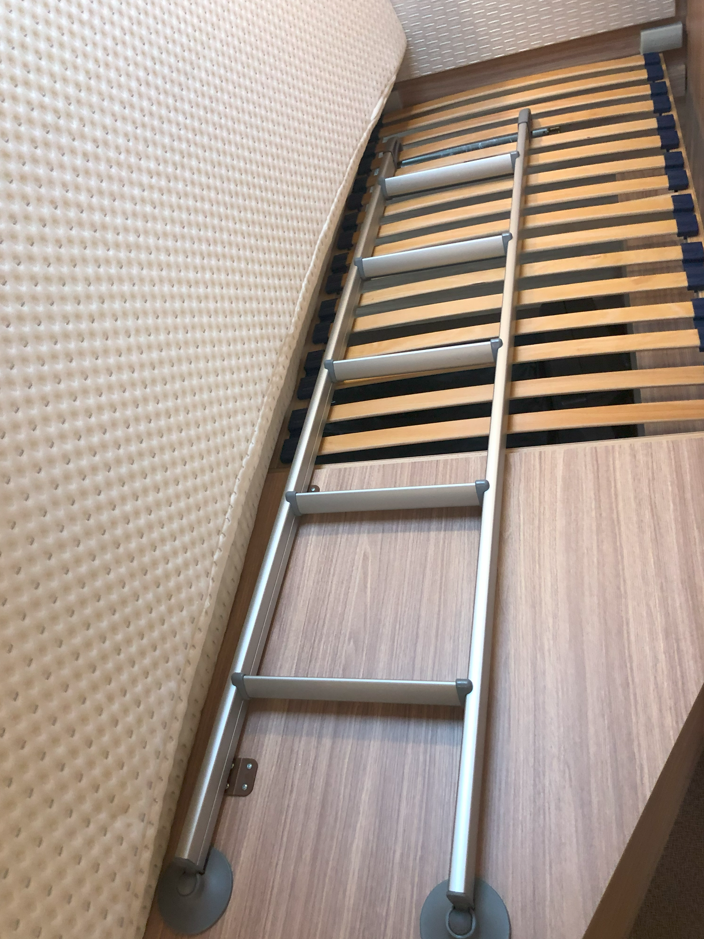

A ladder is stored under the mattress of the back bed. Attach this to the dedicated position.
Click here to see the video on how to operate the bed:
Troubleshooting
If the roof bed doesn't work you can check the following:
- Check if the camper unit is switched on.
- Check that the fuse is not broken. The fuse box is located under the driver's seat, under a cover. You find the fuse (25A) at position 6 = Reserve 3.
Before any fuse is pulled, following safety measures is required:
- Turn off the engine and remove the key from the contact.
- Unplug the car from any external power supply.
- Pull carefully on the fuse by pulling from the sides.

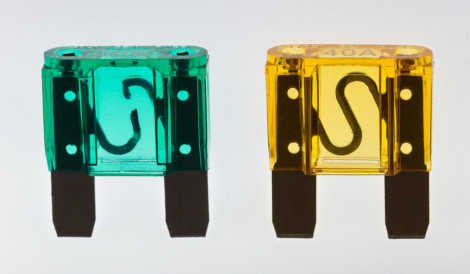

- A damaged fuse can be burnt or have the connector broken (see picture). If so, please replace it. You can find them at petrol stations and hardware stores.
