There is a small difference between the Camper Cabin models, so check which one you are driving and then select the correct instructions from the dropdown menus:
Drawer fridge
To switch on the fridge, follow these steps:

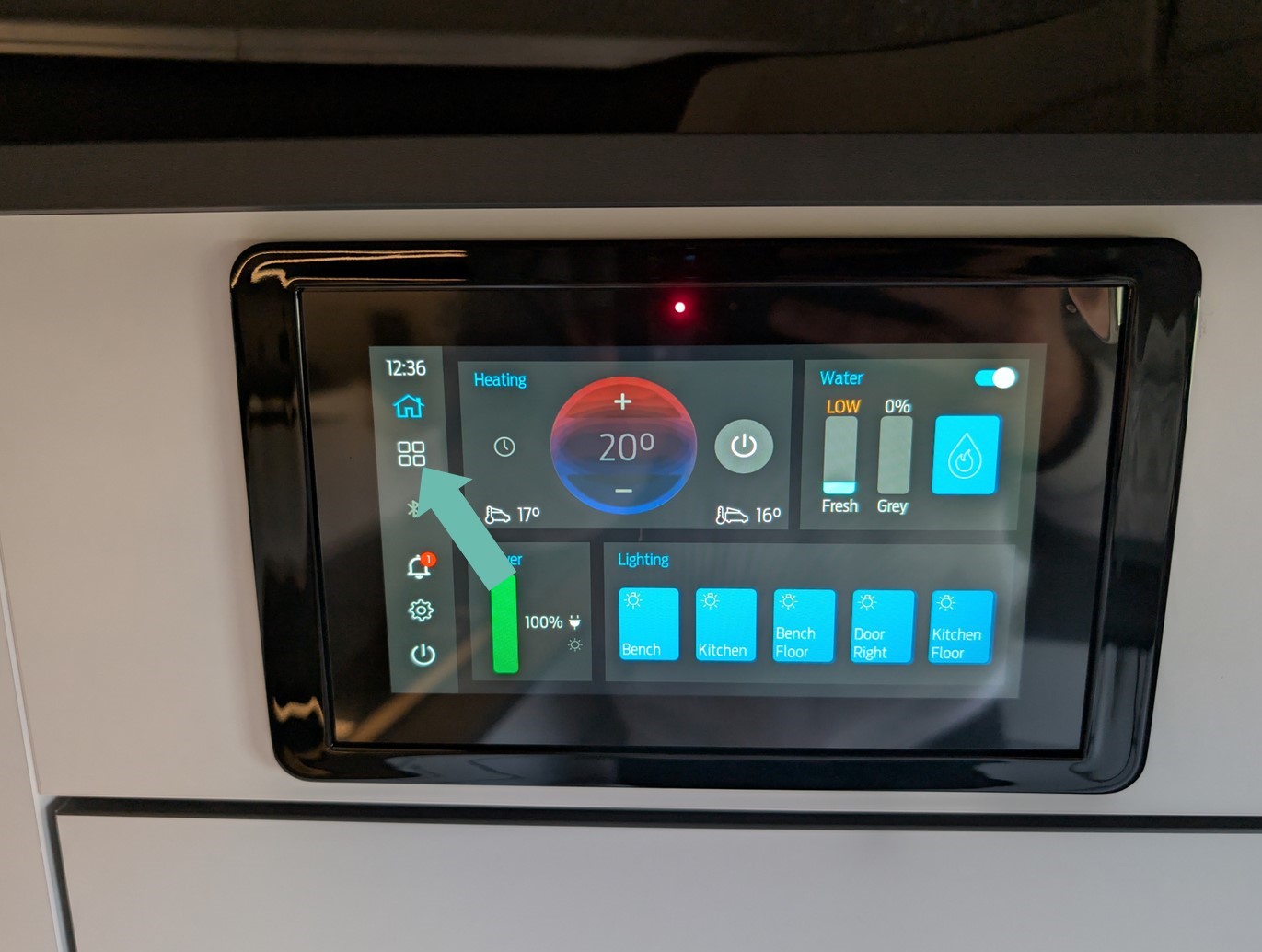

- Activate the control panel by pressing the screen. Then press the widget icon:

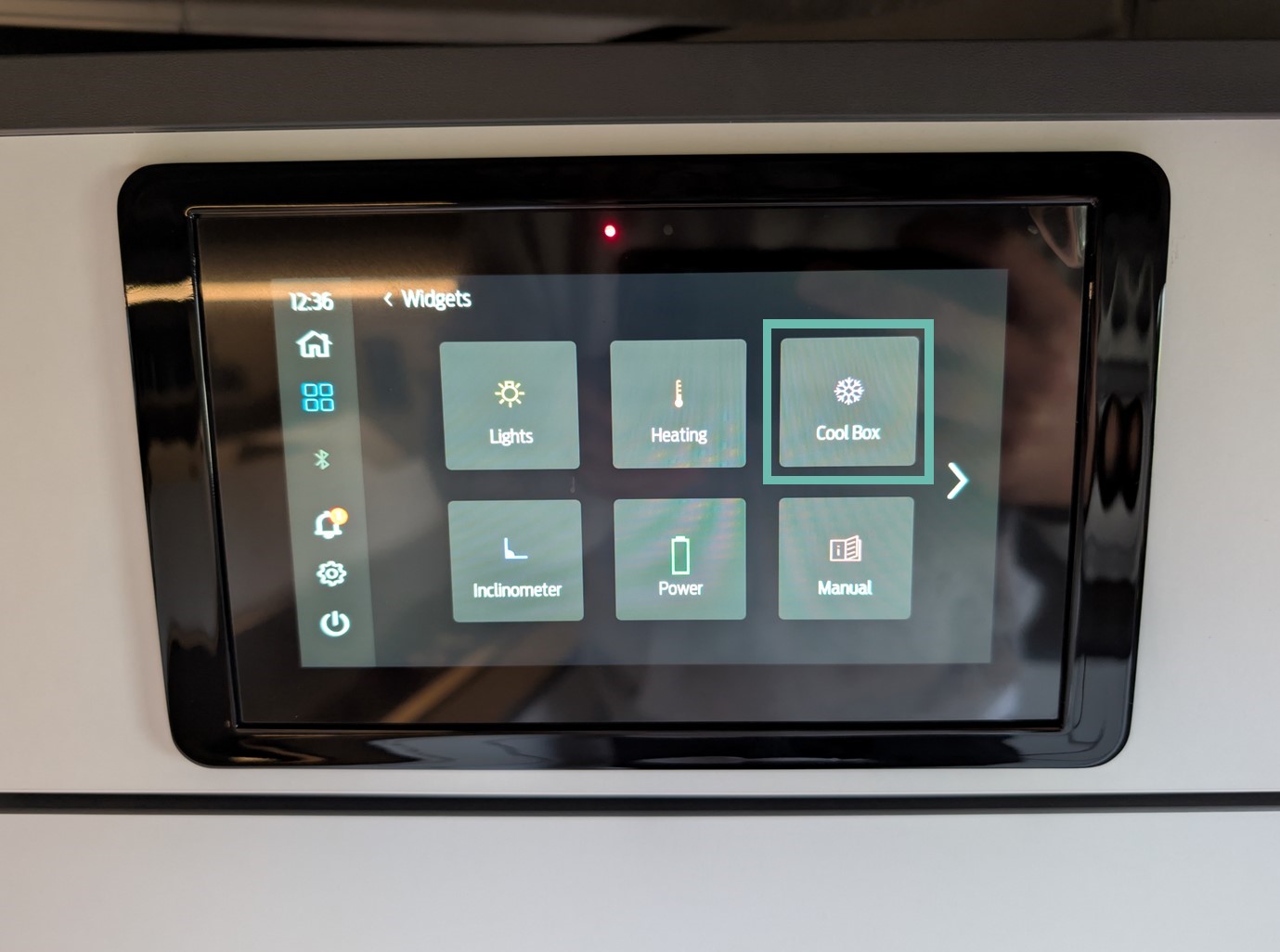

- Select the snowflake:

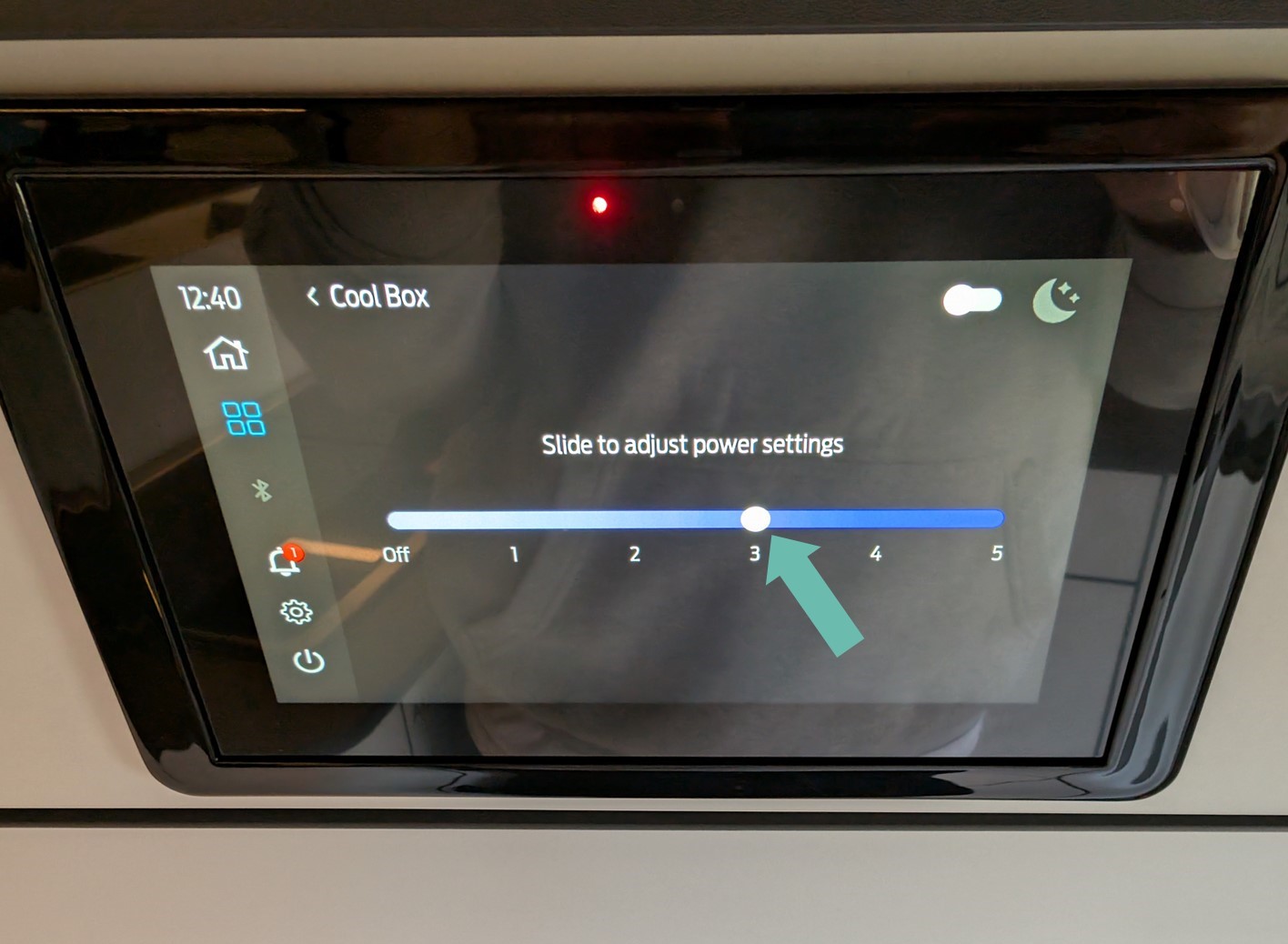

- Move the dot on the cooling level bar to the desired level:
5 is the coldest setting, 1 is the warmest. We recommend level 3 for even cooling.

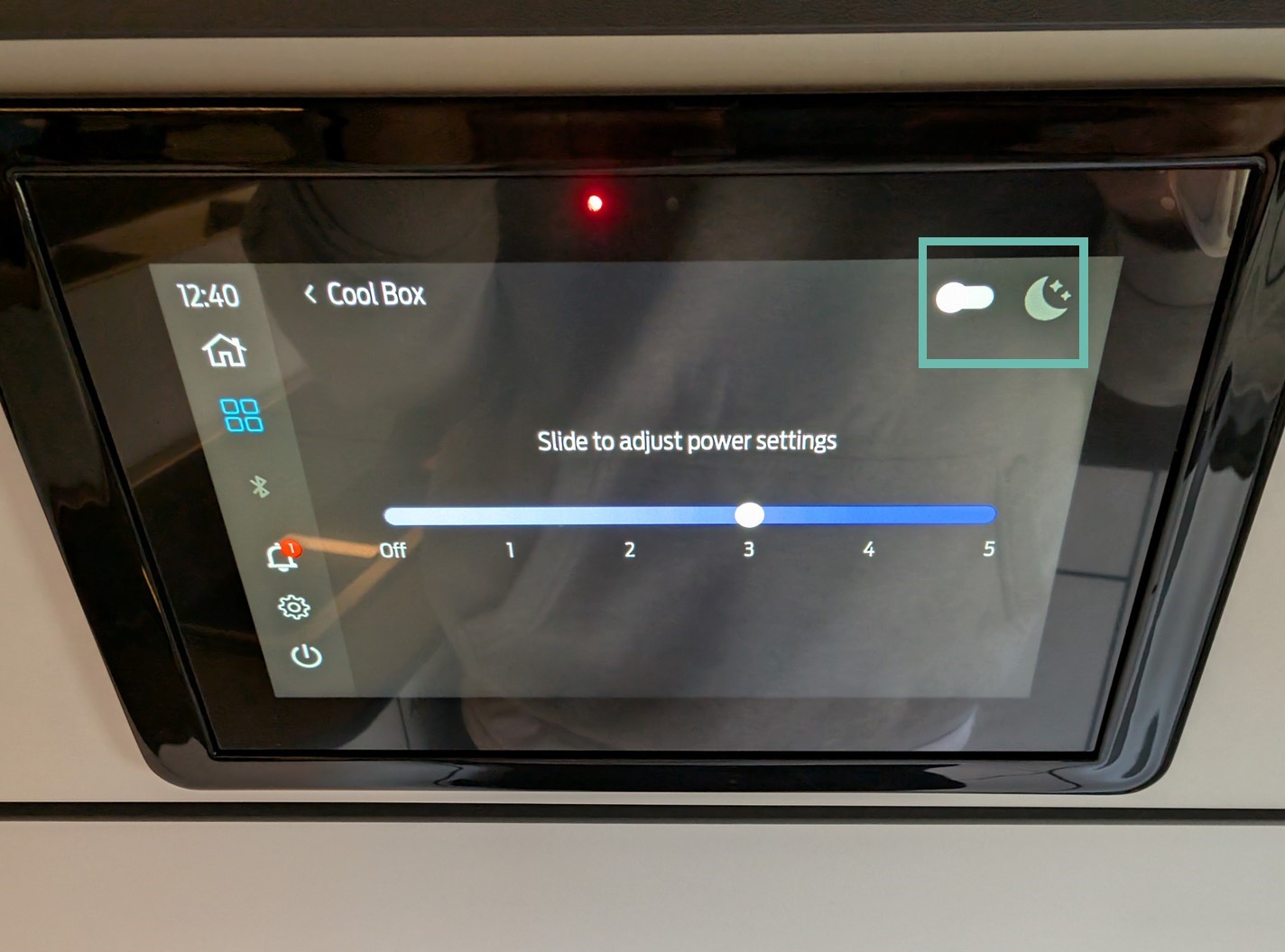

If you activate night mode, the fridge slightly reduces its power and is even quieter at night:
Fridge door on top with camper display at the rear
To switch on the fridge, proceed as follows:

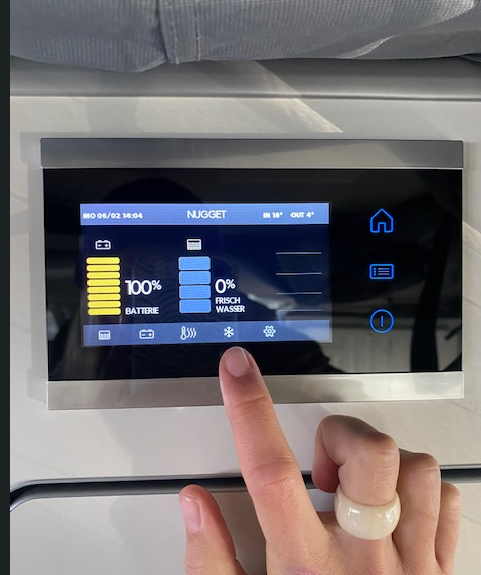

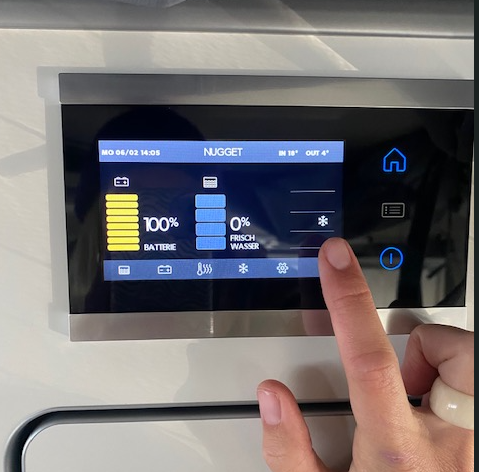

- Switch on the touch display and select the snowflake:
- The menu looks like this when the fridge is off:

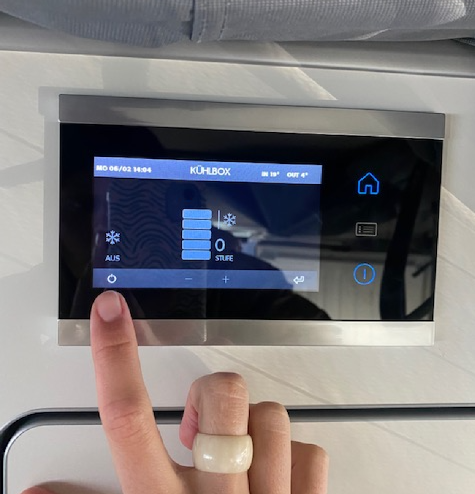

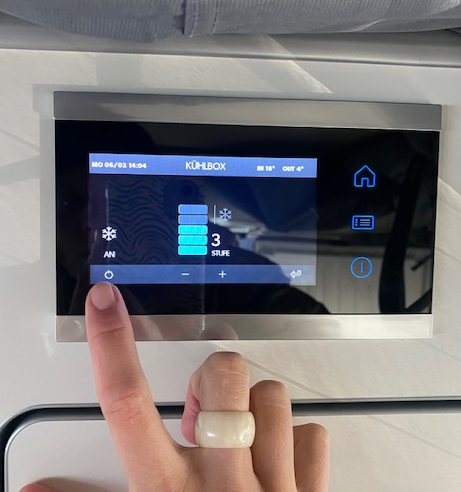

- If you click the small ON/OFF icon at the bottom left, you can switch on the fridge:

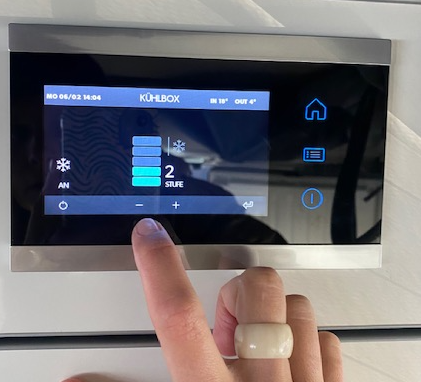

- Select between different cooling levels by pressing “-” or “+”. 5 is the coldest setting, 1 is the warmest. We recommend level 3 for even cooling:
- If you return to the main menu, you will see the snowflake on the right. This means the fridge is now switched on:
Fridge door on top with camper display at the front
To switch on the fridge, proceed as follows:
- Press the black button to open the main menu.
- Turn the wheel until you reach the snowflake symbol, and select it by pressing the black button again.

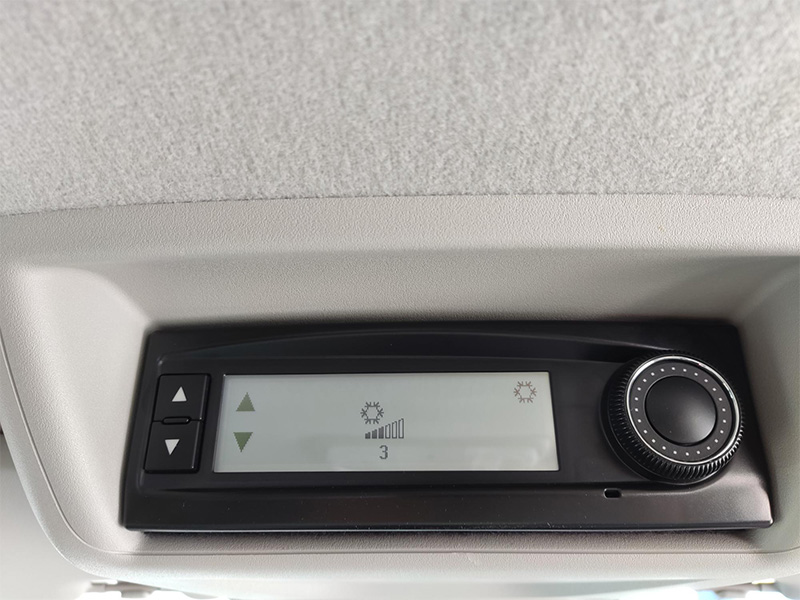

- Use the up and down arrows to switch on the fridge and select the temperature:
Be a little patient 🥰
Please be aware that it may take a few hours until the fridge is fully cooled down! The warmer the environment is and the more food you put in, the longer it may take.
You can speed up the cooling process by:
- putting food in, that already comes from a fridge
- adding cool-packs/ice-packs
Troubleshooting
If the fridge in the Camper Cabin (Ford Nugget) is not working, here are some tips that may help you:
- Switch on the fridge via the control panel. Make sure the leisure battery in the vehicle is sufficiently charged.
- Let it cool down until the desired temperature is reached. This can take up to 30 minutes.
- Do not fill it completely, otherwise the process will take longer.
- To reset the fridge, follow the instructions below (not for models with drawer fridge):
Before any fuse is pulled, following safety measures is required:
- Turn off the engine and remove the key from the contact.
- Unplug the car from any external power supply.
- Pull carefully on the fuse by pulling from the sides.

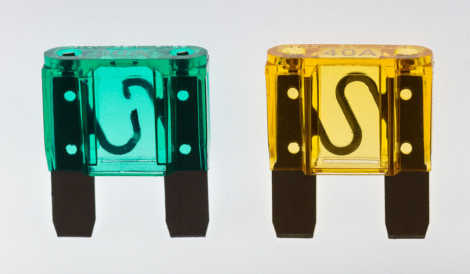

- A damaged fuse can be burnt or have the connector broken (see picture). If so, please replace it. You can find them at petrol stations and hardware stores.
- Switch off the main power using the large red switch.
- Push the circuit breaker down to the "Off" position.
- Remove the plastic cover from the fuses.
- Carefully pull out the fuses:

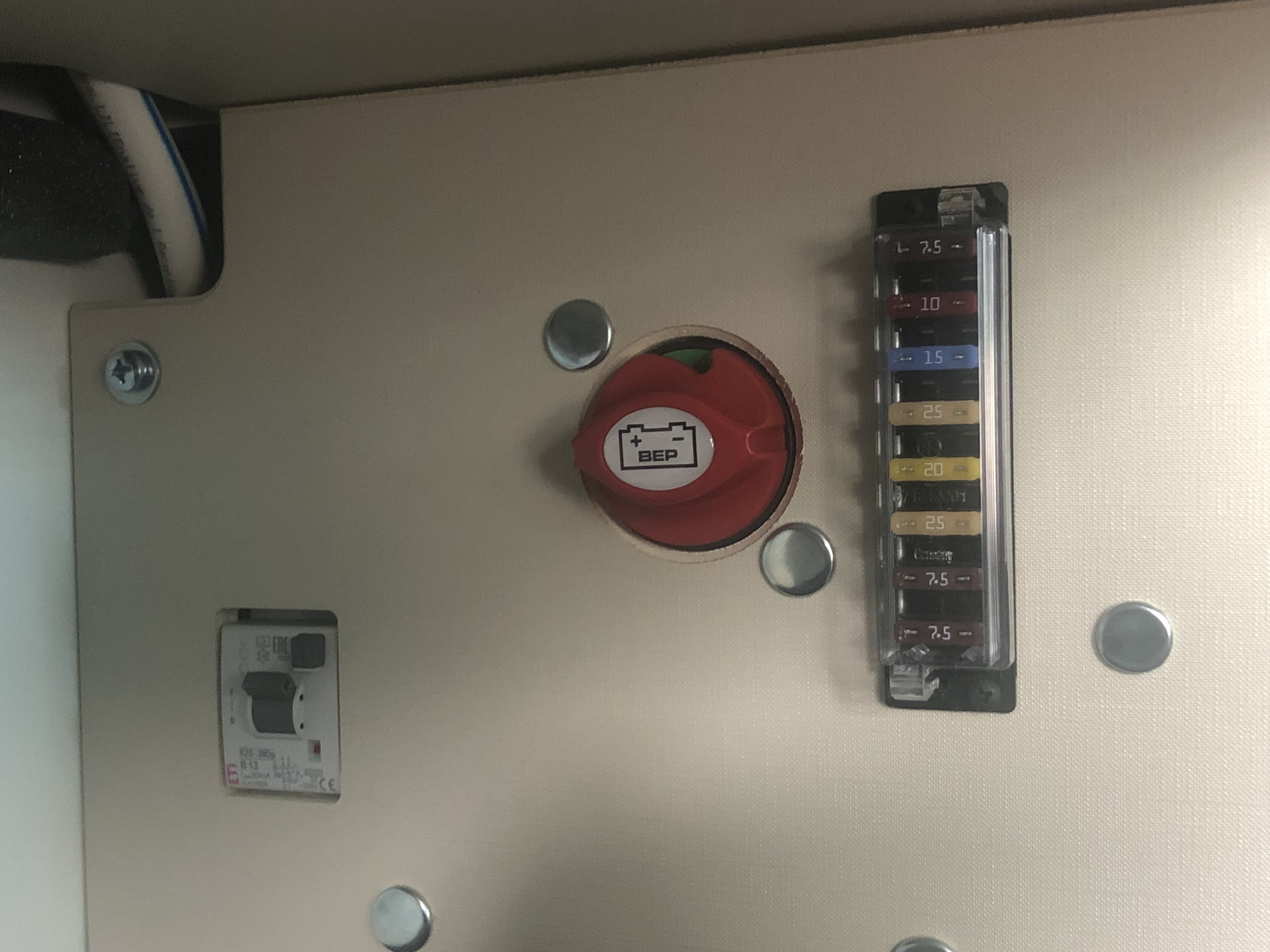

- If your camper display is at the rear, remove the third fuse from the top, in the picture it is a blue 15A fuse:

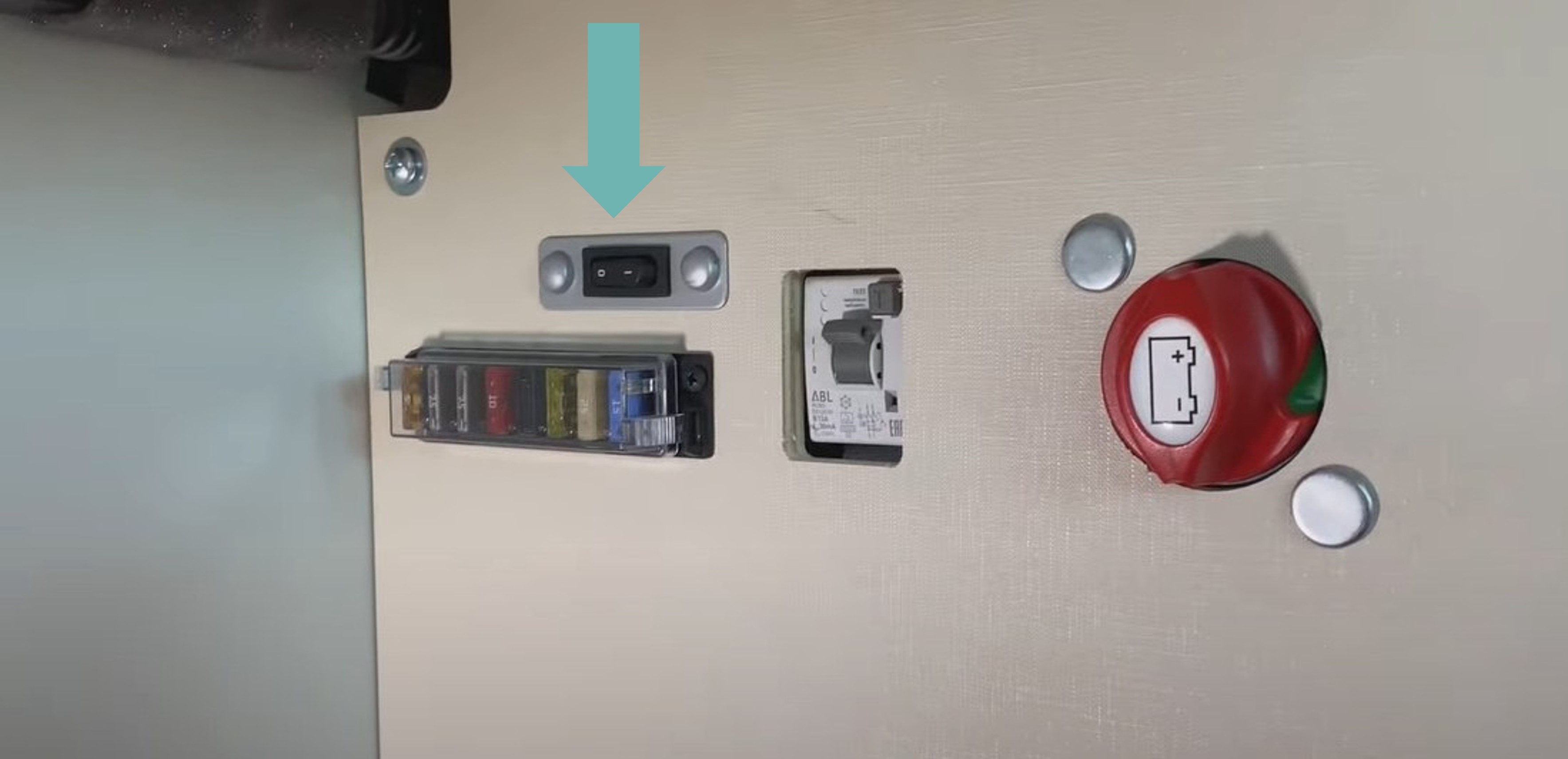

- If your camper display is at the front, remove the sixth fuse from the left, in the picture a blue 15A fuse:
- The model with the drawer fridge has NO accessible fuses.
- If your camper display is at the rear, remove the third fuse from the top, in the picture it is a blue 15A fuse:
- If the fuse is damaged, replace it with one of the same amperage. If not, put it back in the same place and position and restore the power supply. Drive the vehicle for a while to complete the reset.
The fridge should now work again. If not, please contact our support team for further assistance.
