To change the gas bottle (2.75 kg) in the Camper Cabin (Ford Nugget), several steps must be followed to ensure safe handling. First, check which version you are driving, then follow the steps in the corresponding dropdown list:
Drawer Refrigerator

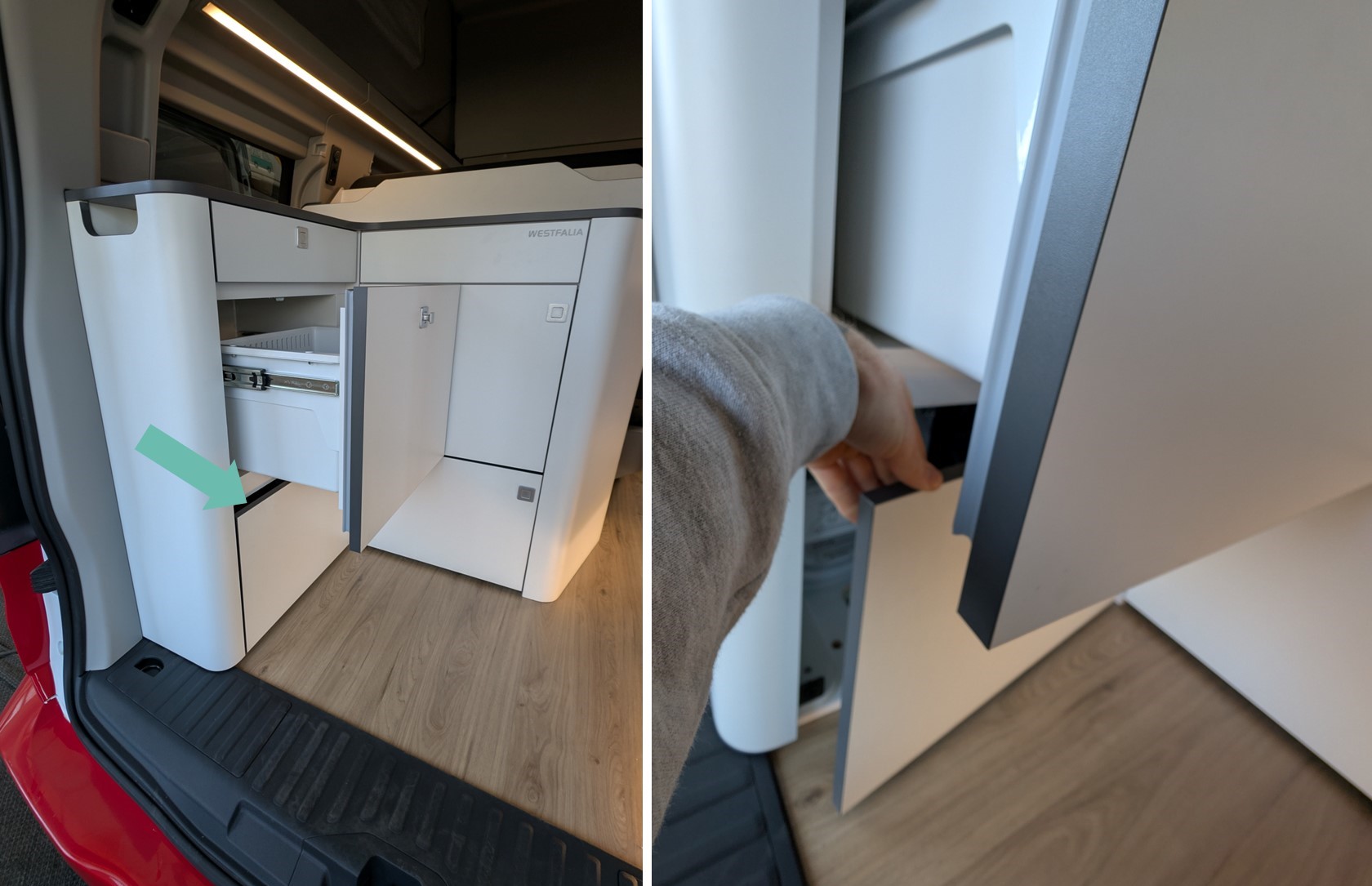

- The gas bottle is located in the compartment under the refrigerator. To access it, open the refrigerator far enough so you can reach into the door below to open it:

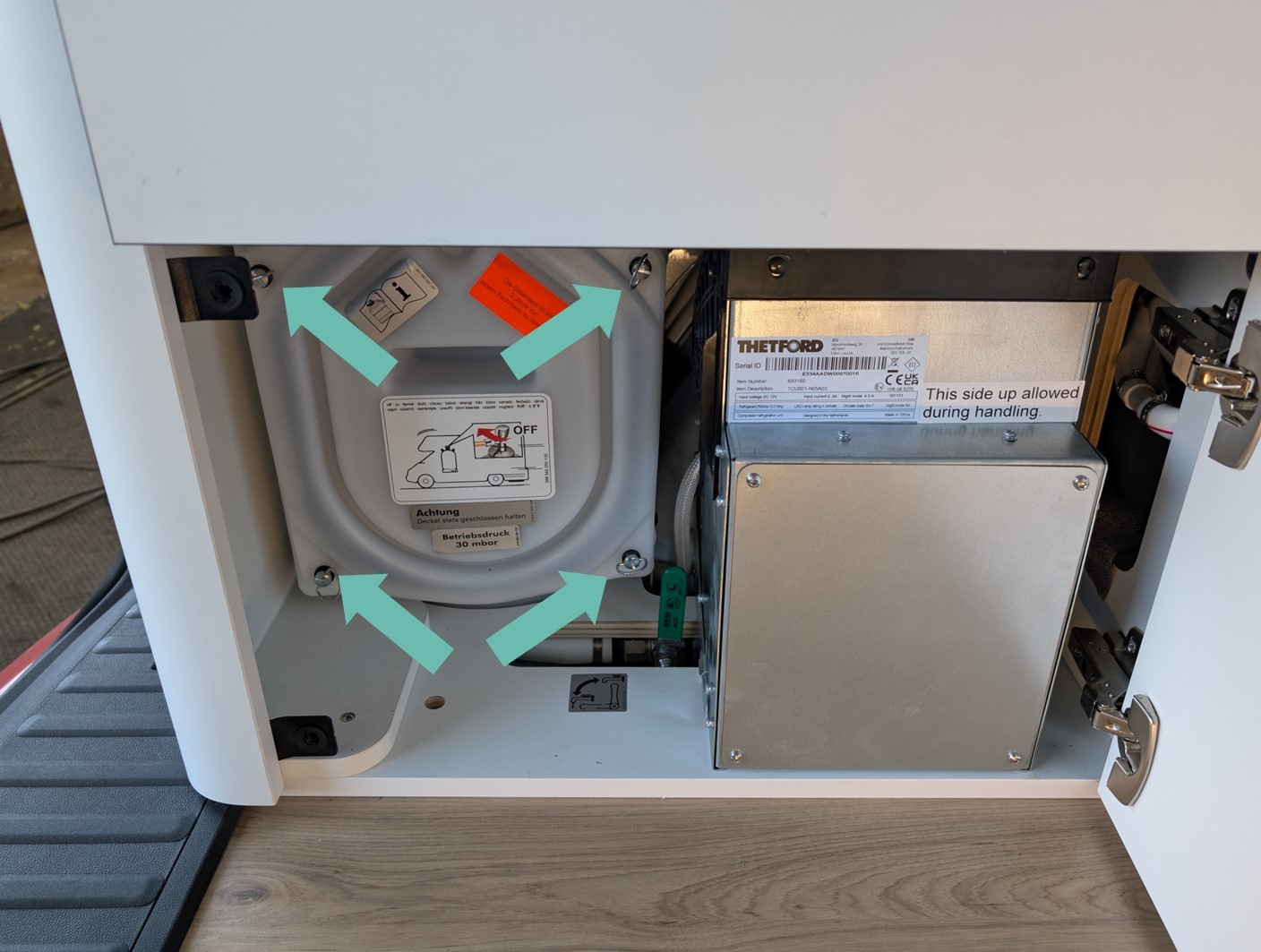

- Loosen all four screws and remove the plastic cover:

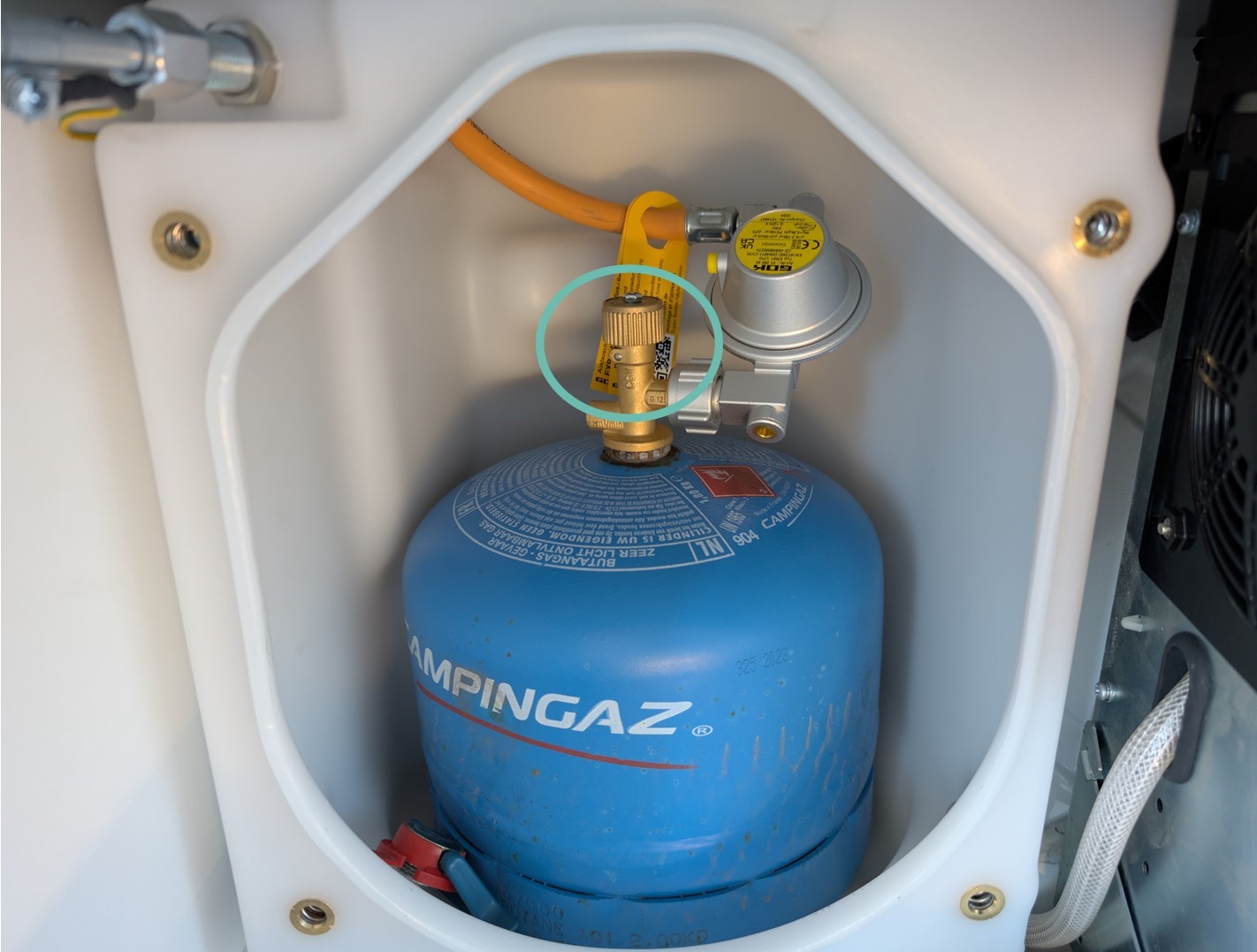

- Turn the golden valve to close to the “-” symbol:
- Loosen the straps around the gas bottle.
- Disconnect the gray metal connector from the gas bottle.
- Remove the bottle from the compartment.
- Remove the brass-colored adapter and screw it onto the new bottle
- Place the new bottle in the compartment and attach it to the pipe with the connector. Make sure it is properly and securely seated.
Top Refrigerator Door with Camper Display at the Rear

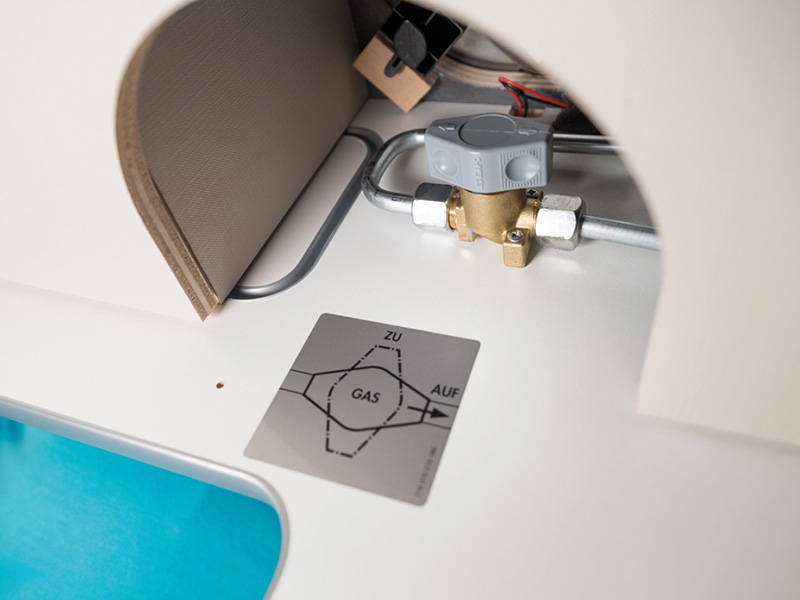

- Close the safety lever in the kitchen unit:
- Lift the cushion or board of the sleeping bench and remove it.

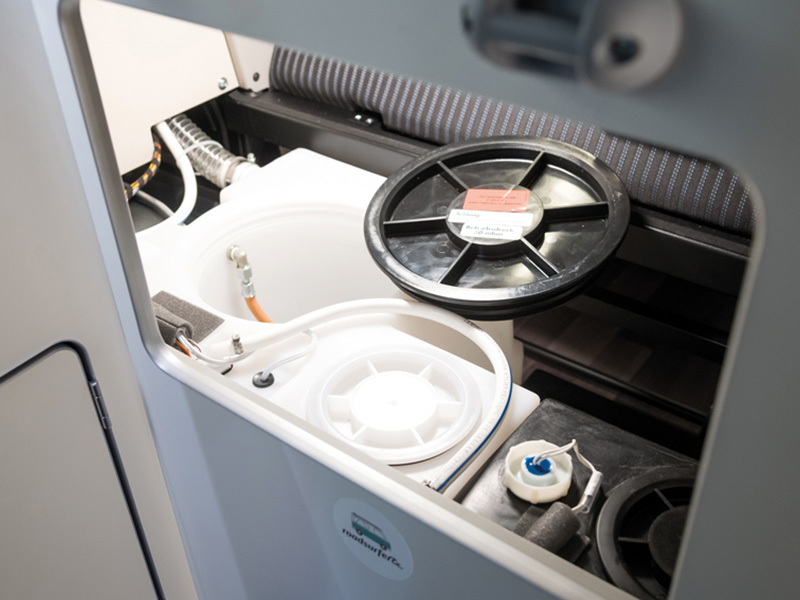

- Open the black screw cap. The gas bottle compartment is now accessible:
- Turn the gas valve all the way to “-” to close the gas bottle:
- Loosen the straps around the gas bottle.
- Disconnect the gray metal connector from the gas bottle.
- Remove the bottle from the compartment
- Remove the brass-colored adapter and screw it onto the new bottle
- Place the new bottle in the compartment and attach it to the pipe with the connector. Make sure it is properly and securely seated
Top Refrigerator Door with Camper Display at the Front
- Close the safety lever in the kitchen unit:
- Lift the cushion or board of the sleeping bench and remove it.

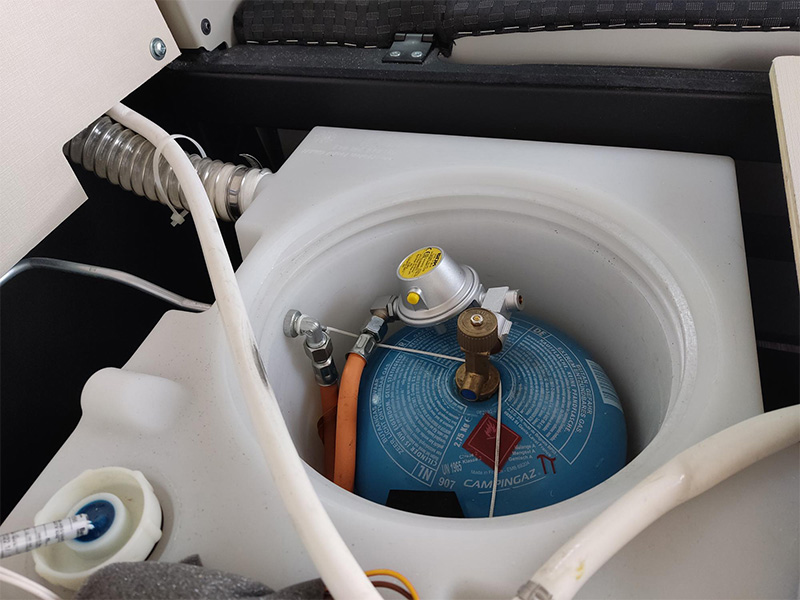

- Open the black screw cap. The gas bottle compartment is now accessible:
- Turn the gas valve all the way to “-” to close the gas bottle:
- Loosen the straps around the gas bottle.
- Disconnect the gray metal connector from the gas bottle.
- Remove the bottle from the compartment
- Remove the brass-colored adapter and screw it onto the new bottle
- Place the new bottle in the compartment and attach it to the pipe with the connector. Make sure it is properly and securely seated
Here you can find more information on the topic: What to do if the gas bottle is empty?
